Finalizing everything!

Discussion in 'Pyra News' started by EvilDragon, Apr 23, 2016.

  1. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,444
    Location:
    Ingolstadt
    Whew, what a busy week!
    I didn't even find the time to post what happened during the days, so you'll get a huge newspost update here!

    1. Finalizing the case

    During the last two weeks, the last missing parts of the plastic case have arrived: The stylus and stylus holder as well as the nubs and the DPad.
    The only thing missing now is the metal frame for the logo, but that will have to wait until early May.

    Just as a reminder (or in case you didn't know): This case is a first physical test with the real plastic molds.
    It is not intended to be perfect yet (and it isn't), so now the company will start to work on tweaking the small details.

    You want to know more about that?
    Read the spoiler!

    For example, the shoulder buttons are too wobbly and don't even reach the button.

    Why is that?
    Simple: A mold is a negative of a case (which is logical, as the plastic is being injected in there), so making a peg LONGER (like the one on the shoulder buttons to actually reach the switch on the PCB) is easy. You just need to remove a bit more steel.
    However, if a peg is too long, it's hard to shorten it in the mold, as it means you need to fill it up with steel.

    As things like the shoulder buttons need VERY exact measurements, the best way to achieve that is to make the peg to short, measure how much is missing and drill some more steel.

    And that's what they'll do now. Measure, drill and tweak until everything is fitting perfectly!

    So how well does the case work?

    Overall, I'm pretty happy so far.
    The nub discs work perfectly, and even though the nubs themselves are a bit noisy (you can sometimes hear the springs moving inside), they feel great and moving the mouse is just awesome!

    Every key of the keyboard is easily reachable, thanks to the rounded corners, the Pyra is comfortable to hold, the DPad works great.
    I can't wait until all the tweaks have been finished.

    What's great is that you can easily unscrew and open all parts. You can access the LCD and display board without the need to open the base part and vice versa.
    It's very repairable and moddable, which is great!

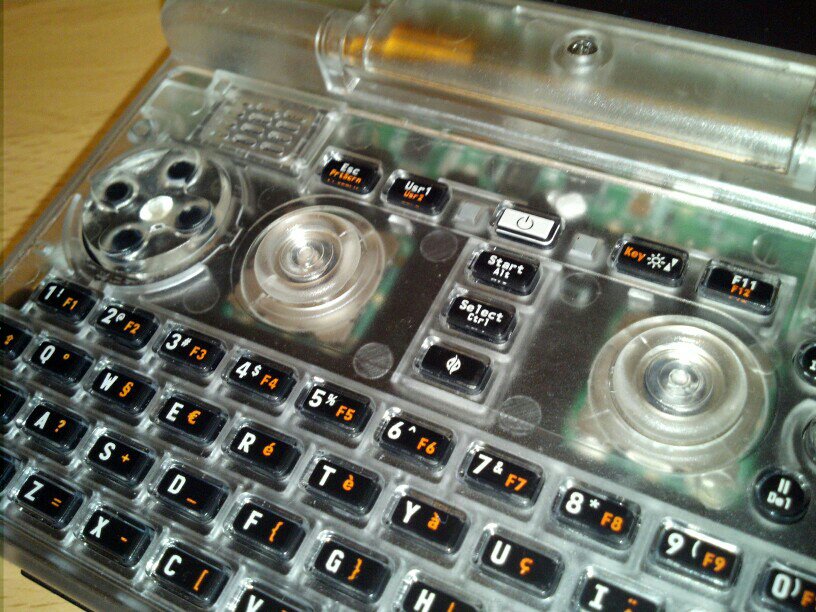

    Here's a picture of the DPad and nubs, in case you haven't seen it on Twitter yet:


    2. Finalizing the LCD Cable

    The current LCD cable works fine but it is too short and therefore damage to the cable will happen eventually.

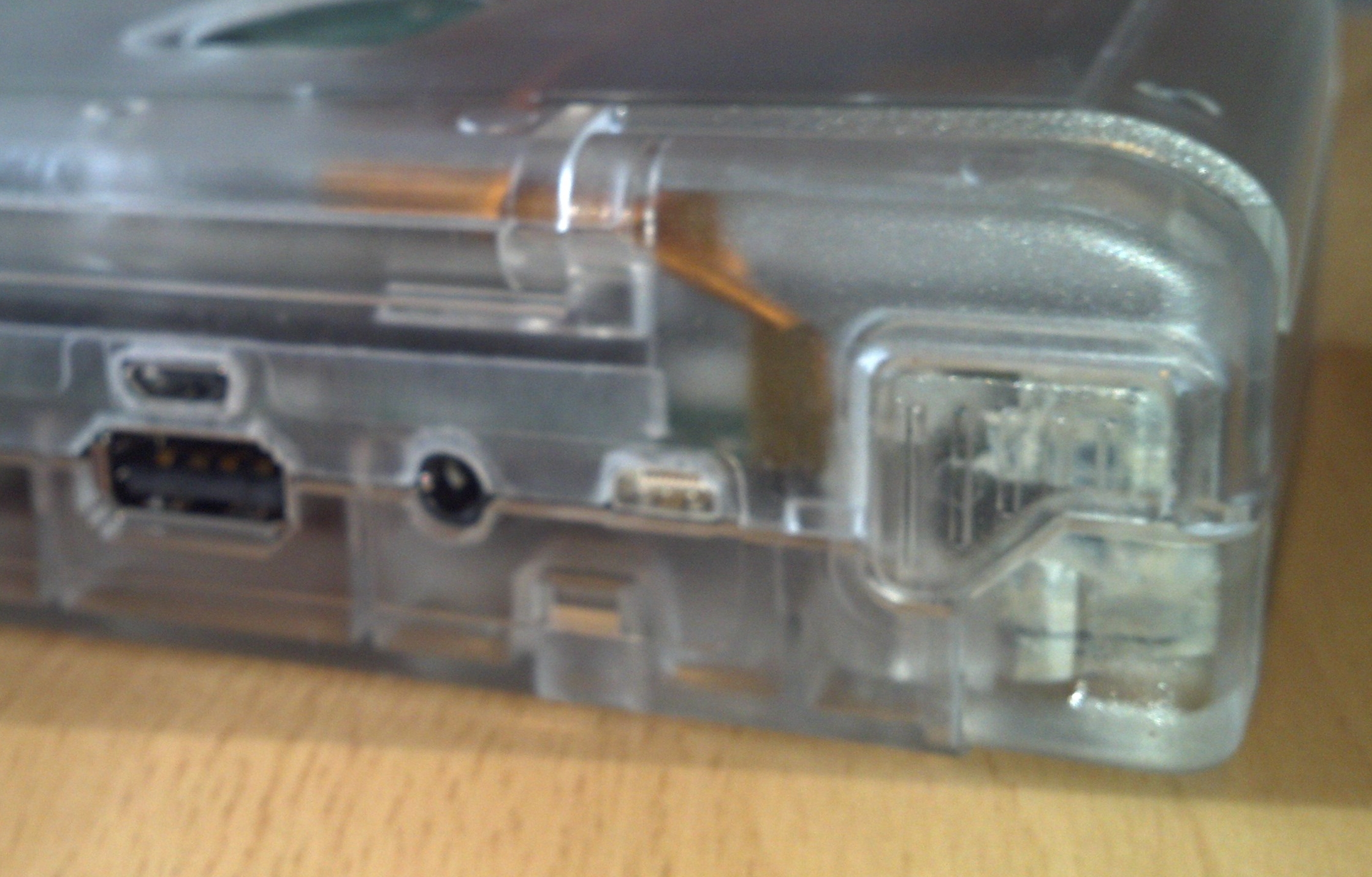

    You can clearly see that on the picture (and now you know what a transparent case is useful for!)


    Now that we got the real case, we could create some more paper dummys and finalize the LCD cable design as well.

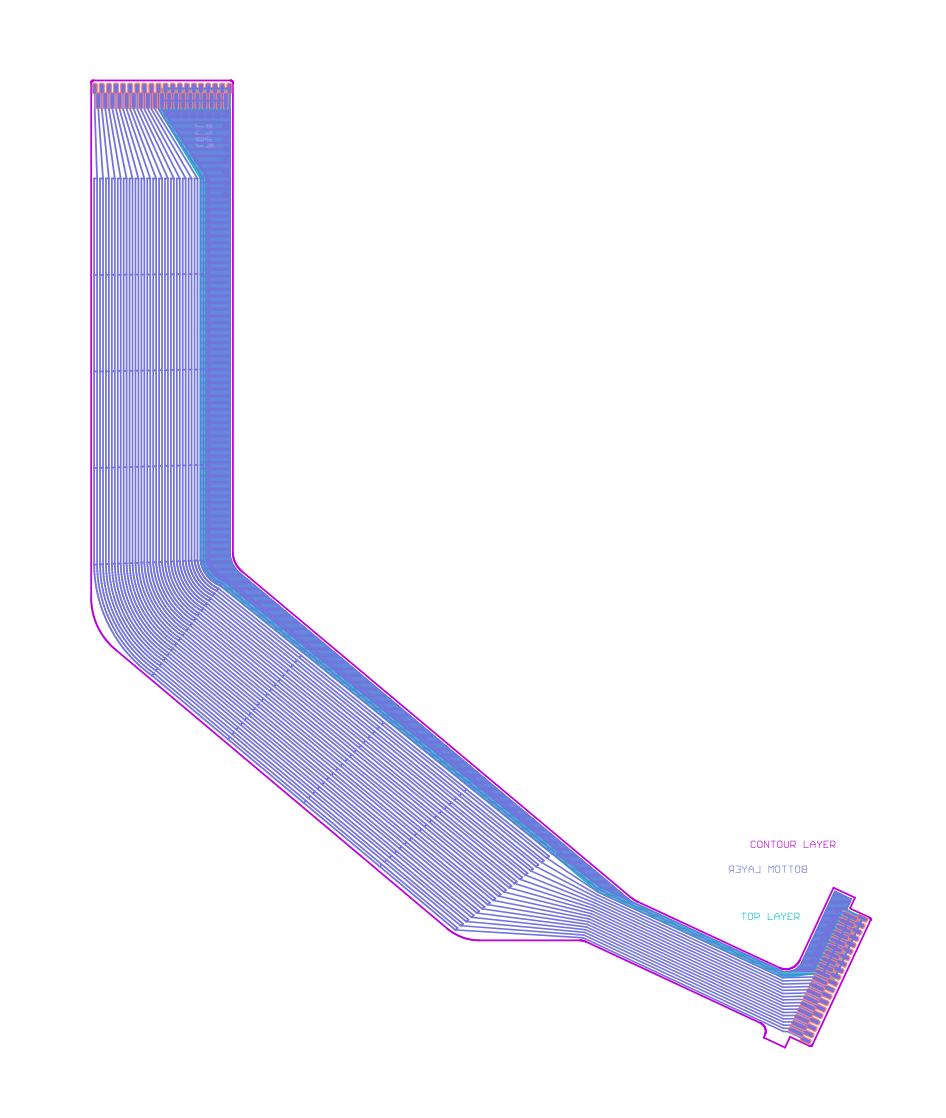

    Here is a gerber view of it:


    As you can see, it's pretty simple compared to Pandoras LCD Cable, as it simply connects two PCBs together whereas the Pandora had a PCB built into the cable.
    This makes the cable a lot cheaper, of course.


    3. Finalizing the keymat

    While the current keymat works okay, it also can be improved, and I was working on that during the last week.

    * The keys will become a bit more rounded (this feels a lot better when your fingers are gliding over the keymat).
    * J and F will get little markers (which improves blind typing a lot)
    * The ABXY buttons will be lifted up about 2mm (otherwise you easily hit the backspace button while playing games)
    * The normal keyboard keys will also be lifted by 0,5mm to make them more accessible
    * We're trying three different material types to determine the best feel for the material

    We should have the new keymats in a couple of weeks, and we ordered enough so we can create all the needed remaining prototypes from them :)


    4. Finalizing the PCB design


    Last week, Nikolaus has worked on the whole battery charging circuit and already made a few small improvements to it.
    We will probably also replace one charger chip, as the current one can only handle one charger port input, but want that you can charge through both MicroUSB ports so you can use the other one while charging.

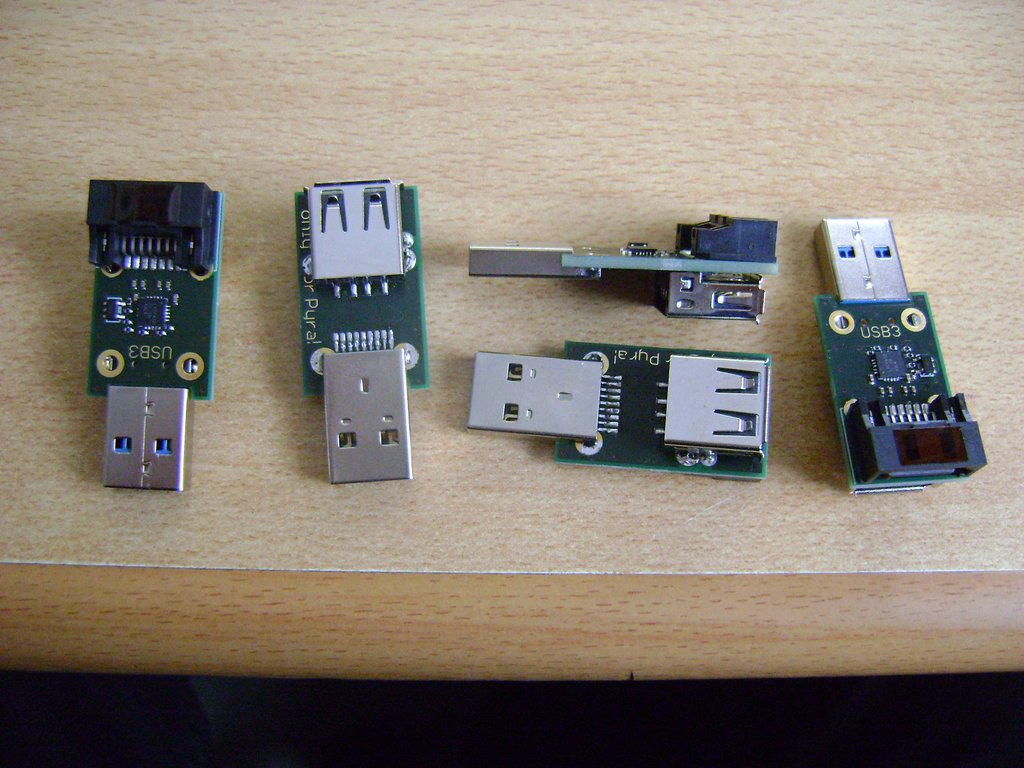

    He also built prototypes of the S-ATA adapters, which will need to be tested.


    The PCBs are working really well now, and most of the remaining work is software stuff. Nikolaus worked on the SSD kernel driver and seems close to have it finished.
    Once he's done that, I can finally simply use the official PyraOS and start playing games with the framebuffer :D

    Maybe that'll already work until next week, when I'll be at the "10. Lange Nacht der Computerspiele" in Leipzig (Germany), a free event with tons of playable retro consoles - and I'll be there and have a table with one or two Pyra prototypes.
    Everyone is welcome to come and play with them!
    It happens on April 30th, so if you're near Leipzig, you should really visit it (it's a lot of fun!)


    5. Finalizing the calculation

    We're almost through doing the calculations, and as promised, the 500 EUR price tag for the normal unit can be kept, the 4G unit will be approximately 100 EUR more.
    I'm also browsing through the part list to see whether there's a useful way of making a cheaper unit (by e.g. removing the keyboard LEDs, etc.)
    We don't want to make something crippled, just removing parts that not everyone needs to help customers who don't have that much money.


    6. They're multiplying!

    We've also continued to build some more Pyra prototypes now.
    Two are fully assembled, next week I plan to assemble a few more.

    These will go to devs (one is already on the way to one) and will hopefully help us increase the software faster.
    After the devs units, I'll also start to assemble the sold prototypes, but I want to wait until they have the final case and keymat, so they will be more useful.



    7. We're listening to you!


    Quite a few of you have cried for a 4GB version, and we MIGHT be able to provide one.
    When we started, there only were 512MB versions of the RAM chip available that we're using for the OMAP5.
    Now there's also a 1GB version available, and if we're using 4 of them, that would add up to 4GB RAM.
    And for the 2GB version, we would only use two of those chips

    That would have some advantages:

    * Two 1GB chips will probably be a few EUR cheaper than four 512MB chips (though this is marginal)
    * Two chips will probably use less power than four chips, and every mW of power we can save is useful.
    * Both the 4GB and 2GB CPU board would use the same RAM chips, which means we wouldn't need to buy different types of chips but just populate two or four of them. This is REALLY helpful for the MOQ (Minimum order quantity) and for an easy production run.

    However, take this info with a grain of salt right now.
    We first have to check whether the OMAP5 works with only two memory chips instead of four, and we need to make sure maintaining both versions here is not a lot of work.

    What we also don't know yet is whether we'll offer the 4GB as an optional upgrade or include it with the 4G version. It'll become pretty complex for the production run if we have so many different version.

    Of course, once we'll know more, I'll let you know.


    8. Preorders!

    My current plan is to start the preordering May 1st. No final delivery date will be given then (I rather make sure everything is working well than rush things just to get the units to you for a fixed date), but as soon as enough preorders are there, we will order all the parts... so once everything has been finished, the production can start shortly after.

    We're getting there! :D

    Last edited: Apr 23, 2016
    Tags:
    Link, Vardius, jeeks and 35 others like this.
  2. Stainy

    Stainy Well-Known Member

    Joined:
    Feb 28, 2005
    Messages:
    1,106
    Location:
    Born UK Living USA
    Amazing write up!! got my money for 1st May! thanks so much for the update!!

  3. Eight Bit

    Eight Bit Advanced Member

    Joined:
    Nov 16, 2008
    Messages:
    1,487
    Location:
    Amsterdam, Netherlands
    Great news! For how long are you planning to let the pre-order campaign run? Or is the end date determined by a minimum order quantity?

    el joker likes this.
  4. slaeshjag

    slaeshjag ¯\_(ツ)_/¯

    Joined:
    Apr 8, 2010
    Messages:
    2,687
    Location:
    ~Stockholm, Sweden
    So, I got enough money saved for the preorder, but I probably won't be able to afford paying the rest of it until the end of the year. Does it make any sense whatsoever for me to place a preorder when that opens, or should I just wait?

  5. vcoleiro1

    vcoleiro1 Hardcore Member

    Joined:
    Jan 23, 2011
    Messages:
    4,389
    ED, what is the preorder target that you need? 1300?

  6. slimeycat

    slimeycat Member

    Joined:
    May 7, 2014
    Messages:
    73
    Yay! Credit card at the ready! I hope the Eur Usd rate stays low!

  7. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,444
    Location:
    Ingolstadt
    Depends on the amount of LTE units, etc.
    With 1500 preorders (including the 200 we already have), we could fully produce 2000 units.

    To get the first 1000 batch running, we need approximately 700 preorders (incl. the already existing 200).

    So it should be doable :D

    rygD, rSl and el joker like this.
  8. fusion_power

    fusion_power Advanced Member

    Joined:
    Dec 11, 2006
    Messages:
    6,934
    Location:
    germany
    Could it be that the design of the nub-disks lead to a gap between the disc and the case when the nub is moved?

    iFixit will be happy then. :)

    Uhm, what can I do with those? ^^"

    Please, remove everything but the keyboard lights! ;)

  9. Magic Sam

    Magic Sam Forever Homebrew

    Joined:
    Aug 10, 2007
    Messages:
    2,121
    Location:
    Innsmouth, MA
    Hi all :)

    Wonderful news, my credit card will be ready on May 1st !

    @EvilDragon : silly question: in order to use 4GB of RAM, the Pyra OS will have to be 64 bits, right ?

    Cheers, Magic Sam

    el joker likes this.
  10. Urben

    Urben Very Active Member

    Joined:
    Dec 3, 2014
    Messages:
    249
    Very nice, is the pricetag without taxes?

  11. slaeshjag

    slaeshjag ¯\_(ツ)_/¯

    Joined:
    Apr 8, 2010
    Messages:
    2,687
    Location:
    ~Stockholm, Sweden
    No, the OMAP5 is 32-bit. It has a PAE-like system for addressing a physical address space larger than 2³²

  12. Blue Shadow

    Blue Shadow Member

    Joined:
    Mar 7, 2016
    Messages:
    122
    Yes, it's the international price. So within the EU the final price will be about 19% more (german VAT)

    Last edited: Apr 23, 2016
  13. matzesu

    matzesu Advanced Member

    Joined:
    Jul 22, 2009
    Messages:
    2,749
    Location:
    Germany,, Saarland, at home
    19% in germany, so a bit less than 720€(600 ÷ 10 x 2 = 720..)..
    But well, this was expectet..
    How do i tell you which Modell and Collour i want, because im a PreePreeorderer??
    Awesome news by the way..
    Seems whe are more or less twoo Months (tm) far from the Pyra..

    rygD likes this.
  14. Gren

    Gren Member

    Joined:
    Jun 17, 2005
    Messages:
    138
    Location:
    Holmfirth
    Fantastic news ED

    As I've already paid for a pre-pre-order, does that mean there's nothing for me to do on May 1st?

    Cheers.

    rygD likes this.
  15. Cralex

    Cralex Still Fresh

    Joined:
    Mar 29, 2014
    Messages:
    28
    A juicy newspost, indeed! It's so great that, since the Pyra is independently developed, reasonable improvements like 4GB of memory are considered. Happy testing!

    rygD likes this.
  16. Magic Sam

    Magic Sam Forever Homebrew

    Joined:
    Aug 10, 2007
    Messages:
    2,121
    Location:
    Innsmouth, MA
    Thanks for the heads-up @slaeshjag :)
    [off-topic]
    @Gren : Babylon 5 RuLeZ !!! :D
    [/off-topic]

    Cheers, Magic Sam

    el joker likes this.
  17. matzesu

    matzesu Advanced Member

    Joined:
    Jul 22, 2009
    Messages:
    2,749
    Location:
    Germany,, Saarland, at home
    This is the same i also wants to ask..
    I mean our place is save, and ED mentioned lots of months ago, the Pyra whit our number will sit on the shelf until whe order they..
    I thinl ED will just mail us, for the final order..

  18. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,444
    Location:
    Ingolstadt
    Umm, of course, otherwise the discs would always scratch the case :)

    Connect S-ATA harddisk to the Pyra ;)

    Okay, so we'll make a unit for you which only has keyboard lights and nothing else ;)

    Last edited: Apr 23, 2016
  19. Silent-Hunter

    Silent-Hunter Advanced Member

    Joined:
    May 29, 2010
    Messages:
    2,857
    Any thoughts on the base unit having 3G or not?

    rygD likes this.
  20. Klumpen

    Klumpen Run away! Run away!

    Joined:
    Jan 5, 2012
    Messages:
    6,407
    Location:
    Uncanny Valley
    Piece o' cake.

    Congrats to your project becoming more physical every week.
    It's a real enrichment to the technical environment we're in.

    comradekingu likes this.
