Update regarding the cases (and some other things)


EvilDragon

Administrator
Staff member
Joined
Mar 4, 2003
Messages
29,714
Age
43
Location
Ingolstadt
Aaah, why did no one remind me to post the new pictures yesterday? :)

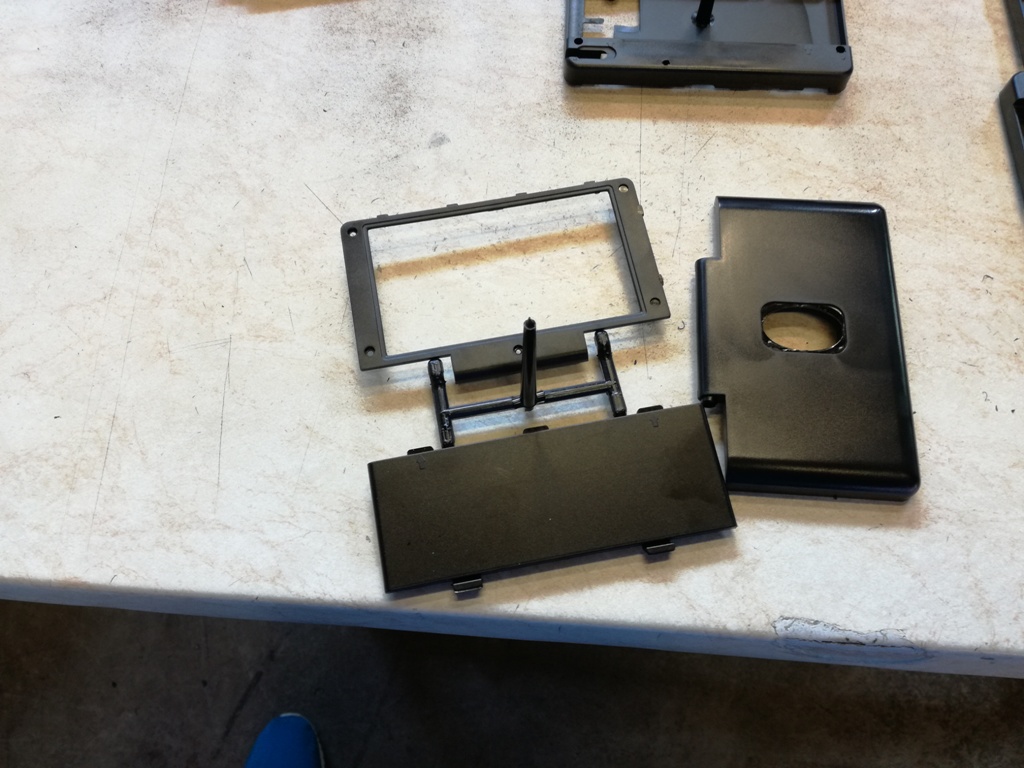

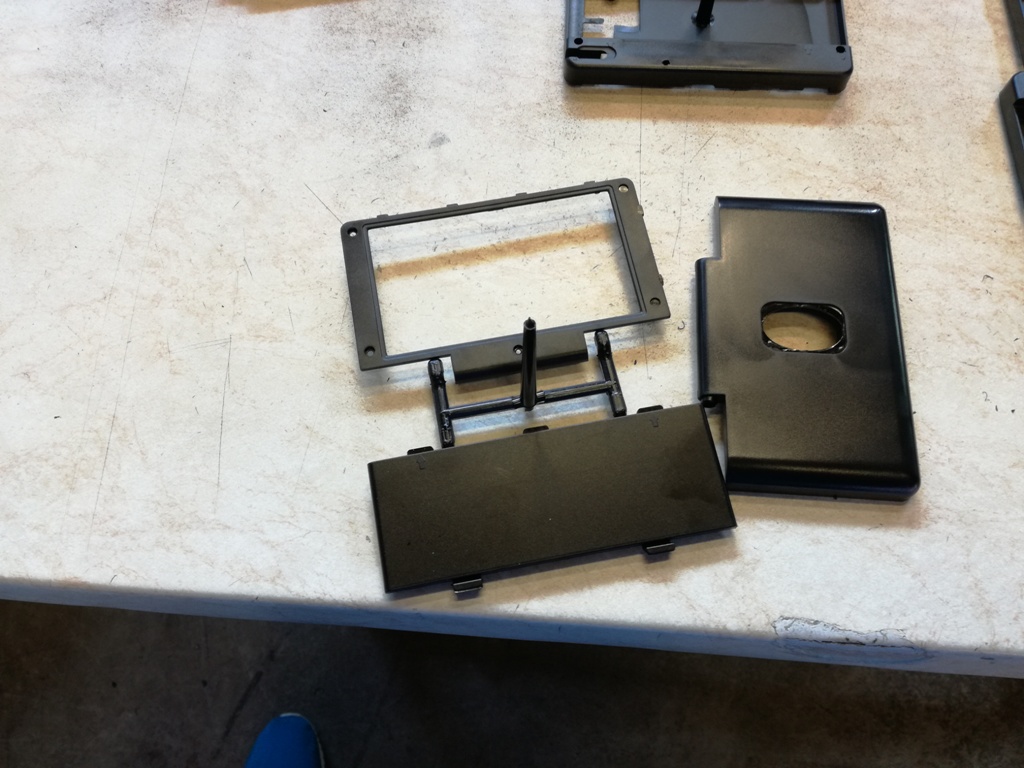

The new material looks better. Still a few marks, but these should be fixed with the coating in the end.

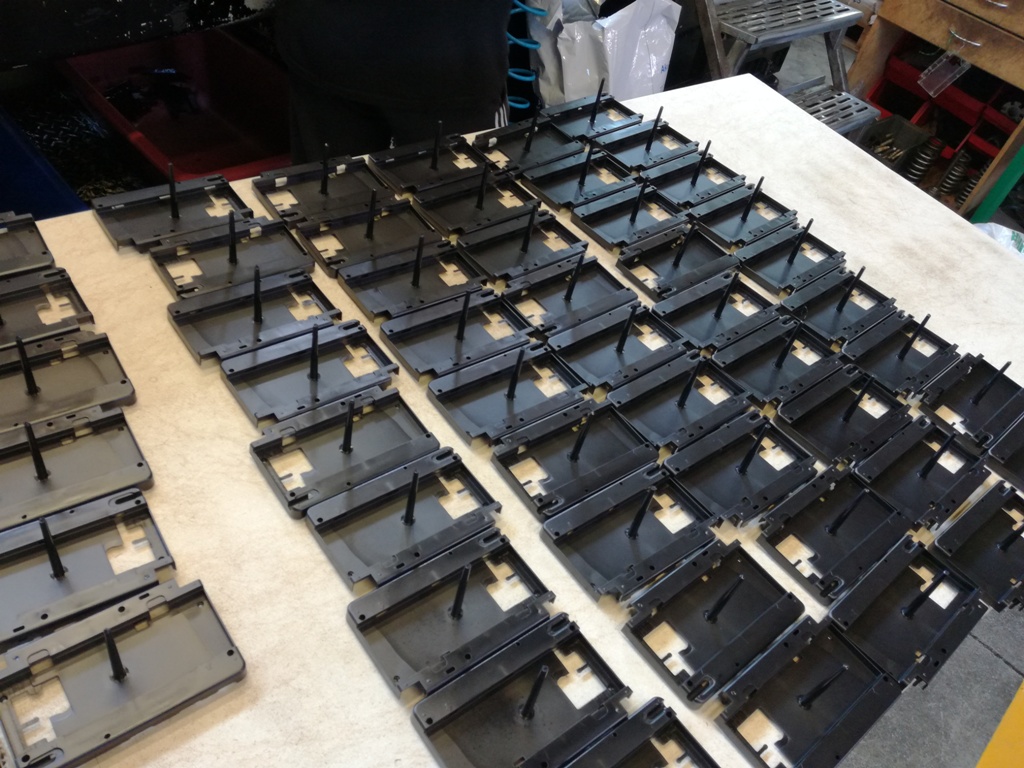

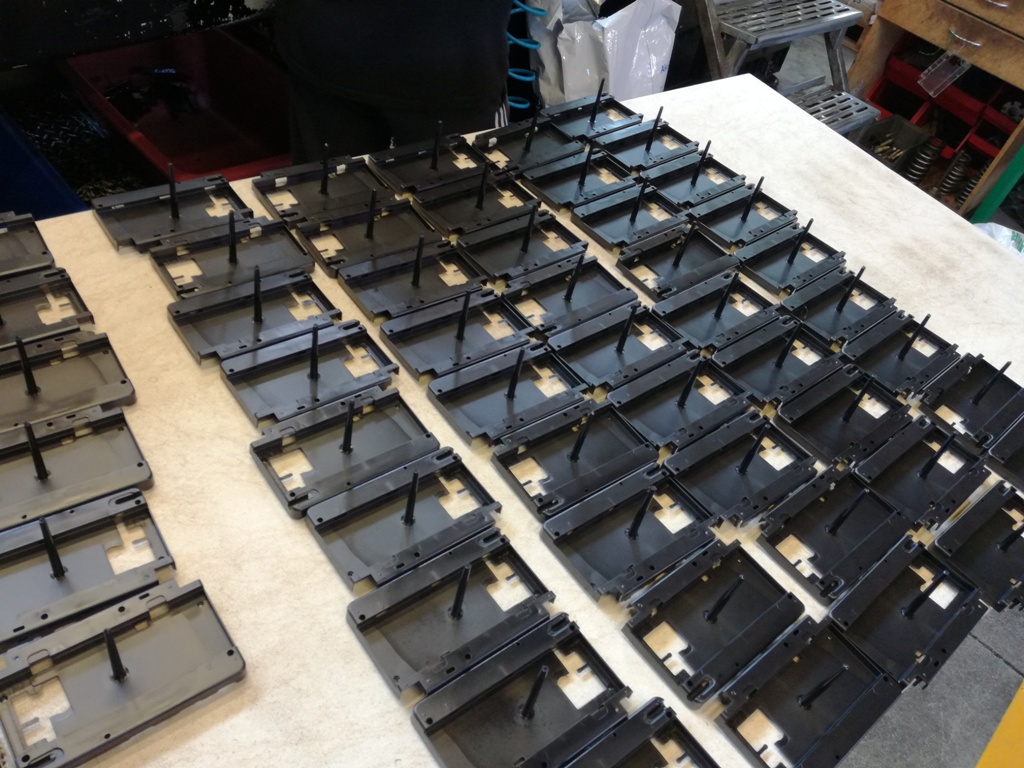

And yep, those parts are being neatly packaged up for shipping.

IMG_20170510_115638_Deckel_Versand.jpg IMG_20170510_115647_Produktion.jpg IMG_20170510_115716_Produktion_Unterseite.jpg IMG_20170510_115806_Deckel_neu.jpg IMG_20170510_115812_Produktion_2.jpg IMG_20170510_115817_Deckel_neu_2.jpg


mecksg1

Very Active Member
Joined
Jul 20, 2010
Messages
248
is it bad that i did something in my pants seeing these photo's:D


erico

Advanced Member
Joined
Oct 25, 2011
Messages
1,756
Age
45
Location
Brasil
Website
sites.google.com
Great pictures, the one before the last gives a pretty good idea about the looks of the material. Well done!
I smell flying prototypes quite soon now. :)


Grench

Forum Addict!
Joined
Oct 3, 2008
Messages
6,623
Aaah, why did no one remind me to post the new pictures yesterday? :)

The new material looks better. Still a few marks, but these should be fixed with the coating in the end.

And yep, those parts are being neatly packaged up for shipping.

Is that a clear case piece I see in that blend? I want to see a clear case with black nubs, black shoulder buttons and black lid decoration.


Inqui

Very Active Member
Joined
Jun 4, 2014
Messages
231
Location
NRW
As I see, the keyboard-part is the only missing thing.
Hope they did it yesterday and you recieve everything this weekend to produce the prototypes and videos

Gesendet von meinem E5823 mit Tapatalk


Xcl4m4t10n

Advanced Member
Joined
Dec 18, 2009
Messages
1,210
Aaah, why did no one remind me to post the new pictures yesterday? :)

The new material looks better. Still a few marks, but these should be fixed with the coating in the end.

And yep, those parts are being neatly packaged up for shipping.

View attachment 30363 View attachment 30364 View attachment 30365 View attachment 30366 View attachment 30367 View attachment 30368

It looks fantastic! It seems like the plastic issue has been minimized, even I would say it is no more, but hope you receive those soon and can shoot some HD photos :D.


PCXT

Very Active Member
Joined
Sep 14, 2016
Messages
263
Age
32
Looks really nice. Now there is no shrinking or it's minimal. I think these marks visible in 4th photo are from material flow and they shouldn't be visible if surface will be modified by good coating.


Neelix

Insecticidal Maniac
Joined
Jan 8, 2011
Messages
3,264
Location
Melbourne, Australia
I'm only speculating here, but I imagine that the coating would act to lubricate the mould, and that might change the material flow dynamics enough to eliminate the marks.

-Neelix


Grench

Forum Addict!
Joined
Oct 3, 2008
Messages
6,623
I'm only speculating here, but I imagine that the coating would act to lubricate the mould, and that might change the material flow dynamics enough to eliminate the marks.

-Neelix
And likely requires a hardened mould, which would be why they can't do it yet.


PCXT

Very Active Member
Joined
Sep 14, 2016
Messages
263
Age
32
I think that coating will provide both lubrication and thermal spreading making achievement of steady state much faster. I don't know how it's in plastics forming, but in metal forming when we use the same set of tools to process more and more hot products, we finally go to "steady state" which means that temperature repeats its cycles in consecutive processes.
So if everything will be OK in steady-state conditions it'll be OK in most products, while only in first ones may not be the best. This is from metallurgy point of view, in plastics maybe they use pre-heating?
Sorry if I messed something, too long without sleep.
