I wish you could feel things through the internet!

Discussion in 'Pyra News' started by EvilDragon, Apr 14, 2017.

  1. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,015
    Location:
    Ingolstadt
    Happy Easter everyone!

    And as easter has a few free days where I have to neither work in the shop nor do some video stuff (my main job), I finally have the time to write up some news.

    I had hoped to present you some nice pictures of a final assembled unit - but while the cases are on the way (finally!), they won't arrive until next week.
    Ah well, but I still got some good news :)


    1. The case

    Let's start with the case. As mentioned above, the cases are now finally on the way to me, together with the sealing for the speakers.

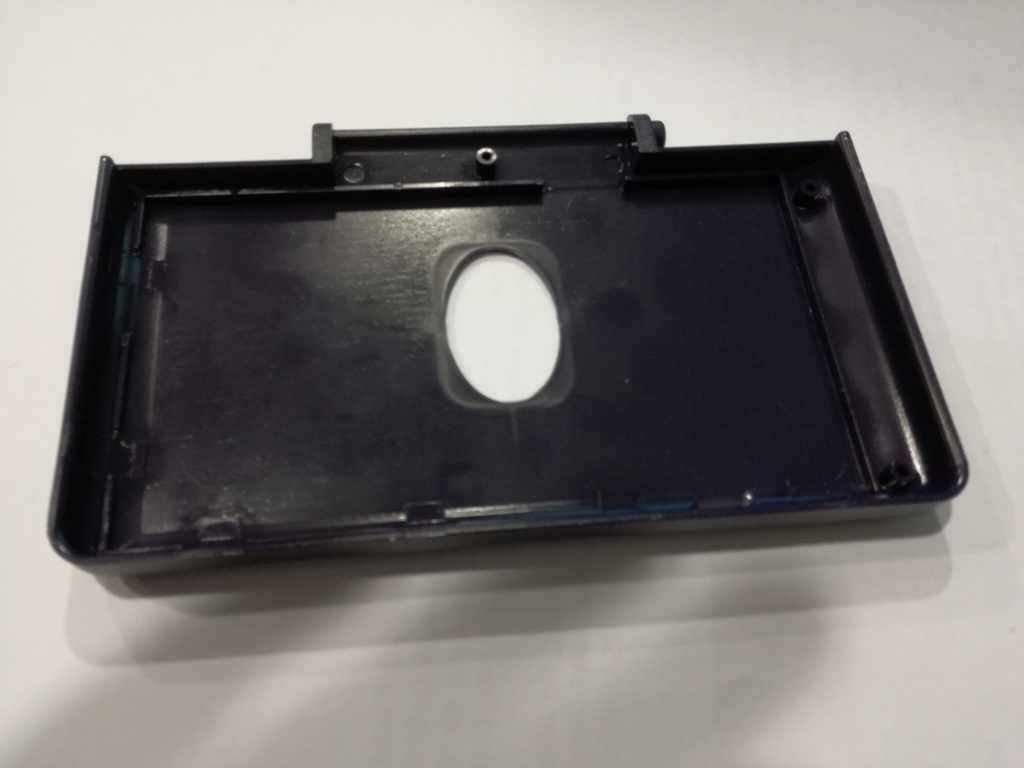

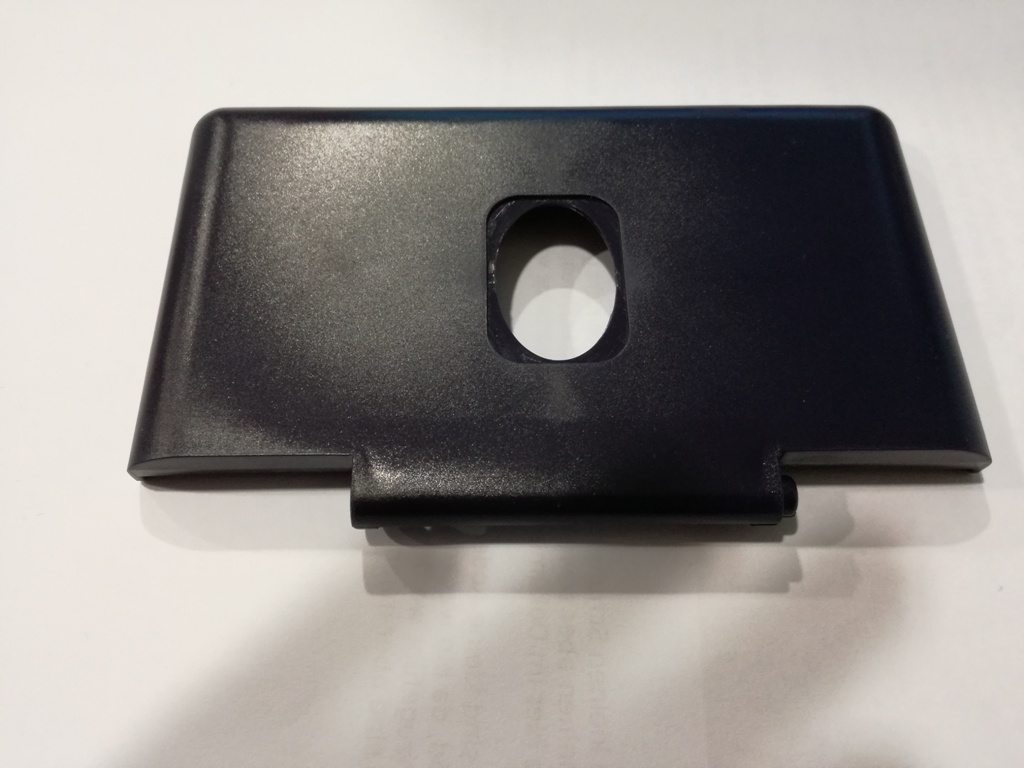

    I've posted some pictures that Form Action sent me a while ago already, but in case you missed them, here they are:

    IMG_20170306_113300_1.jpg IMG_20170306_113307.jpg

    Please keep in mind that these are pictures made with a mobile phone and a flash, that's why it looks really ugly and glossy. Don't worry, I'll make proper pictures once they have arrived here :)

    Hopefully, they won't need any change anymore and will be the final ones.
    I'll let you know once I received them :)

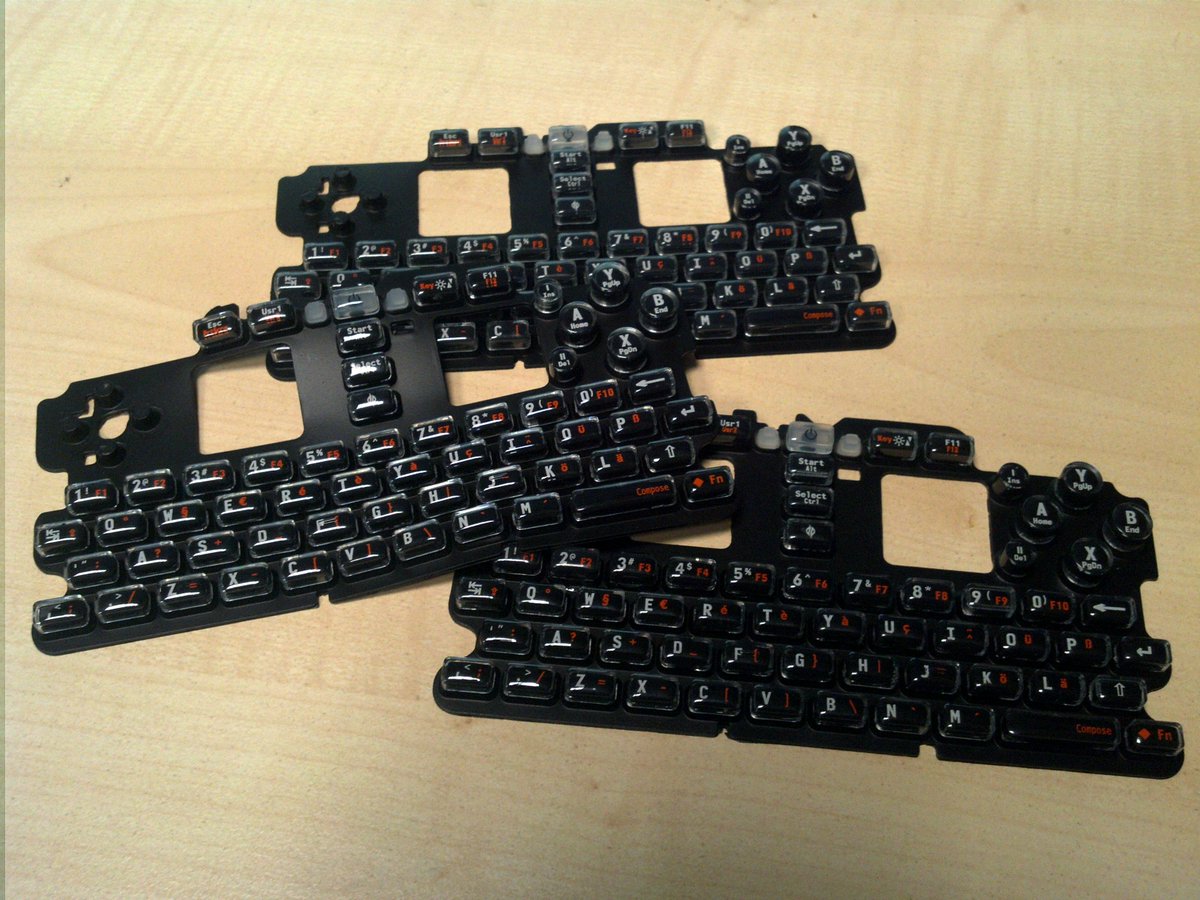

    2. The keymat

    I received the new keymats two days ago. And wow. This is the reason I wish that you could feel things over the internet!
    It's SOOO much different to the previous versions! The new material and fixed coating has really made a difference.


    This is a perfect example why not to rush things!

    The keys are really light to press now. They're very easy to press down but have a full nice tactile feedback.
    My wife thinks they're a bit TOO easy to push down, but I'm not sure of that - I've got the feeling this is just because we're all used to the harder Pandora keymat.
    I've typed a bit with the Pyra and you get used to that pretty fast. I don't have any problems here - but maybe we could ship it around in a dummy case so others can test it as well :)
    I'll make a post about that in the General section later.

    Changing the pressure needed to push it down is something that can be changed without any mould change as that's just a change in the material mixture.
    So we could even offer keymats with different strengths in the future so everyone can choose the one he likes best.
    I'll still try to get another one with a bit more strength for testings, but these already are nice.

    So all good with the keymat, ready for mass production?

    Almost! The keymat is fine as is, nothing needs to be fixed anymore here.
    But I've got a small minor gripe I'd like to address: The caps for the ABXY-buttons. They're a bit too small - which makes the buttons wiggle around a bit (especially now that the keymat is so easy to press).
    That's just a minor change in the mold, can be done within an hour and as I got keymats WITHOUT these caps, I can even test that with 3D printing.

    So I'm happy to say: Keymat is basically ready as well. Another step closer in getting the Pyra to you!


    3. The PCBs

    Nikolaus modified a PCB to have all fixes included zmatt found so far. zmatt already has the board but didn't have the time yet to look at it.
    Don't forget he's a community member like most of you, he has a normal daytime job. He's not hired or paid by us, and we're really happy for every hour he can spend to help us.

    Hopefully he'll find more time next week so we can confirm and implement these fixes - and hopefully he won't find anything else :)



    4. The LCD Cables


    The dummies of the new design is already on the way to me.
    All I need to do the is confirm the physical parameters (length, etc.) and submit the final files including the traces.

    These LCD Cables have a design I've not yet seen anywhere else which should make them a LOT more robust.
    As you know, the cables need to be rolled through the hinge - and rolling the traces will always cause stress on them.
    This happens on ANY system I know that uses these cables, Pandora, GPD XD, Nintendo DS. Some will last longer, but at some time, they'll die.

    I changed the design of the cable so that the traces will NOT be rolled (I've posted about that in an earlier newspost).
    What I did was making the traces run horizontally through the hinge - so the roll will not affect them.

    That should make them hopefully last forever. Which is important for a device that's meant to be used for a long time due to its upgradibility.




    So as a summary, what's the current status?
    • CPU Boards: All parts lying at GC, ready for mass production.
    • Mainboards: Testing the last findings, once fixed, boards will be ordered.
    • Displayboards: Ready for mass production
    • Displays: All lying around at GC, ready for mass production.
    • Keymats: Last change needed in the caps, apart from that: Ready for mass production
    • Case: Will receive the latest samples next week. Hopefully fine - and if yes: Ready for mass production
    • LCD Cables: Waiting for the dummy, then we submit the final files for sample production. After that: Ready for mass production.

    Some other things we'll take care soon:

    • CE/FCC-Testing: We needed to have a final working prototype, so we can do that now.
    • Boxes: Boxes have been chosen long ago, we only need to work on the design and produce them.
    • Accessories (AC Adaptors, Carry cases, etc.): Will take a look at that as well.

    So much for my first news post today.
    I'll do another post tomorrow (not with news but surely other interesting things).

    Tags:
    zoranc, rSl, elwing and 47 others like this.
  2. second exodous

    second exodous Well-Known Member

    Joined:
    Sep 27, 2005
    Messages:
    2,702
    Location:
    Utah, USA
    I also thought the Pandora's keys were stiff so I'm glad you're going with softer keys.

    Good Job so far, have my finger crossed for the cases and LCD cables.

    As far as a the keys if need be you can send any of the past samples with a working prototype for CD/FCC testing right? Keys/game buttons are the most important to me so I'd be happy if those can be tweaked up until production.

    Also, was worried you were a bit of a masochist with 'feeling through the internet', I first thought of all the stuff that was said in the last update about the onboard memory and the SD speeds. . .

    jparish1977 likes this.
  3. matzesu

    matzesu Advanced Member

    Joined:
    Jul 22, 2009
    Messages:
    2,371
    Location:
    Germany,, Saarland, at home
    Great Progress, CPU Board Parts lying at Global Components means all Parts including Leiterbahn, Wiederstände, Elektronische Bauteile, Prozessor etc ??
    Sorry for German, im not that good in technical English..
    Thanks for the newspost, looking forward for the pictures on the final case..

    One last question: what happen to the Transparent Case??
    It would be pretty cool to have a First Batch Pre Pre Order EU4G4GB Edition whit the Serial Number 28 in my Case :)

  4. Kippykip

    Kippykip BFG 9000

    Joined:
    Sep 6, 2016
    Messages:
    386
    Location:
    'STRAYA
    Always something with the keymat, but progress is looking pretty good!

  5. castlefox

    castlefox Still Fresh

    Joined:
    Sep 6, 2009
    Messages:
    21
    Location:
    Chicago Area, IL USA
    Good to see things are still moving a long.

  6. ible

    ible Advanced Guard Tower

    Joined:
    Mar 24, 2014
    Messages:
    1,689
    Location:
    Twice in North Dakota, once in the Netherlands
    i think there's an industry hoping to capitalize on exactly that...

    ssokolow, kabaiakh, jeeks and 4 others like this.
  7. fusion_power

    fusion_power Advanced Member

    Joined:
    Dec 11, 2006
    Messages:
    6,848
    Location:
    germany
    Are ABXY and D-Pad harder to press than the keyboard area? Because it may be good for gaming-controls to have a little bit more resistance. That part was fine on the Pandora, only the Keyboard was to stiff there imho.
    You spent so much time with that cable, I bet you know every trace already by its name :D

    jorlinn, ssokolow and Lightkey like this.
  8. Silent-Hunter

    Silent-Hunter Advanced Member

    Joined:
    May 29, 2010
    Messages:
    2,455
    Hopefully making the ABXY buttons not rattle doesn't take TOO long, but this is looking almost done!

    el joker likes this.
  9. second exodous

    second exodous Well-Known Member

    Joined:
    Sep 27, 2005
    Messages:
    2,702
    Location:
    Utah, USA
    Ah, good point.

  10. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    8,038
    Location:
    Somewhere off the coast of the EU
    Can you tell us how many prototype units have gone out? I guess you're still waiting for better cases to pack them in, so is it just you, niklaus and zmatt so far?

    Also, you might not want to know, but the thread title made me think of teledildonics ;)

    Lightkey likes this.
  11. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,015
    Location:
    Ingolstadt
    Yep, exactly, and possible fixes we can do to them (like on the one we sent to Nikolaus)
    I should receive a big batch of finished cases next week.
    --- Double Post Merged, Apr 14, 2017, Original Post Date: Apr 14, 2017 ---
    The DPad and ABXY always feel a bit stiffer, due to smaller design of the keyboard buttons, but yes, it's also possible to mix different materials (though a bit more complex in the production).

    ssokolow and el joker like this.
  12. comradekingu

    comradekingu Glowing ember

    Joined:
    Apr 15, 2011
    Messages:
    4,810
    Your wife thinks it is too easy to push your buttons, could be high-concept joke.

    Edit: Won't no roll on the cable mean more bend per unit of cable?

    ObiKKa, Lightkey and Djoga'Ro like this.
  13. Xcl4m4t10n

    Xcl4m4t10n Very Active Member

    Joined:
    Dec 18, 2009
    Messages:
    819
    Great job as always team! @EvilDragon I have two little questions:

    - Are you going to work on the package design? I would like to involve myself in this, could I try some sketches and send those to you?
    - About the OS. Are you going to work on a dedicated theme? If yes, I would like to participate on it if not, is there any way to team up with someone and start working on a dedicated debian-pyra theme? I was thinking in something milimalistic or something like Tango theme.

    tarator likes this.
  14. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,015
    Location:
    Ingolstadt
    The cable IS being rolled - but normally, the traces are rolled in the same way. Not on my cable.

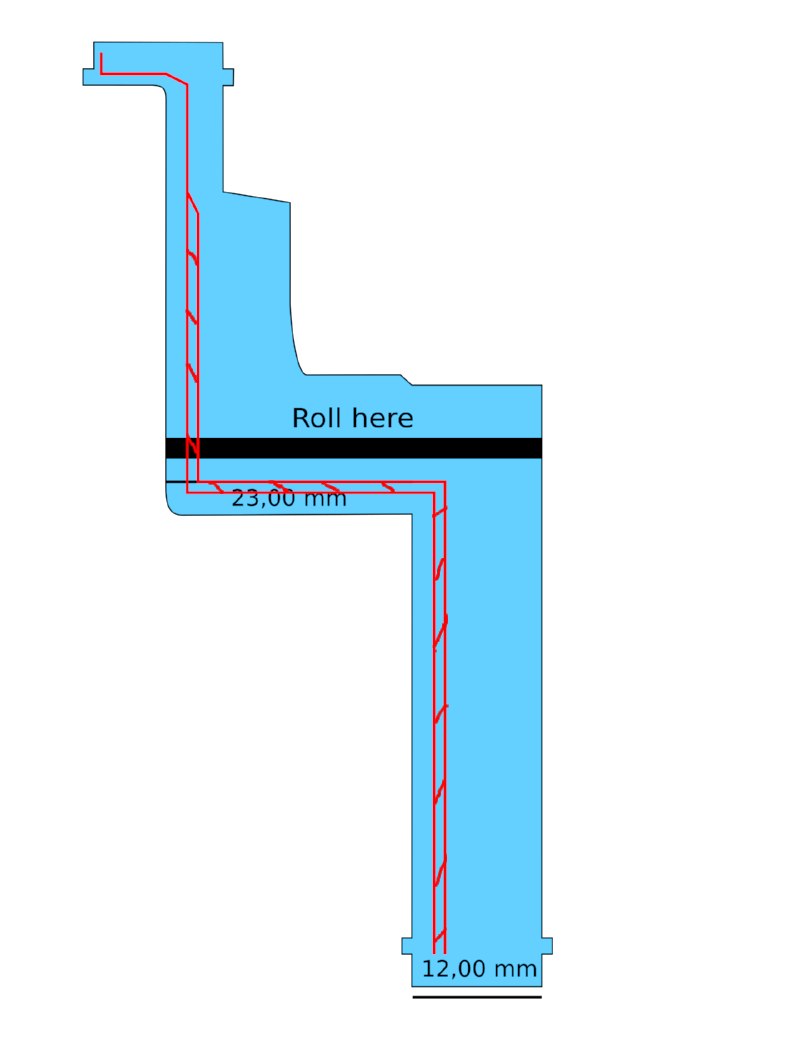

    Here is a quick example of how it works:


    This is the outline of the cable. The red lines are an example for ONE trace.
    I also included the axis of where the cable is being rolled.
    In the middle area, the traces are parallel to the axis - so they're not rolled.

    The only have half a roll on both sides where the cable is - instead of 2 - 3 full rolls.

    Additionally, as you can see, the traces double up at the thicker area of the cable. The traces are redundant - and they reconnect regularly.
    So a trace can only fail, if BOTH traces fail at the same area.

    Only at the one of the cable (where the LCD cable is thin), there's only one trace. But there's no roll or force at that area, nothing should go wrong there.

    So basically, we have:

    • Redundant traces which reconnect regularly
    • Traces parallel to the roll axis to ensure there's as little stress as possible on them in the roll.
    --- Double Post Merged, Apr 14, 2017, Original Post Date: Apr 14, 2017 ---
    Yes, yes and yes to all of that :)

    bzar, klapse and comradekingu like this.
  15. gotwake424

    gotwake424 Member

    Joined:
    Apr 2, 2011
    Messages:
    374
    Looking forward to the Videos :)

    Kippykip likes this.
  16. Grench

    Grench Forum Addict!

    Joined:
    Oct 3, 2008
    Messages:
    5,195
    Is the current plan to send paid prototypes out with modified versions of the existing boards or wait for the next board revision?

  17. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,015
    Location:
    Ingolstadt
    Most probably with the modified versions :)

  18. Christoph.Krn

    Christoph.Krn Very Active Member

    Joined:
    Oct 29, 2009
    Messages:
    953
    Location:
    Germany
    The Pandora keyboards always seemed much too stiff to me. Has key stiffness even been a point of consideration during the Pandora's development?

    For a keyboard in a clamshell device, personally I would always prefer easy-to-press over hard-to-press anyway. Of course the keyboard keys mustn't get pushed down accidentally when holding the device or using the gamepad.

    You should really make a video where you explain this and show the installation procedure!

    CommanderB likes this.
  19. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,015
    Location:
    Ingolstadt
    That doesn't happen. :)
    And yes, my wife even has a bit harder keymat on the Pandora than my own one (mines pretty soft already), and she prefers that one...

    Honestly, I've never seen such an easy to press keymat before. You barely need any force, yet you can feel a clear tactile feedback :)

    Yes, once I got the dummy. That's planned :)

    ilo_pona and AnimatedFreak like this.
  20. ò.Ó

    ò.Ó Still Fresh

    Joined:
    Sep 17, 2016
    Messages:
    30
    Ability to touch-type confirmed! \o/
