    Quite a lot of questions, so let's start :D

    Basically, yes.

    I'm not sure that does work and how the glue behaves properly in there.

    Of course :D What did you expect?

    Seriously! I've never been ill for more than two days in series within the last ten years!
    That was quite unexpected!

    No, you can see it in this picture:


    Inside the red circle you can see the area where the flex cable is. We've left some space there, and additionally the PCB sits on the rubber feet.

    Luckily, I've got VERY good eyes :) Don't even need a lens for that :D

    Hmm, yes, in theory that would be possible. However, the backlight would not work properly for those inlays.
    But if you don't care about that, it's certainly possible.

    Well, the battery charging chip is pretty smart.
    First, it uses the power it can get from the input and uses this to power the system.

    If the battery needs to be charged, it uses any additional power left to charge the battery.
    If the system needs more power than the power input can provide, it uses the battery to get the rest of the needed power.

    If no battery is inserted, it will simply crash if the input power is not enough ;)

    All this can be configured via software as well, so you could, for example, keep the battery in there and disable charging it completely.

    But as long as the input power is enough, the battery will not be used in any way :)

    You are very welcome to visit here and try out the Pyra, but I'm afraid I won't have finished units ready to be bought by then.

    They are tight fitting, so you should need force to pull them off. Additionally, they will get a small lip around them which means they cannot be pulled out when they're inside the case. Similar to how they do it with DPads and buttons :)

    So yes, not using glue is an improvement :D

    Yes, that's why they're not totally loose. They won't fall off the keymat itself, only if you pull them.

    Well, they mostly did improve the mold flow a bit already and have worked on the 3D design to fix the shoulder buttons.
    But this now needs to be tested and fully tweaked.
    AAAnd I updated the first post with the next step :)

  2. docbroke

    docbroke Still Fresh

    Joined:
    Feb 21, 2019
    Messages:
    130
    Location:
    India
    So case will take some more time. But I am sure it will be worth the wait :)
    The pyra logo looks cool. I think I will choose the transparent case if it is available in the final version, it looks geeky.

  3. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    10,715
    Location:
    Somewhere off the coast of the EU
    Yes, we already knew the new case company would be reworking the design to improve flow and adding the posts at least, which was always planned to take some time; we just never knew exactly how much.

    I'd guess they're still not producing mass production cases yet, otherwise ED would have said, unless he'd not had time to catch up on his emails yet (which is always possible, as we know I guess).

    Thanks for the latest update, @EvilDragon. I assume the bit you say will be milky-white in mass production is a plastic part which fits on top of the metal and fills the gaps in it, making the lid a little more water-tight. I couldn't really see that part in the photos.

  4. Blue Shadow

    Blue Shadow Member

    Joined:
    Mar 7, 2016
    Messages:
    129

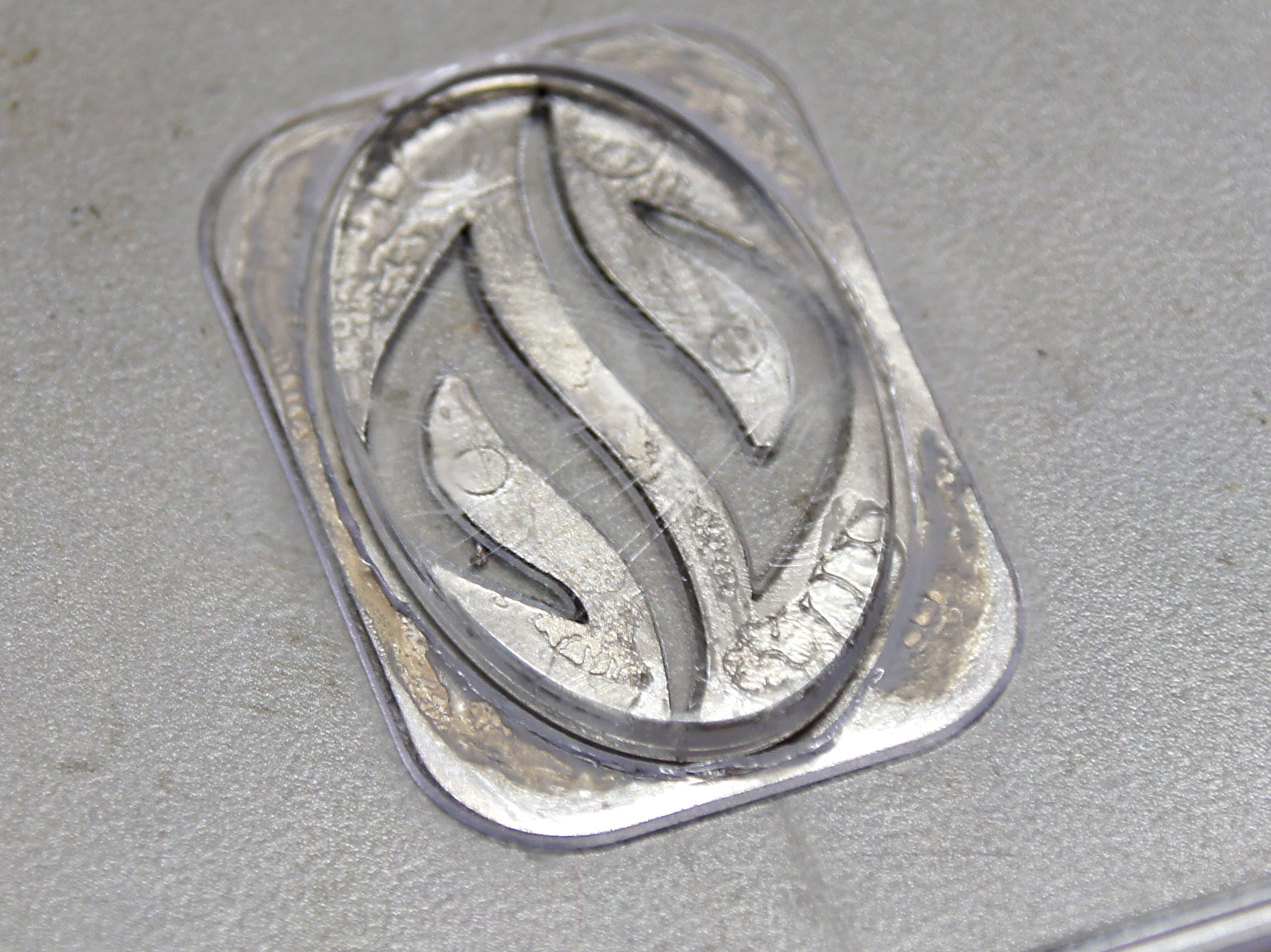

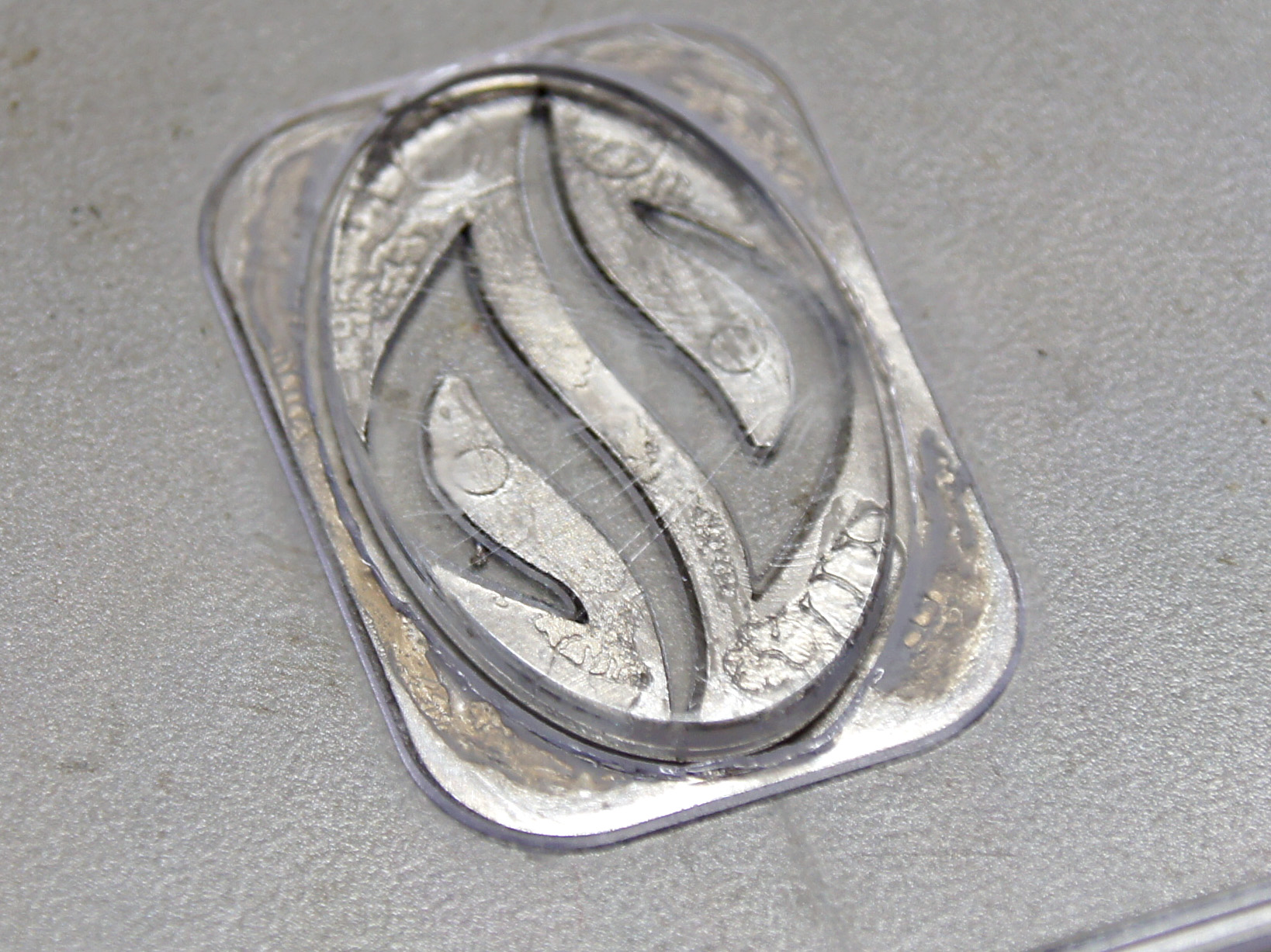

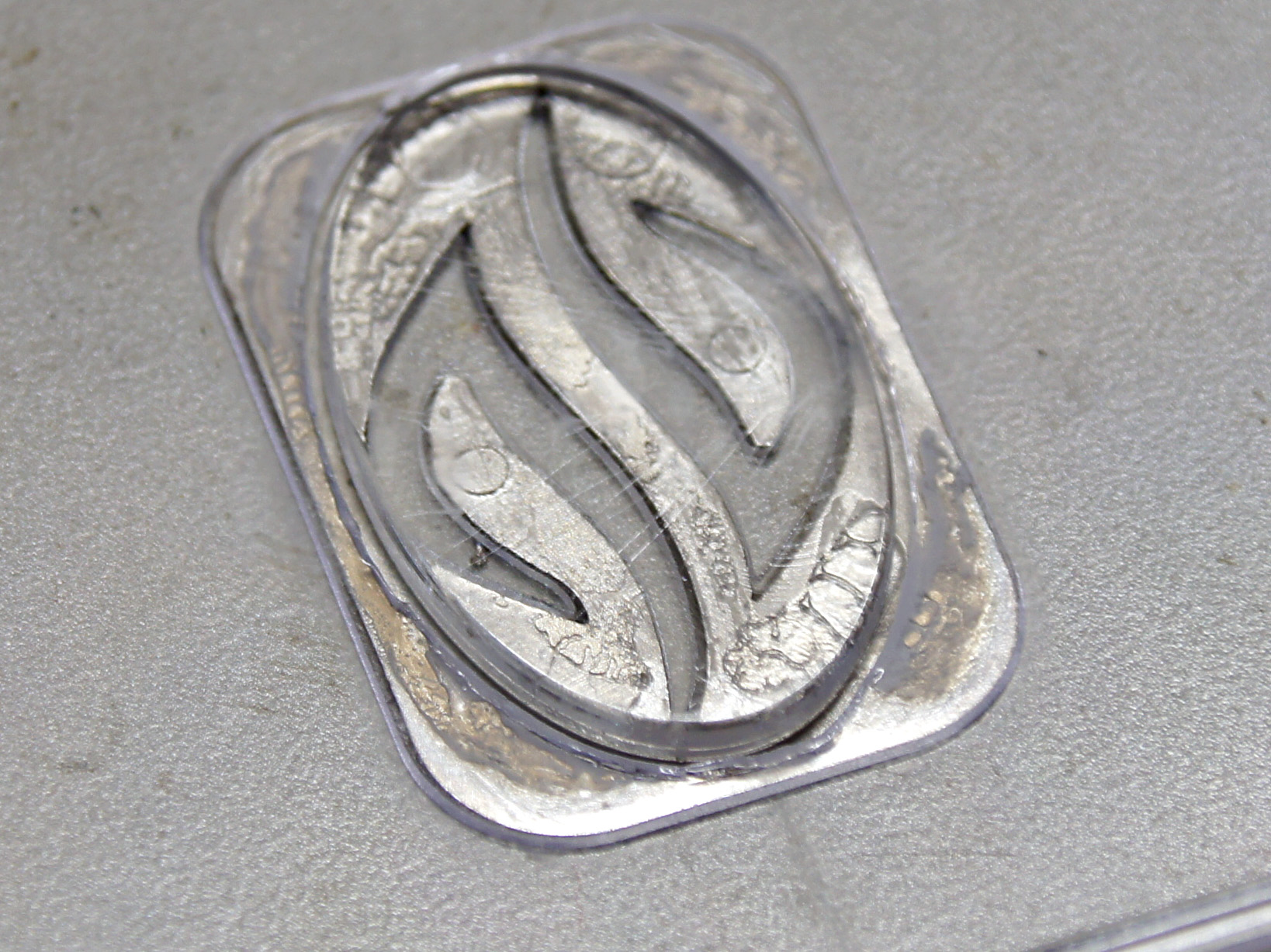

    @levi you can see it here (a bit hard to see, as this version seems to be transparent/clear)
    But if I understand it correctly, it is not glued on top, but from the inside.

    levi likes this.
  5. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    10,715
    Location:
    Somewhere off the coast of the EU
    Ah, I was thinking it filled the holes but perhaps it just fills the entire oval hole in the lid. A non-transparent one shouldn't show those moulding marks as well.

  6. Bosbeetle

    Bosbeetle Terminally lost

    Joined:
    Sep 7, 2008
    Messages:
    3,668
    Location:
    The Netherlands
    ;) no watching glue dry movie.... :(:D

    FBnil and Djoga'Ro like this.
  7. matzesu

    matzesu Hardcore Member

    Joined:
    Jul 22, 2009
    Messages:
    2,894
    Location:
    Germany,, Saarland, at home
    @EvilDragon
    You said, basically, when everything comes together, its time for Massproduktion, so this means, the Prototyphs, you currently assemple whill also be used to make the last tests??
    (German) : "Eins hab ich nie verstanden: sind jetzt die Platinen für die Massenproduktion schon geordert, und wenn du das OK für den Start gibts, werden die nur noch bei GC mit dem ganzen Elektronischen Kleinkram bestückt ??,

    I know its not that far anymore, but i think the last few months of waitingtime will be the though

  8. docbroke

    docbroke Still Fresh

    Joined:
    Feb 21, 2019
    Messages:
    130
    Location:
    India
    It is there in last three photos. You can compare 4th image from last ( without plastic part ) with 3rd image from last (with plastic part).

  9. drohan

    drohan Supporter

    Joined:
    Nov 26, 2010
    Messages:
    33
    First: my condolences, ED. Sorry about your loss.

    And thanks for the updates!

  10. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,618
    Location:
    Ingolstadt
    Yep, those are used for the last tests.

    Die Bauteile liegen schon bei GC bereit, die Platinen an sich muss ich noch bestellen. Diese haben eine Lieferzeit von 6 Wochen, ist also überschaubar. Und auch wenn wir bisher keine Fehler mehr gefunden haben - ich möchte zumindest, dass die Prototypen von anderen Leuten noch getestet werden, bevor ich bestelle und dann ist doch noch was.
    --- Double Post Merged, Mar 14, 2019, Original Post Date: Mar 14, 2019 ---
    Sadly, I couldn't continue to assemble them today - because I had something else to finish:
    The design for the copper heat-pipe. I realized when I thought what I still need to assemble the prototypes that I didn't yet send the design to Fatih for mass production. So I finished and rechecked it and sent it to him.

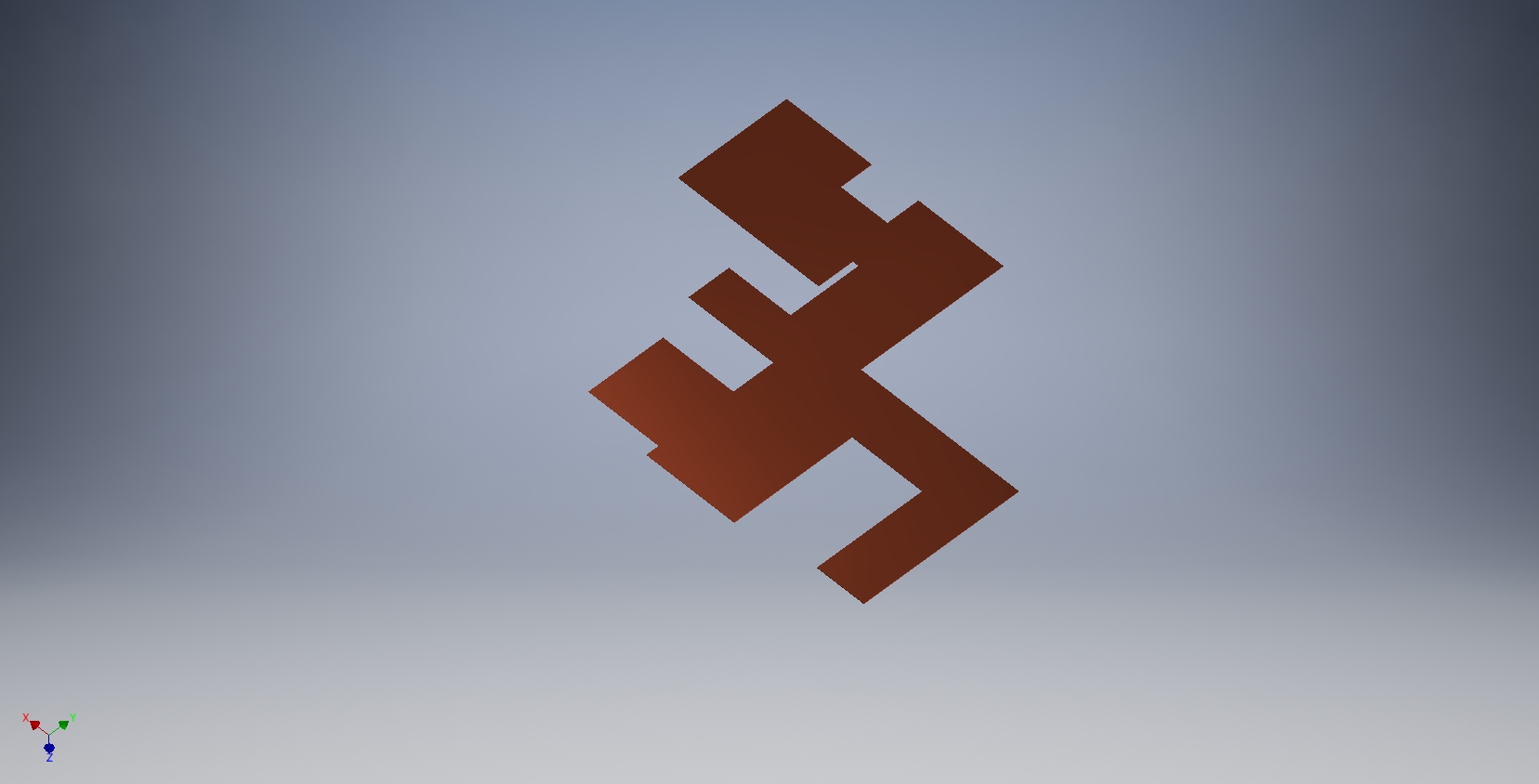

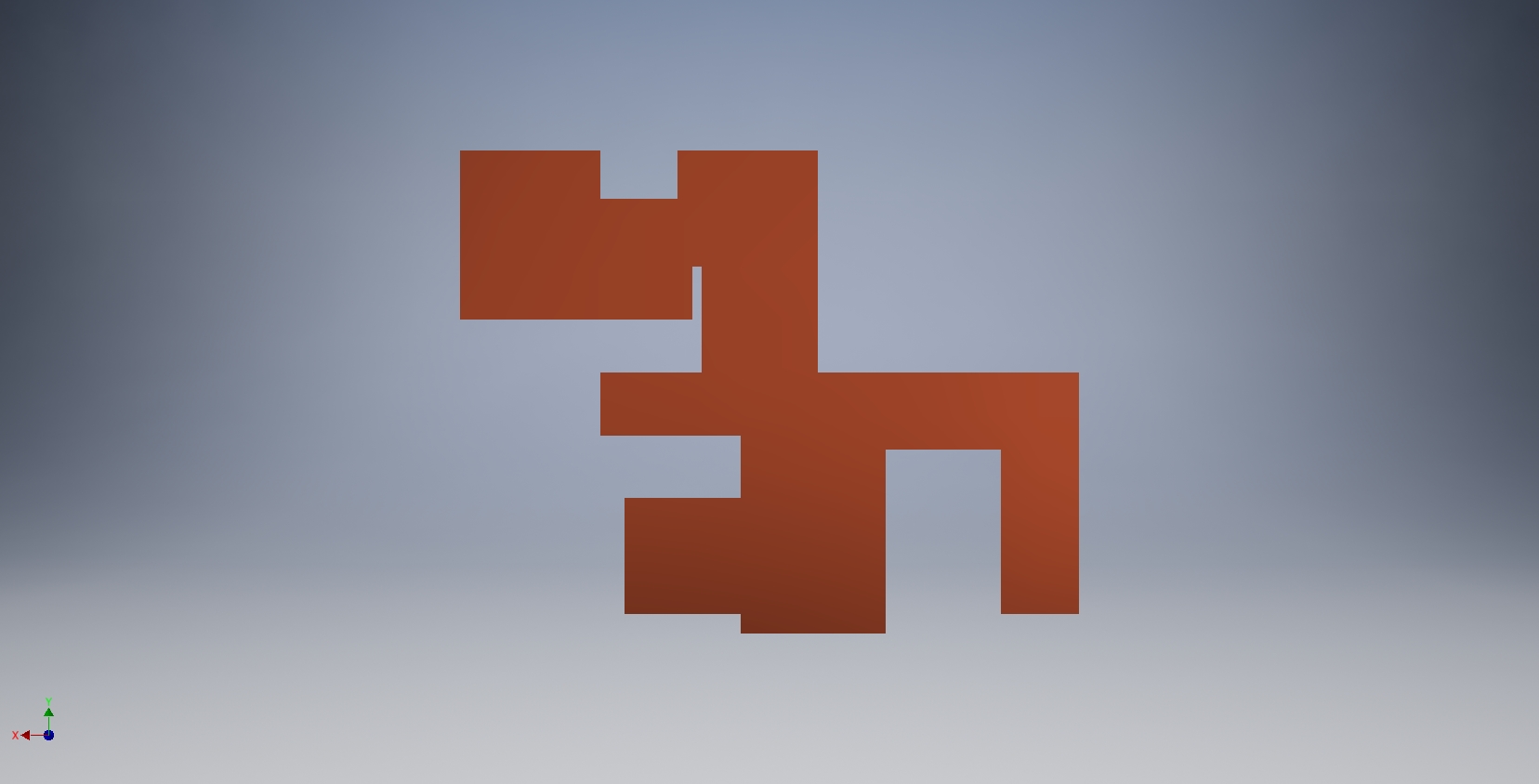

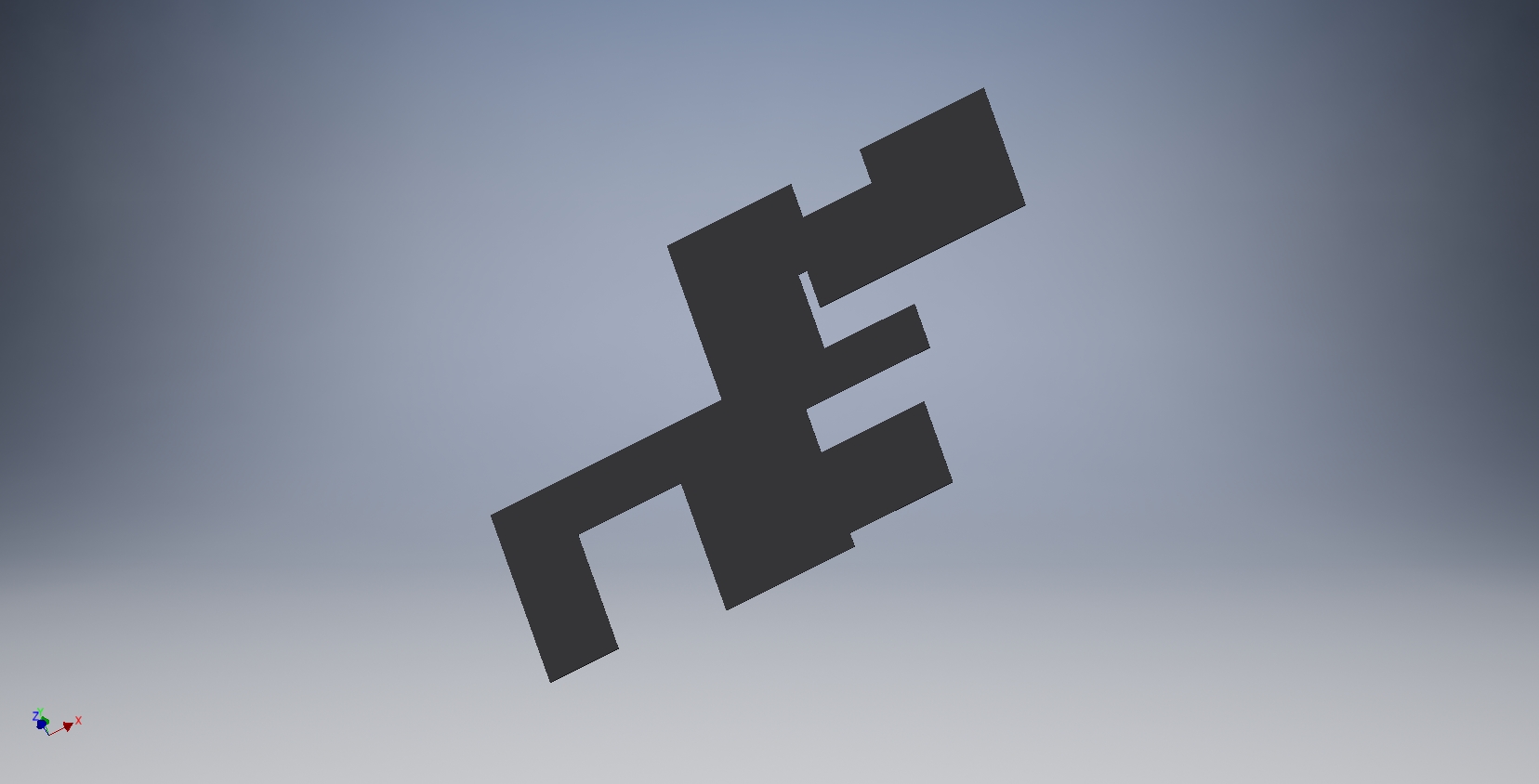

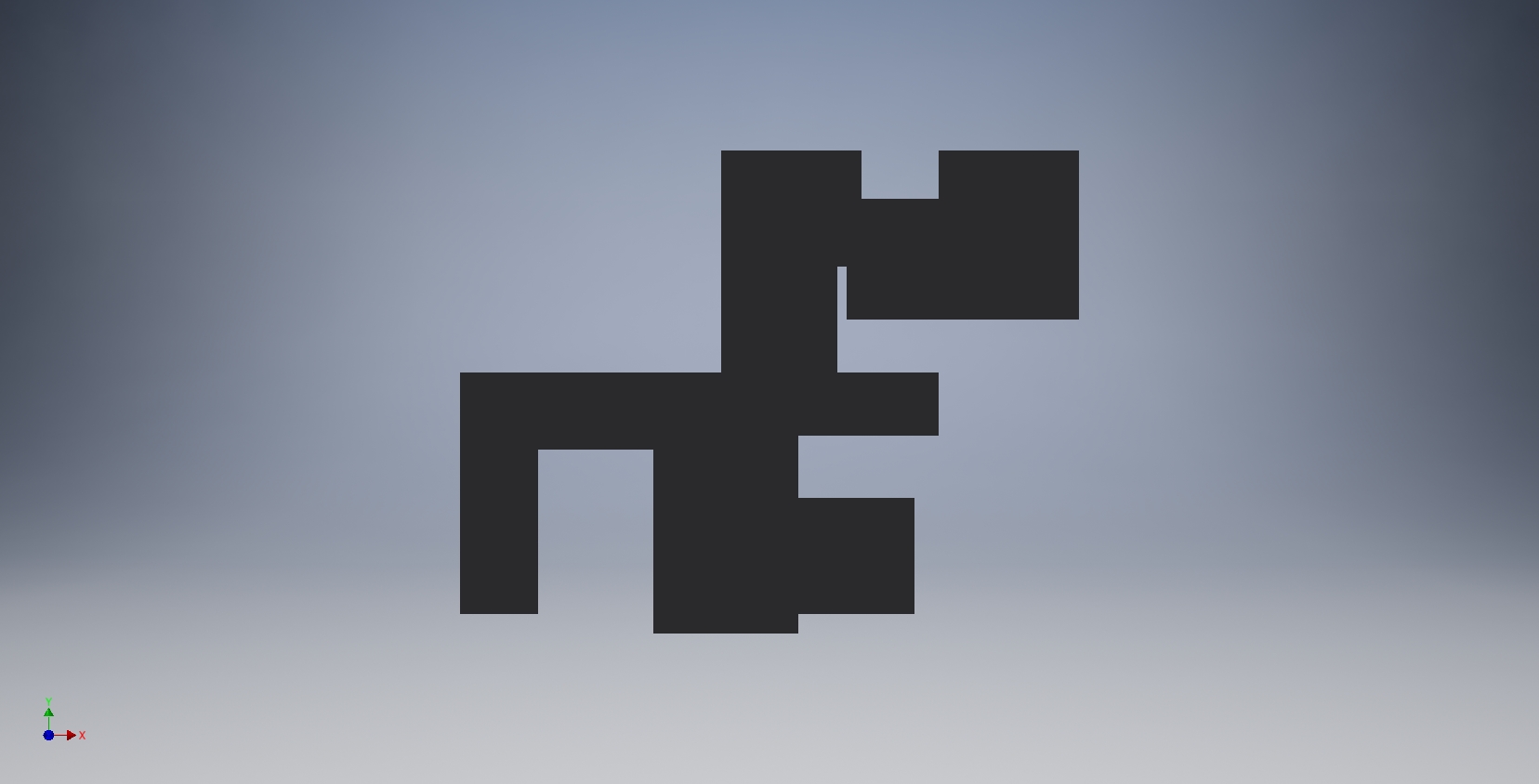

    In case you're interested: This is what the final design looks like:

    Heatpipe-Back-AdhesiveCopper.jpg Heatpipe-BlackSide.jpg Heatpipe-CopperSide.jpg Heatpipe-Front.jpg

    Attached is also the DWG (in mm), in case you want to take a look at it.

    As I went to bed at 6:10am (and up again at 10am), I'm going to bed now - and will hopefully continue the assembly tomorrow night :)


    Attached Files:

    Tenka, pierro78, directive0 and 7 others like this.
  11. Nintendo

    Nintendo Nintendo Switch

    Joined:
    Oct 8, 2005
    Messages:
    12,577
    Location:
    Melbourne, VICTORIA - AUSTRALIA
    Awesome designs!

    Less than 4 hours sleep (normal for ED)...not so awesome :(

  12. fusion_power

    fusion_power Advanced Member

    Joined:
    Dec 11, 2006
    Messages:
    6,997
    Location:
    germany
    Wow, no wonder this takes time. A little bit complex in shape. XD "Keep it simple" didn't work I guess? And will the surface be plain flat or has a structure for more heat disposal?
    Overall, I think the Pyra is a little bit over-enginered, with to many custom solutions and non-standard elements that took the development in infinitum. Let's see where this will lead. I'm in hope for future units with more streamlined solutions for a faster and especialy cheaper production.

  13. Grench

    Grench Forum Addict!

    Joined:
    Oct 3, 2008
    Messages:
    5,988
    This one on the left...
    [​IMG]

    Can anyone else visualize that as a fire breathing dragon with a long tail sitting up on his haunches facing left...?

    Tenka, erico, FBnil and 10 others like this.
  14. docbroke

    docbroke Still Fresh

    Joined:
    Feb 21, 2019
    Messages:
    130
    Location:
    India
    Heat pipe is done, that's great news. One thing cut-off from to-do list.

  15. AnimatedFreak

    AnimatedFreak Very Active Member

    Joined:
    Oct 29, 2011
    Messages:
    292
    If it was a dragon in a Intelevison game then yes

    Creature XL, FBnil, ckblackm and 3 others like this.
  16. ò.Ó

    ò.Ó Member

    Joined:
    Sep 17, 2016
    Messages:
    51
    My first thought was "why does that look like a disfigured certain-symbol?"

    I have a twisted mind... or maybe it just untwisted a certain twisted symbol? ¯\_(ツ)_/¯

    Last edited: Mar 14, 2019
  17. Silent-Hunter

    Silent-Hunter Hardcore Member

    Joined:
    May 29, 2010
    Messages:
    2,995
    Isn't it illegal to mention those in Germany? I'd be careful on a German hosted forum. Or am I mistaken?

  18. ò.Ó

    ò.Ó Member

    Joined:
    Sep 17, 2016
    Messages:
    51
    I have edited my post to be more vague xD

  19. Silent-Hunter

    Silent-Hunter Hardcore Member

    Joined:
    May 29, 2010
    Messages:
    2,995
    Oh I just wasn't sure! I don't know anything about German laws. But better safe than sorry I suppose.

    ò.Ó likes this.
  20. Djoga'Ro

    Djoga'Ro moonstruck

    Joined:
    Apr 3, 2016
    Messages:
    818
    Although I don't think, it looks like s swastika, I wouldn't know what else you could be talking about. It's not illegal to mention those. How else could you discuss them?
