Yay some news!

Wally

I am a banana!
Staff member
Joined
Jan 31, 2006
Messages
2,959
Age
33
Location
Melbourne, Australia
Hello everyone,

I've put my hand up to help EvilDragon with the news as he's trying to get the Pyra out and it's important that he focuses on that so we can get this device we're all EAGERLY waiting for into our own sweaty palms.

1. Sound: Early state sound support has been implemented via Software as hardware level (AESS) needs to be implemented. As it stands sound is reasonably stable but sometimes has trouble starting.

A small issue where the sound volume fluctuated was fixed by removing a capacitor which was placed to fix some jittering from volume wheel. The Pyra already has power saving features for this and was giving the capacitor some random values.

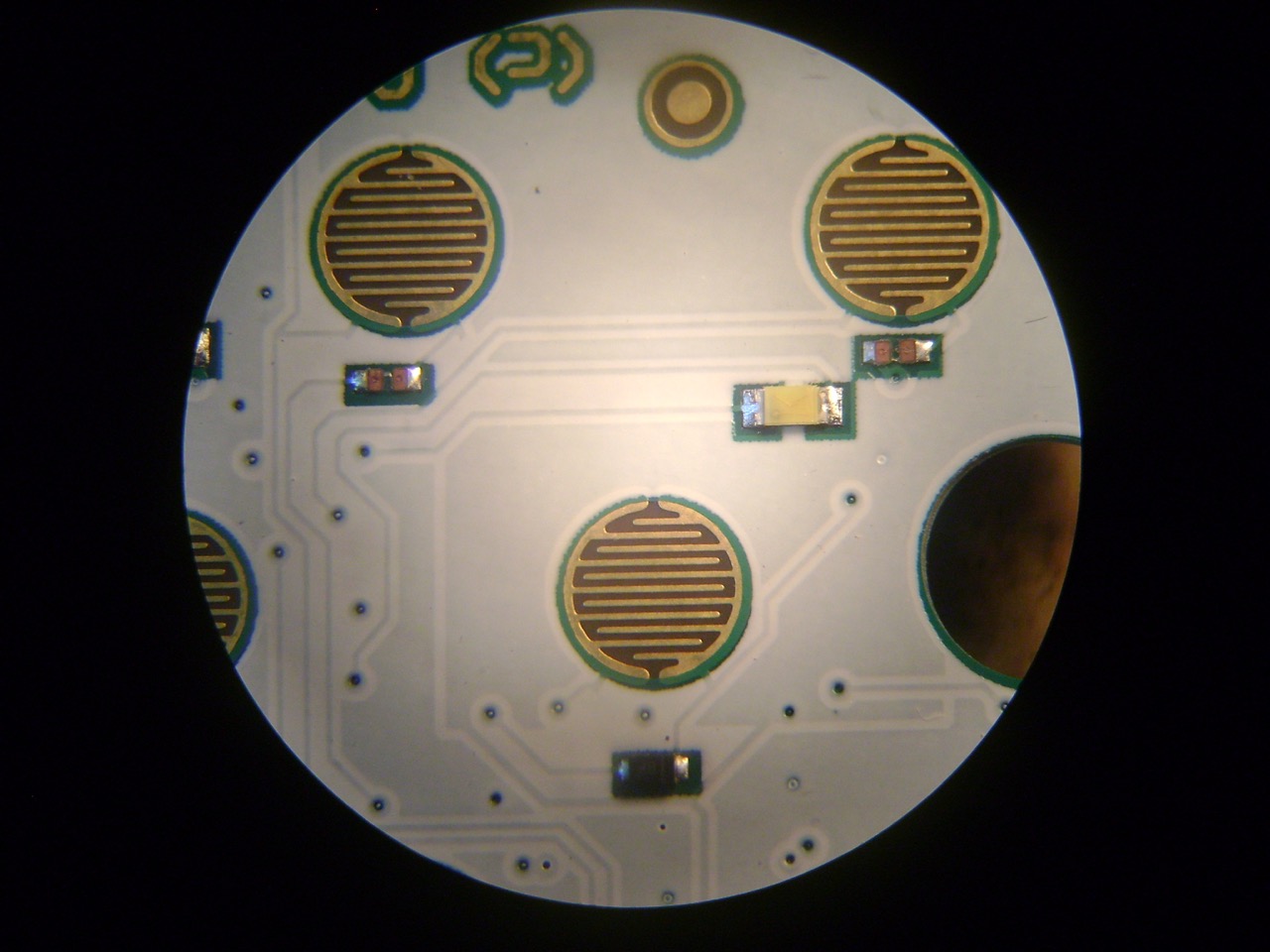

2. Keys: An issue where keys weren't working has been fixed by Nikolaus and is likely an issue caused by the testing equipment at Global Components as the diodes for the keys were broken off the PCB as pictured


This would explain why it's often the same keys that were affected. We will be reaching out to Global Components to get this fixed!

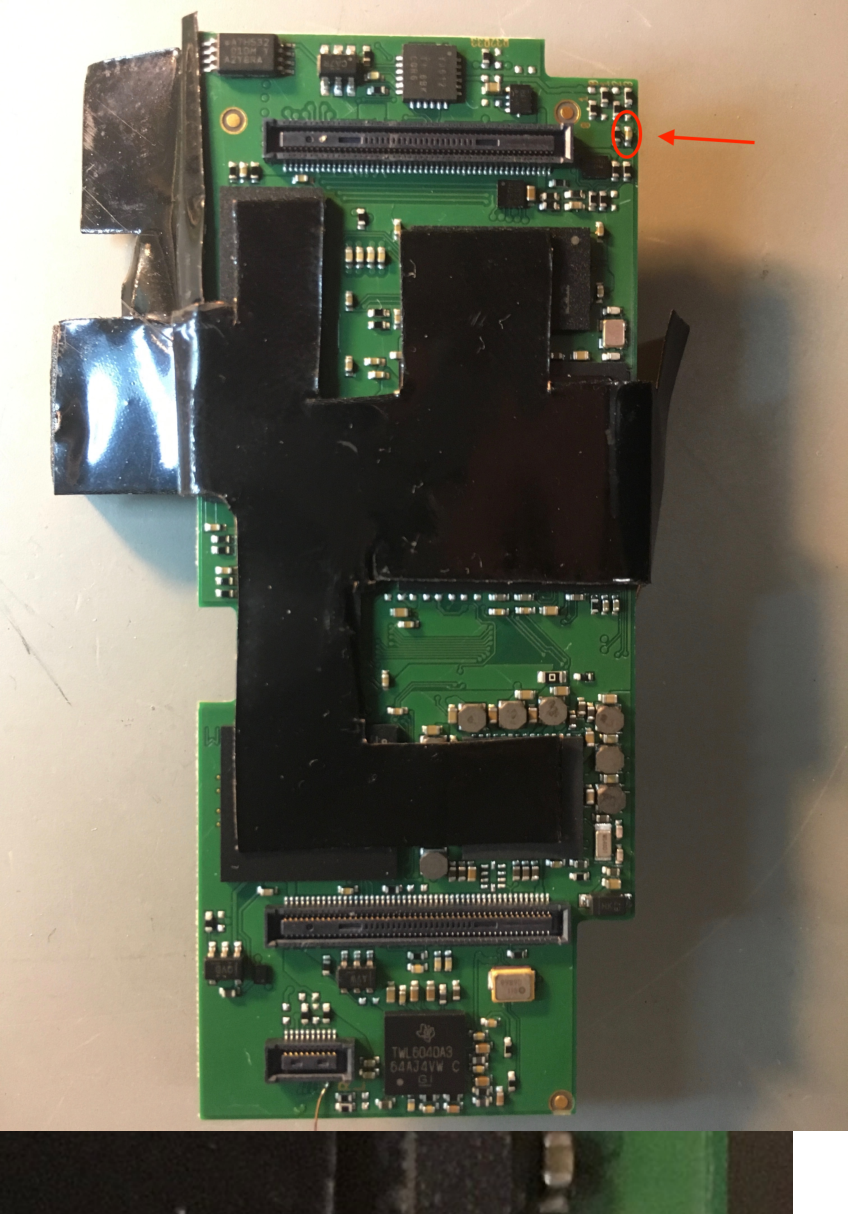

3. Boot issues when lid closed: When the lid is closed we found that the Pyra wouldn't boot which was caused by the OMAP5 debug mode which is triggered when one of the lid sensor or shoulder button GPIOs is closed when you turn the device on or put in a battery. We replaced the capacitor (As pictured below!) to one with a different value to increase the delay required. This can be fixed on prototypes and will be fixed for mass production.

Cap replace.png


4. Installation of the OS and booting from eMMC is now working!

5. aTc has received a new prototype and more developers will follow when the capacitors mentioned previously have been replaced.

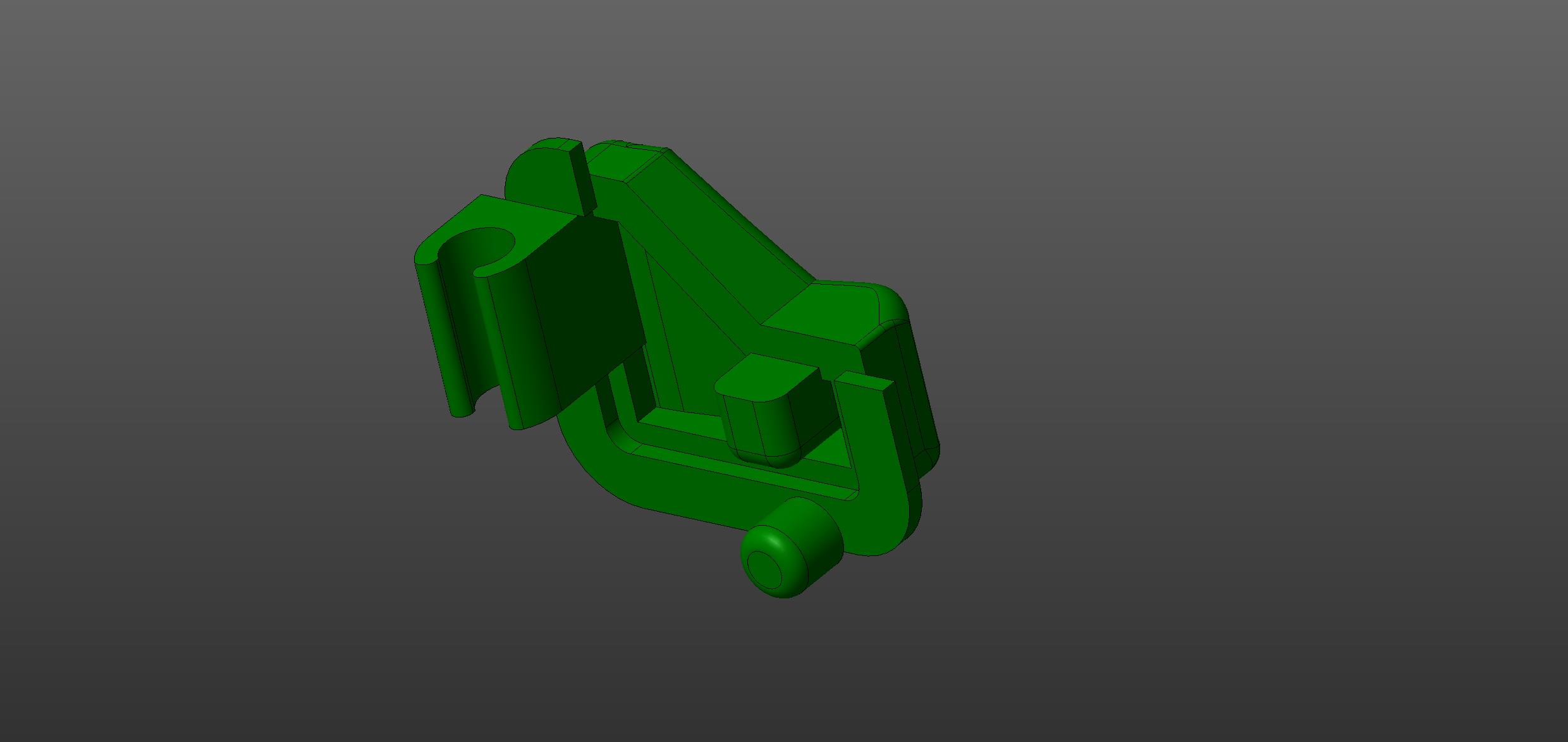

6. The case: The new case company has modified the moulds so that the top shoulder buttons can use a metal spring (Left) and have also fixed the data of the button with the plastic spring (Right).

ButtonMetalSpring.jpg ButtonPlasticSpring.jpg

Well that was a lot of news, hopefully i'll be receiving frequent updates from EvilDragon and posting news when we get info!

Last edited:

Silent-Hunter

Hardcore Member
Joined
May 29, 2010
Messages
3,090
It sounds like not much left to fix! The AESS, and I assume the graphics drivers still?


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
11,599
Location
Somewhere off the coast of the EU
So much for the (populated) PCB hardware being final, but it's good news that issues are finally getting worked down to the specific capacitor. And no changes to the CPU board as far as I'm reading them!

But the best news to me is number 5; a new prototype has gone out! Woot!


ClockworkCoder

Chaotic Neutral
Joined
Jan 21, 2016
Messages
1,228
Location
Menzoberranzan
Yes! First prototype being sent out is indeed great news :)

It's good to hear about the little things getting sorted, and even better that it doesn't need to trouble ED. Thank you very much for your time to update us Wally :)

Looking forward to regular updates from now on ;)


EvilDragon

Administrator
Staff member
Joined
Mar 4, 2003
Messages
29,280
Age
42
Location
Ingolstadt
So much for the (populated) PCB hardware being final, but it's good news that issues are finally getting worked down to the specific capacitor.
Well, MWeston had to change 500 resistors by hand on the first mass produced Pandoras because the were wrong.
The same happened with the first batch of GP2X where I had to replace 150 resistors myself to fix the flickering LCD Screens :D

I'm happy we found that BEFORE mass production. And as long as it's just that... then I'm happy as well. Hardware layout issues would be a problem, this isn't :)


NetBLOKS

Finally on-board
Joined
Nov 24, 2016
Messages
188
Location
Cologne
Website
www.netbloks.de
These are really good news.
Also, I like that Wally posted them just in time when we news hungry people were calling in the news zombie apocalypse in the last thread :)


pmprog

DNF (Did Not Finish)
Joined
Apr 25, 2011
Messages
3,925
Early state sound support has been implemented via Software as hardware level (AESS) needs to be implemented.
Isn't it a bit late in the day to be implementing hardware?


WizardStan

Mega GP Mania
Joined
May 24, 2008
Messages
16,733
Isn't it a bit late in the day to be implementing hardware?
It's basically the difference between having a bunch of audio in memory and using the CPU to go "DAC, here's the next byte... here's the next byte... here's the next byte" vs "DAC, here's a pointer and a size, let me know when you need more". The second one is part of the OMAP hardware but it needs, like, initialization and stuff that is probably at least a little fiddly.


pmprog

DNF (Did Not Finish)
Joined
Apr 25, 2011
Messages
3,925
Ah, so it's not new hardware, just configuring existing hardware? That makes a lot more sense!


EvilDragon

Administrator
Staff member
Joined
Mar 4, 2003
Messages
29,280
Age
42
Location
Ingolstadt
Ah, so it's not new hardware, just configuring existing hardware? That makes a lot more sense!
Yes! The audio chip supports hardware mixing, conversion, etc., but only when using TIs firmware.
Loading the firmware (the same the OMAP4 uses) hasn't properly been implemented in the current kernel versions, so we cannot use these features.

Thus, the CPU needs to mix all audio to 44,1k (or 48k, forgot what the default of the chip is) at the moment. Would save a few % of CPU power (though using ALSA, the mixing seems to have about 1 - 2% CPU usage).
