Would the other button benefit from an inbuilt spring as well? It would need to be different, but a tongue leading back from it to lever back against the case back edge might be possible?


docbroke

Banned
Joined
Feb 21, 2019
Messages
250
Age
38
Location
India
It may be possible but that will need redesign and creation of new moulds for other button too. That will add to the cost without giving additional advantages.


fusion_power

Advanced Member
Joined
Dec 25, 2005
Messages
13,046
Location
germany
Website
Visit site
Have a nice week everybody. You did a great job with buttons,FA just had to take your idea and upgrade it for the buttons to work properly since they had mechanic experiance and how the mold will work.So i will create a new mold just for buttons (Free of charge ) .I tryed many ideas and deferend designs to make it work (aint easy to finish something that someone else started with the current space i have to work on ).Since the design is around the logic the first buttons are created what i have done is giving extra power to the button to move ouside with the plastic spring and fixing the outside of the button for better touch .Also with this idea having Button and spring together as one will help a lot with production not lossing time assample Pyra. PS: (this information i just sended to ED as i do here right now.Also dint finished yet since i wanna test it first about the touch,movement and matterial quality for the spring never to brake )
Well, I'm fine with whatever works. :)
I'm not sure about a plastic "spring", these buttons should be as durable and sturdy as possible. Also, could make the molds more complex but I guess you know whats possible and whats not. I would still feel better with an metal (leaf)spring if a spring is really needed.


azouls

Member
Joined
Jul 6, 2018
Messages
61
Age
34
Would the other button benefit from an inbuilt spring as well? It would need to be different, but a tongue leading back from it to lever back against the case back edge might be possible?
The bottom buttons had been allready modified with springs.ED had mantion it allready in a video.For the top buttons though were a huge problem cause were no space to modified metal springs.So here we are with the plastic Spring :)


Blue Shadow

Very Active Member
Joined
Mar 7, 2016
Messages
150
Plastic springs are used in the industry in heavy machinery and also as shock absorbers, so I don't see why it should not work on smaller scale per se. If it works for the specific usecase needs to be tested, but that is what @azouls is planning to do anyways. So I won't distrust plastic spring per se. Of course it needs to be tested, especially as the shape is unusual (polyurethane springs usually seem to be tube-shaped). So let's just wait and see how the test will turn out.


azouls

Member
Joined
Jul 6, 2018
Messages
61
Age
34
Plastic springs are used in the industry in heavy machinery and also as shock absorbers, so I don't see why it should not work on smaller scale per se. If it works for the specific usecase needs to be tested, but that is what @azouls is planning to do anyways. So I don't would distrust plastic spring per se. Of course it has to be tested, especially as the shape is unusual (polyurethane springs usually seem to be tube-shaped). So let's just wait and see how the test will turn out.
Probably will be made from ACETAL and not from polyurethane.i will do both to check it out but i believe Acetal will be the one that will do better job for spring


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
11,517
Location
Somewhere off the coast of the EU
Thank you very much my friends. If there are people here who knows how to design i am open for ideas that has to do for the outside look of the button since dint create the mold yet
Now, I don't actually know how well this will work, but from my recollection the original design has horizontal crests and troughs on one button (perhaps the bottom one; I'd have to check) and vertical ones on the other. The idea being, that when you place your fingers on the buttons you could feel which one you were on without having to spin the unit round to check. Other similar ideas are spots and stripes. Maybe having a lip on the hinged edge like in your prototype picture might be enough to home your fingers, but given the unusual shape of them, perhaps being able to feel the divide between them might be a useful feature as well. Some kind of mockup is probably required to test this.


Grench

Forum Addict!
Joined
Oct 3, 2008
Messages
6,270
The bottom buttons had been allready modified with springs.ED had mantion it allready in a video.For the top buttons though were a huge problem cause were no space to modified metal springs.So here we are with the plastic Spring :)
So all four shoulders will have springs? That should make for great feel/feedback!


azouls

Member
Joined
Jul 6, 2018
Messages
61
Age
34
Good Morning all.We found a way to use Metal spring for the Top Buttons too.Today i had sended Both Datas to create new 3D Printing samples.Also had fixed the Data of the Plastic spring button.The Button with the metal Spring will be modifed in the Mold that we allready having.The button with the plastic spring Mold needs to be created from the start (free of charge) .Both ways are correct and we will choose the best one.As soon as i have the samples i will create a video for ED and move forward PS: This information had been sended to ED just now as i type here on the same time


Attachments

Djoga'Ro

moonstruck
Joined
Apr 3, 2016
Messages
990
Good Morning all.We found a way to use Metal spring for the Top Buttons too.Today i had sended Both Datas to create new 3D Printing samples.Also had fixed the Data of the Plastic spring button.The Button with the metal Spring will be modifed in the Mold that we allready having.The button with the plastic spring Mold needs to be created from the start (free of charge) .Both ways are correct and we will choose the best one.As soon as i have the samples i will create a video for ED and move forward PS: This information had been sended to ED just now as i type here on the same time
I see, the plastic spring got thinner. Before, I was wondering, if the wall of the case, against which the thick plastic spring would push, could stand the pressure. :)
Do the different shades of green represent different plastics - or is it just random?


azouls

Member
Joined
Jul 6, 2018
Messages
61
Age
34
I see, the plastic spring got thinner. Before, I was wondering, if the wall of the case, against which the thick plastic spring would push, could stand the pressure. :)
Do the different shades of green represent different plastics - or is it just random?

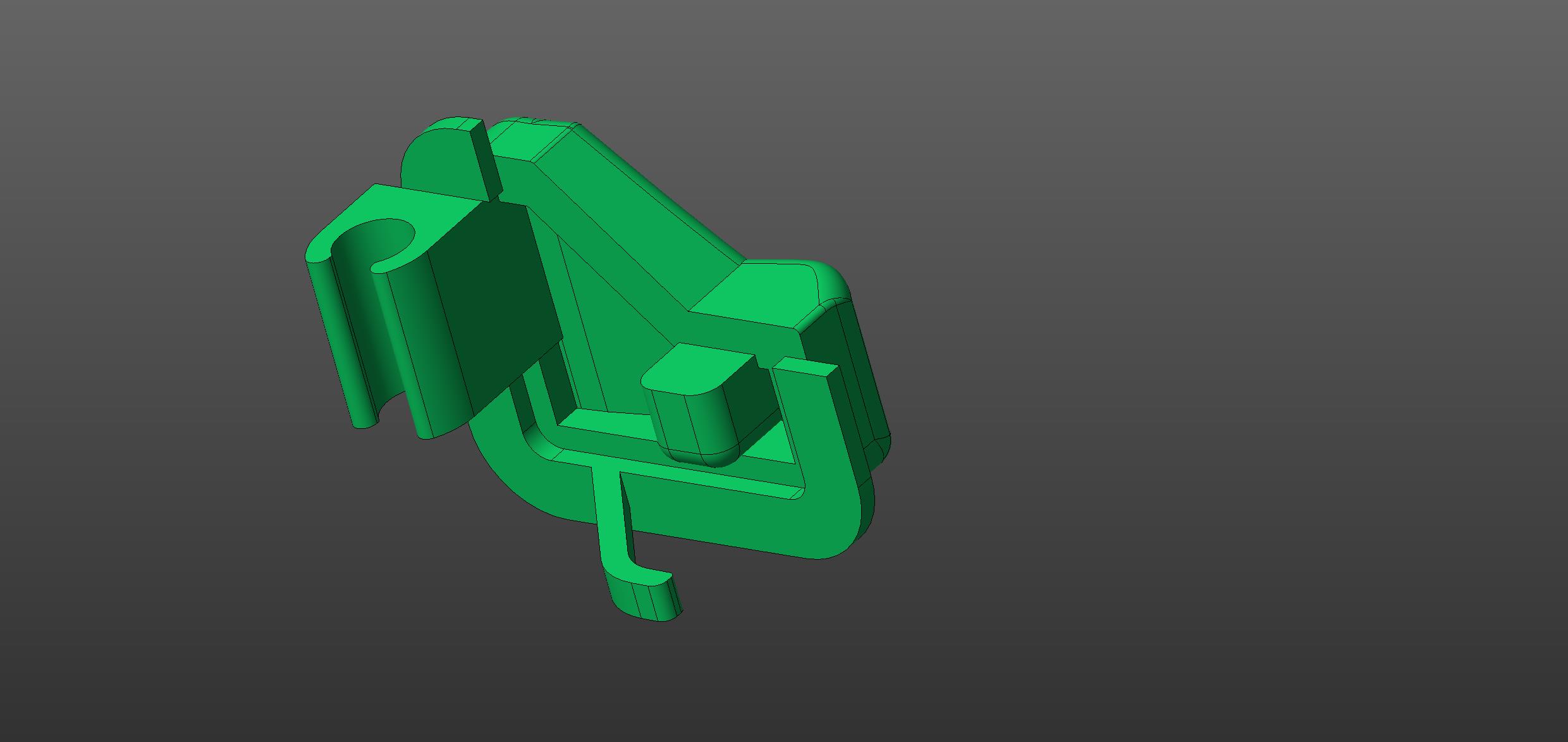

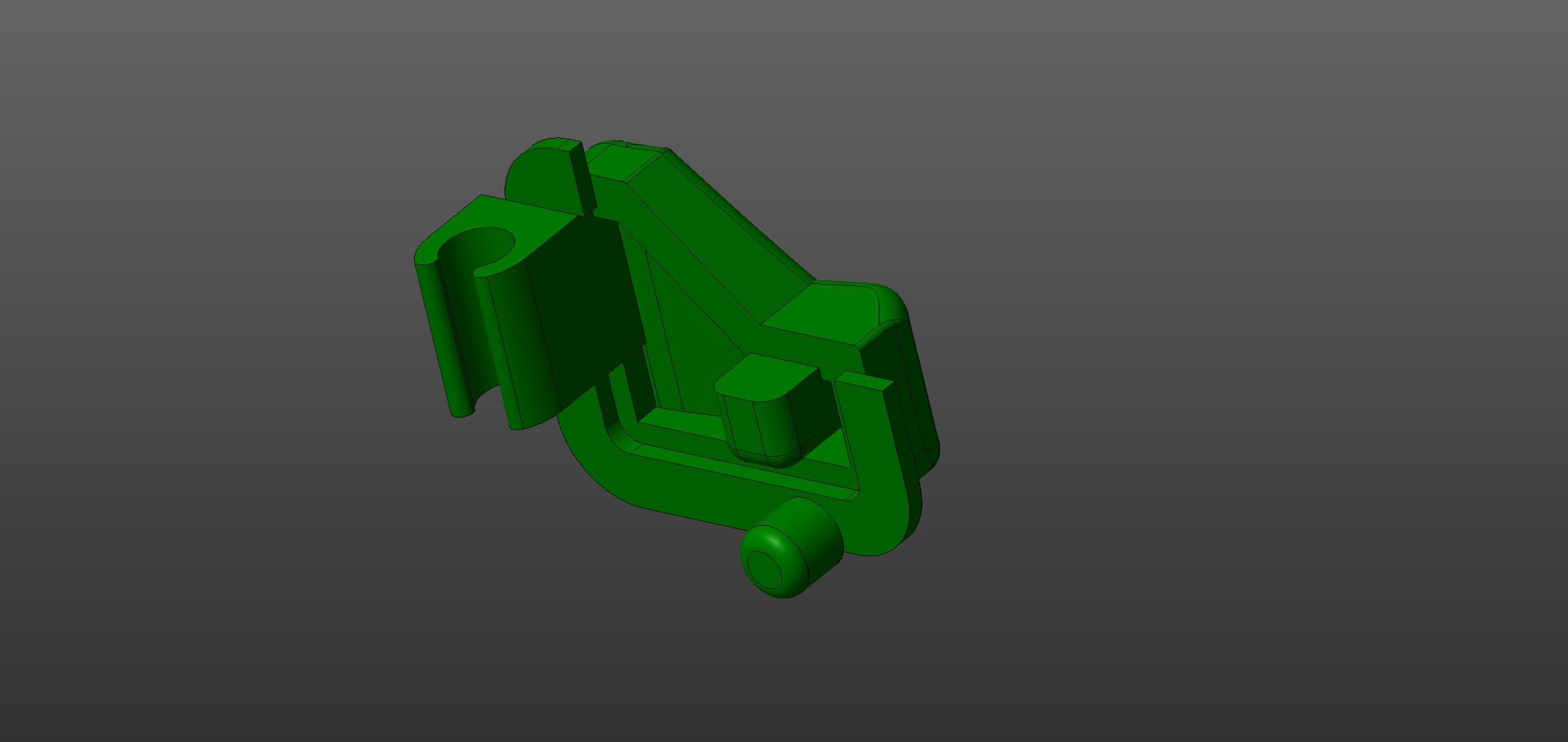

Nothing Spectacular about the color in the Data but yeah there are two deferend Buttons . The ButtonMetalSpring picture has a metal spring placement .The ButtonPlasticSpring picture has the plastic Spring modified on the button.


zoranc

Member
Joined
Aug 18, 2010
Messages
109
Good Morning all.We found a way to use Metal spring for the Top Buttons too.Today i had sended Both Datas to create new 3D Printing samples.Also had fixed the Data of the Plastic spring button.The Button with the metal Spring will be modifed in the Mold that we allready having.The button with the plastic spring Mold needs to be created from the start (free of charge) .Both ways are correct and we will choose the best one.As soon as i have the samples i will create a video for ED and move forward PS: This information had been sended to ED just now as i type here on the same time
Thanks a lot for your updates! I am very happy to see that the biggest current issue with Pyra is moving forward very nicely!


Bernd

Very Active Member
Joined
May 4, 2016
Messages
189
I guess we have a confirmed release time for the Pyra now.

Spring!

:p
I hope its spring 2020 or earlier,
My mobile phone is slowly dying on me.
The charging connector has contact problems after 17 years, so I have to take out & charge the battery external once a week.

It would be sad when I would have to buy a new phone that short before the Pyra gets released.
