Phew. That still took longer than expected - but I finally have good news for you.
No, the cases are not here - yet. But I've arranged a pick-up for UPS tomorrow and the box with 50 cases is packed up and if UPS doesn't mess up, they'll finally arrive at my place early next week!

What has happened, you ask? These should've arrived last week already...?
Yes. And it was really annoying, doing daily phonecalls to catch up with everything.
It felt like a déja-vù - the case was what delayed the Pandora for quite some time as well.

Well, the now created cases with 3 different materials (so I can test and check the best one).
Yes, they're all polycarbonate, but are still different materials.
So they all look and feel a bit different.

Additionally, they used a color coating on a few cases to show what's possible.
Don't worry - it's not the same as painting the case (which is what happened with the Pandora).
Coating is a proper way to add effects or paint. It's the same technique GPD uses for their devices.
It's almost impossible to rub it off or wear it out.

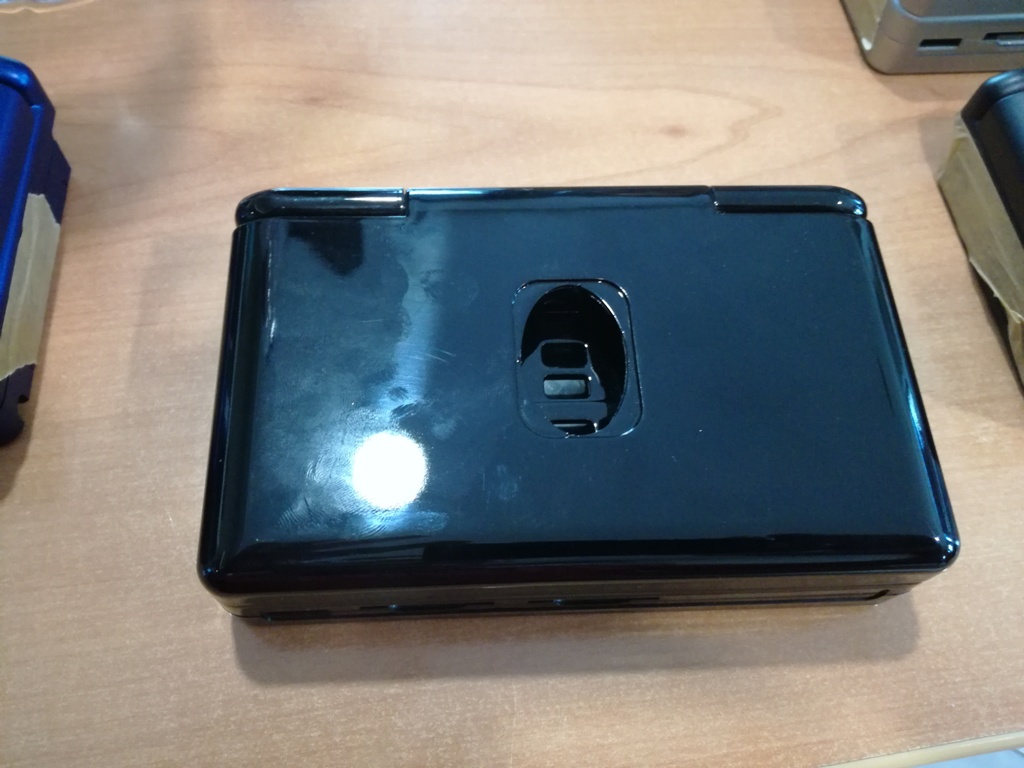

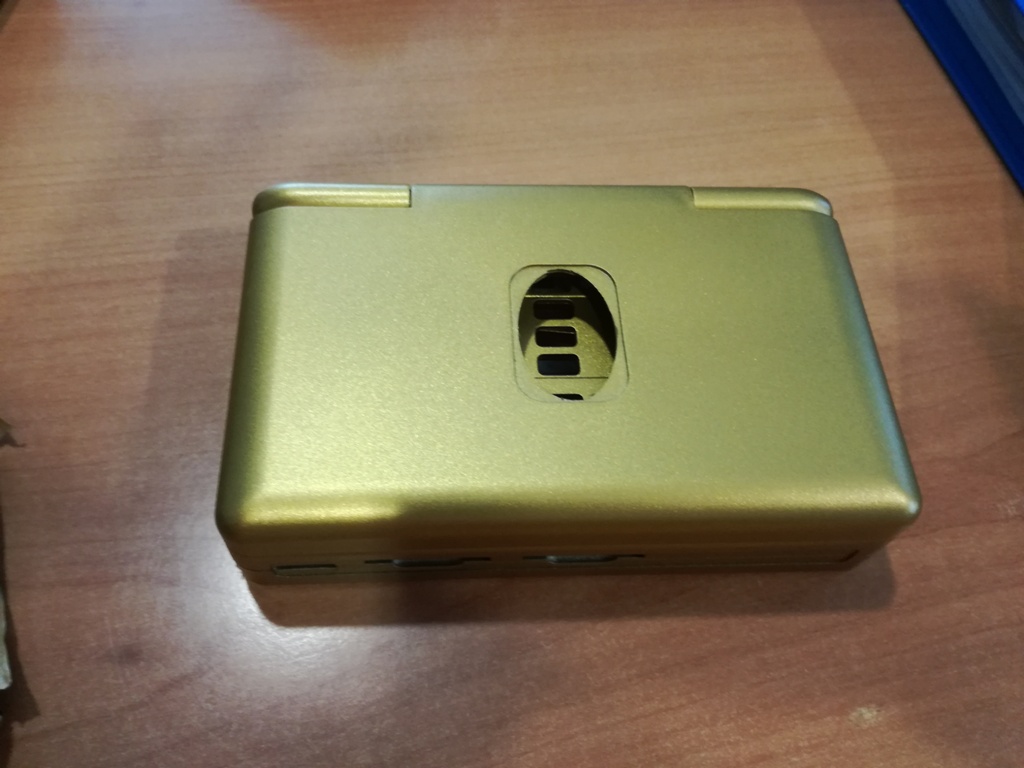

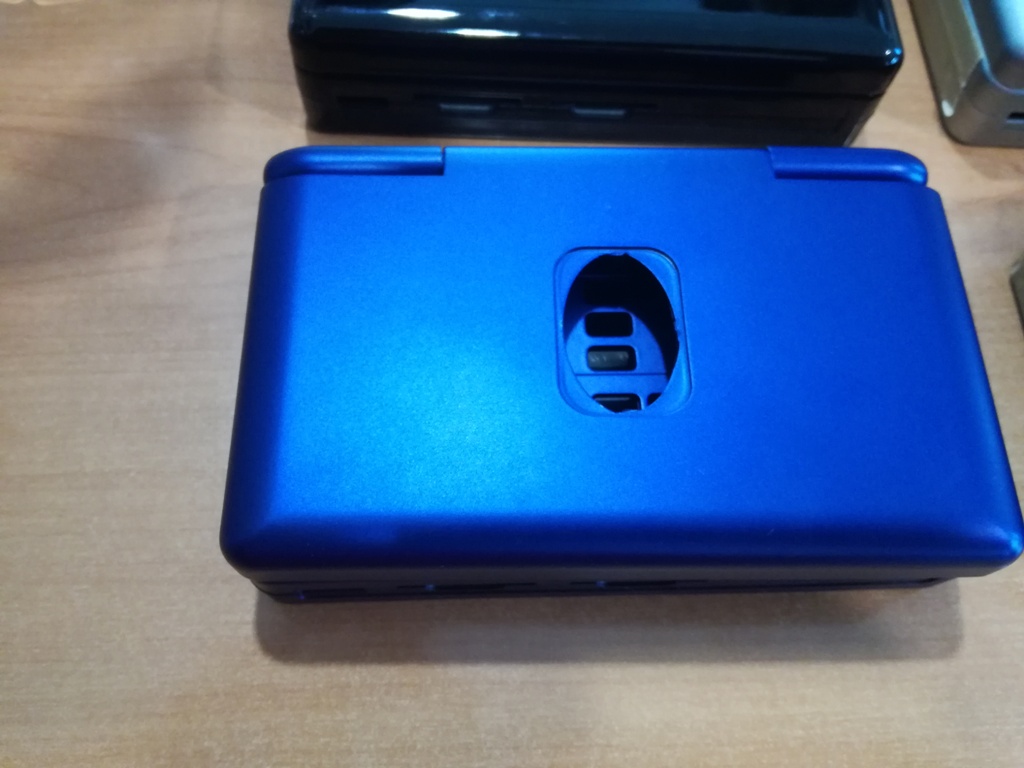

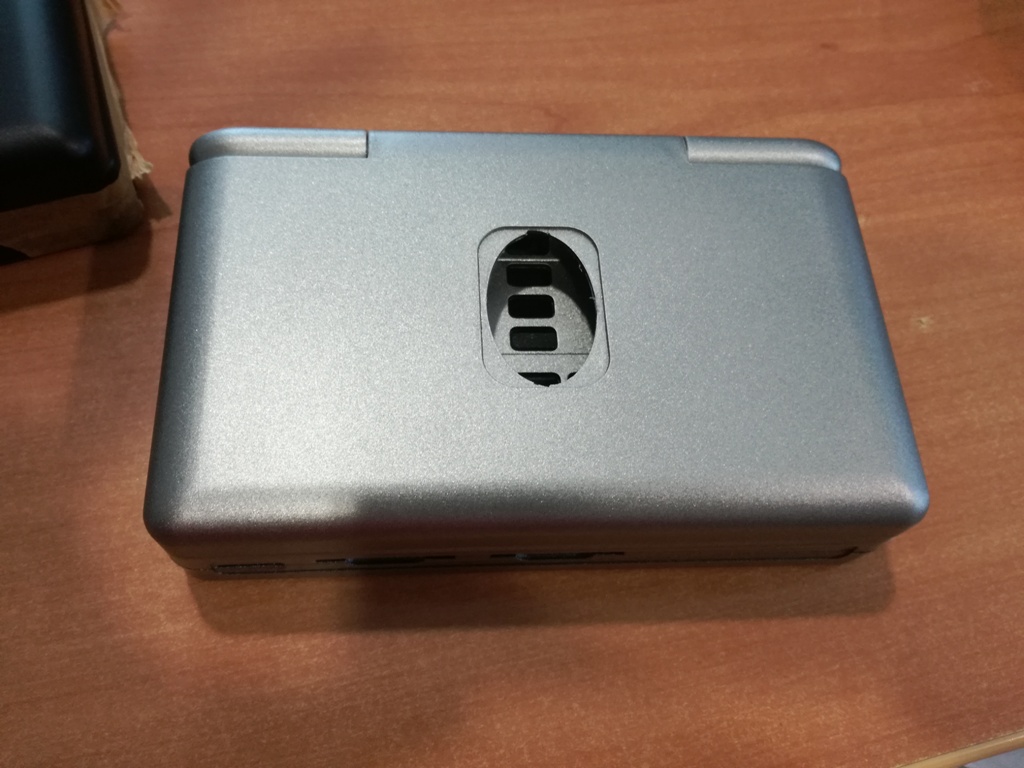

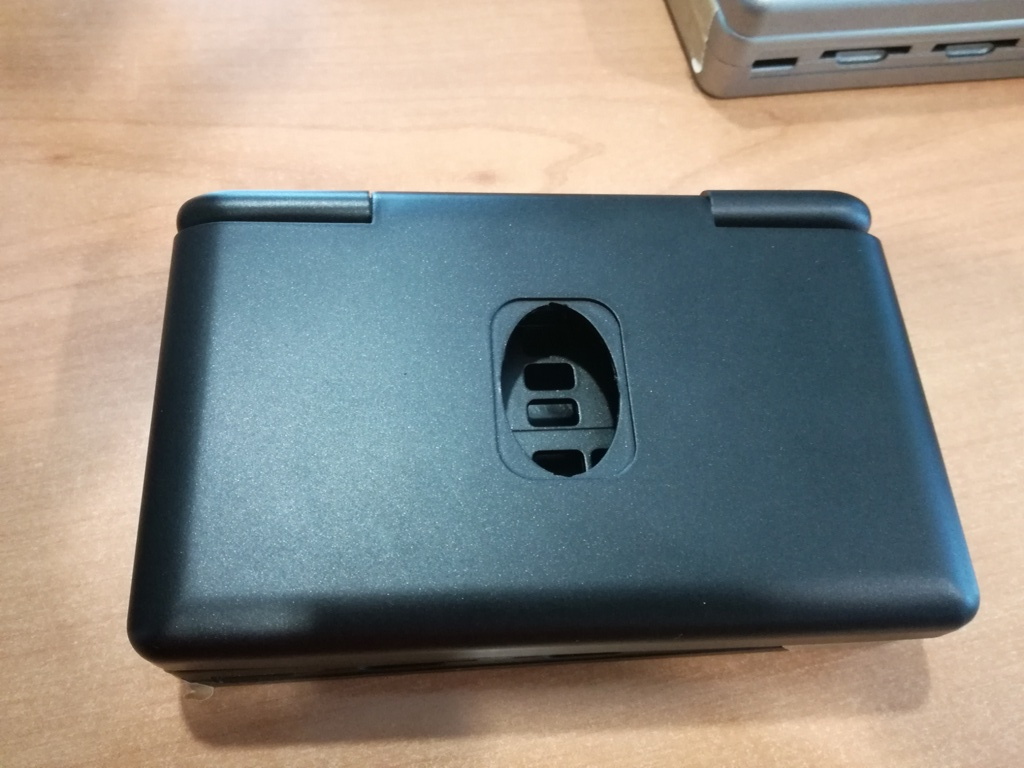

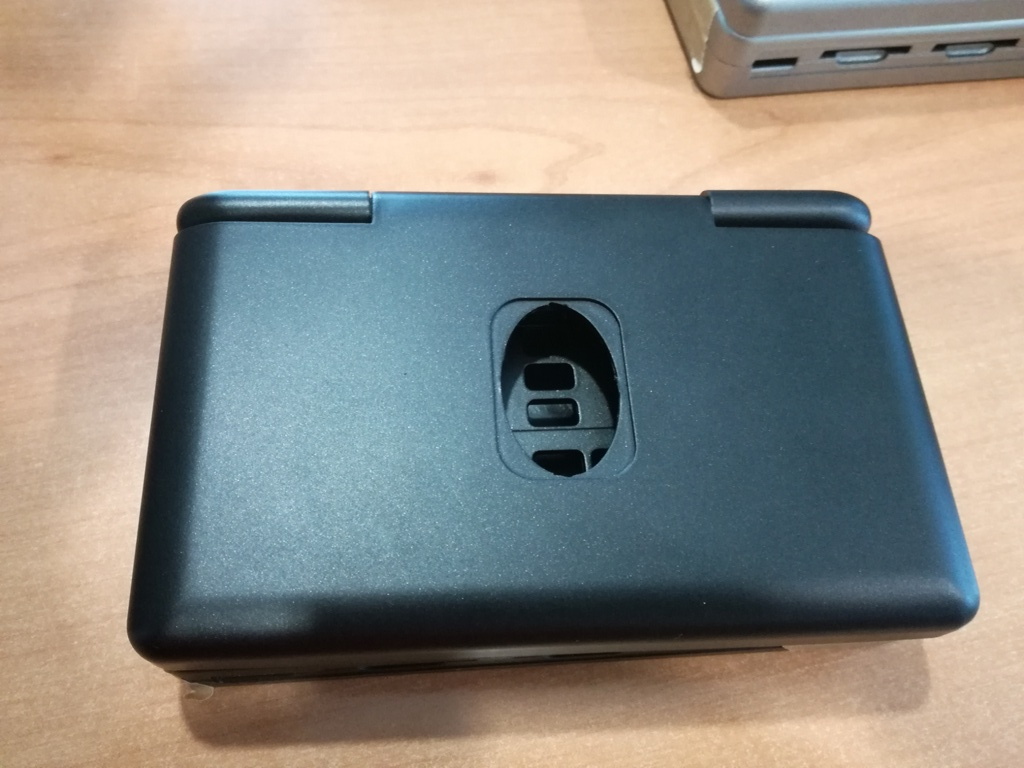

I've attached a few pictures. I'll receive these sample cases as well and will test the coating (yes, you'll see videos of that).

IMG_20170525_164508.jpg IMG_20170525_164515.jpg IMG_20170525_164539.jpg IMG_20170525_164544.jpg IMG_20170525_164534.jpg

According to my contact, they look better in reality than on the pictures.
One especially looks like it loved to collect fingerprints - don't worry, I won't choose that one :D

That's the status on the cases. Now, let's hope they'll assemble nicely and everything fits!

But I've got some more news for you:


The LCD Cables have arrived!

The samples of the latest revision of the LCD Cables have arrived.
I'll spend the weekend testing them. I expect them to be final though. The length has been measured multiple times with paper and foil material and the traces haven't changed, so there's no reason they shouldn't fit.


The DPad is now final as well!

As mentioned in some of my last posts, we've tweaked the DPad design a bit as the one we had on the keymat was a bit mushy.
I received a printed version early this week, and could finally test that all issues are fixed.
It feels perfect and works fine with the keymat.

The moulds are already being updated and I should receive some samples within the next few weeks.

The DPad was the last thing that needed to be fixed with the keymat - so the next samples should also be the final ones!

If you want to see what we tweaked, I've attached various STL files for you to compare them yourselves.


So much for today - hopefully with very good news next week!


Attachments

Silent-Hunter

Hardcore Member
Joined
May 29, 2010
Messages
3,136
Oh my goodness I want the blue one!
[doublepost=1495760811,1495760638][/doublepost]There's no chance of the FCC refusing certification is there?


zacharycramer00

Still Fresh
Joined
Mar 1, 2017
Messages
5
Oh boy I'm so excited! I can't wait till I can play all sorts of fun homebrew games!

Sent from my SM-G920V using Tapatalk


Swordfish II

Very Active Member
Joined
May 20, 2015
Messages
941
Boo shiny, and boo silver. No black one? the last one looks a bit grey, also the last one looks like something is off with the right side hinge.
[doublepost=1495762856,1495762689][/doublepost]
Is this the last stuff to be done before FCC and mass production??

I really like the Silver and Blue cases! :D
IIRC the boards need to be finalized with testing, The case samples need to be acceptable, then go into production.... a couple more weeks for the keymat samples before keymat production can begin.

So 5-6 more months is my rough estimate for the first production ones to go out the door, if everything is perfect...so plan on longer.


Kev2442

Still French
Joined
Nov 4, 2014
Messages
572
Location
42 (Loire) is the answer.
OH YES. NEWS AT LAST.
They're all looking real good. But I think the last one is a bit closer to the "fantastic" tier. Love them colored matte reflections.
Get one with a bit less glitter and I think we're sold on the black configuration.


comradekingu

Glowing ember
Joined
Apr 15, 2011
Messages
5,048
Website
portfolio.anotheragency.no
So if i lose my Pyra down a set of concrete stairs, onto a drop and some gravel, etc. Can i just sand down the black to now be slightly concave, yes.
But will the top layer even break down so far as to need that?

Send one of the shiny ones through some testing.

Last edited:

levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
12,116
Location
Somewhere off the coast of the EU
Yes, my favorite is also that matte off-black one. I can't tell how dark it is with a biased light source like in that pic, but if it is just a hair off black like I suspect, it's the one I want. Sure, the hinge is out in that photo but I suspect they don't have the hinge parts, so those cases are just stacked parts. And I can't see any injection marks on those lids, which is a big step up from the previous pics - I guess the difference is mainly the coating.

I think we're still waiting for CPU board revisions, but hopefully videos of the finished prototype level units booting and browsing, or emulating some cool stuff can't be too long now. As I say hopefully, because if these fixed CPU boards aren't fixed that'll put us back a few weeks.


Caine

Hardcore Member
Joined
Jun 5, 2008
Messages
4,138
Location
Netherlands
Summary for the pessimists among us.

Bad news:
- Cases still have not arrived yet, maybe/probably next week
- Still in design/testing loop for LCD cables
- We're doing another iteration on the DPAD. Hopefully this time it is really final.

Good news:
- We have some pretty pictures.

In all honesty, those cases look pretty neat. Can't wait to see more of them.
I hope they really arrive next week and in a less crushed form-factor this time.


tarator

Very Active Member
Joined
Jun 4, 2016
Messages
150
Age
35
Location
Vienna
Wow, I'm really amazed how great they look! Even the green(or gold?) one looks nice. The coating really does the trick! Now I'm somehow happy that FormFactors took it's time to produce the samples.
If this should be the final colours, I would still go for the dark grey/black one (ok... now I feel conservative).

@EvilDragon please provide some photographs with a good depth-of-field (F-Stop 8 or above would be nice ) once they've arrived and some prototypes are assembled.

I can tell you: I'm really excited about this project. I never had so much pleasure when buying stuff :)


ClockworkCoder

Chaotic Neutral
Joined
Jan 21, 2016
Messages
1,438
Location
Menzoberranzan
The last photo almost looks like gunmetal grey, but I suspect it's just matte black. Either way, that's definitely my favourite.

Down the line would also like to see retro beige as an option :)

Everything is sounding like we're not far off. What's the current status with the 4GB issues? Is that still being tested?
