Just a bunch of pics

Discussion in 'Pyra News' started by EvilDragon, Feb 11, 2018.

  1. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,199
    Location:
    Ingolstadt
    I received these pics last week already, but I haven't found the time to upload them now.
    These reflect all the changes that have been discussed and made.
    As they probably look mostly the same than before for most of you, I'll try to explain what has changed here.

    IMG_20180207_115539.jpg IMG_20180207_115550.jpg IMG_20180207_115555.jpg IMG_20180207_115607.jpg IMG_20180207_115617.jpg

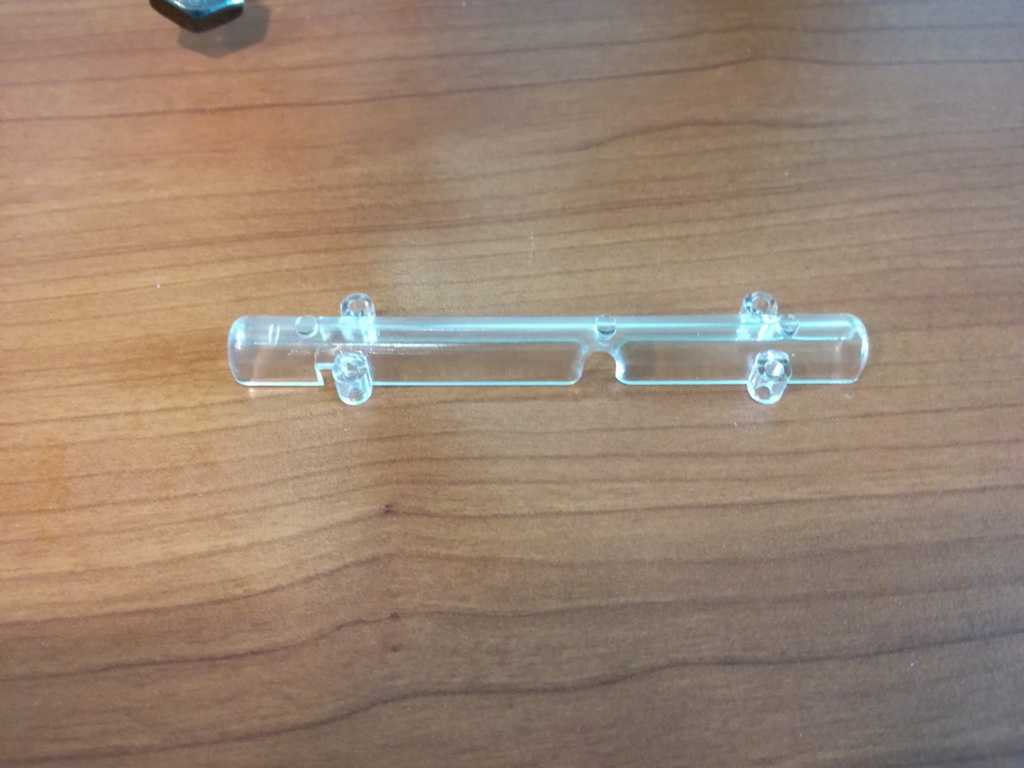

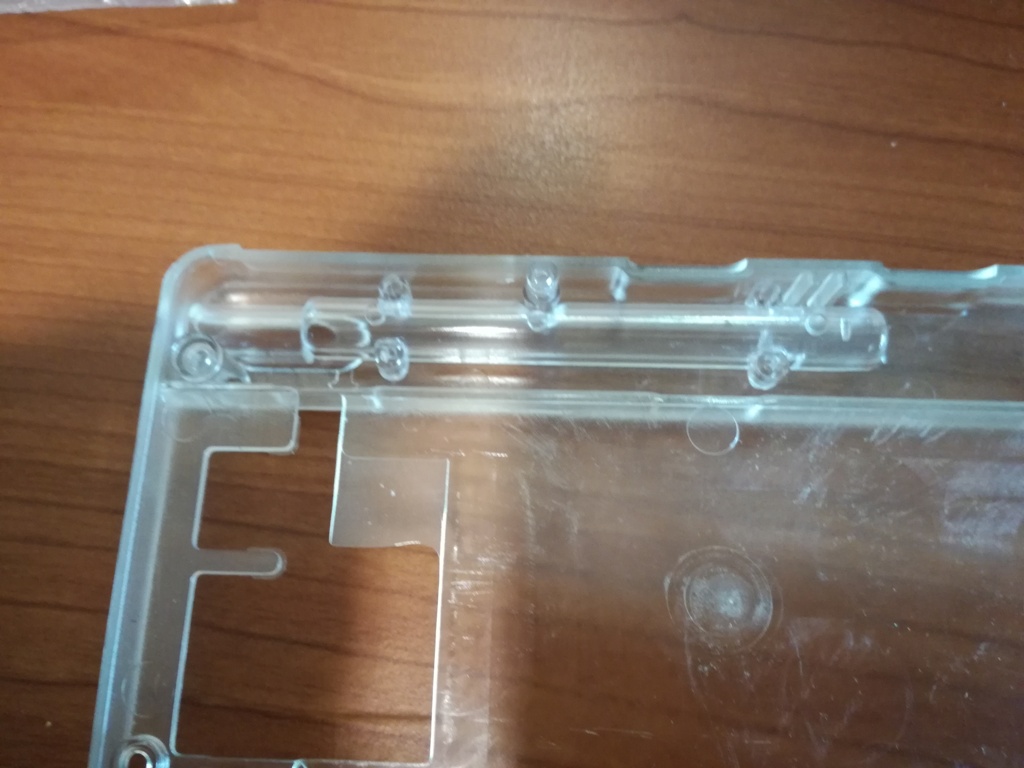

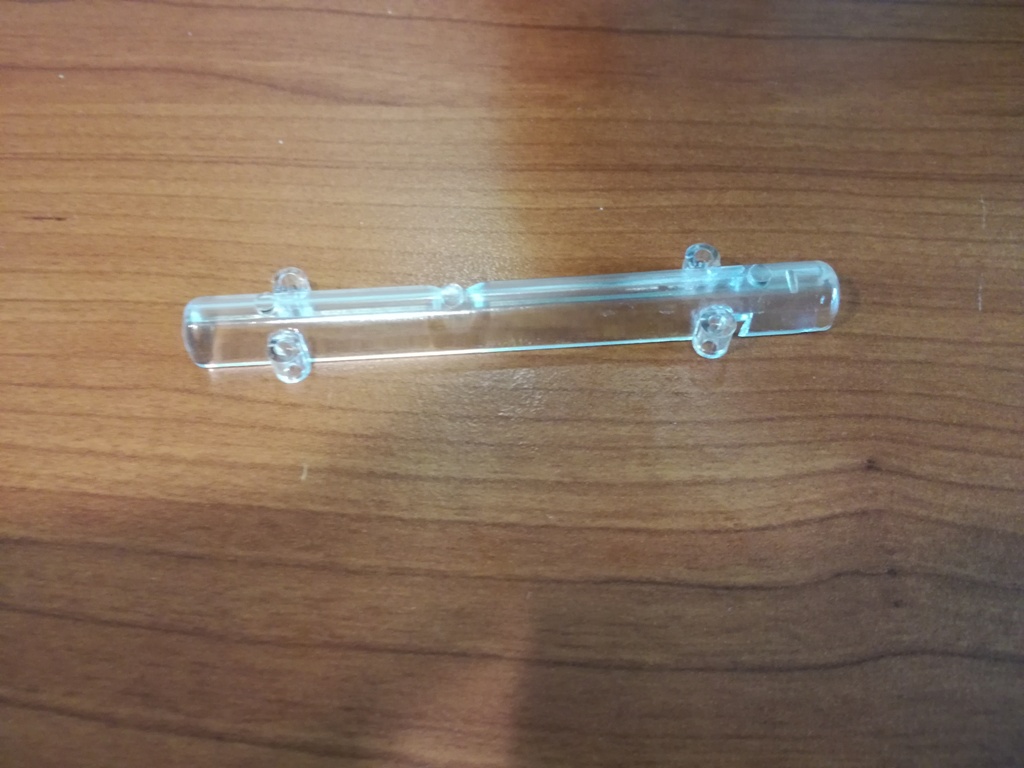

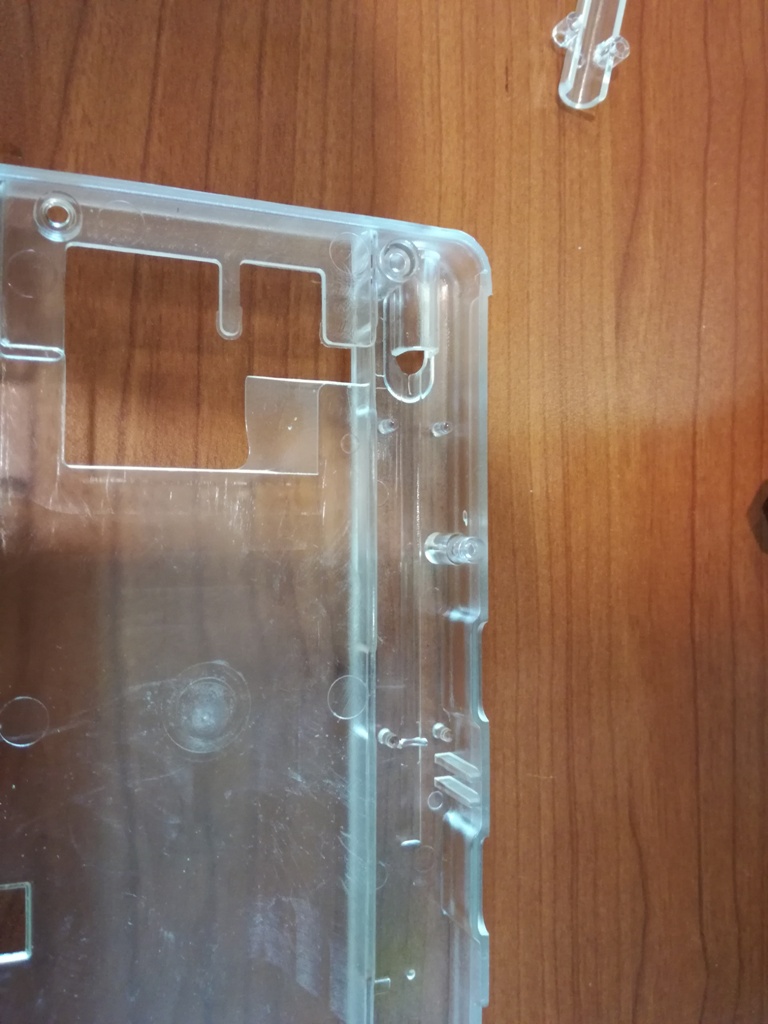

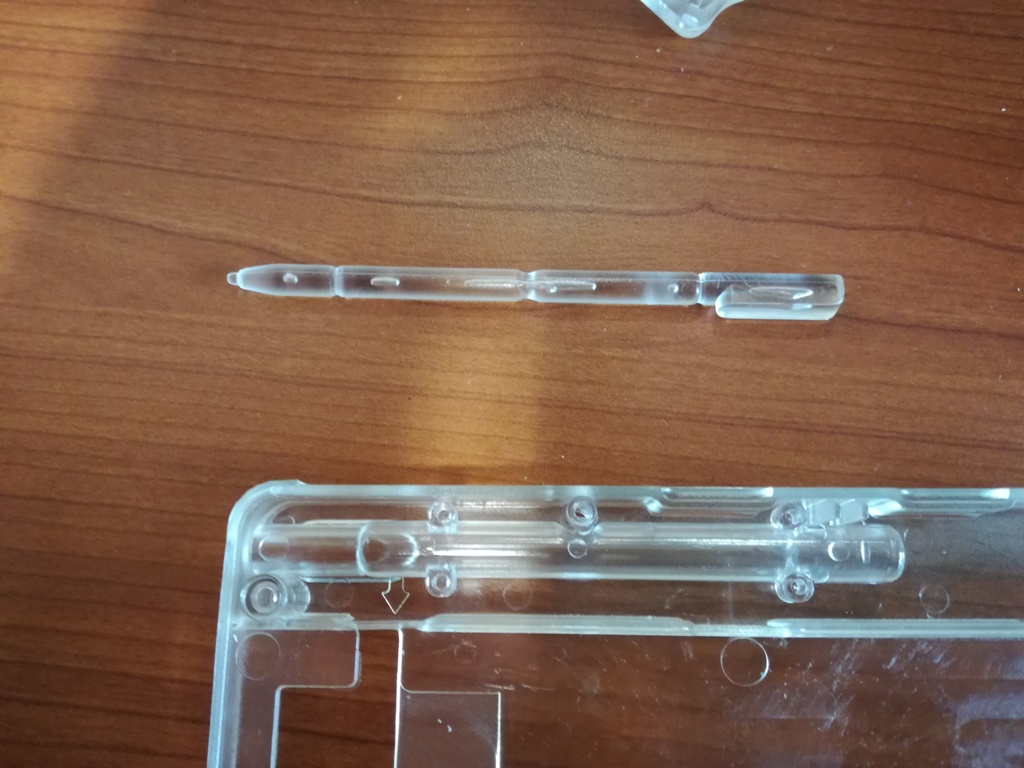

    Here you can the changed Stylus holder. What has changed here is that small cut (you can see it clearly on the left side on the third picture.
    This has been changed because it was almost impossible to remove the stylus otherwise.

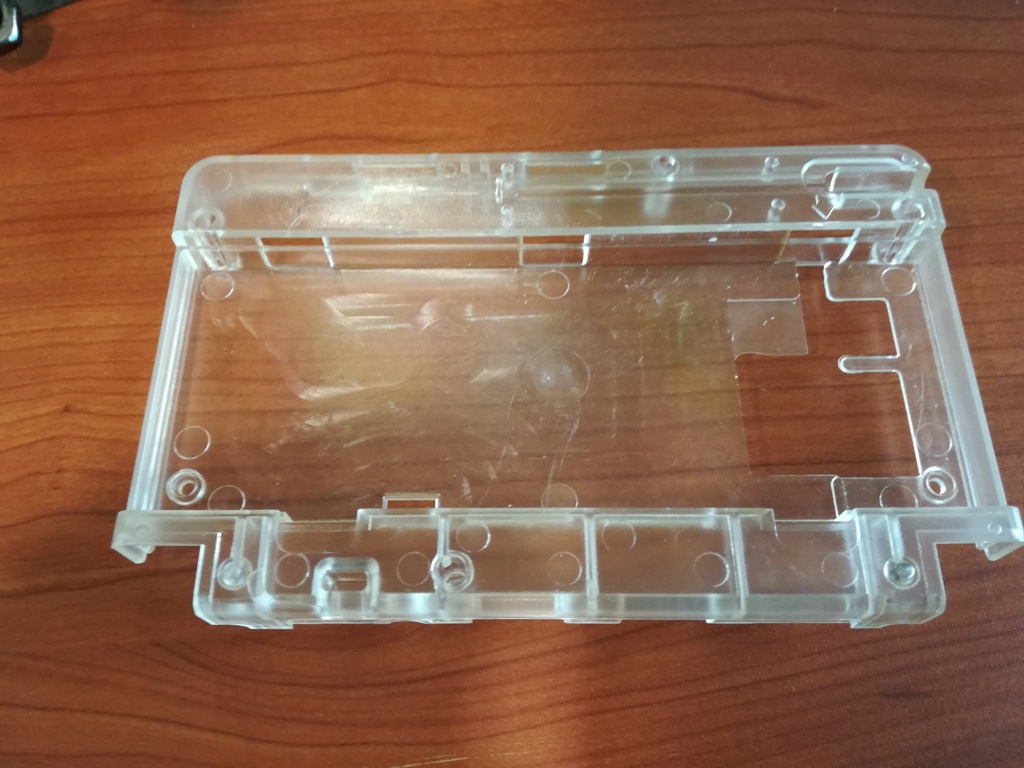

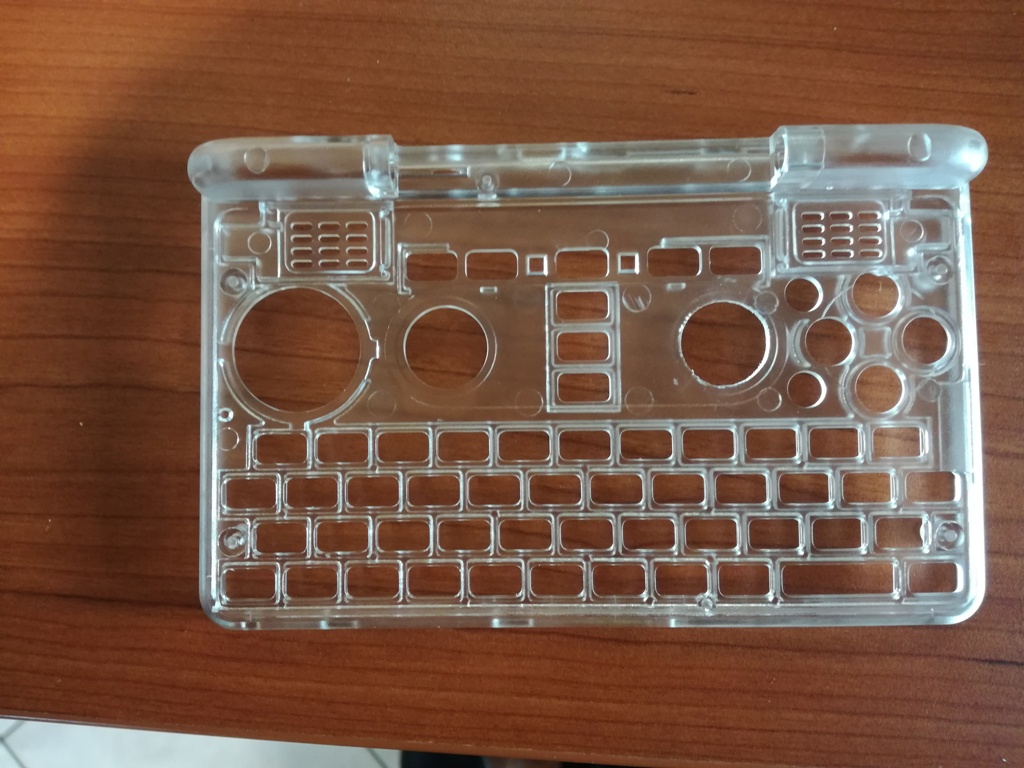

    This was the biggest change: The moulds weren't properly aligned, so ALL holes were a bit off. The have no been moved to the middle!


    The plastic inside the battery compartment has been thickened a bit, as it couldn't be properly filled with the mold before.

    IMG_20180207_115718.jpg IMG_20180207_115724.jpg

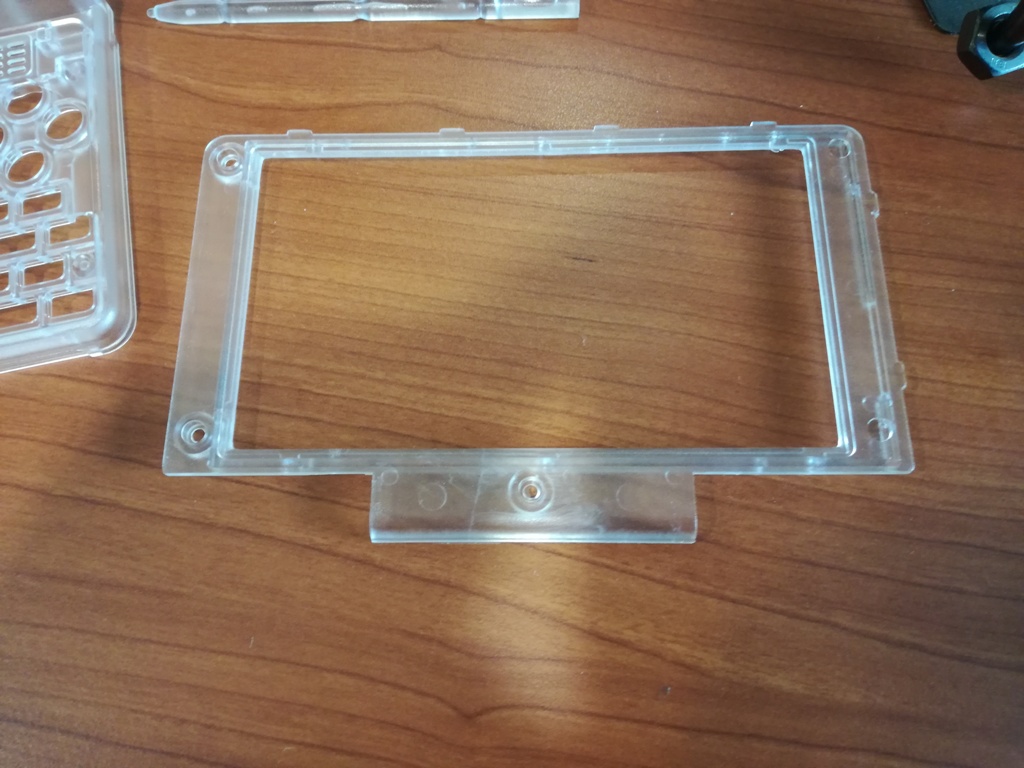

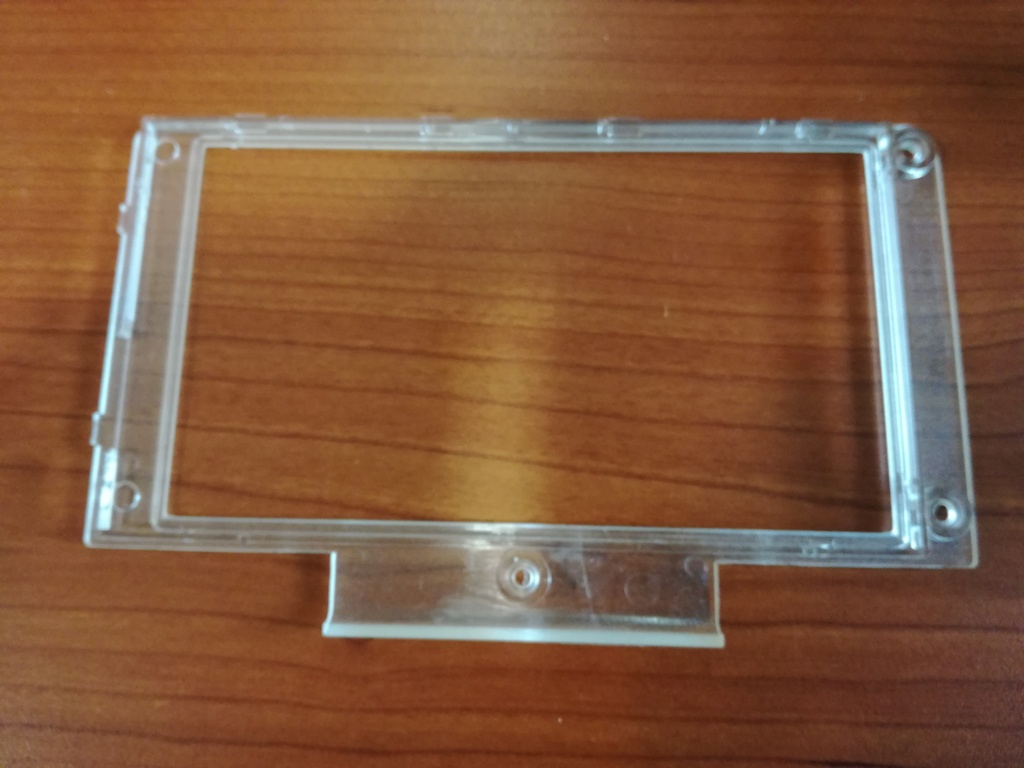

    The opening of the frame has been changed a tiny bit, as the LCD wasn't properly aligned in the middle.

    IMG_20180207_115748.jpg IMG_20180207_115752.jpg

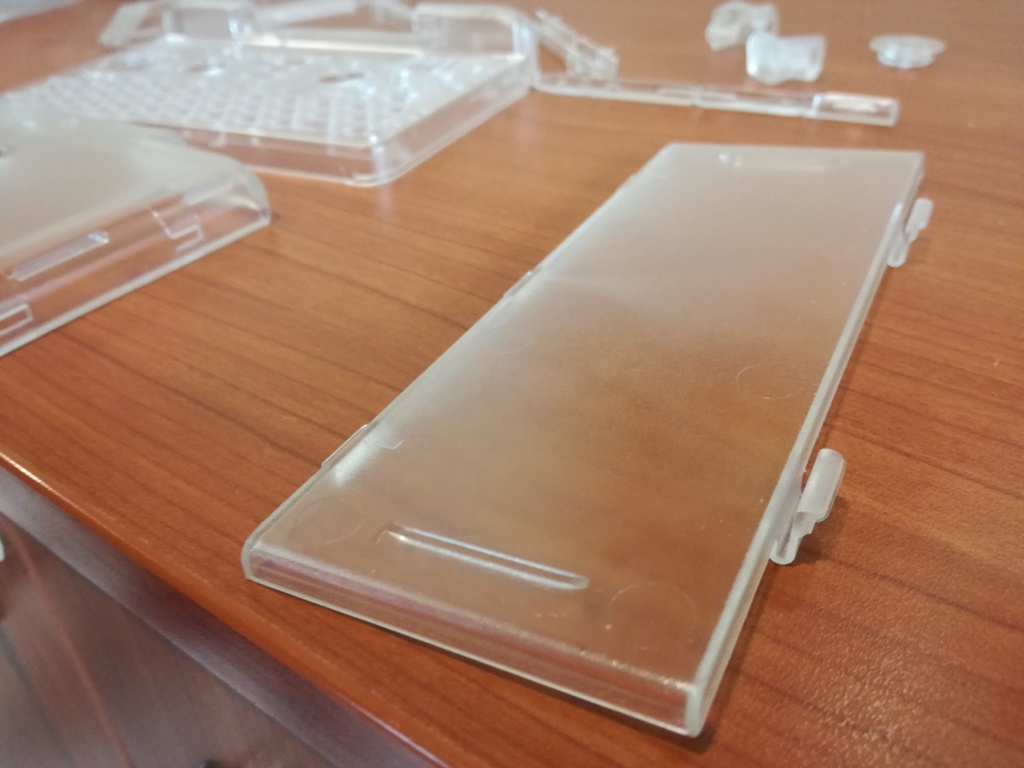

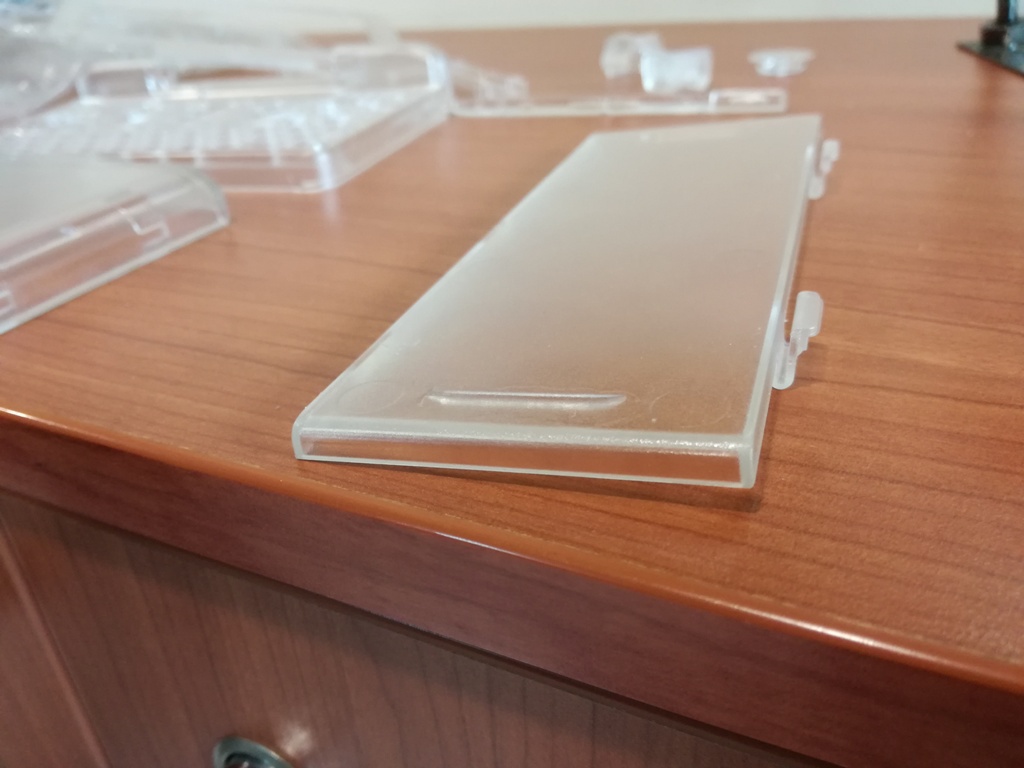

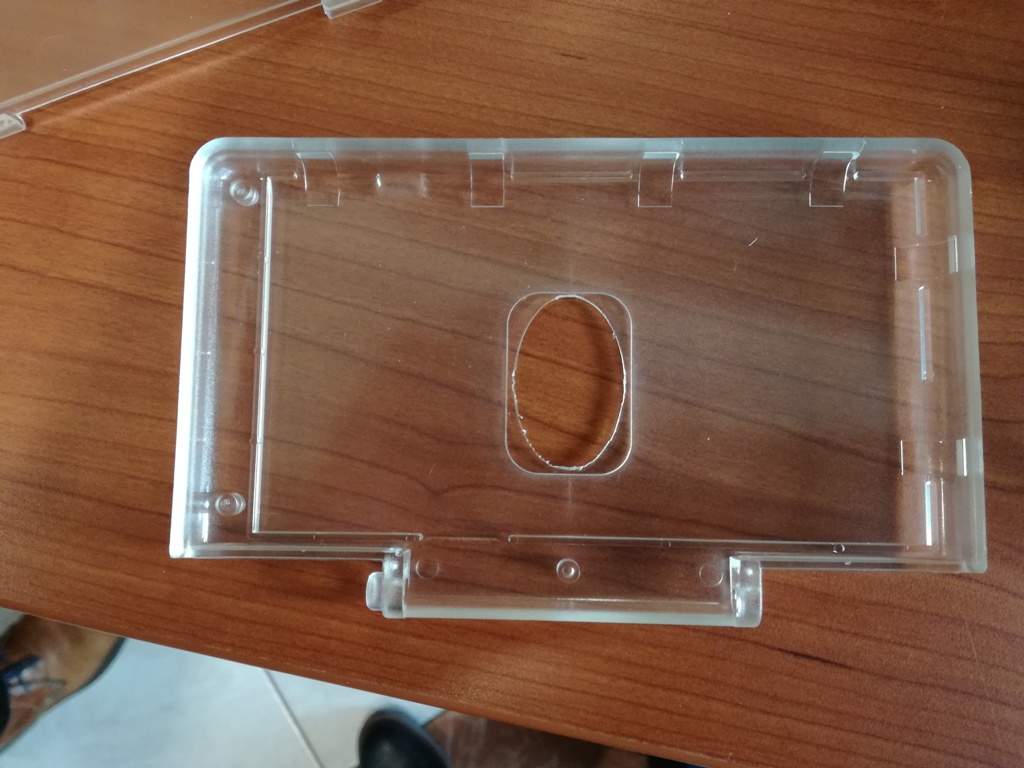

    The clips have been strengthened a bit.


    The height of the bridges has been changed a bit so that it closes properly.

    IMG_20180207_115841.jpg IMG_20180207_115846.jpg IMG_20180207_115850.jpg

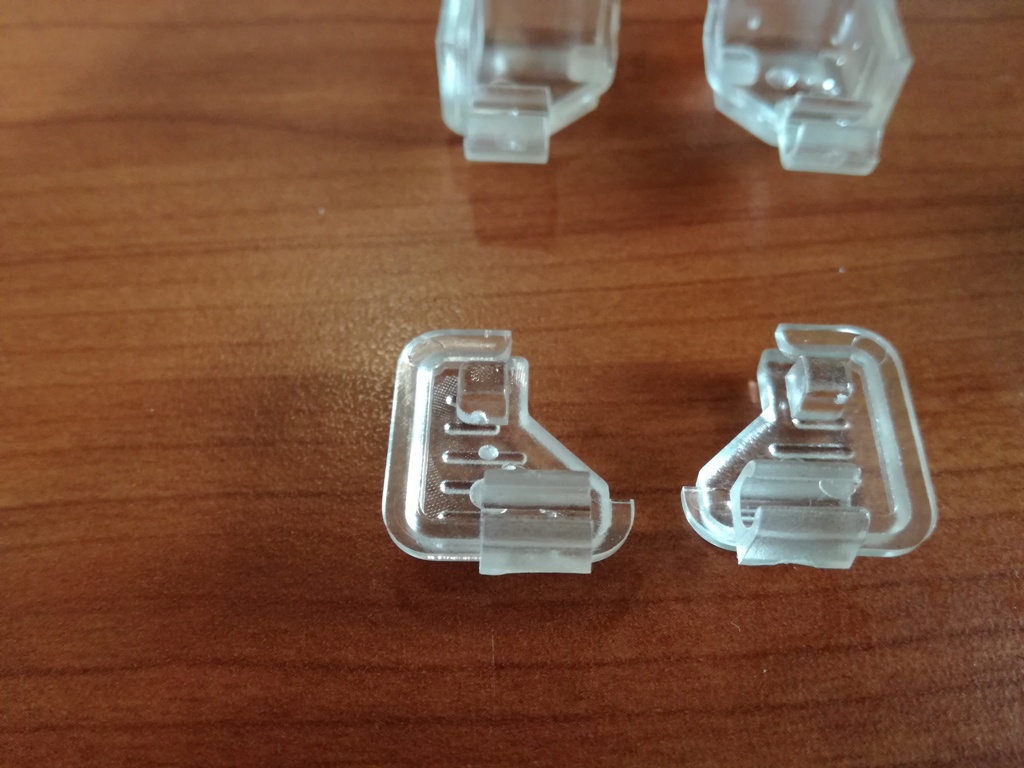

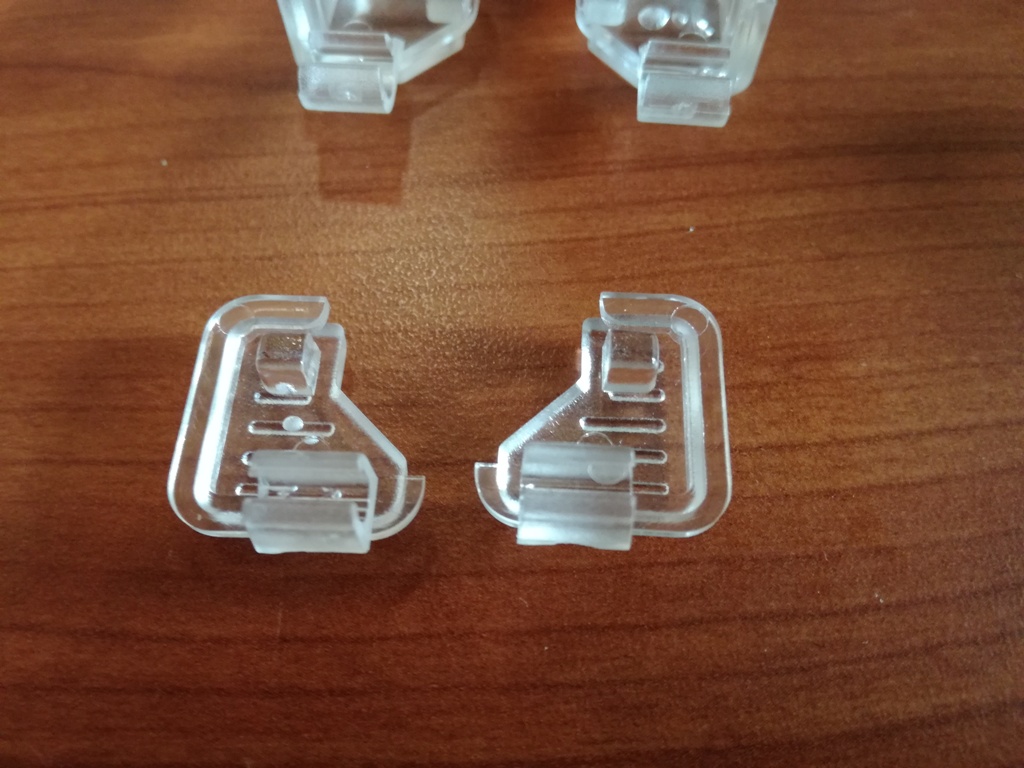

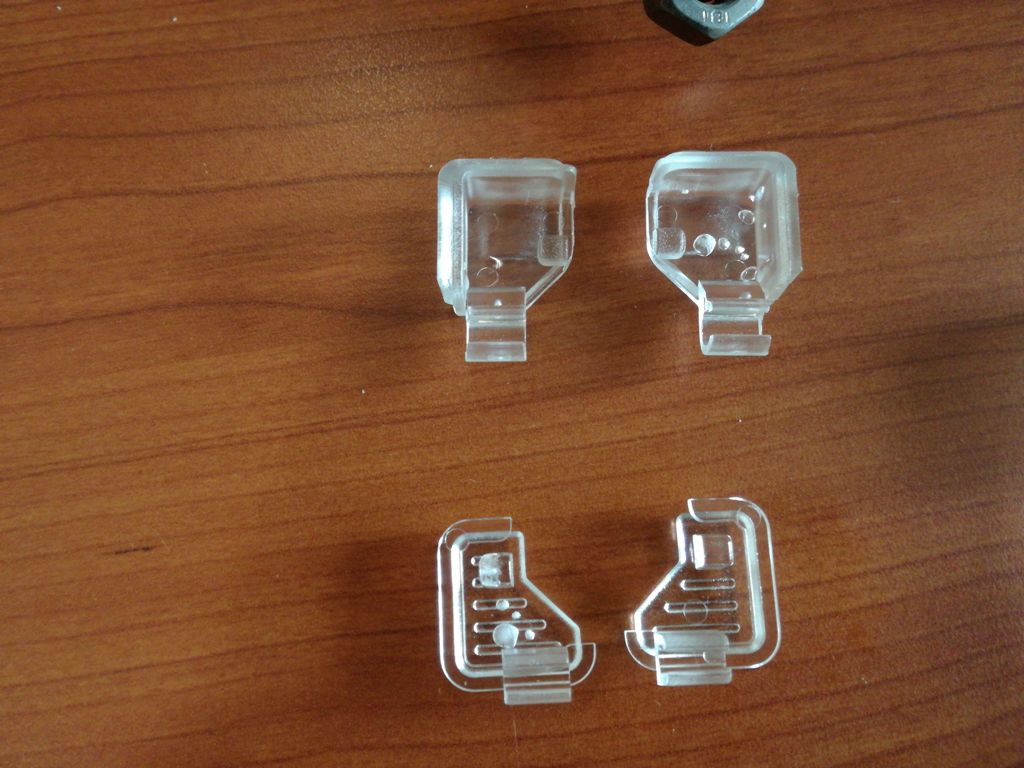

    Sholderbuttons have been fixed to properly work (hopefully!)

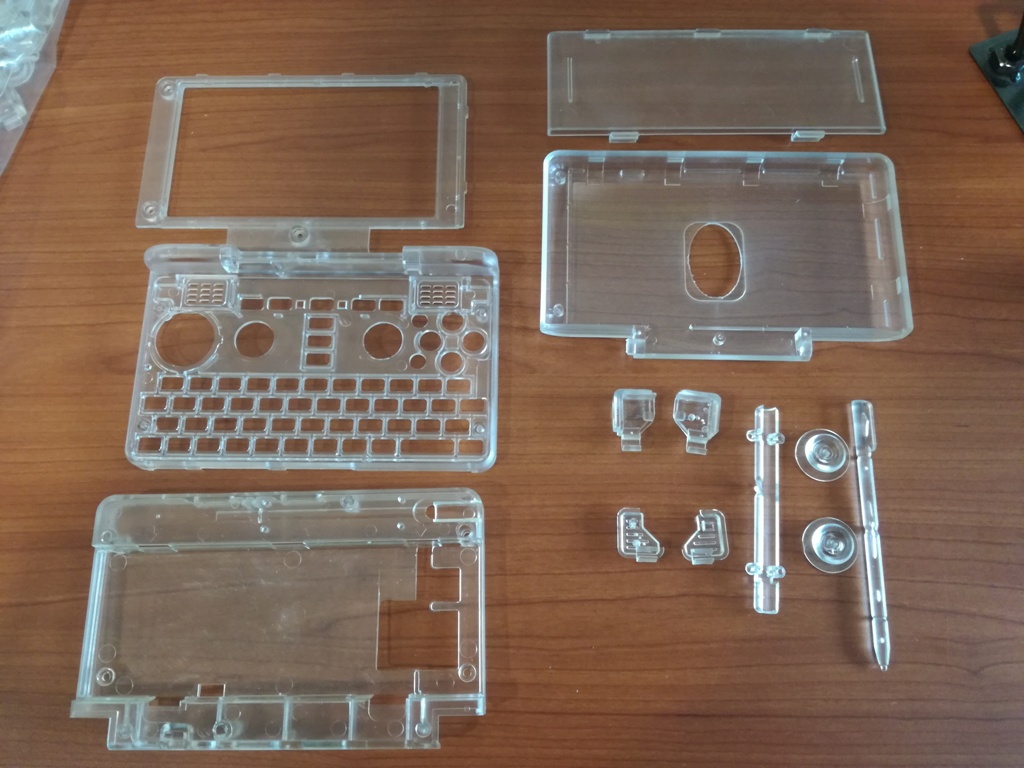

    Just showing the full set :)

    IMG_20180207_120553.jpg IMG_20180207_120558.jpg IMG_20180207_120607.jpg IMG_20180207_120611.jpg

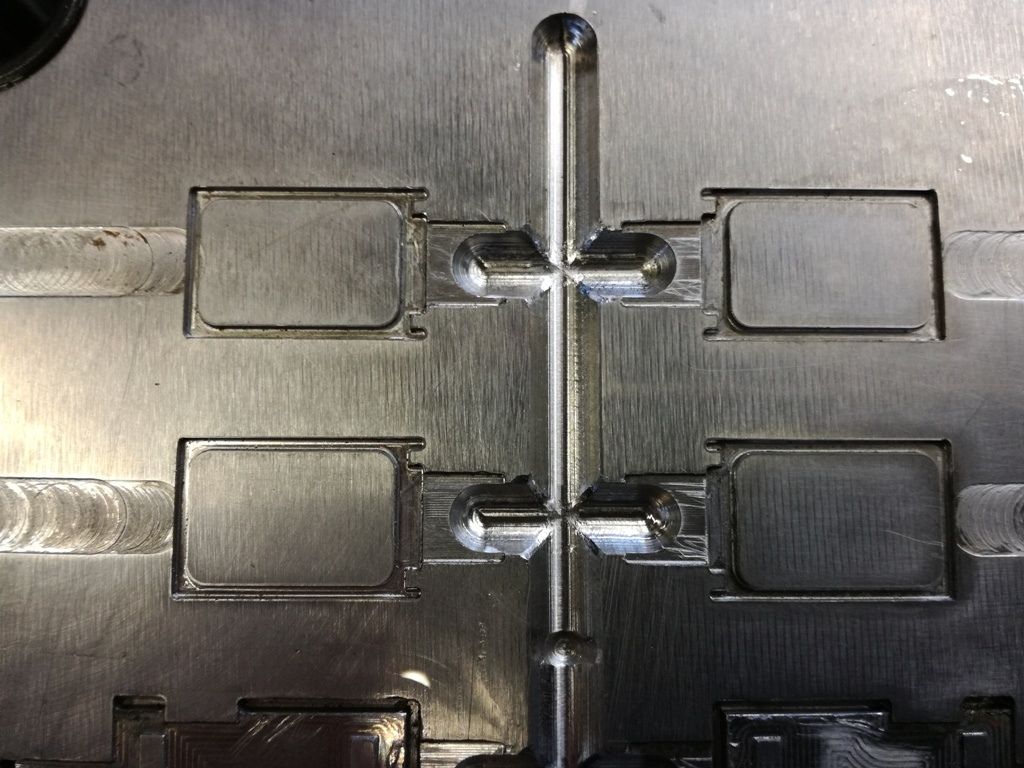

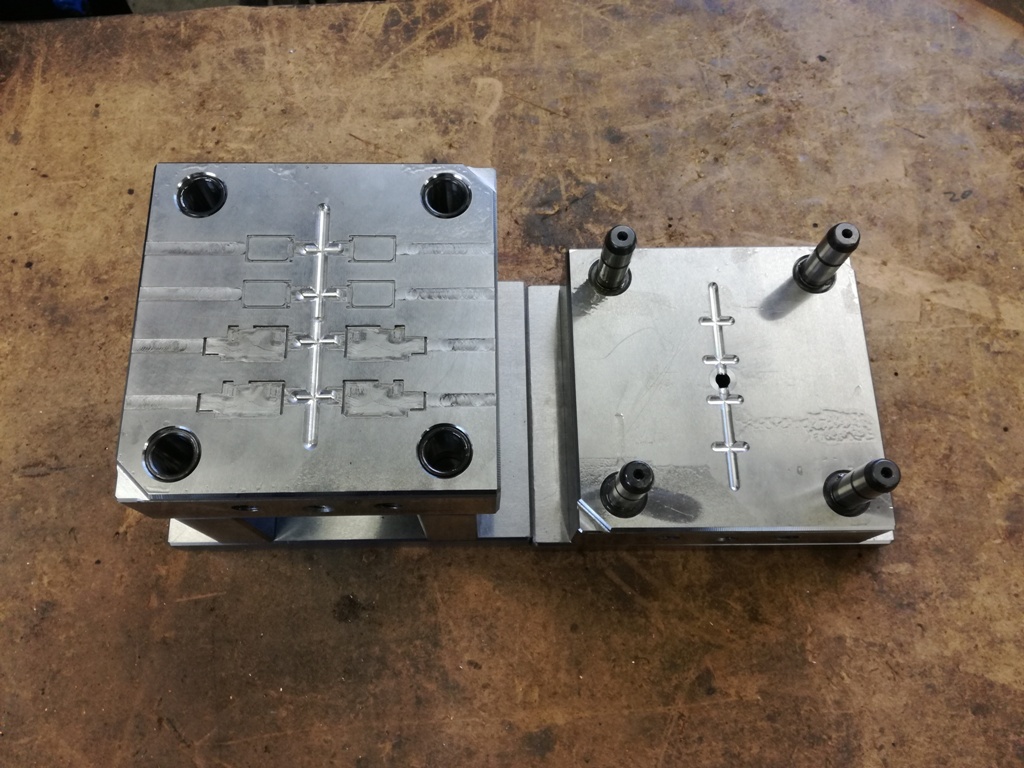

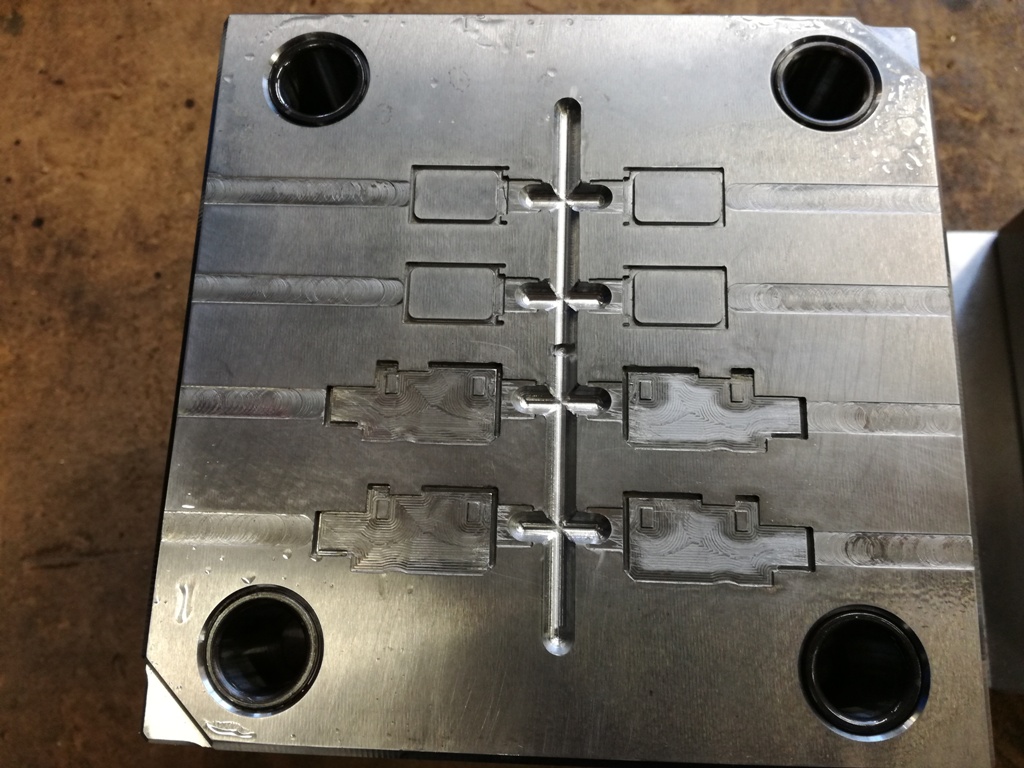

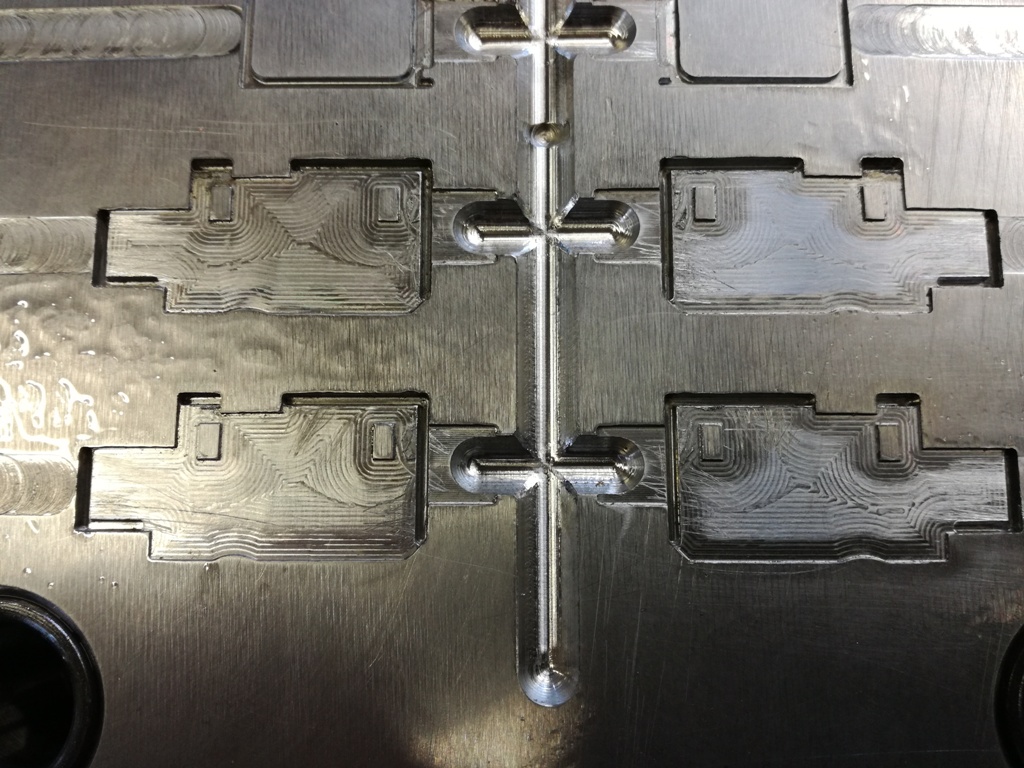

    These are the moulds for the speaker sealing.
    They are made of silicone and the parts will be produced on Monday, which is why we only see pictures of the moulds with the changes applied.

    These have been changed to properly fit on top of the speakers.

    Well, so much for the current state of the cases.

    One more information about the whining noise the Pyra does (I've already posted about this in the other thread, so most of you will already know):

    As it looks like, we don't need to use Tantalum capacitors.
    Nikolaus found a different solution by replacing somr parts.
    Here is his detailed explanation (from the other track):

    So basically, the tps2505 (the "wonky chip") drives the capacitors with an audible frequency - which is causing the noise. By replacing it with different ones, we can change the frequency into a non-audible one.

    The only thing we need to check is that the new circuit can provide enough power for the USB port.
    Fortunately, that can be tested with a simple PCB.

    This has already been designed, layouted and is in production. The parts also have been ordered.

    While waiting for it to arrive, Nikolaus will change the layout on the mainboard already, so that we can put it into production right away as soon as we confirm it to be working.

    So yep, the next prototypes will already have that new circuit included (if it works, but we're 99,9% sure it will).

    So much for today. Not too many news, but a few nice pictures :)

    Tags:
    Djhg2000, szr, dfkman and 36 others like this.
  2. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    8,576
    Location:
    Somewhere off the coast of the EU
    So Form Action seem to have done an honest day's work for once!

  3. Dark Pulse

    Dark Pulse Retreaux

    Joined:
    Jun 12, 2013
    Messages:
    120
    Well, if you guys can sidestep the tantalum cap problem while still having things work, that solves the problem, and in a way where we won't need to wait months for a fix, as well.

    Hopefully things keep going to plan!

    Kippykip and rygD like this.
  4. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    8,576
    Location:
    Somewhere off the coast of the EU
    Well, the proposed change does require a new set of boards to be ordered from china, while using tantalum could probably be done using the same PCBs just substituting the component I think. But those boards haven't be ordered in mass quantities yet, and even if they were ordered next week or so they wouldn't get made before the chinese new year shutdown. This will add another prototype PCB run for the mainboard therefore, but I guess there are other things on the project plan which were due after the mainboard was meant to be ready, so an extra prototype revision doesn't push the deadline out as much as you might think.

  5. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,199
    Location:
    Ingolstadt
    No. We need to order a new set of boards from China anyways to build the next prototypes, as these have had more changes since the last revision.
    If you read my posts from months ago, I always mentioned that we'll produce a new set of CPU boards (with the 4GB fixes) and a new set of mainboards (with a lot of other small fixes).
    These will be the ones the prototype orderers will receive.

    I even mentioned the timeline there: First finish the CPU board layout, then work on Wifi / the noisy capacitors because the CPU boards need longer to be produced than the mainboards.
    As the CPU boards need 6 weeks to be produced but the mainboards only 3 - 4 (even less if we use express), we always had 2 - 3 weeks more time to finish the mainboards.

    This is nothing new, it doesn't need anything else than planned and it's not delaying anything, as they will arrive the same time the CPU boards arrive.

    Djhg2000, GizmoAgent, ObiKKa and 7 others like this.
  6. AVahne

    AVahne Handheld-obsessed

    Joined:
    May 3, 2013
    Messages:
    136
    Location:
    Texas
    Yay more pictures!
    So uh...how much will you be selling the clear cases for? Don't think I'll be able to afford a Pyra for a while, so I at least want the case to fond-I mean, examine in the meantime.

  7. Ted

    Ted Still Fresh

    Joined:
    May 2, 2016
    Messages:
    86
    Location:
    Beijing, China
    Great updates, it is another step closer to the completed Pyra.

    Sent from my SM-G900F using Tapatalk

  8. Caine

    Caine Hardcore Member

    Joined:
    Jun 5, 2008
    Messages:
    3,764
    Location:
    Netherlands
    Well, you know what they say. Pics or it didn't happen. Glad it happened :)

    Avoiding the tantalum issue is a good step. Too few ethical entrepreneurs these days.

    ilo_pona and remjey like this.
  9. DoodleMonger

    DoodleMonger Still Fresh

    Joined:
    Jun 30, 2017
    Messages:
    12
    I actually understood that!

    Make sure you test around a dog. :)

    Gremblo, Tenka and rSl like this.
  10. codifies

    codifies Very Active Member

    Joined:
    Sep 29, 2014
    Messages:
    339
    Looking at the end product here it just struck me, from design to mold, through its various refinements, this must have cost a fortune!

    Gremblo and levi like this.
  11. Caine

    Caine Hardcore Member

    Joined:
    Jun 5, 2008
    Messages:
    3,764
    Location:
    Netherlands
    levi likes this.
  12. Kev2442

    Kev2442 Still French

    Joined:
    Nov 4, 2014
    Messages:
    471
    Location:
    42 (Loire) is the answer.
    Sooo... Goodbye Wonky Chip ? :'(

  13. Silent-Hunter

    Silent-Hunter Advanced Member

    Joined:
    May 29, 2010
    Messages:
    2,555
    We might get two wonky chips. The two new chips are smaller, but added up I think they'll take up the same amount of space. So they might still need to be wonky to fit.

    Kev2442 likes this.
  14. Dark Pulse

    Dark Pulse Retreaux

    Joined:
    Jun 12, 2013
    Messages:
    120
    We're replacing the wonky chip with some wonka chips.

    [​IMG]

    Drezrek, Djhg2000, error and 8 others like this.
  15. Kev2442

    Kev2442 Still French

    Joined:
    Nov 4, 2014
    Messages:
    471
    Location:
    42 (Loire) is the answer.
    Heh. Maybe we'll name'em the Wonky Twins ?

  16. iArnold

    iArnold Member

    Joined:
    Mar 18, 2011
    Messages:
    55
    My idea! Maybe it will be possible to squeeze a Raspberry Pi in there! ;-)

    @ED great progress and congrats on avoiding the tantalum dilemma!

  17. Caine

    Caine Hardcore Member

    Joined:
    Jun 5, 2008
    Messages:
    3,764
    Location:
    Netherlands
    You know that the nubs aren't part of the case, right? ;)

  18. vcoleiro1

    vcoleiro1 Hardcore Member

    Joined:
    Jan 23, 2011
    Messages:
    4,144


    Now you know where the tide pod challenge originated from :p

  19. Dark Pulse

    Dark Pulse Retreaux

    Joined:
    Jun 12, 2013
    Messages:
    120
    Pretty sure that Willy Wonka encouraged you to eat scrumdiddlyumptious candy, and not peroxides and chemicals that could eat a hole through your esophagus.

    I'm pretty sure it was teenagers being dumb that invented the tide pod challenge, or stuff like the cinnamon challenge, the salt and ice challenge, or the dry ice challenge before it.

    In a way I'm kinda glad they weren't around in the 90s. Half the stuff we had back then would've killed these kids, with the utter lack of judgment they seem to have for their own well-being...

  20. rygD

    rygD Mantrid one arm drones that fly around

    Joined:
    Feb 28, 2014
    Messages:
    6,805
    Location:
    Everywhere
    Do we get to see a destruction test of a clear case, or do we have to wait for the fiberglass reinforced ones?
