Back from Greece.

Discussion in 'Pyra News' started by EvilDragon, Jan 28, 2019.

  1. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,575
    Location:
    Ingolstadt
    One week has passed since I returned from Greece, so it's time to let you know about the status of the cases!

    As you might've read already (if you followed my updated on the last news thread), the movement was a success!
    The moulds are already being worked on at the new company and the produced plastic shells are also in my hands.

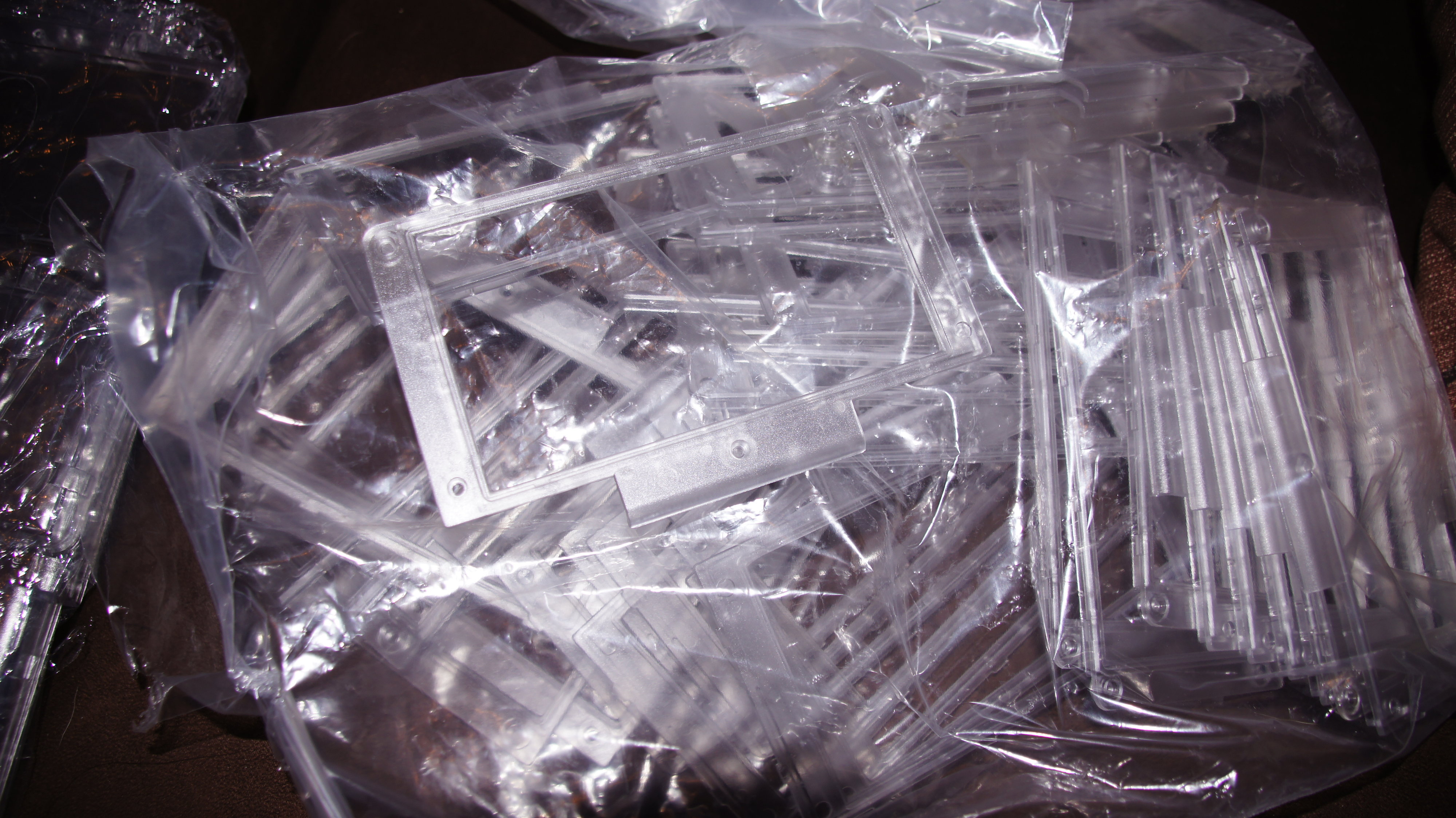

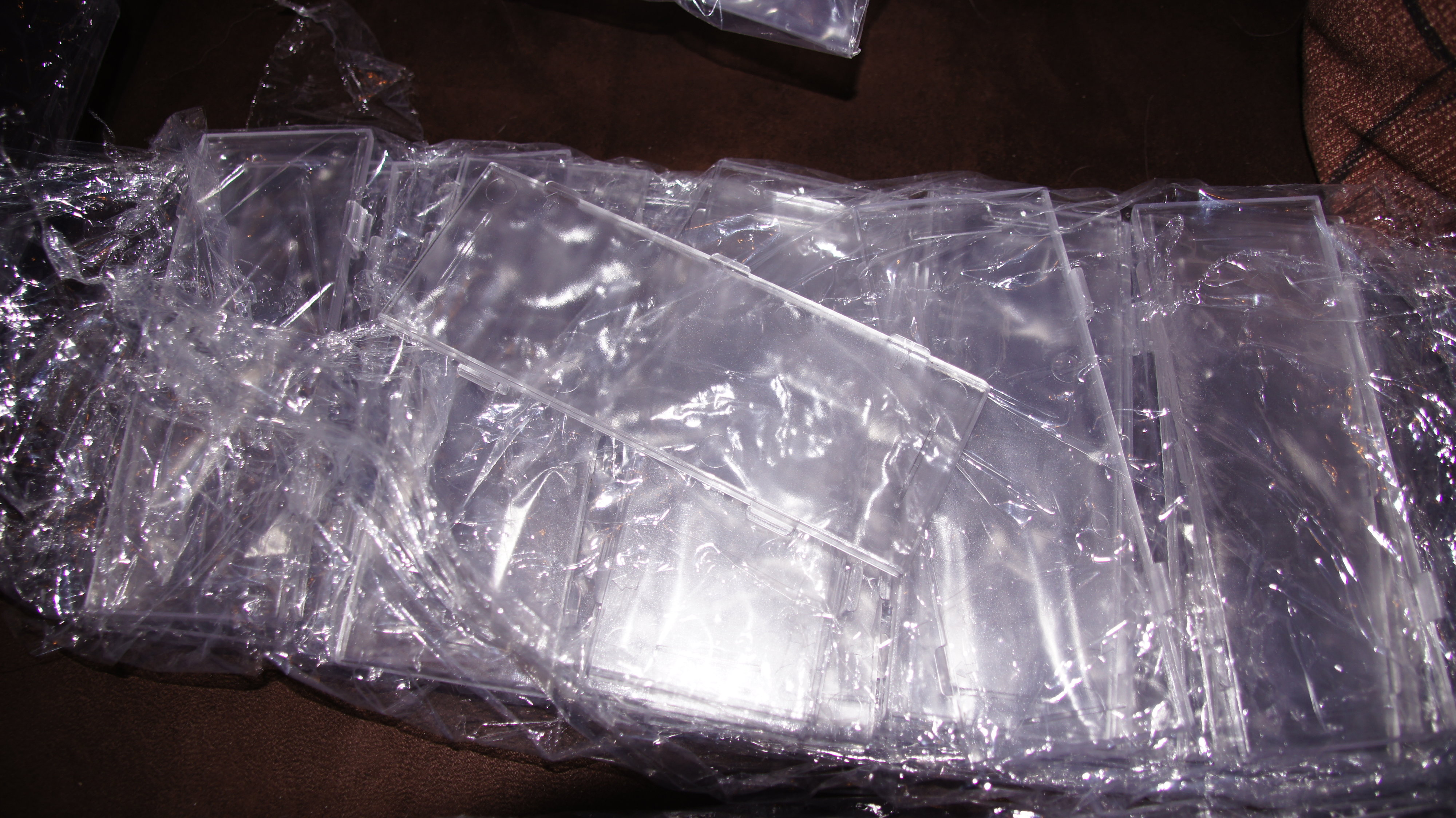

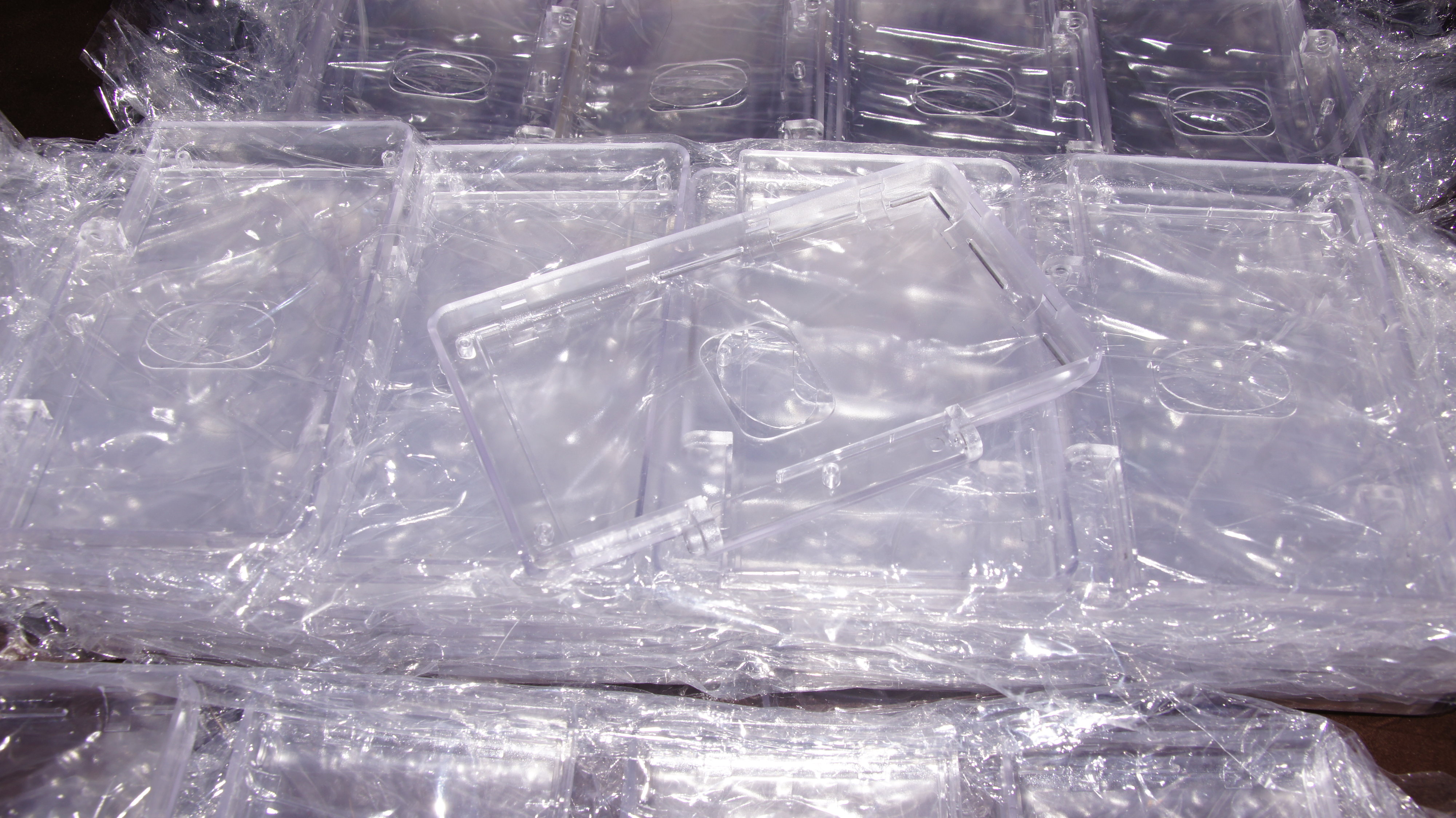

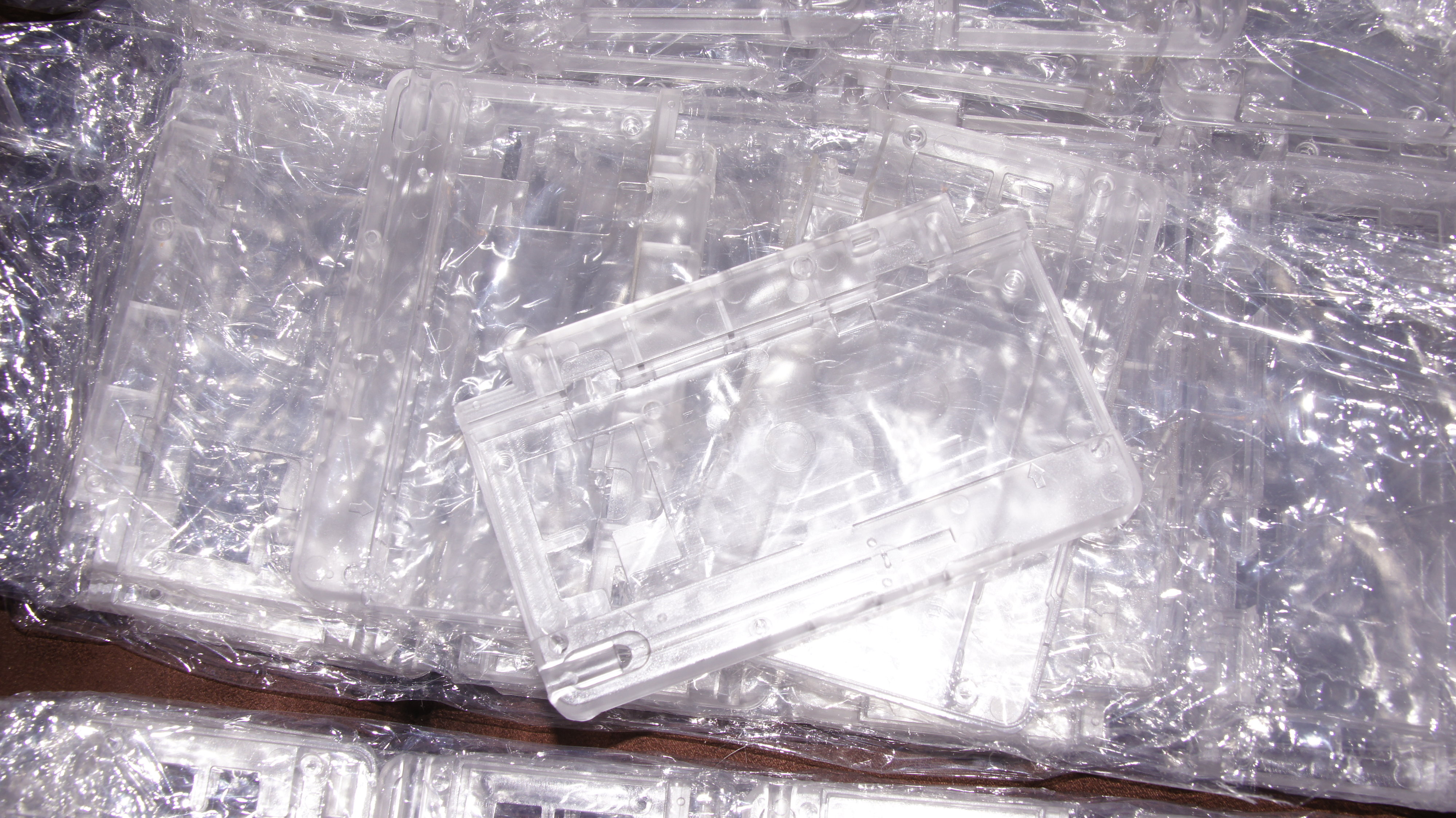

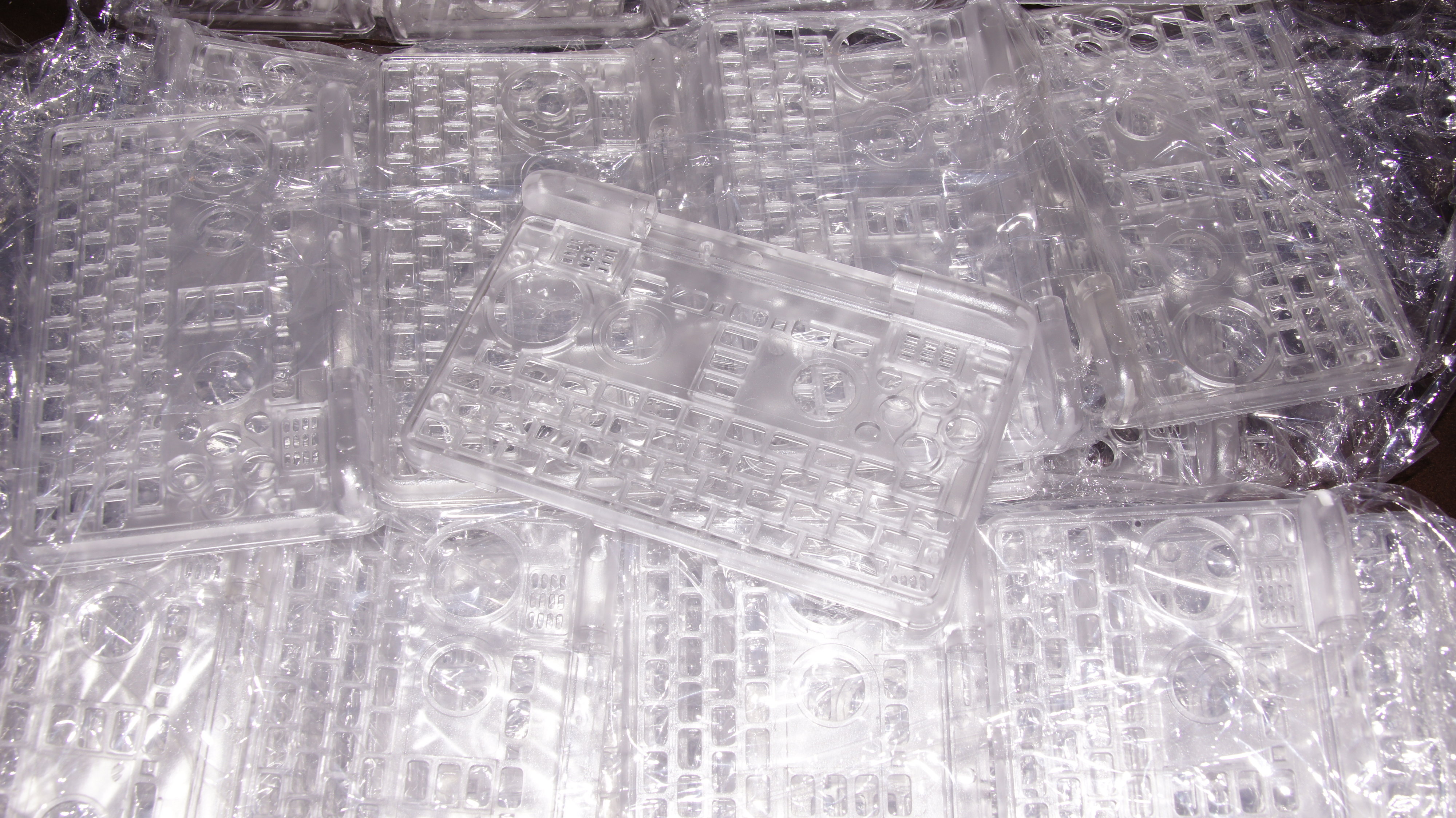

    Here are some pictures of the produced shells:
    DSC03459.JPG DSC03460.JPG DSC03470.JPG DSC03471.JPG DSC03473.JPG

    Theae are the main parts of the case. Yeah, the packaging (wrappigg up) is a bit weird, the new company will do that differently.

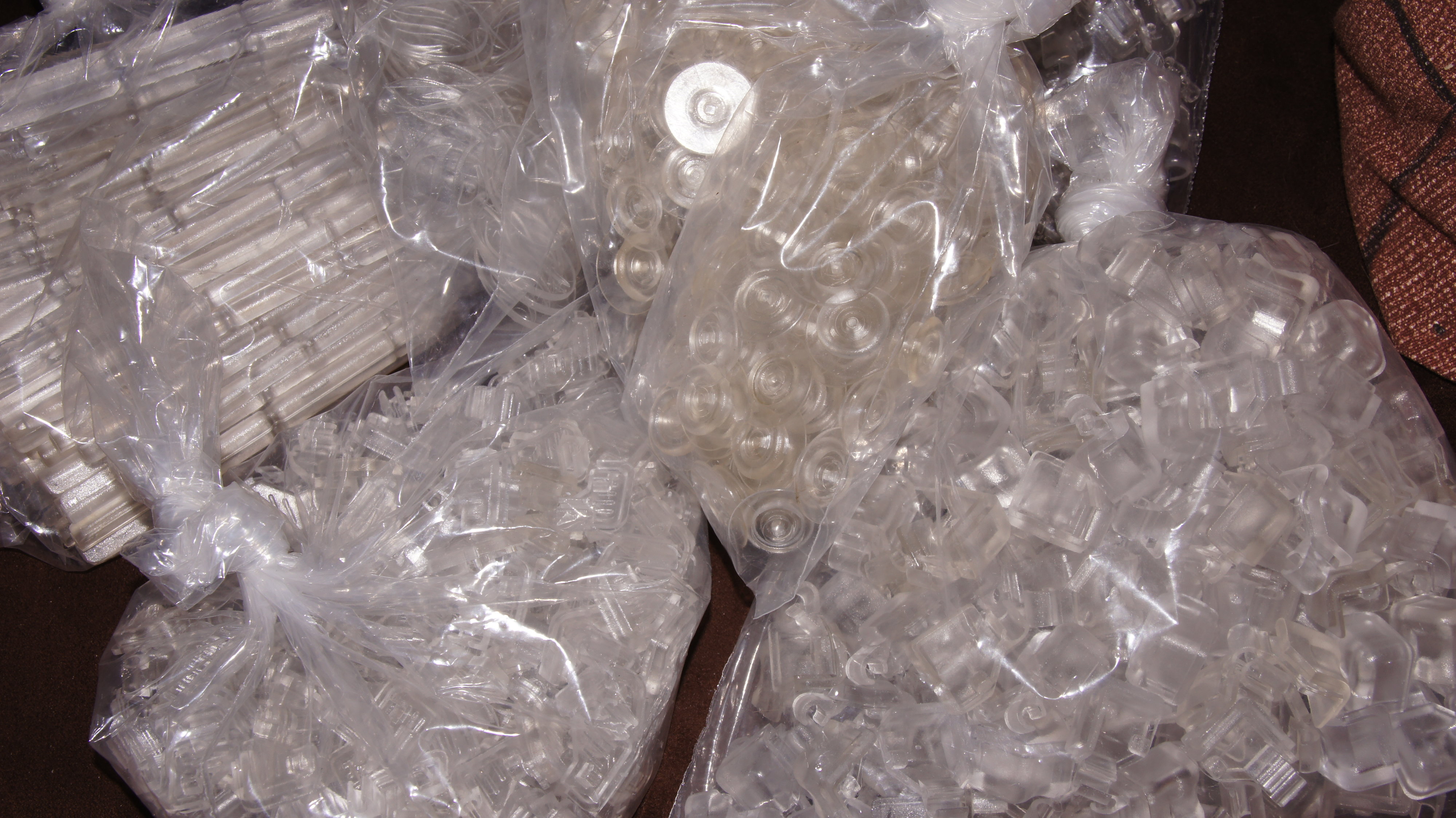

    Here are the small plastic parts (in bags):


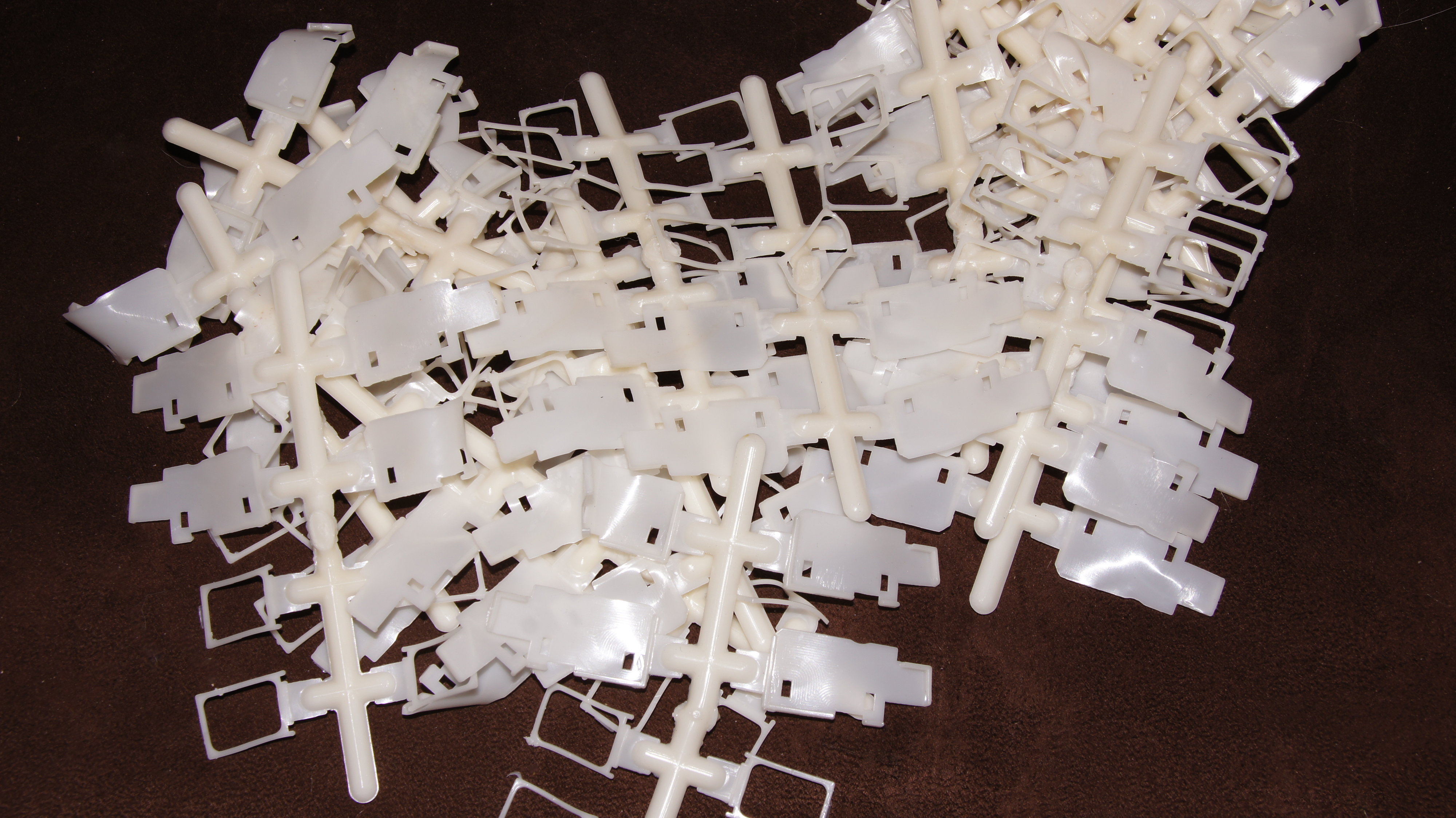

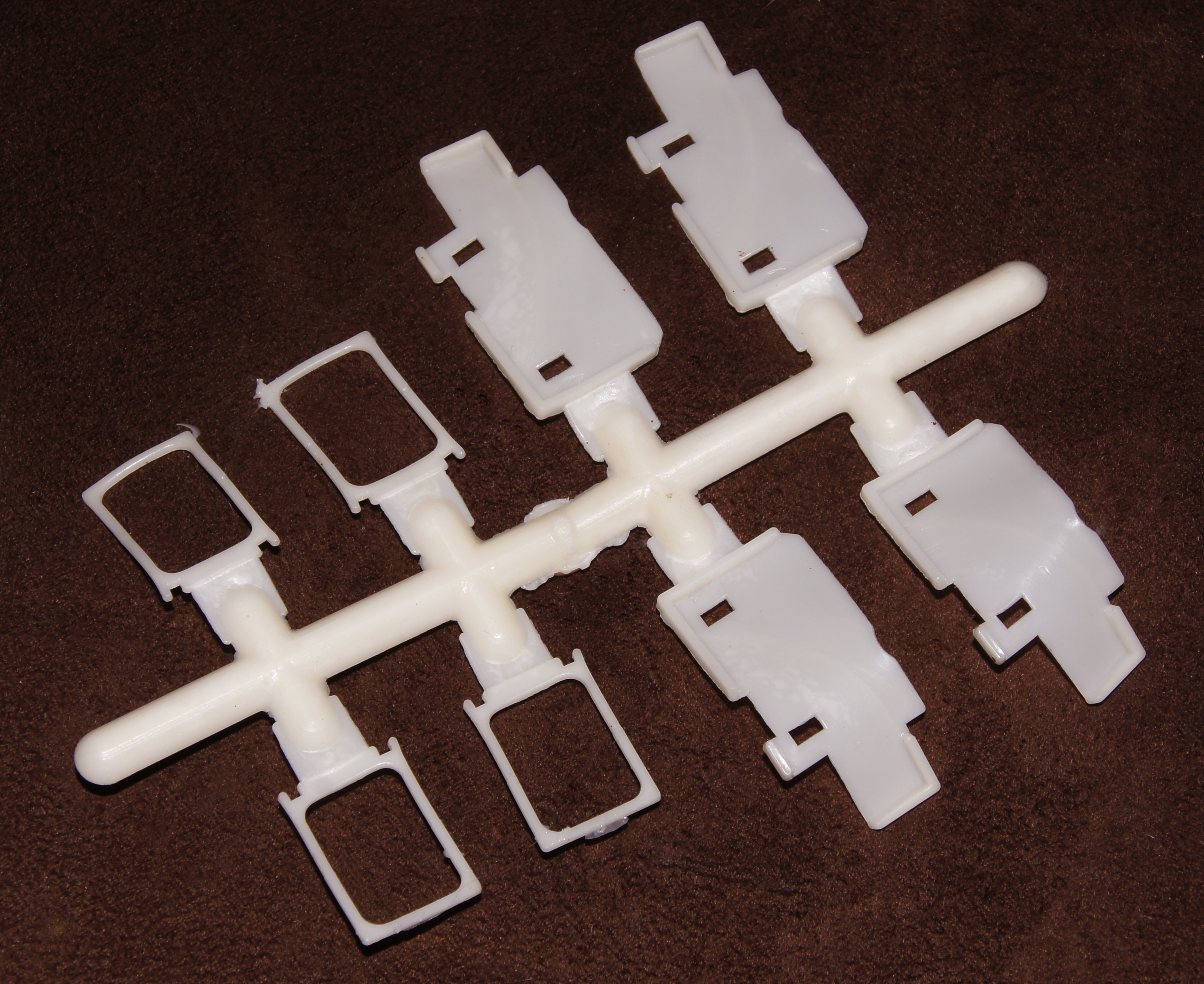

    And finally, the rubber parts to keep the speakers in place:

    DSC03474.JPG DSC03475.JPG

    These are about 100 sets - that's all they did produced until now.
    These will be used by me to assemble the prototypes (hopefully this week, when I find the time) and I'll put these sets on sale as well.

    So, what's wrong with them?
    They're mostly fine but have the following two main issues:

    1. The lower part (with the battery compartment) is a tiny bit warped and not 100% flat
    2. The keyboard part is missing some pegs which make sure the PCB stays in the proper position and can't wiggle around.

    The first one isn't that bad and doesn't affect the usabilty at all (you won't even notice it unless you take a closer look) and the second one is actually the reason the shoulder buttons don't work properly on all units:

    These missing pegs make sure that the PCB sits perfectly inside the case. Even without a keymat, it stays fixed and can't move around. The Pandora case has these as well.
    As these are MISSING, the PCB isn't fixed. It's squeezed in between the keymat and the battery compartment - and the position changed depending on how much you tighten the screws.
    The effect is clear: Depending on the position, the shoulder buttons hit the buttons on the PCB - or miss them.
    That's the reason the shoulder buttons worked fine with some units but not with others.

    This CAN be manually fixed on the existing cases - but that's not suitable for mass production (of course!).
    So yes, these can be used for prototypes (and if you want to play around with them a bit).


    What about the moulds themselves? Are they fine? What needs to be fixed?

    Well, I already took the time to take a look at the moulds together with the new company:

    • The quality itself is fine. FormAction did a good job here, so nothing to worry about here.
    • The missing plastic pegs mentioned above need to bee added in order to keep the PCB in the proper position. The interesting thing is that these pegs are actually existing in the 3D data - so my 3D printed cases didn't have these issues! They are simply missing in the mould!
      A mould is negative (as plastic is injected in there), therefore, adding pegs means removing metal inside the mould. This is way easier than removing something, so not a big challenge.
    • The shoulder buttons will be checked and improved once the PCB is sitting in proper position. They might already be perfectly fine, we'll see once that first fix has been applied.
    • The injection points of some of the moulds will be adjusted and improved. What does that mean? Well, during production, hot liquid plastic is being injected with some pressure into the mould, completely filling it out. Once it cools down, the plastic part is done. However, if there's an area where the plastic flow is a bit slower or faster than in other areas or it cools off too fast, you will have some effects like discolorization, brittle plastic or shrinking marks or (in worst case), some parts aren't even filled with plastic so you will have an incomplete part.
      This is the reason we painted the Pandora cases (discolorizations) and it's tricky to get this right.
      The expert from the new company looked at the moulds and already described exactly what problems our colored cases most likely had (without having even seen them!) and that this can be fixed with a proper fix to the injection points. He also pointed out that one or two moulds probably won't even work properly with the currently set injection points and that most of the cases produced with these would would not be usable... that would totally explain why FA only produced 100 set so far and why they wanted to increase the price per set A LOT for the actual mass production run.
    So, that's mostly it!
    Luckily, it's nothing too serious and they're already working on applying fixes.

    Some information about colors:
    In theory, the cases can be produced in ANY color we can think of.
    However, any custom color needs to be mixed, which means that it can take a few weeks AND we'd have to buy at least a ton of the plastic material.
    So while that's a possibility, it does make more sense getting a color that's currently on stock, as this one doesn't need to be produced and is available with any quantity right away.

    The good thing is: The company where they buy their color materials is pretty big - and has a LOT of customers. So they have quite a lot of different colors readily available!

    They will send me a list of those (RAL colors) and then we can produce samples.


    So the steps for the cases:

    1. The plastic pegs will be added, some mould injection points which will certainly lead to issues will be fixed (this is already being worked on)
    2. Each plastic part will be produced with some cheap material. The reason for that? Well, if the CHEAP material works fine already, then a good one won't have any issues. And if the cheap one shows some problems, you know exactly where and what to fix. So basically, this is being done to make the optimize the injection points as good as possible.
    3. The shoulder buttons will be checked with the fixed cases and be tweaked if need be (it could be they work out of the box).
    4. Samples will be produced in the colors I choose.
    5. That's it - time for mass production!
    It's too early to give out even approximate dates for that. They don't know the moulds that well yet (they haven't designed them), so they have no clue how much the injection points need to be tweaked (and on how many moulds).
    Once that's done, it's a lot easier to make assumptions.

    But they want to work as fast as possible on that, so it should be a LOT faster than what we've seen the last 2 years...

    Now, I also took some pictures of the moulds, in case you're interested. Sorry for some being blurry - I only had a smartphone available and it didn't want to focus properly.
    One mould always consists of two parts: An upper and a lower one. So I'll show you both.

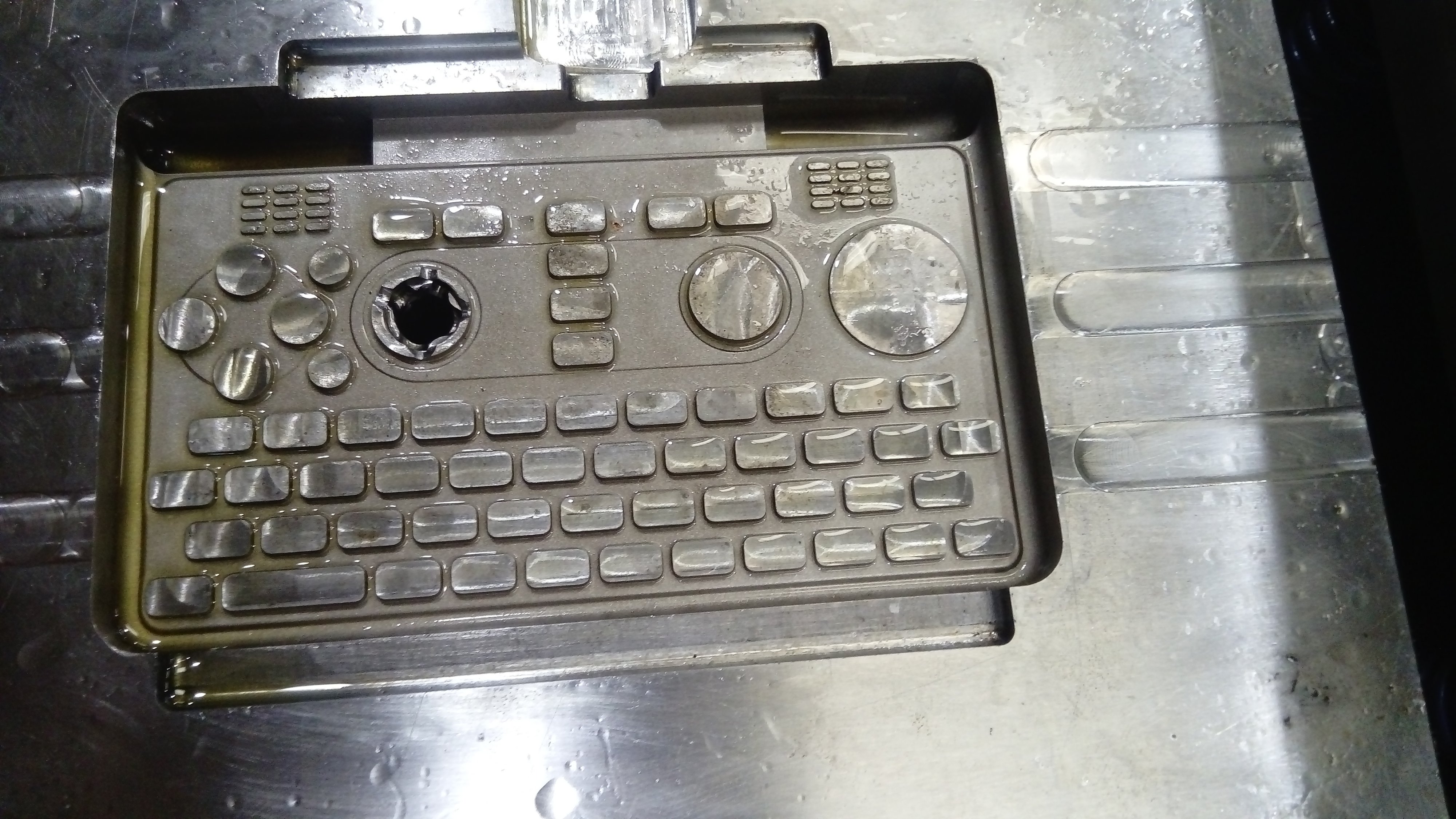

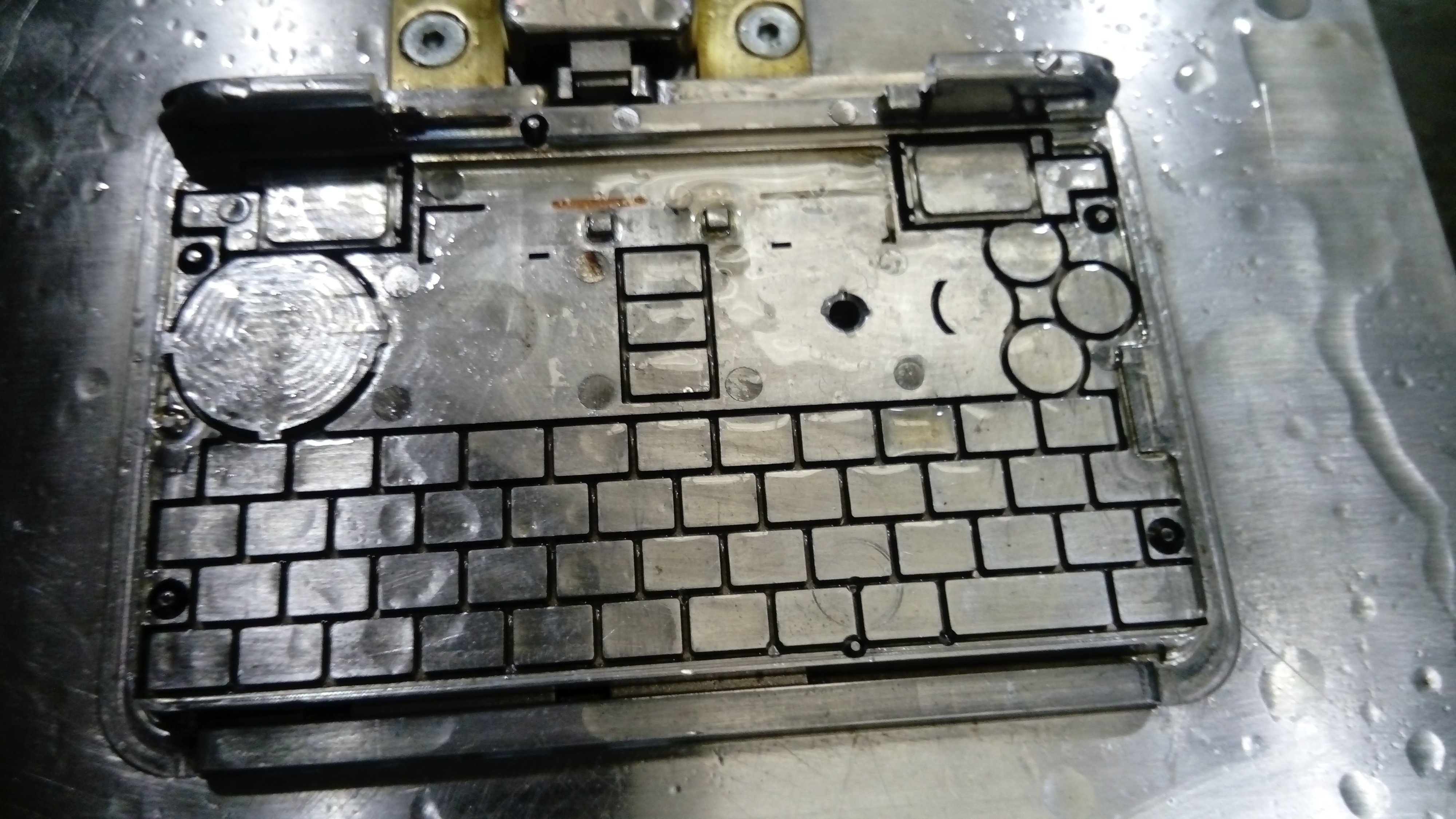

    The keyboard part:

    DSC_0408.JPG DSC_0409.JPG

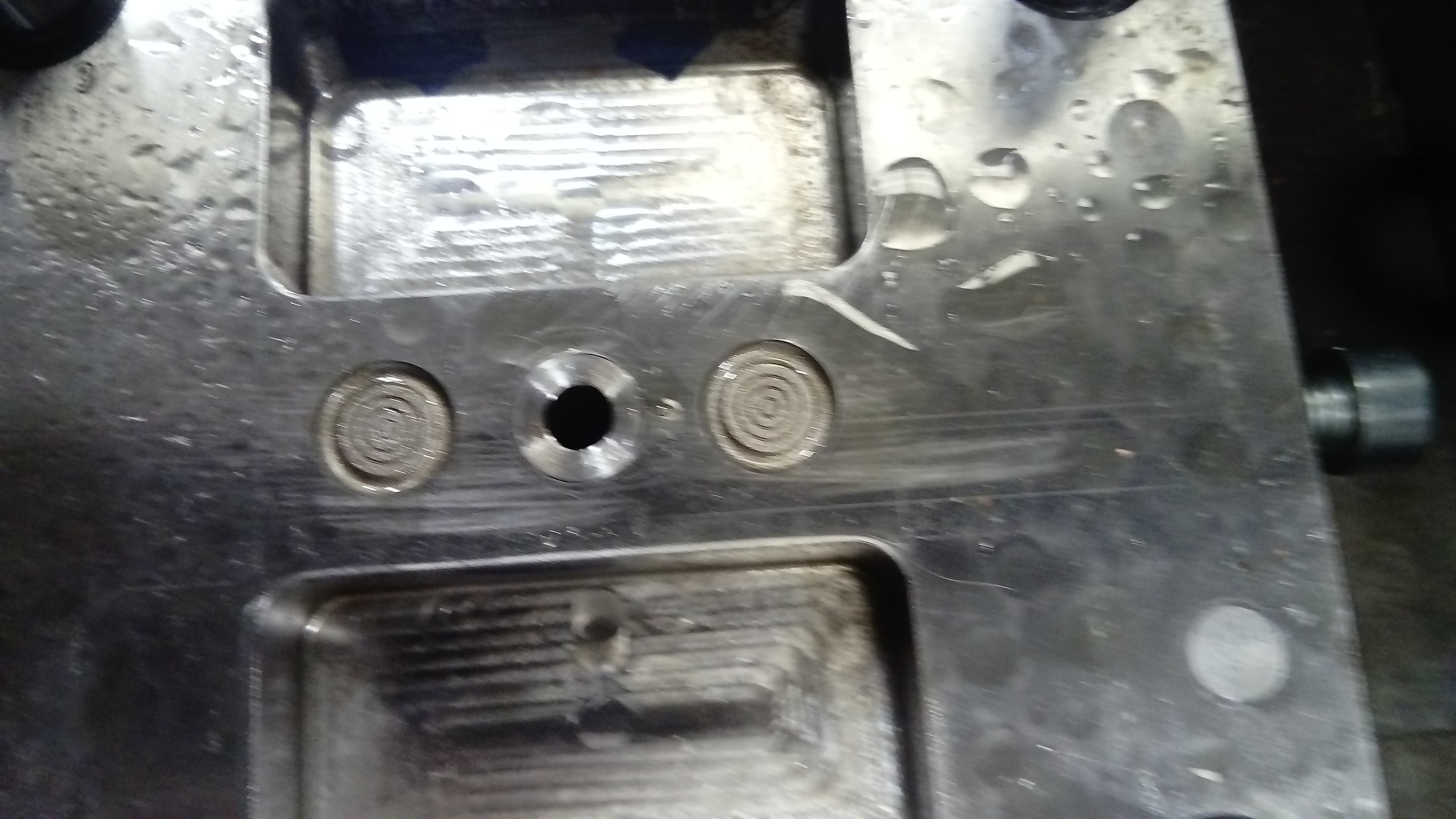

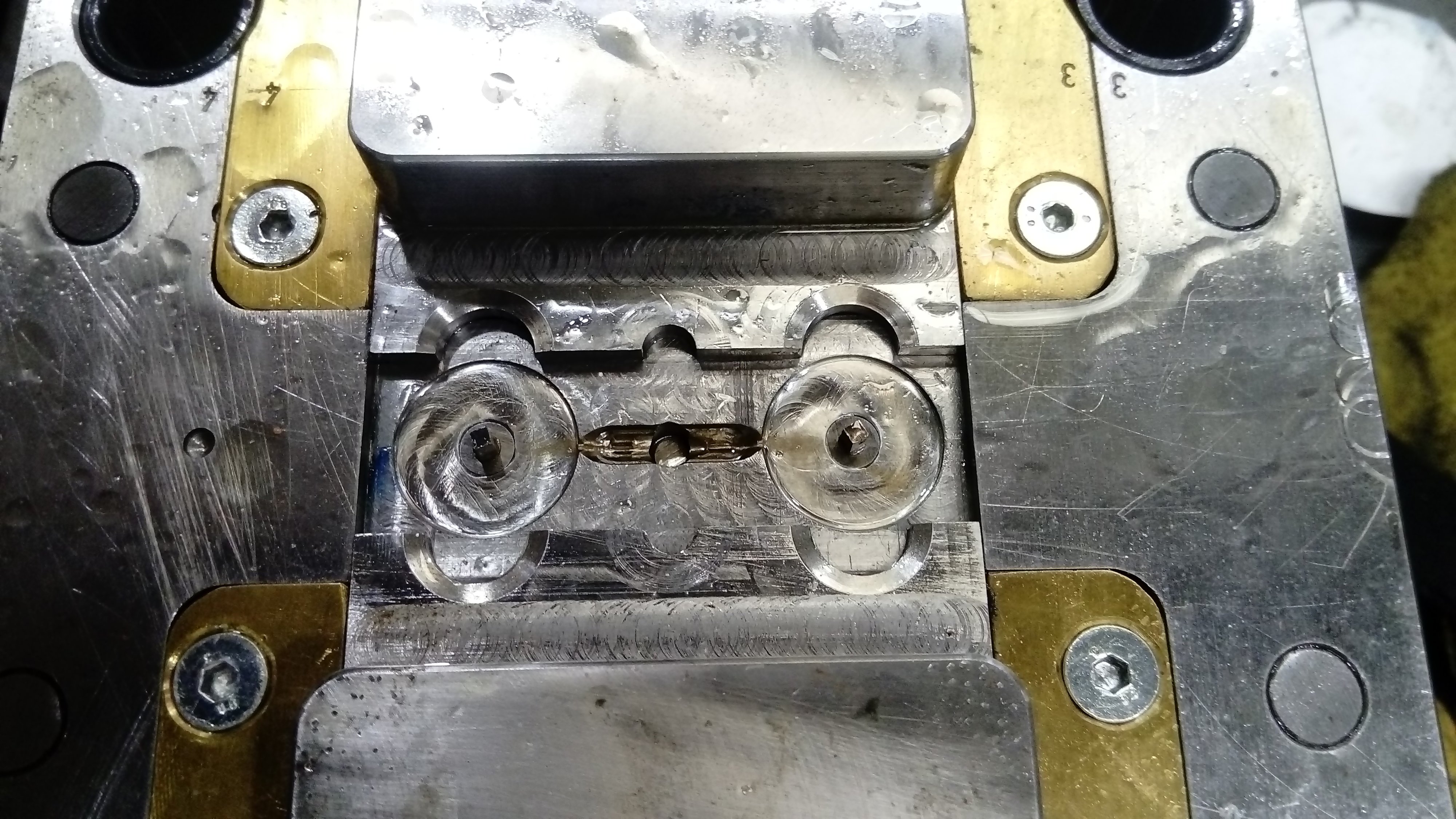

    The discs for the nubs:

    DSC_0411.JPG DSC_0410.JPG

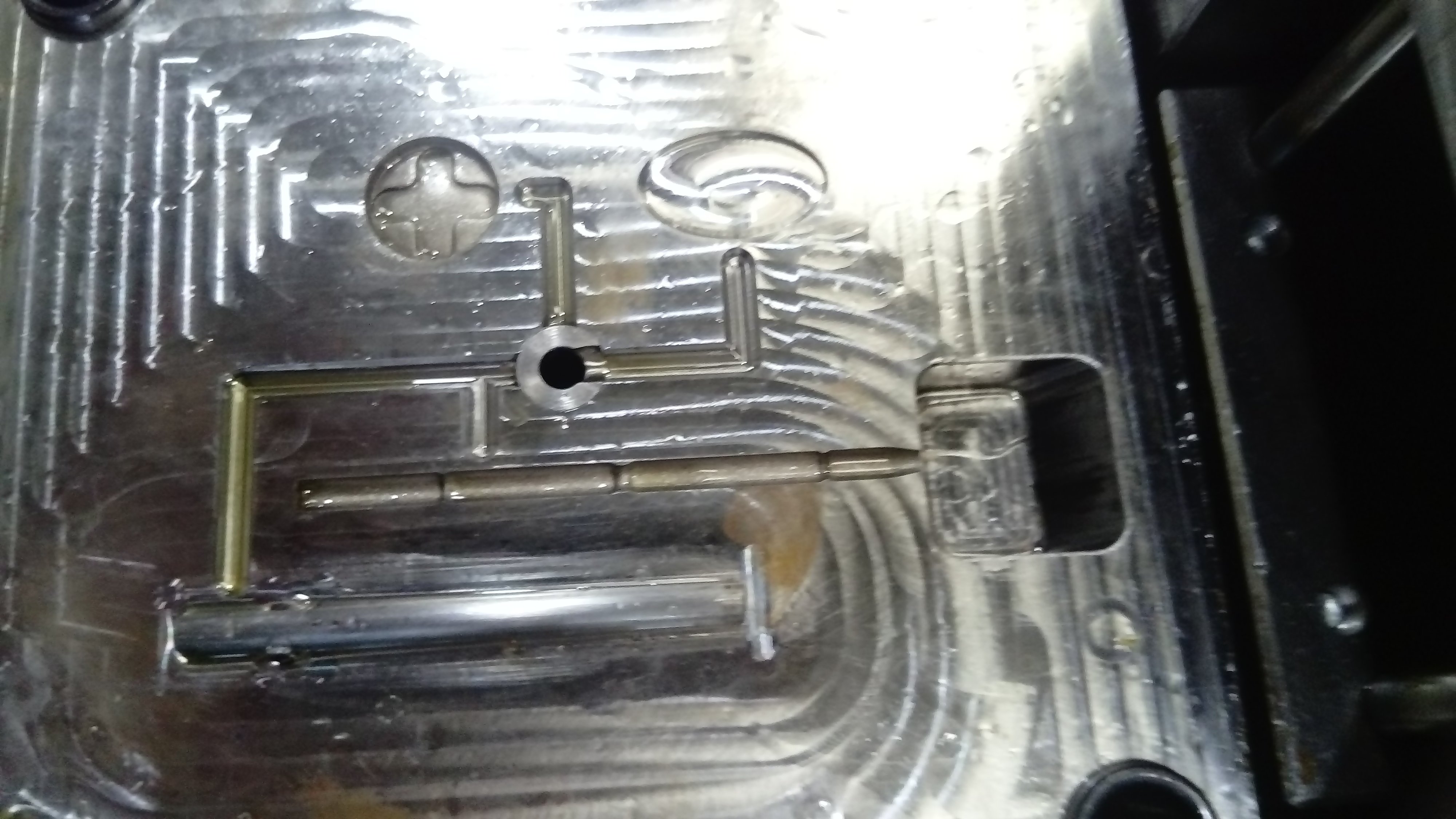

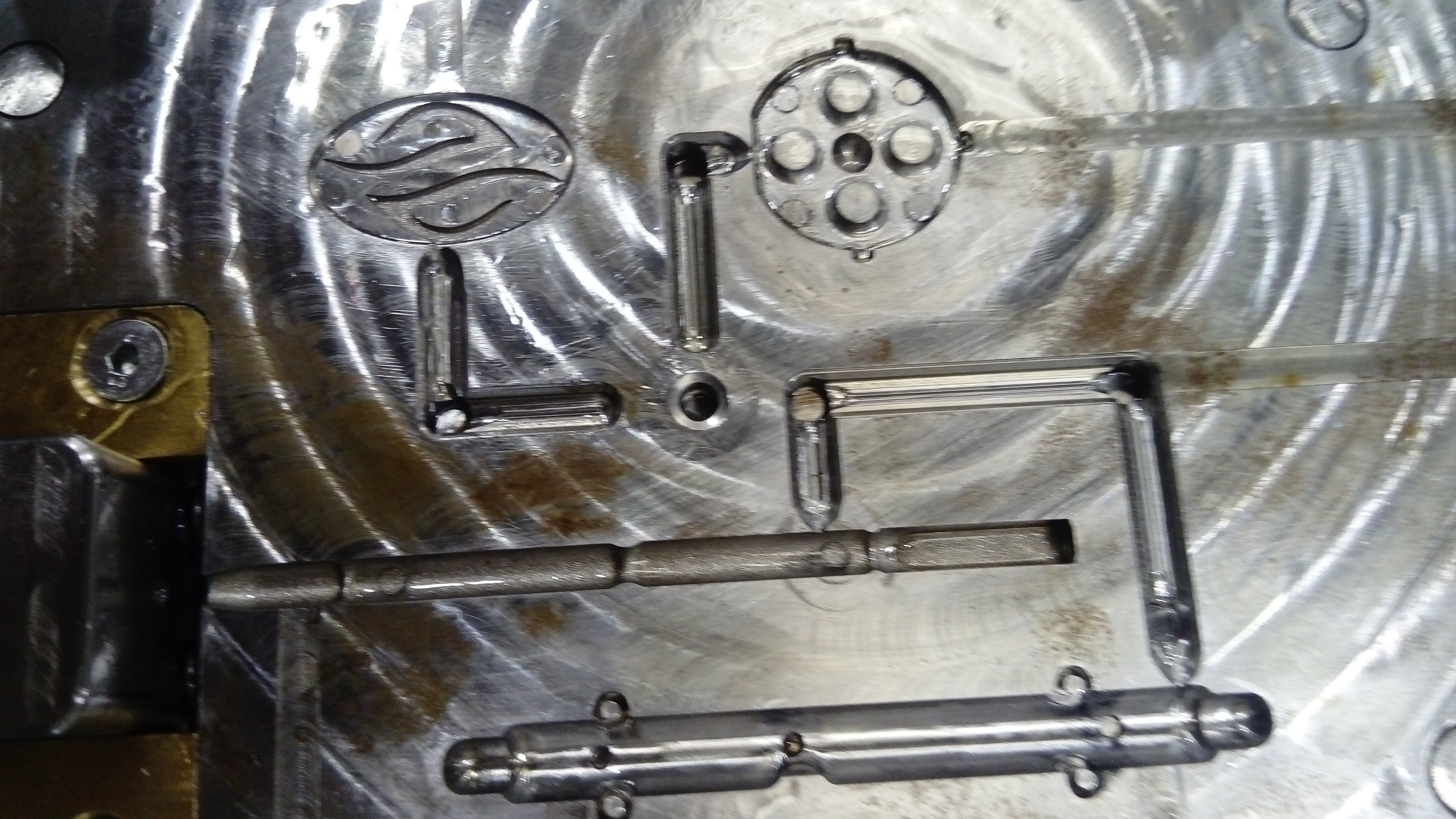

    Logo, Stylus holder, stylus and an unused DPad (as the DPad is coming from the keymat company):

    DSC_0412.JPG DSC_0413.JPG

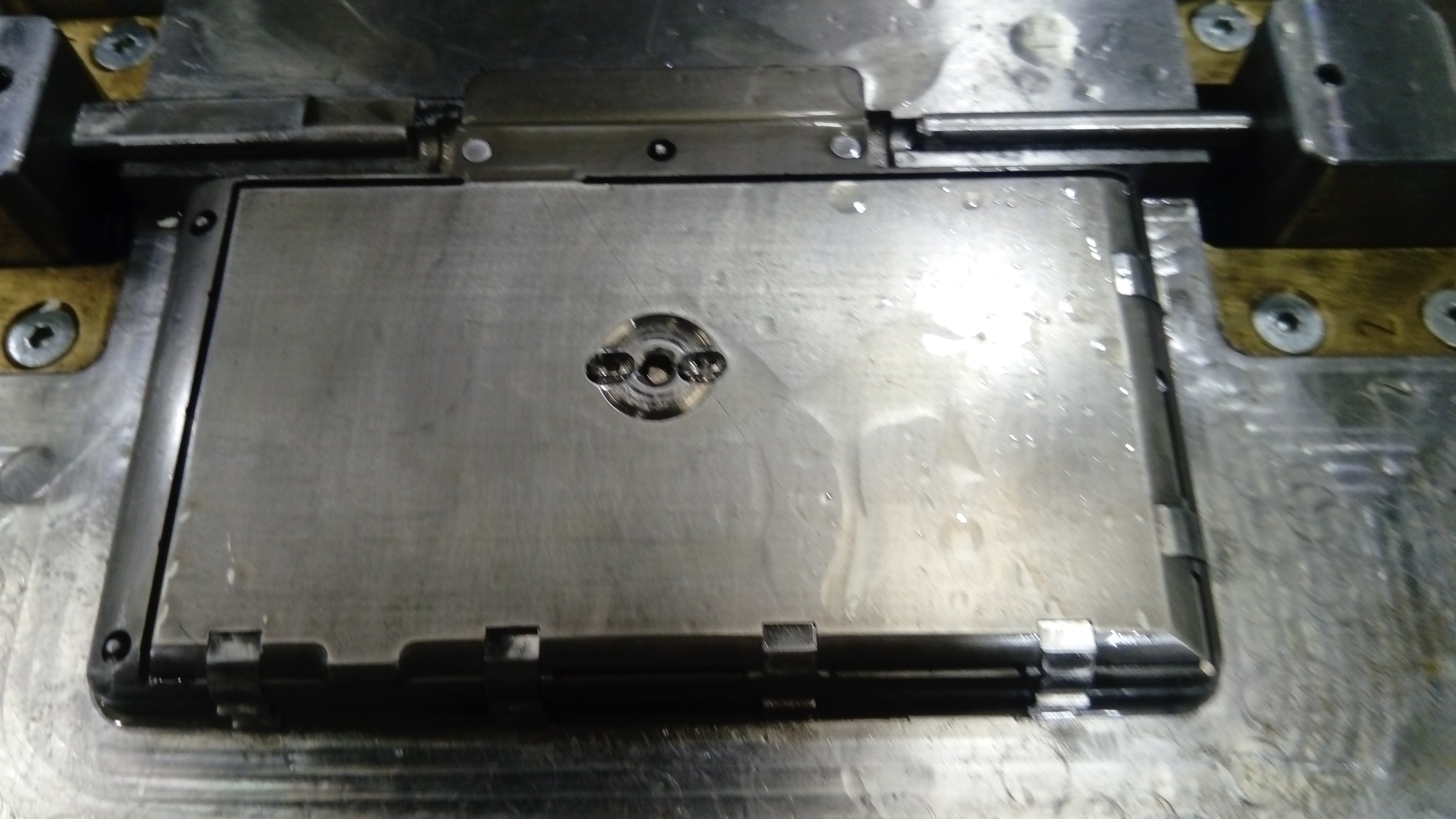

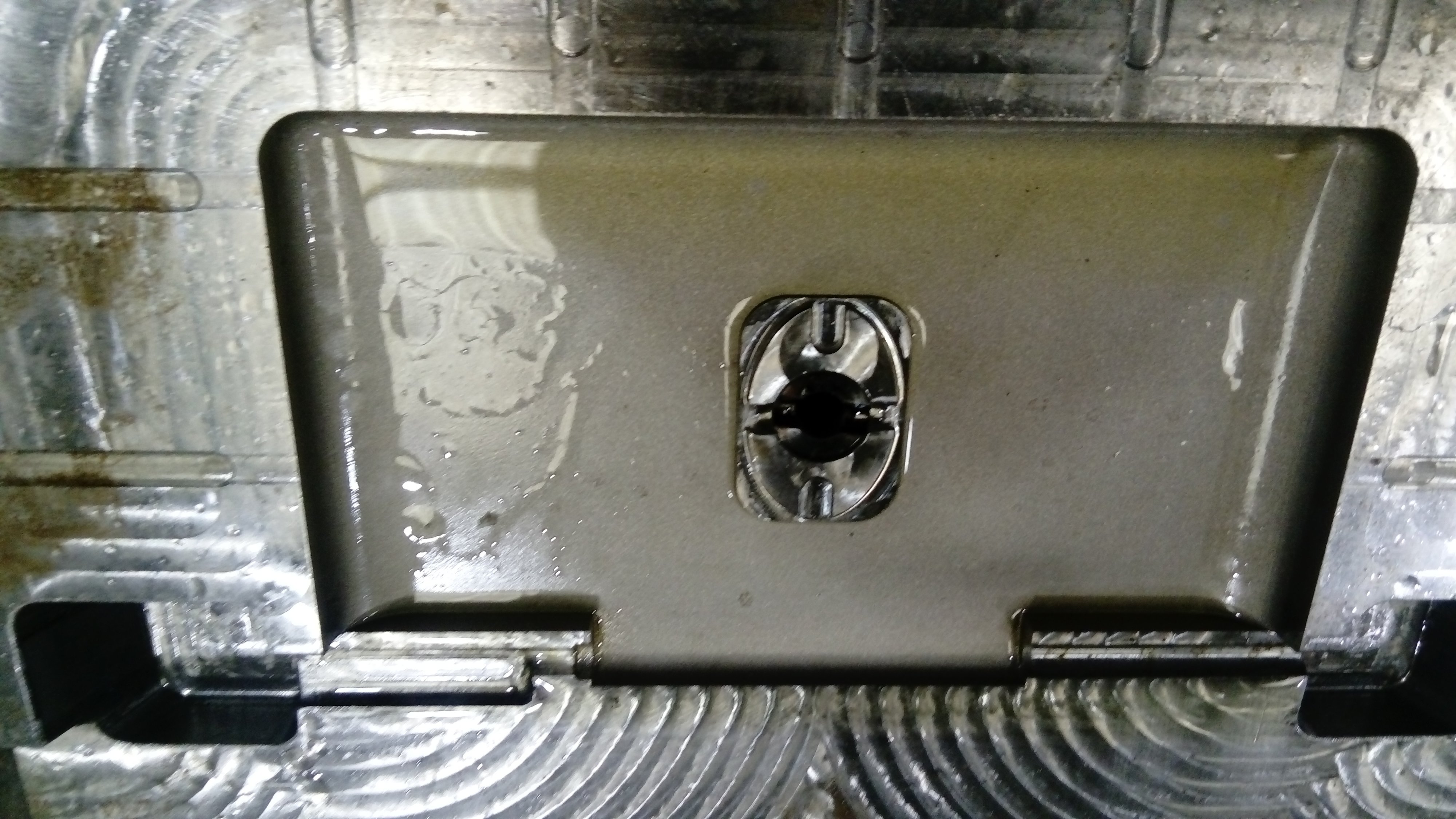

    This is - of course - the lid with the hole for the logo plate:

    DSC_0414.JPG DSC_0415.JPG

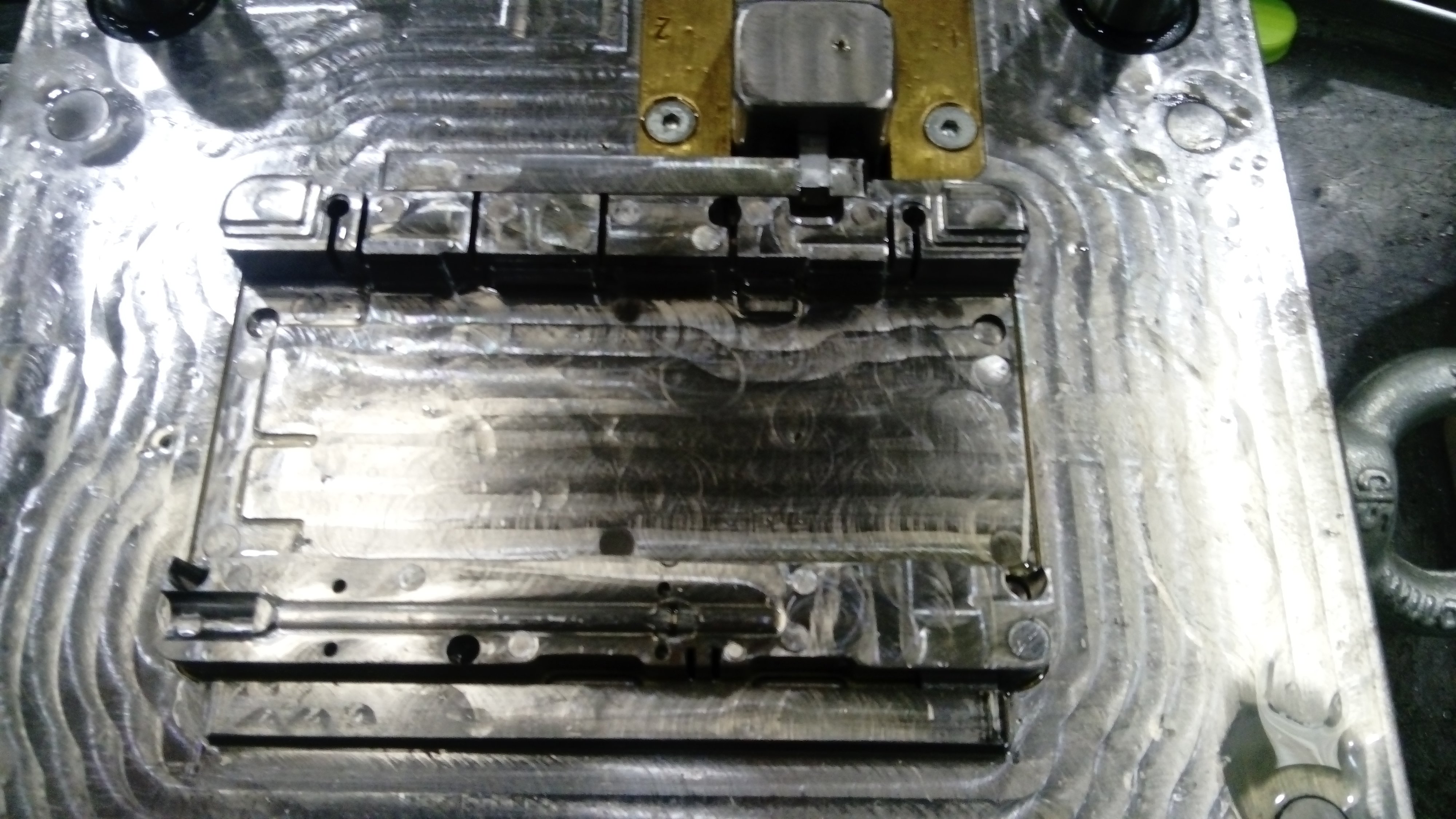

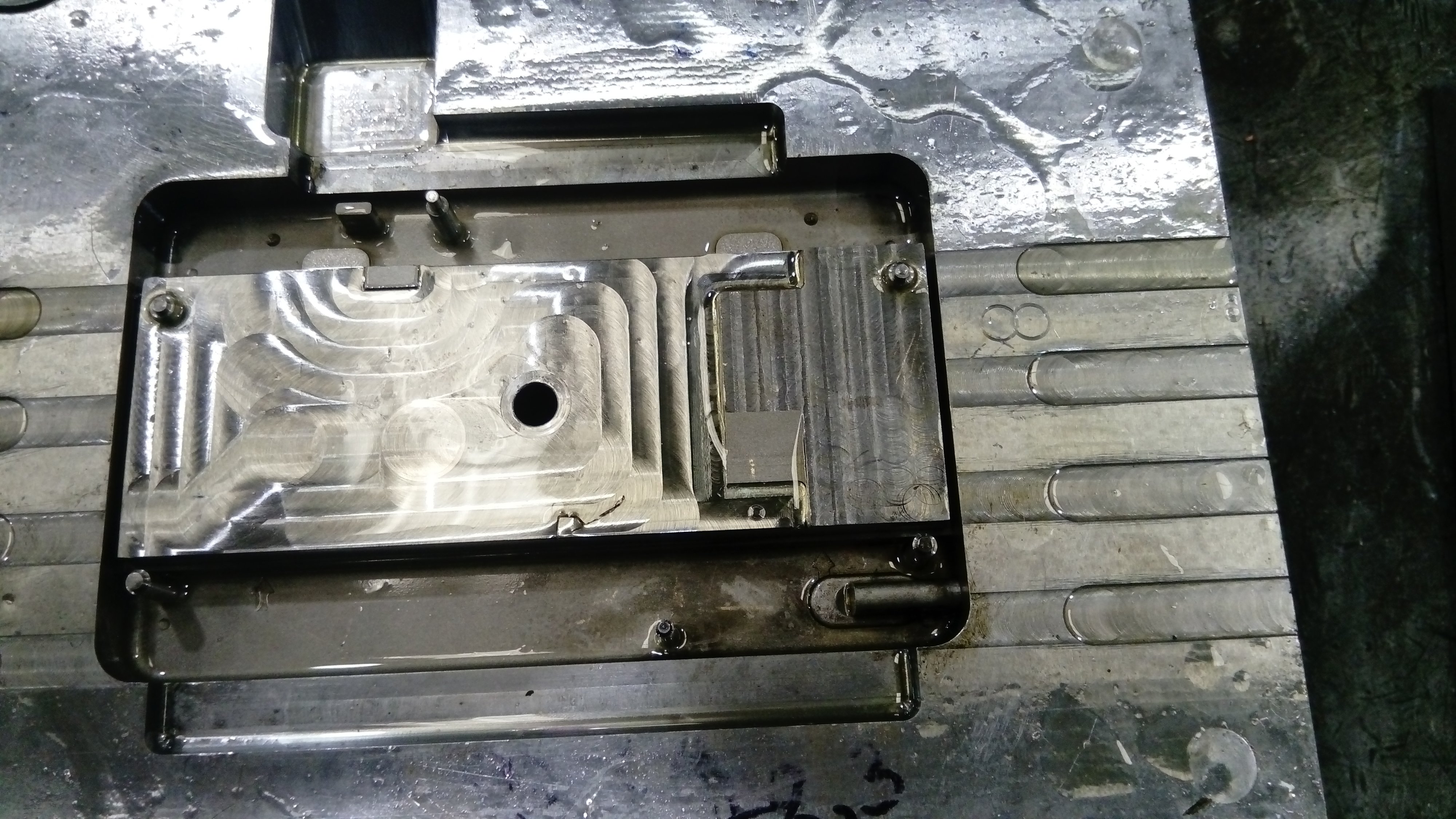

    The bottom part with the battery compartment:

    DSC_0416.JPG DSC_0417.JPG

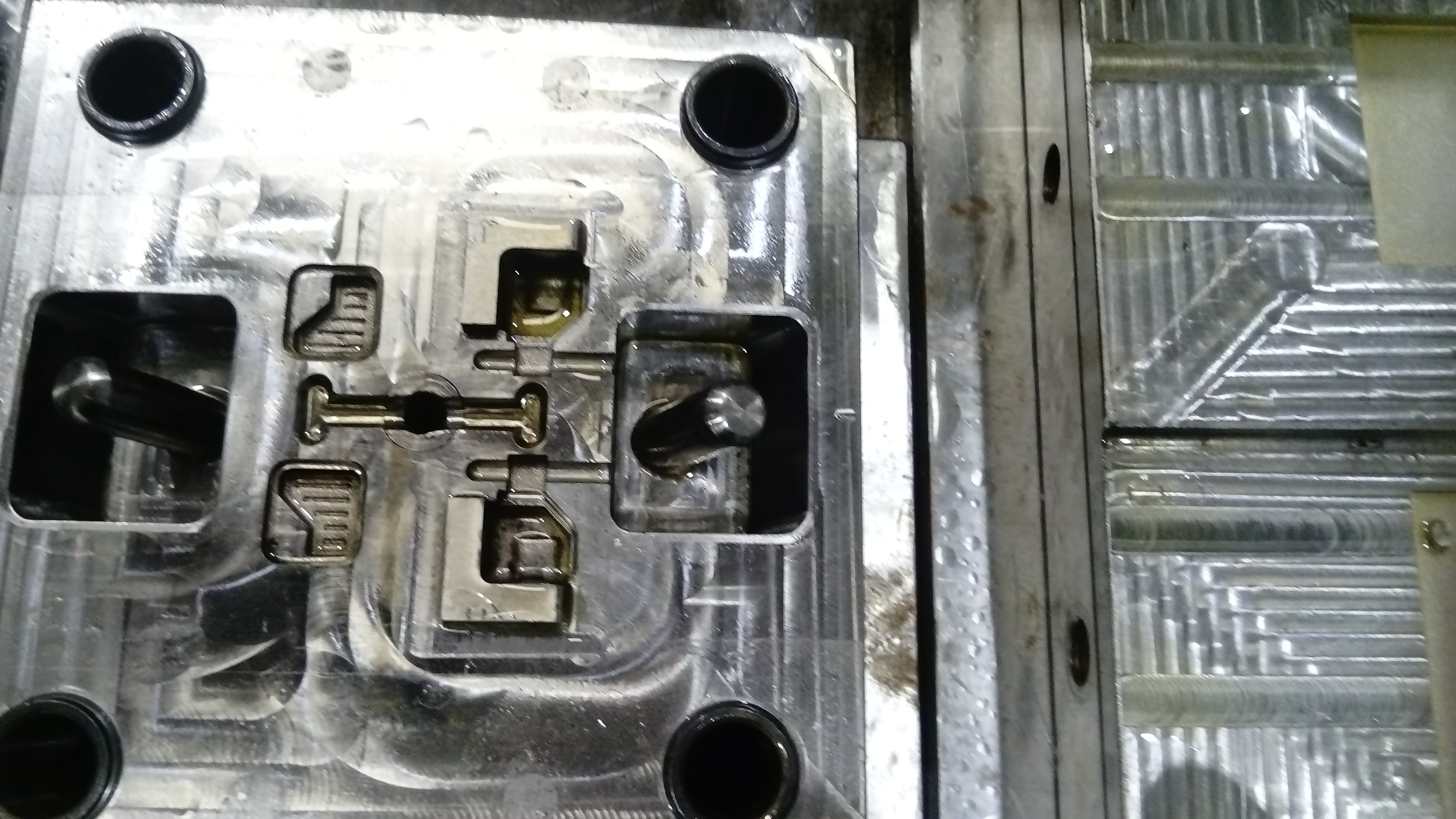

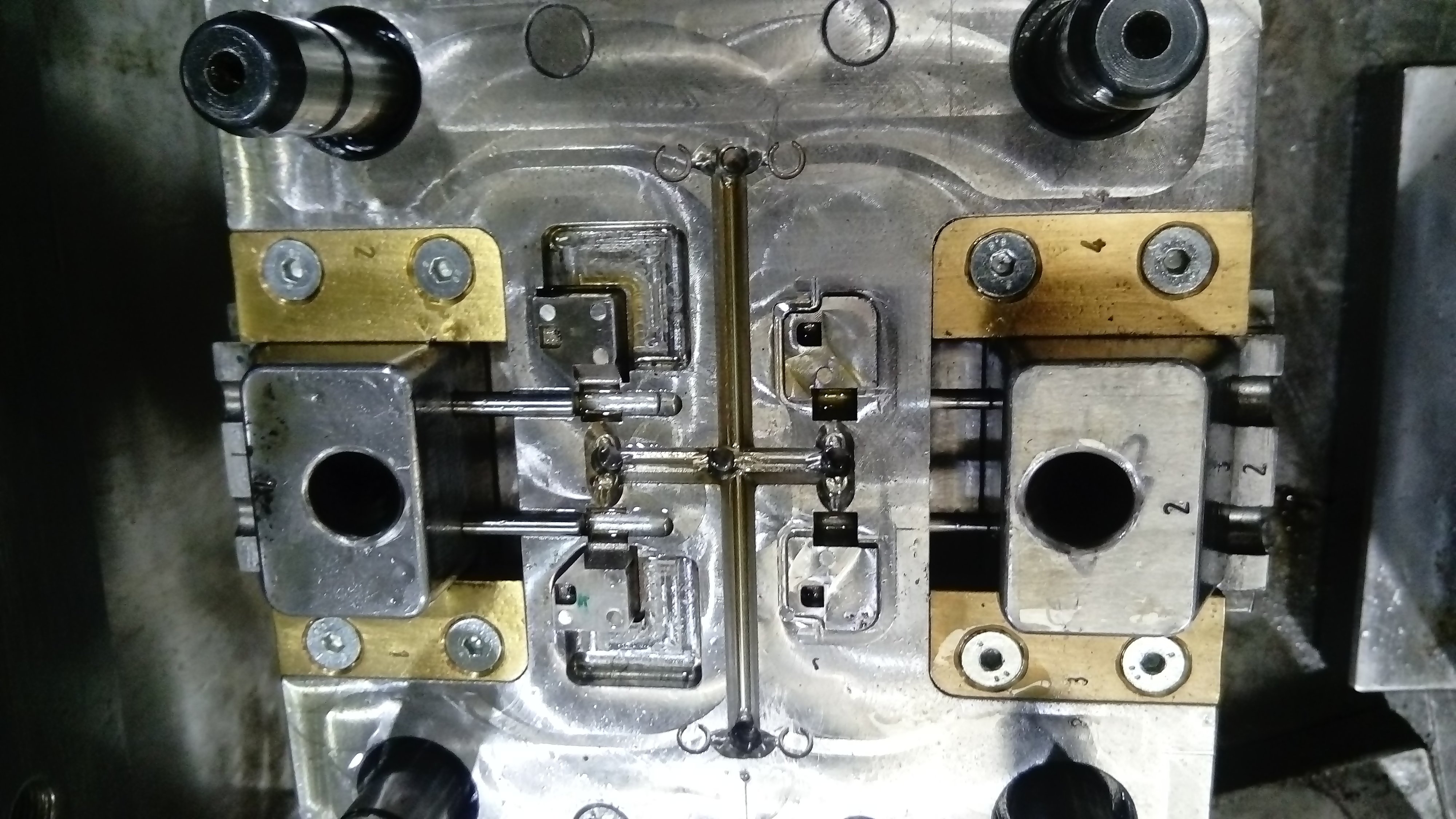

    The shoulder buttons:

    DSC_0421.JPG DSC_0422.JPG

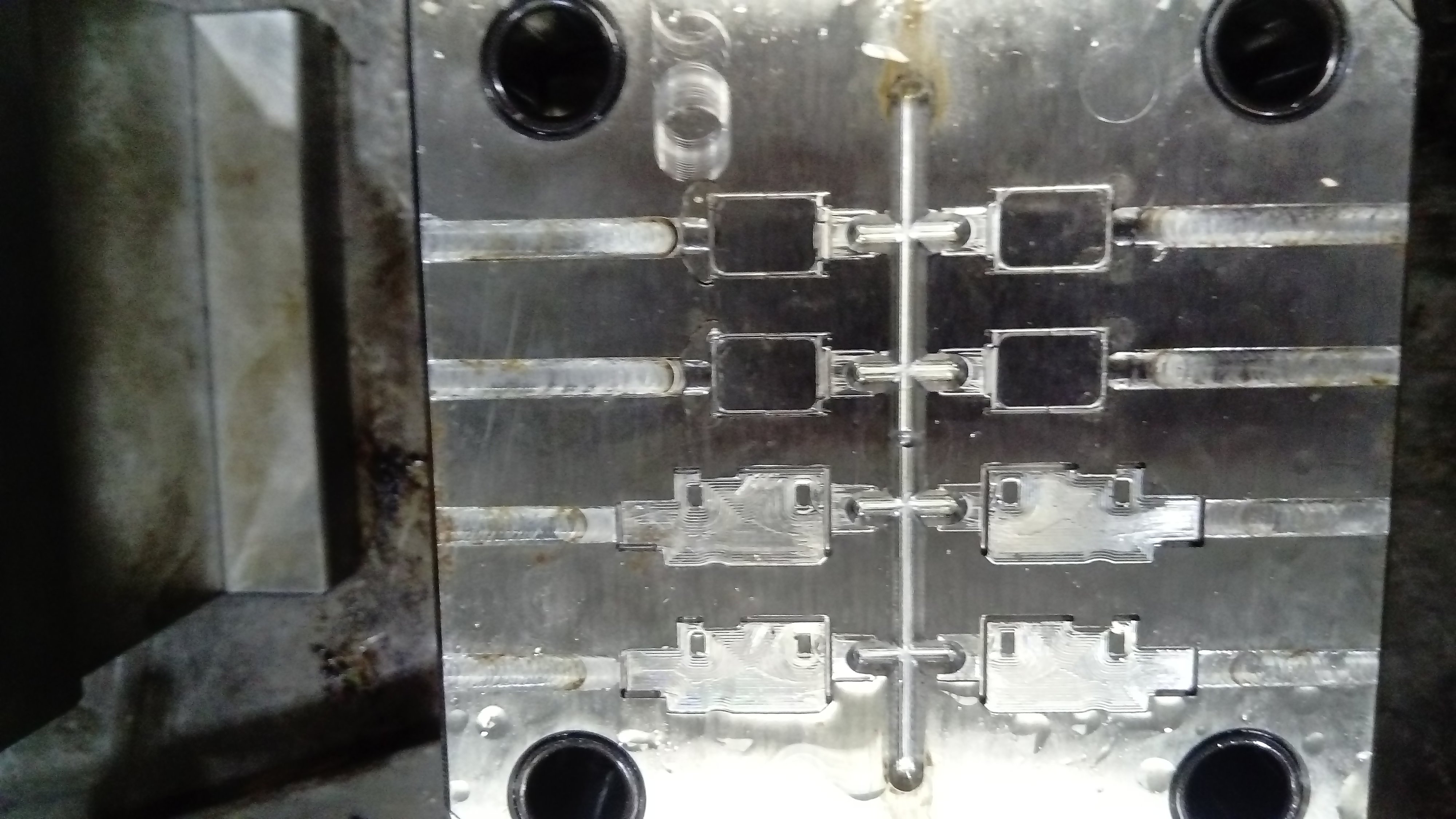

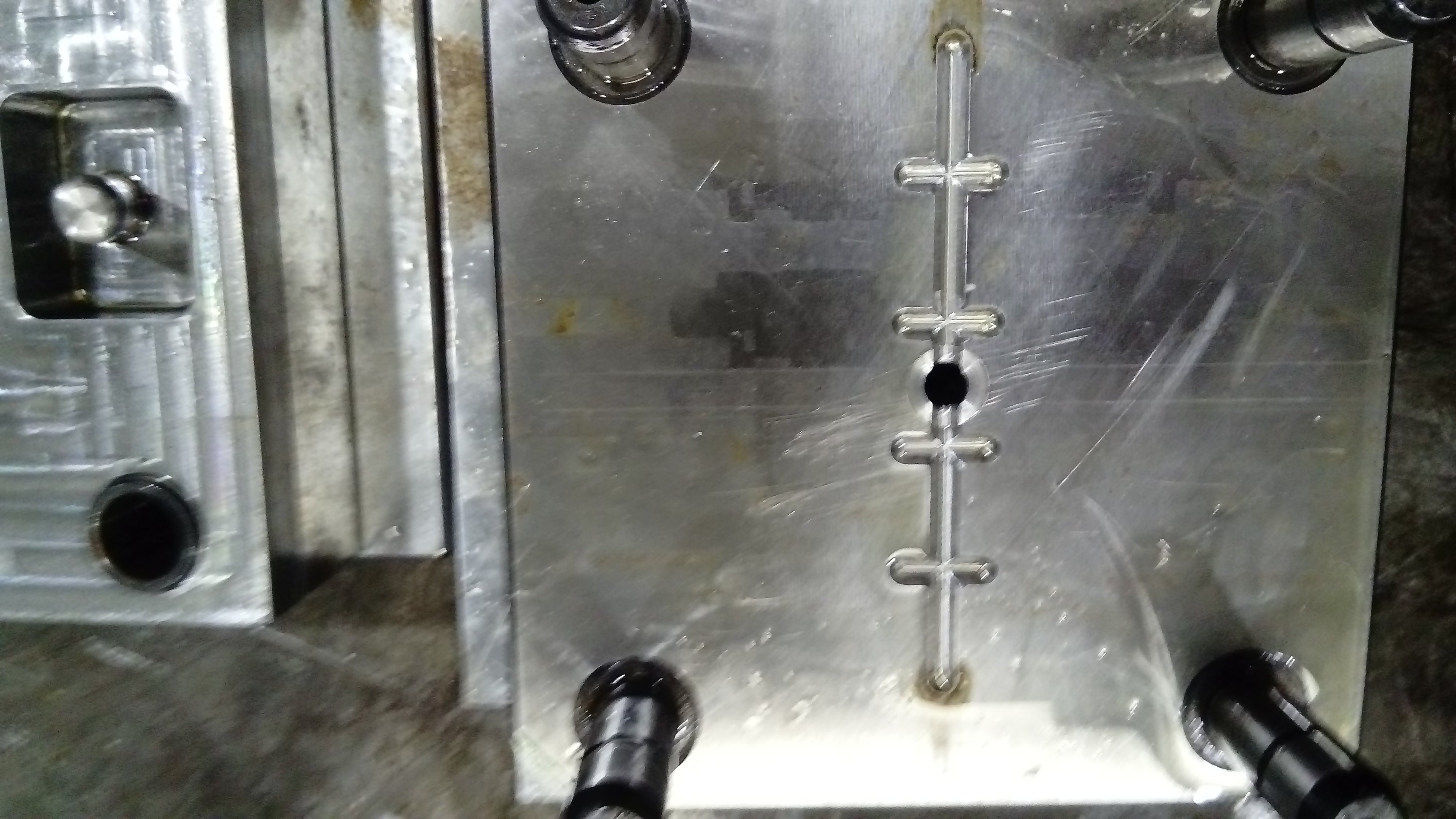

    The rubbers for the speakers:

    DSC_0423.JPG DSC_0424.JPG

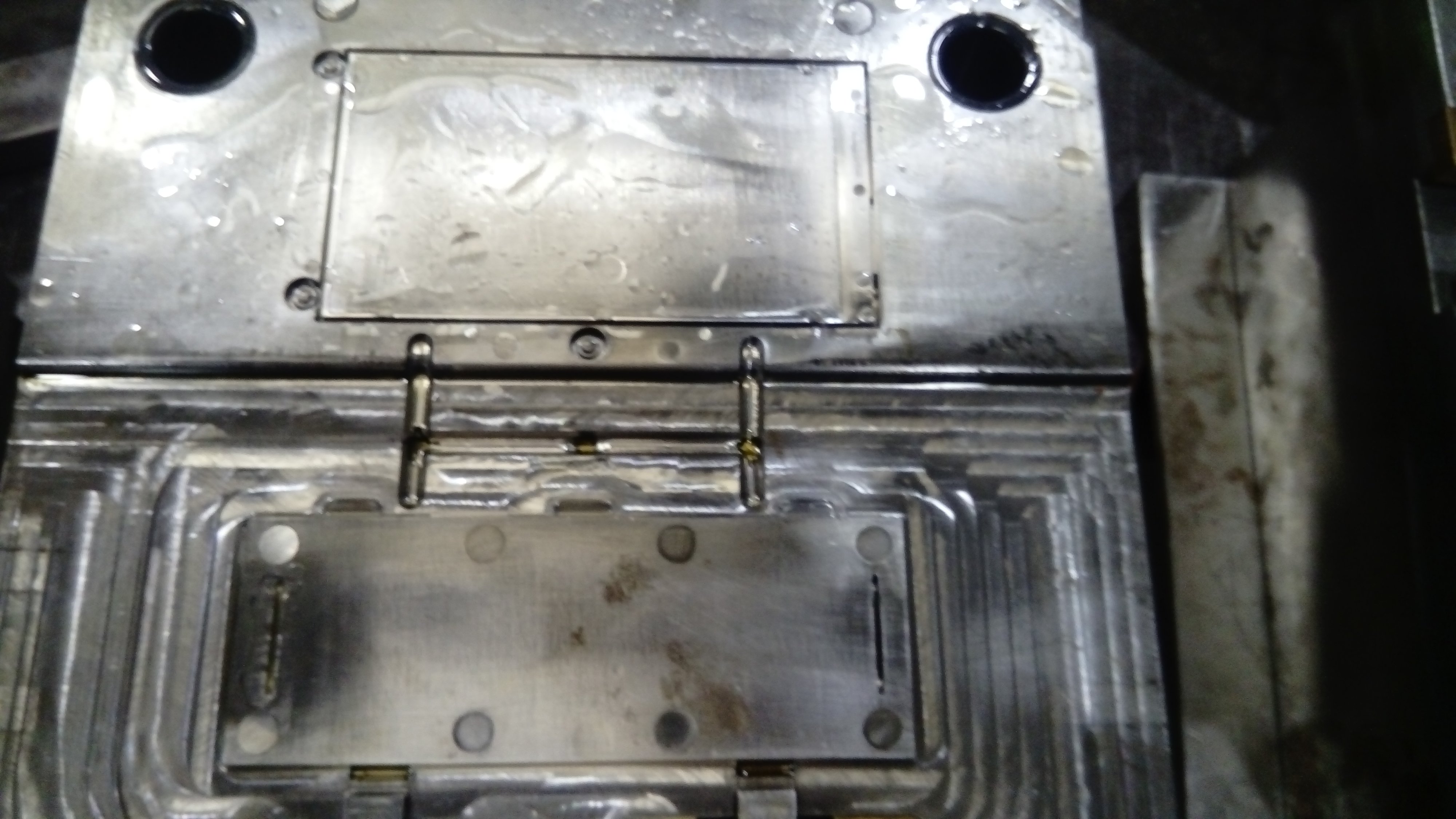

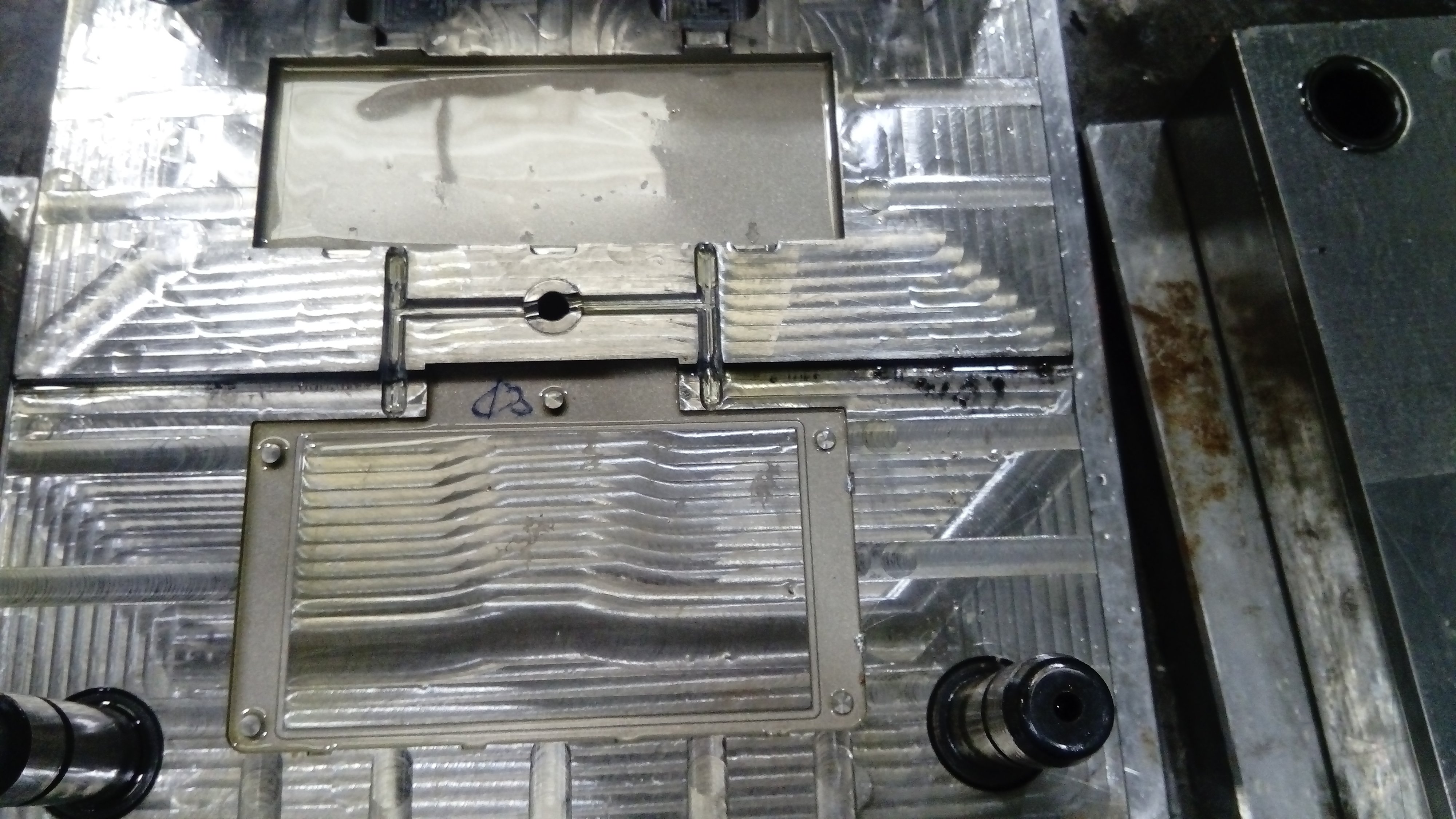

    The battery cover as well as the frame for the LCD:

    DSC_0419.JPG DSC_0420.JPG

    Quite a few moulds :)

    That's it for today. I'll try to find some time to post another thread to let you know the status of EVERTHING regarding the Pyra (not only the cases) soon, but it's 5am here and I'm tired, so it won't be now :D

    Last edited: Jan 28, 2019
    Tags:
    Lightkey, Djhg2000, klapse and 40 others like this.
  2. Marc

    Marc Still Fresh

    Joined:
    Jun 11, 2010
    Messages:
    12
    Nice! Thanks for the Update!

    Keep up the good Work,you are doing an awesome job there! :)

    Last edited: Jan 28, 2019
  3. Elw3

    Elw3 ƐʍlƎ

    Joined:
    Jul 21, 2013
    Messages:
    901
    Putting each part in a seperate plastic bag?
    Is it candy?
    Or an ecological nightmare?

  4. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    10,563
    Location:
    Somewhere off the coast of the EU
    Awesome update with some awesome pictures, thanks! And thanks for explaining why the plastics firm can't commit to a start date yet.

    I can't see a shoulder button in the photos you've labelled 'Logo...' but I guess both shoulder parts are in the photo labelled 'The shoulder buttons' - I can see the inner/upper ones but the lower/outer ones that also fit around the corner I'm finding harder to see in inverse, but I assume these are the moulds used to create the plastic you've got bagged up, so as long as all of the parts are there you're good.
    Yeah, it was a typo, and is now fixed.

    Last edited: Jan 28, 2019
    Djhg2000 likes this.
  5. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,575
    Location:
    Ingolstadt
    They're not seperate. They're wrapped up in plastic sheets.

    Actually, it's needed for proper protection when being shipped.
    Plastic on plastic will make scratches!
    It is possible to preassemble parts though and put the full unit into a bag, not each single piece. That makes a lot more sense.

    Actually, for the Everdrive cases, I am reusing the bags to protect the Everdrives when shipping to the customers :)
    --- Double Post Merged, Jan 28, 2019, Original Post Date: Jan 28, 2019 ---
    Ah, right, why did I put that in there? :O
    Will fix it right away :)

    They're in the same mould, no worries :)

    Djhg2000, rSl, szr and 1 other person like this.
  6. troy

    troy Member

    Joined:
    May 2, 2016
    Messages:
    31
    Hopefully this new company is as good as they seem to be, kind of crazy how of all the things the case ended up being the last thing to be completed.

  7. ImmaculateChimp

    ImmaculateChimp Member

    Joined:
    Sep 22, 2009
    Messages:
    218
    Location:
    carmel, indiana - united states
    will this current company level out the battery compartment as well, or will it be left as is?

  8. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,575
    Location:
    Ingolstadt
    That's not even possible without creating multiple new moulds (lower case part, battery door, shoulder buttons) which would cost around 25k EUR.

    It's planned for later, but impossible now.

    Djhg2000, jeeks, ObiKKa and 4 others like this.
  9. matzesu

    matzesu Hardcore Member

    Joined:
    Jul 22, 2009
    Messages:
    2,875
    Location:
    Germany,, Saarland, at home
    Thanks for the update,
    The part whit the Batterycompartment should be changeable by customer pretty easy: I made this allready on my Pandora..
    gladly the new company is now working on the Moulds

  10. Coupo

    Coupo Still Fresh

    Joined:
    Jul 31, 2018
    Messages:
    47
    Very nice update!
    I think, things are going to be fine from now on. :D

  11. Xcl4m4t10n

    Xcl4m4t10n Advanced Member

    Joined:
    Dec 18, 2009
    Messages:
    1,033
    Hope this will end soon... Thank you for the update ED.

  12. ClockworkCoder

    ClockworkCoder Chaotic Neutral

    Joined:
    Jan 21, 2016
    Messages:
    824
    Location:
    Menzoberranzan
    So glad that it's now moved from FA. Hopefully it's all downhill from now.

    Swordfish II and remjey like this.
  13. Eight Bit

    Eight Bit Advanced Member

    Joined:
    Nov 16, 2008
    Messages:
    1,570
    Location:
    Amsterdam, Netherlands
    Thanks for the case update!
    May I ask what the status is of all the other parts needed?

  14. crazyhorse

    crazyhorse Very Active Member

    Joined:
    Sep 9, 2009
    Messages:
    256
    Grench sounds like you may get a tracking number soon:)

    Djhg2000, rSl, Grench and 2 others like this.
  15. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,575
    Location:
    Ingolstadt
    I don't think we're talking about the same her :)
    The compartment of the Pyra is fine, it could be made thinner switching to a sliding cover though.

    szr and ClockworkCoder like this.
  16. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,575
    Location:
    Ingolstadt
    Sure, just read the last sentence of my newspost :)

  17. Mr_Loon

    Mr_Loon Can't Remember

    Joined:
    Aug 30, 2010
    Messages:
    2,322
    Hi ED thanks for the update.

    Are you any closer on being able to decide whether to produce the 2GB version?

    Also wondering if this idea from 2016 is considered practical for any future improvements for case design : Improving the modularity

    Really looking forward to seeing the prototypes released into the wild :)

    Neelix likes this.
  18. matzesu

    matzesu Hardcore Member

    Joined:
    Jul 22, 2009
    Messages:
    2,875
    Location:
    Germany,, Saarland, at home
    Jepp ich hab dich einfach falsch verstanden
    Ich dachte der Part wo die Batterie rein kommt wird auch bei den MP Pyrae etwas schief also hätte ich das dann halt später selbst mit einem neuen Teil getauscht weil ich das bei der Pandora schon mal gemacht habe

  19. Kev2442

    Kev2442 Still French

    Joined:
    Nov 4, 2014
    Messages:
    549
    Location:
    42 (Loire) is the answer.
    If you already use rubber, could it be possible to try out the material for the nubs (and maybe the shoulder buttons as well) ?
    I don't quite know about wear-and-tear for massive rubber (would probably be hard rubber for these, but maybe the speakers use a softer one), but it might look and feel better... especially over time.
    I'm a bit worried about prolonged use of plastic nubs when it comes to comfort.

    Anyway, I can't wait for the colors list so we can all argue whether hot pink is a sensible option or not ! :p

  20. Djoga'Ro

    Djoga'Ro moonstruck

    Joined:
    Apr 3, 2016
    Messages:
    800
    Don't know about that. I think, I only know controllers, that come with plastic shoulder buttons, which definitely includes the controllers I like best. On the other hand I know some rubber parts, that get a rather nasty surface over time - sticky and dirty. Can't tell, if they do it on their own or if it has something to do with the oils the human hand brings into the mix.

    tarator, Kev2442 and ClockworkCoder like this.
