I was working on sealing the speakers into the Pyra.
Sealing them?

Yes, sealing them! The speakers we're using are special speakers that have some of the best sound you can get when they're assembled properly.
For that, they have some special tricks. The back volume (part of the case) has to be sealed, otherwise, the membrane permanently moves to its limit which makes it sound totally overdriven.

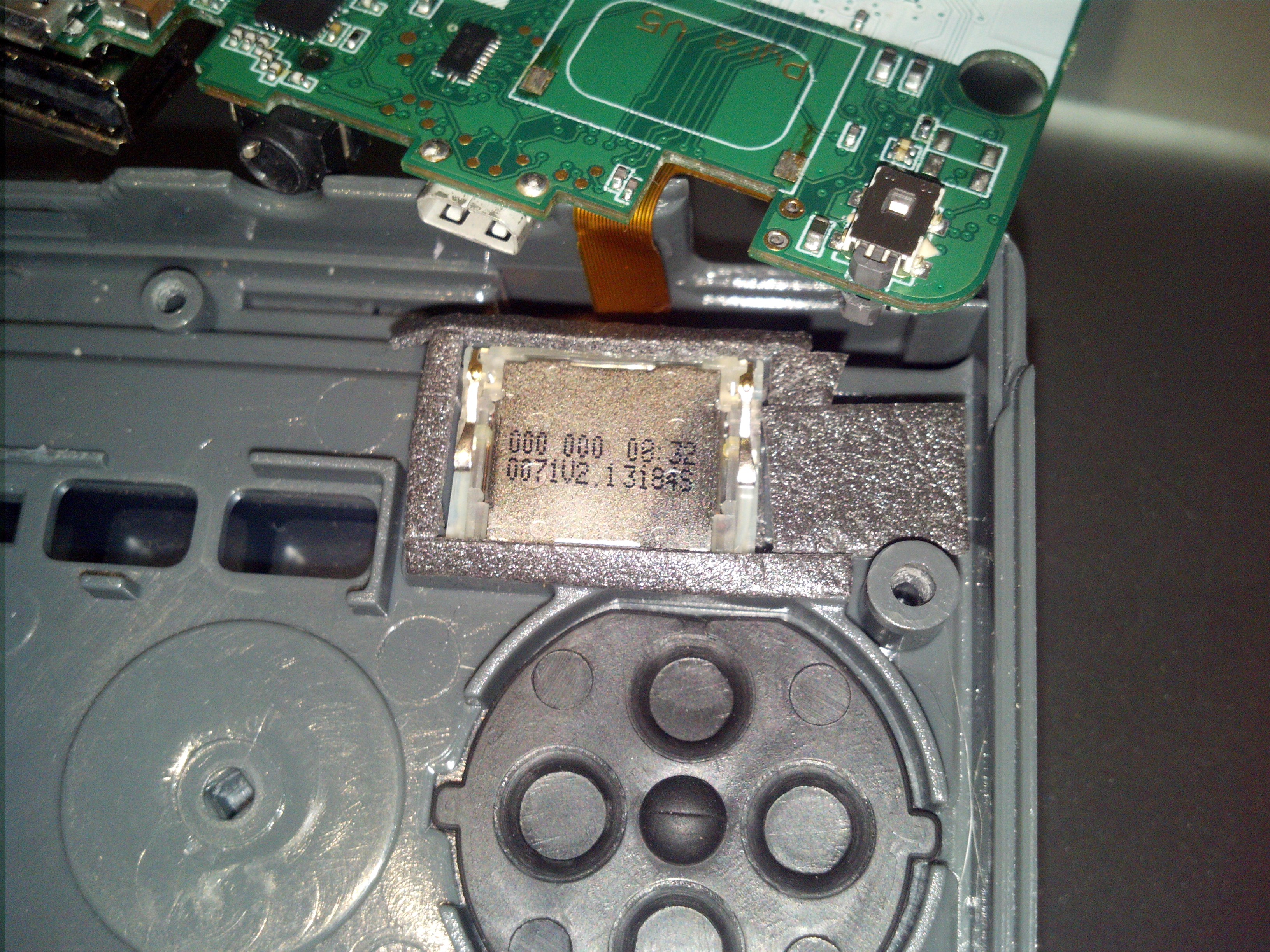

I've sealed the speakers with self-cut padding. Of course, in the end, this will be cut by a machine and we only have to apply it.

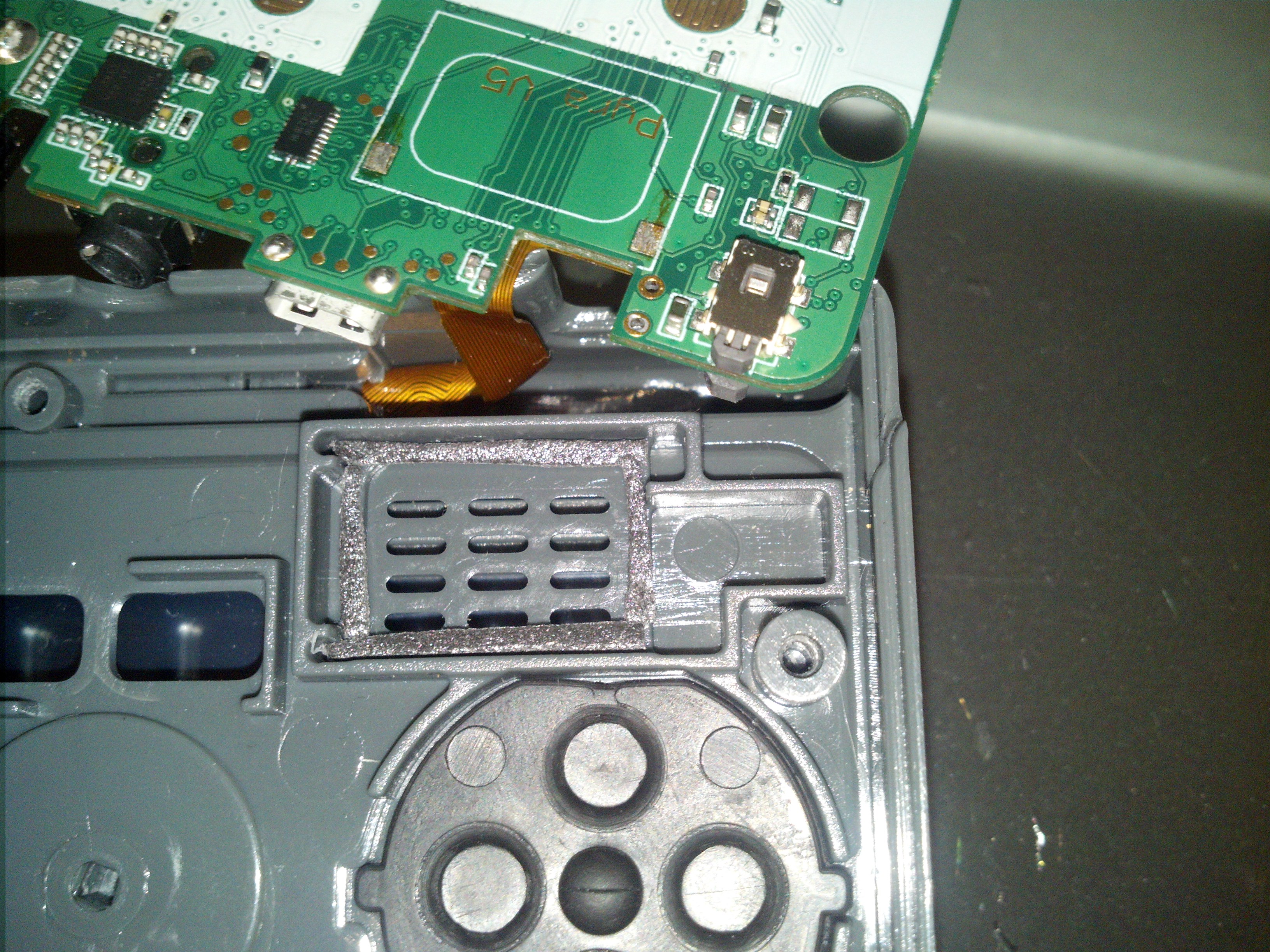

First, we need some padding on inside the case so that the membrane has enough space to fully move.


The speaker will go onto there and more padding (to seal it) will be added to the support bars of the case:


Of course, it will ONLY go onto the support bars (not fully over it, as I did here), because that would make our back volume smaller which is urgently needed for proper bass. But for a first test, I decided to do it like that.

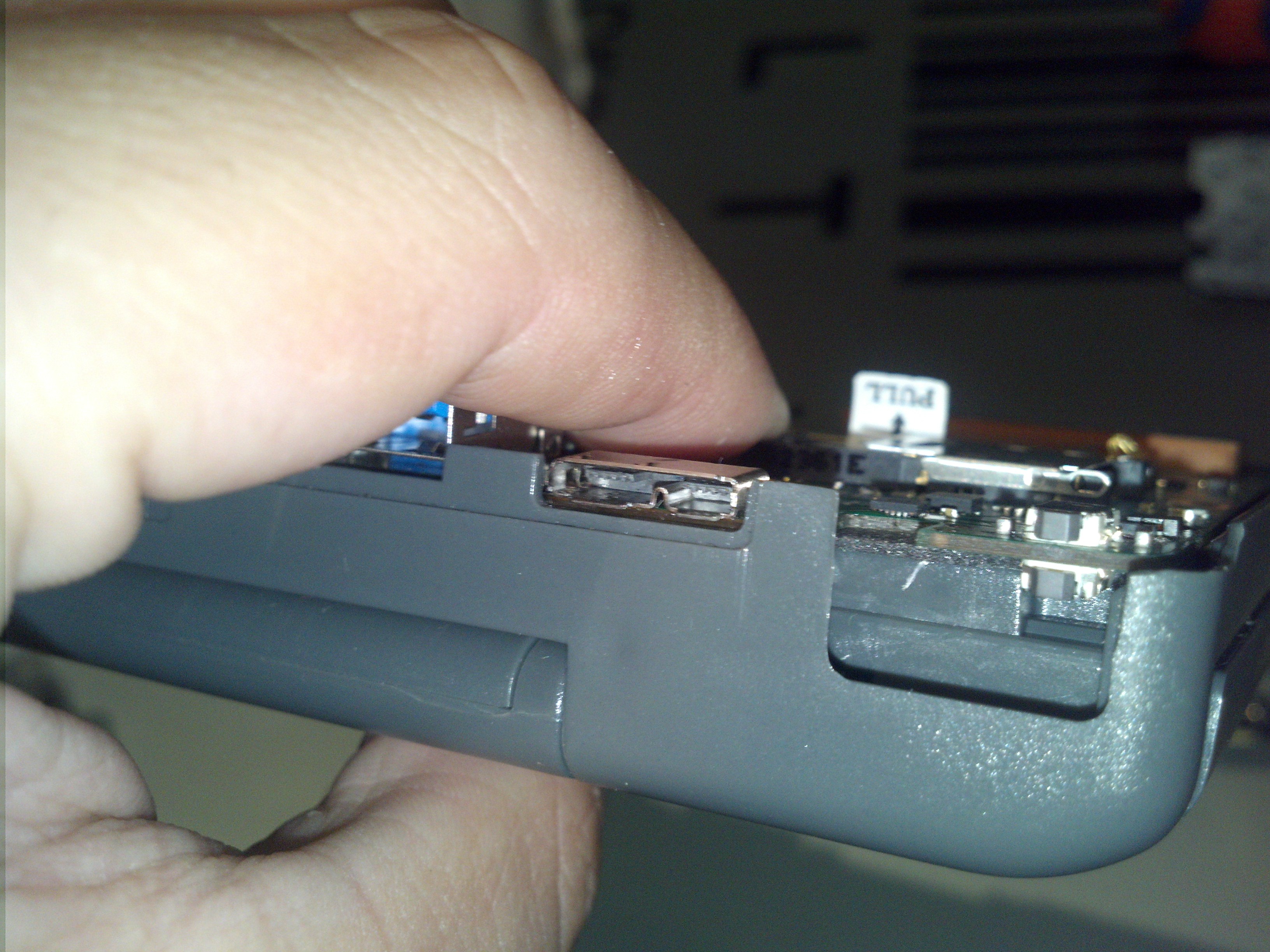

Then the PCB goes on top of it, like a sandwich.
You can see that the PCB and the padding I applied seals the speaker inside the case:


The result can be seen here:


This video shows a comparison between the Pandora, the GPD XD and the padded Pyra.
All of these have been recorded with the same microphones. The volume of the recording has NOT been changed, so you can hear the volume differences here.

With the reduced back volume, the Pyra is already louder at 75% audio than the Pandora is with full volume... and sounds a lot better as well.

However, sometimes it already sounds a bit overdriven - most likely an effect of the reduced back volume or maybe the sealing is not 100% yet. There are also some other tricks I want to use to improve the quality (it sometimes sounds like we have a resonance frequency as well).

The GPD XD has more bass right now (ours will improve when I don't cover the back volume with the sealing), but it sounds like it has some weird reverb combined with a resonance frequency. Looking into the GPD XD, it seems to use the full case as back volume... which explains that.

Some music tracks sound better with the GPD XD, some sound better with the Pyra... but that's only the first test, I hope I'll be able to improve audio a lot :)

Well, that's it for today. Just some short sound-related news, but I guess it makes some of you happy :)

BTW: Playing C64 commando at 100% volume plays fine without overdrive... but it was too loud for the microphones, so I couldn't even record it properly.
It was REALLY loud!


ible

professional vim user
Joined
Mar 24, 2014
Messages
2,565
Location
Seattle, WA
awesome!

[edit] wait, so if the speakers "permanently" move to their limit if they're not sealed properly, does that mean the speakers break if the seal breaks? if so, how difficult is it to break the seal?

Last edited:

EvilDragon

Administrator
Staff member
Joined
Mar 4, 2003
Messages
29,823
Age
44
Location
Ingolstadt
awesome!

[edit] wait, so if the speakers "permanently" move to their limit if they're not sealed properly, does that mean the speakers break if the seal breaks? if so, how difficult is it to break the seal?

Yes, they would break. But you cannot break the seal unless you open the unit and rip it out. It'll be glued on the PCB. And as soon as you remove the PCB, the speakers won't have contact anymore.

It's the same technique they use in high-end smartphones which have awesome speakers as well, so it's pretty robust :)
