[Applimulator ;)] apkenv + apkenv.ui

Discussion in 'DragonBox Coding Compo 2012/2013' started by crow_riot, Jan 22, 2013.

  1. crow_riot

    crow_riot Well-Known Member

    Joined:
    Sep 21, 2009
    Messages:
    1,763
    Location:
    .at
    THIRD RELEASE

    see my post here: http://boards.openpandora.org/index.php/topic/11736-applimulator-apkenv-apkenvui/?p=251247

    plants vs. zombie bugfix: http://boards.openpandora.org/index.php/topic/11736-applimulator-apkenv-apkenvui/?p=268844

    --

    hey just to make it public now ...

    i'm working on and off on apkenv. for the one's who don't know what it is: it's a compatibility layer to run .apks natively without having to run android.

    this only works for apks that use native libraries and again only for those where someone has written a support module.

    the source for pandora's apkenv port can be found here: https://github.com/crowriot/apkenv

    the source for the (very unfinished) interface is here: https://github.com/crowriot/apkenvui

    writing support modules is really time consuming, because you need to implement all functions the native library expects to have within the java code. and once you have those function skeletonts in place you mostly get a segfault somewhere :huh:

    having a working support module in place, it doesn't mean it works for all versions of the apks. you're mostly bound to a specific version the module was written for.

    currently working are

    - the rabbit game 2 (http://thp.io/2011/trg2/)

    - fruit ninja 1.5.2 and 1.5.4

    - angry birds, angry birds space (dunno which versions exactly, will find out)

    i'm working to finish the cut the rope module, but it's a rather old version which works. newer versions just segfault (again).

    i initially tried to get the unity player working, but again, segfault.

    so you see ... the main word here is segfault :(

    but it's still fun to play fruit ninja! :)

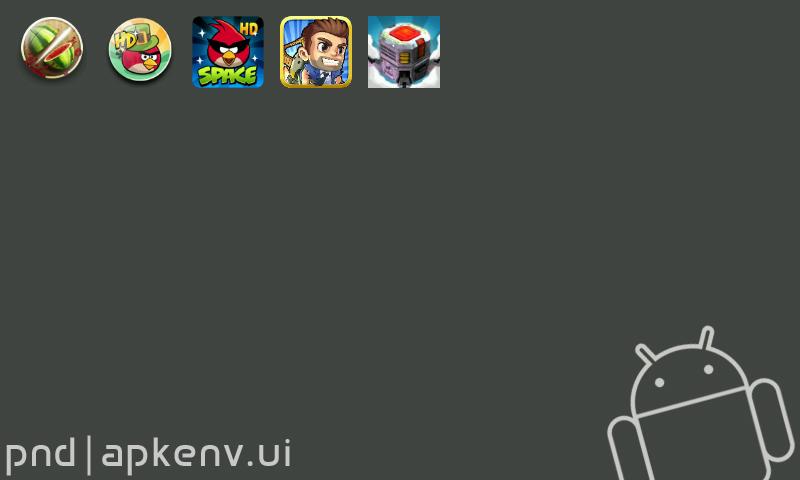

    attached a screenshot from my quickhack launcher interface. the icons are extracted from the apks... oh and no jetpack joyride is not working (didnt even try), i just have the apk in the folder and so the icon gets displayed.


    Last edited by a moderator: Feb 6, 2016
    Tags:
    Trip likes this.
  2. MarTinazzI

    MarTinazzI Still Fresh

    Joined:
    Jan 19, 2012
    Messages:
    95
    Location:
    Brazil
    Awesome job, and apparently very promising.
    Now one more program to Wishlist.

    - Drastic
    - Applimulator [funny name =)]

    Thank you and good luck.

    MarTinazzI

  3. mcobit

    mcobit Advanced Member

    Joined:
    Jul 28, 2008
    Messages:
    6,755
    Would be cool to have opera running.


    Good progress so far :)

  4. thatgui

    thatgui Advanced Member

    Joined:
    Apr 2, 2009
    Messages:
    2,901
    • Compared to running an apk in Pandoras Android-Build, are speed improvements possible ?
    • would it be possible to "bundle" single apks into a pnd (instead of using a seperate launcher)?
    • how hard/complicated is it to get the a list of the functions that are need for a support module ?

  5. Neelix

    Neelix Insecticidal Maniac

    Joined:
    Jan 8, 2011
    Messages:
    3,209
    Location:
    Melbourne, Australia
    Bundling individual apks into PNDs would need to be done carefully with regards to licencing issues.  Most Android apps are commercial (if inexpensive) so we would not be able to distribute them as PNDs without permission from the publisher.  This has come up in the past when someone PNDed up Angry Birds in violation of the licence.

    That being said, now that the repo has support for commercial software, it occurs to me that Android developers may be (very slightly) more inclined to set up an account and publish there if conversion is easy and it may get them some extra sales.

    - Neelix

  6. crow_riot

    crow_riot Well-Known Member

    Joined:
    Sep 21, 2009
    Messages:
    1,763
    Location:
    .at
     hm difficult question. you're having more resources free when running directly from xfce than from android, so maybe yes. but i can't really tell without measuring.

    yes. the launcher is just there, because i can't bundle apks for licensing reasons.

    well it's not too difficult. there are tools out there helping: dex2jar and jd-gui are very useful :)

    Last edited by a moderator: Jan 22, 2013
  7. Farox

    Farox Certified Guru

    Joined:
    Jan 8, 2009
    Messages:
    2,018
    Location:
    Italy
    I'm start to think that this edition of compo will be very very fun.

    Thank's crowriot :)

  8. Askarus

    Askarus Hardcore Member

    Joined:
    Sep 28, 2011
    Messages:
    4,263
    Location:
    Germany
    If this project is improved, will there be nearly all apps be playable then or will there always be limitations?

    (I don't mean multi touch and that stuff)

    Last edited by a moderator: Jan 22, 2013
  9. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,575
    Location:
    Ingolstadt
    Unless someone writes a couple of hundredthousand modules for all these apps out there, it will not run them ;)

  10. Askarus

    Askarus Hardcore Member

    Joined:
    Sep 28, 2011
    Messages:
    4,263
    Location:
    Germany
    If he wants to win the competition ...

    :D

    klapse likes this.
  11. ekianjo

    ekianjo Hardcore Member

    Joined:
    May 7, 2012
    Messages:
    8,261
    Location:
    神戸市、日本 (Japan)
    Can you give some examples of support modules? I would like to better understand how this works.

  12. crow_riot

    crow_riot Well-Known Member

    Joined:
    Sep 21, 2009
    Messages:
    1,763
    Location:
    .at
    there are more steps involved, i'll explain:

    - first you need to take a look into the .apk and see if it links to some native library, i.e. thats easy, if there's a lib/armeabi or the like folder, there's at least a starting point. if not, then you can just stop trying at this early stage.

    - next, you can just throw the .apk at apkenv and see if it can handle it: it first tries to link the contained lib, but sometimes functions that are available on android are not directly available on the pandora (or any other supporting device). apkenv tells you the names and then you've got to write wrapper functions for them. most of them are already there, but sometimes not. not difficult, but well IIRC it just stops at the first function not found and tells you that it's not available. you repeatingly need to do that until the lib finally links.

    - knowing the the lib is linkable, you need to start reversing the java code. that is the classes.dex file that comes with each apk - tools used are dex2jar+jd-gui. having some decompiled sources you can start searching for native labeled functions definitions, these are the one that are called from the java side. mostly, thats a handful (like nativeInit, nativeRender, nativeInput, ...).

    - knowing all native functions, you can actually start writing a module, first all native function definitions need to be translated to c function definitions, which is easy. it's step-by-step, first do the JNI_OnLoad if it's there, then nativeInit is usually called. and then you can start watching the console for java functions that are called. and every little java call needs to be emulated. then continue with nativeUpdate and see what java calls are there and so on.

    - sounds simple but is time consuming, and it may happen that if you've got half of the stuff running, you just get a segfault. and you dont know where and why. and then you've spent hours for nothing.

    a simple module is here: the rabbit game 2. thats the sample project of apkenv's author. and of course does everything natively without any calls back to java.

    one of the harder ones is here: cuttherope. i'm working on this - but it only works for one of the early cut the rope versions (i think it's 1.0.0 or so). what they do, and you need to find that out, in the early version, they're loading images using java. so i had to implement a jpeg and a png loader to get all the textures working. now, cut the rope loads and you can at least see something. but then comes sound. in every apk i've looked at, sound is played using java. so you need to wrap all the sound code and implement it using SDL_mixer (which i haven't done as of yet).

    i had a big problem with jd-gui, which was showing me messy code of the input, so i wasn't able to get the input working for a long time. i then found JAD (another java decompiler) which could handle the code better and was at least giving me the correct code. now i've got cut the rope playable but without sound. then next, they're storing scores using java, too. so what i need to do is writing some sort of key/value save file system to get that correctly... and so on.

    the most frustrating point is, that even, if you've got the game working for one version, they might have changed so much, that with a later version, your module does not work anymore and you can start over again. take fruit ninja, version 1.5.4 works very well, but they've changed so much in a later version, that you can go and rewrite 90% from scratch (if it wouldn't segfault at the very beginning ;) ). the same with cut the rope, it works with 1.0.0 but later versions use totally different approaches.

    Last edited by a moderator: Jan 23, 2013
  13. ingoreis

    ingoreis Advanced Member

    Joined:
    Mar 7, 2012
    Messages:
    3,071
    Location:
    49.491276,8.423518
    Cool idea.


    Wow so many cool Entrys this year.


    Byside doesnt work that when you use a chroot of the Pandora Android? Maybe you can use Files from the Pandora Android Port?

  14. crow_riot

    crow_riot Well-Known Member

    Joined:
    Sep 21, 2009
    Messages:
    1,763
    Location:
    .at
    it already uses libraries extracted from the gingerbread pnd. the linker needs them.

  15. crow_riot

    crow_riot Well-Known Member

    Joined:
    Sep 21, 2009
    Messages:
    1,763
    Location:
    .at
    just found the compatibility list for maemo - which also applies to pandora: http://wiki.maemo.org/Apkenv/Game_Compatibility

    for multitouch: i've implemented multitouch faking (which is needed in angrybirds for zooming): pressing the left shoulder simulates pressing on the middle of the screen with a second finger.

    Last edited by a moderator: Jan 23, 2013
  16. _wb_

    _wb_ Microbe Staff Member

    Joined:
    Apr 5, 2012
    Messages:
    5,387
    Location:
    Brussels, Belgium
    Multitouch faking is a really clever idea! I guess many multitouch gestures would work with one static finger, and are arguably even easier to perform accurately in this way!

    Suggestion: I believe some multitouch applications use two-finger swiping or tapping; this would also be possible to fake (e.g. right shoulder button adds a cloned finger at some fixed offset)

    (for cut the ropes you would need real multitouch though, although perhaps it is possible to solve all puzzles by rapidly doing the "simultaneous" cuts sequentially)

  17. ingoreis

    ingoreis Advanced Member

    Joined:
    Mar 7, 2012
    Messages:
    3,071
    Location:
    49.491276,8.423518
    A Android Wrapper like this is cooool.


    This Multitouch solution is a great idea.


    When you want a Video for your Presentation make i a few Videos for you.


    When you need a closet Beta Tester would i am happy to test this.


    Greetings fromm Germany.

  18. mcobit

    mcobit Advanced Member

    Joined:
    Jul 28, 2008
    Messages:
    6,755
    He is german, too ;)

  19. FaeMinx

    FaeMinx Rainbow Liberation Instigation

    Joined:
    Dec 11, 2010
    Messages:
    3,101
    Location:
    outside looking in side looking out
    I have a lot of respect for folks from Germany.


    In my mind, if it comes from Germany... you can pretty much expect quality. :)

    Klumpen and MarTinazzI like this.
  20. pmprog

    pmprog Advanced Member

    Joined:
    Apr 25, 2011
    Messages:
    3,718
    Have you tried this with Skype?
