Discussion in 'Alternative OS' started by hns, Sep 17, 2017.

  1. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    News: I have ported the Nub driver to latest mainline Linux so that we now have the Pandora Nubs working.

    What it is: Letux-OS is a Debian based distribution which has focus on Kernel and U-Boot to get full and almost identical hardware support for multiple devices. Currently: OpenPandora, GTA04/Letux2804, Pyra, BeagleBoard, BeagleBone, PandaBoard, OMAP5432EVM, Udoo neo and more.

    On user-space side it currently supports LXDE,Xfce and QuantumSTEP. Almost working are (were) Replicant and QtMoko.

    More info: www.letux.org

    Tags:
    rSl, scops, fantomid and 7 others like this.
  2. ingoreis

    ingoreis Advanced Member

    Joined:
    Mar 7, 2012
    Messages:
    2,925
    Location:
    49.491276,8.423518
    Sound Interresting for me.

    Can you make a DiskDump Image of this Linux in installed Form for the Pandora for us?
    I would be Glad to test it and DiskDump Images make installing a new Linux to SD Card much more Easier :)



    btw:
    Do that Letux Linux support the Beagle Board Rev C3 too? (not BeagleBone)
    I have 2 of these here and search a good OS for them:

    b_o_b likes this.
  3. Linux-SWAT

    Linux-SWAT Advanced Member

    Joined:
    Feb 13, 2010
    Messages:
    7,858
    Yes, it should work.

  4. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching

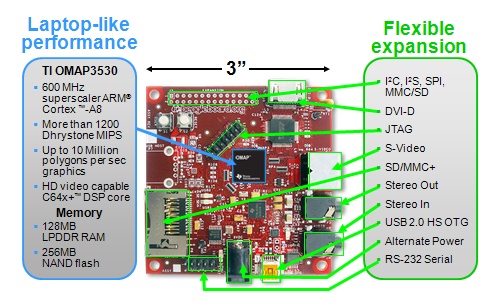

    Yes, BeagleBoard C3 is also supported.

    To make an SD, download the "makesd" tool: http://projects.goldelico.com/p/gta04-makesd/

    run (assuming your SD-Card reader is called /dev/sdb)

    DEV=/dev/sdb ./makesd beagleboard

    or

    DEV=/dev/sdb ./makesd openpandora

    For a list of the known versions check : http://git.goldelico.com/?p=gta04-m...=37c83763cddd35f894ae2aa1ddc0ef4d3150efa6#l80

    Making dd images has the problem of different SD card sizes. Either they are too big for a card or too small. And resizing the root file system dynamically is difficult. Therefore we prefer to use the makesd approach. It can also handle different mixes on multi-partition cards much better than providing .dd images for every potential combination.

    It should boot immediately on the BeagleBoard. But I haven't checked recently - have to remove some dust from mine :). If it doesn't please let me know the boot log.

    On the Openpandora, press the right shoulder button while powering on and then select "boot from SD:1" by the left side controls and press the "B" button from ABXY.

    Last edited: Sep 17, 2017
    rSl, b_o_b and ingoreis like this.
  5. notaz

    notaz Certified Guru

    Joined:
    Aug 23, 2005
    Messages:
    4,886
    Location:
    Lithuania
    Your makesd has a problem that we recently discovered on the pyra: tar extraction is trying to magically convert uid/gid of all files to match between hosts. For example, if there is a file belonging to user "lightdm" uid=84 in in the tar, but the host used to prepare the SD is using a different distro and also has "lightdm" user but with different uid (108), tar will silently change the uid from 84 to 108, which may lead to mysterious permission errors when SD is actually booted. The solution is add --numeric-owner .

    Most of the time this doesn't show up, but a few unfortunate users might have problems.

    rSl likes this.
  6. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    Thanks for this notice. I will add asap.

    BTW: there is an issue tracker for reporting bugs: http://projects.goldelico.com/p/gta04-makesd/issues/

  7. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    News: there is letux-kernel 4.14-rc1 available [1]. But it seems to have broken the display. Colors are lost but instead of showing B&W it shows B&B (black and blue) only. I.e. red and green are missing. But only on the OpenPandora while the GTA04 using exactly the same OMAP has all colors. So it is very likely an effect of the panel driver.

    [1]: http://projects.goldelico.com/p/gta04-kernel/

  8. CommanderB

    CommanderB Still Fresh

    Joined:
    Mar 1, 2014
    Messages:
    24
    Do I understand correctly that your long-term goal is to get the specific devices like the Pandora to be supported by mainline Linux?

    Gesendet von meinem SM-N9005 mit Tapatalk

  9. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    Yes.

    The reason is that we just have to maintain ca. 0.5% additional lines of code to Mainline to make everything work (ca. 200 modified files for ca. 10 different devices). If we get rid of the final 0.5% you can use the distribution kernels e.g. Debian because they use mainline as their source tree (and not any private one).

    For the Pandora, we are almost 90% there. Significantly missing is sound. And currently WiFi and Display are broken. They did work and it is just to find out what upstream patch did break them.

    rygD, rSl and CommanderB like this.
  10. CommanderB

    CommanderB Still Fresh

    Joined:
    Mar 1, 2014
    Messages:
    24
    Thanks for the information!

    I have never thought that so few lines are needed. But you are talking just about basic support, not advanced features like the Pandora wifi hacks and the power saving, right?

    Gesendet von meinem SM-N9005 mit Tapatalk

  11. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    Yes, Linux is really big... So 0.5% is still a lot :)

    I think WiFi hacks are included. Power saving might be not as elaborated, but everyone is welcome to work on it. And not to forget: the Pandora uses the same OMAP3 as the N900/Neo900 and GTA04 and those are mobile devices where WiFi and power-saving is equally important. Therefore a lot has already been done upstream to address common issues.

    benoitb and Alec like this.
  12. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    News: Letux-OS runs out of the box on the brand new PocketBone.
    Simply use the Letux makesd script to create a bootable SD card with Debian:

    rSl, CommanderB, Linux-SWAT and 3 others like this.
  13. PowerGod

    PowerGod Advanced Member

    Joined:
    Jun 20, 2011
    Messages:
    2,542
    This is good stuff !! Thanks for the effort :)

  14. xnopasaranx

    xnopasaranx Superbad!

    Joined:
    Jan 31, 2006
    Messages:
    3,040
    Very cool endeavor. And @hns post inspired me to buy a pocket beagle, which I will install letux on :D. I have a display which is meant to be used on a beaglebone black. Hopefully I will be able to make an adapter and drive it with the pocket beagle.

  15. Shenmue

    Shenmue Advanced Member

    Joined:
    Dec 19, 2012
    Messages:
    4,302
    Location:
    Dobuita
    Awesome! My Pandoras welcome new alternative OSes anytime!

  16. Swordfish II

    Swordfish II Very Active Member

    Joined:
    May 20, 2015
    Messages:
    573
    Would be really cool if this could be flashed to the NAND

  17. Shenmue

    Shenmue Advanced Member

    Joined:
    Dec 19, 2012
    Messages:
    4,302
    Location:
    Dobuita
    Too small for letux. What's wrong with running from SD card?

  18. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    Well, depends on total NAND size. On GTA04 we can flash it into the 512MB NAND. But to be honest it has not much functionality. As soon as you do an apt-get update NAND may overflow...
    IMHO nothing.

    Shenmue likes this.
  19. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    7,896
    Location:
    Somewhere off the coast of the EU
    Maybe I'm being blind, but I can't see any instructions there on how to install it to a bootable SD card for Pandora. I appreciate this is a commercial project, so maybe that's deliberate, but if you want us to test it it would be nice.

    Would we expect to get anything by taking the latest Pandora tgz and blatting over the kernel on it? I see you provide a uImage and a modules.tgz, so it sounds like it might not be a complete disaster. IIRC the Pandora doesn't use initfs so there should be no extra steps before getting it to boot at least.

    Edit: Scrolling up it looks like I should be using makesd. Unfortunately, my Pandora doesn't have a working screen, so I can only use it via TV out, so I'll have to dig out the old autoboot script.

  20. hns

    hns Very Active Member

    Joined:
    Jul 16, 2012
    Messages:
    270
    Location:
    Oberhaching
    Hi,
    to create a bootable SD card, use the Letux makesd script on some Linux host:

    http://projects.goldelico.com/p/gta04-makesd/

    like
    Code:
    DEV=/dev/sdc ./makesd pandora
    Then insert SD card into let slot, press right shoulder button and power on. Choose Boot from SD:1 by the up/down navigation keys and finally press B from ABXY.

    BTW: Letux-OS is not a commercial project. It is FLOSS and everyone can contribute.
