Pyra Learning OpenGL ES 2.0 for Pyra


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
13,918
Location
Somewhere off the coast of the EU
Okay, I installed git-lfs then ran lfs fetch which reported downloading some 1.4MB. My ship.glb file remains at 132 bytes and when I look at it is like you say a reference with a sha256sum and a size in it. Meanwhile my built code still crashes. Maybe I'll try the download from github later.


kaprikawn

Very Active Member
Joined
Sep 28, 2008
Messages
409
Location
UK
Website
kaprikawn.wordpress.com
Okay, I installed git-lfs then ran lfs fetch which reported downloading some 1.4MB. My ship.glb file remains at 132 bytes and when I look at it is like you say a reference with a sha256sum and a size in it. Meanwhile my built code still crashes. Maybe I'll try the download from github later.
In the assets directory, can you try :
Code:
git lfs install
rm ship.glb
git checkout .

EDIT: I've just tried this on a Mint VM instance I've got, and it worked there.

Last edited:

levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
13,918
Location
Somewhere off the coast of the EU
Ah, okay. I also removed numbox.glb and woodBox.glb and got them updated by the checkout. Unfortunately, the code still fails for me, on the same line according to gdb.


kaprikawn

Very Active Member
Joined
Sep 28, 2008
Messages
409
Location
UK
Website
kaprikawn.wordpress.com
I've introduced batch rendering to improve the performance of rendering the floor :

https://kaprikawn.wordpress.com/2020/02/23/learning-to-learn-opengl-es-2-0-part-27-batch-rendering/

@levi I think I know why yours isn't working now, it's probably because the updated gltf files haven't been copied into the build directory. I thought CMake did that, but I now think it doesn't. I've updated the 'run' script to cope with that now, so it should just work after you pull down the latest master version (or tag v3.8). Or if not just run

Code:
./run --fullscreen --clean


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
13,918
Location
Somewhere off the coast of the EU
Thanks, yes that's running well on my system now. Even on a repo where I hadn't installed git-lfs first and then ran ./run a second time after rechecking out the bigger files it spotted those changes and ran as per your gif on your blog.


kaprikawn

Very Active Member
Joined
Sep 28, 2008
Messages
409
Location
UK
Website
kaprikawn.wordpress.com

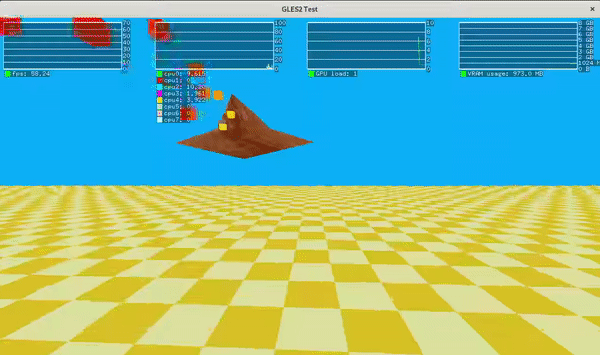

I've added an exhaust/particle system now :

https://kaprikawn.wordpress.com/2020/03/15/learning-to-learn-opengl-es-2-0-part-28-particles/



levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
13,918
Location
Somewhere off the coast of the EU
If you're interested in working better with gdb, print (or 'p' if you're lazy I think) is the command to print out the value of supplied expressions, and break (or 'b') is for setting a break point in a specified file and function (using the file:function notation), and you can also set conditions using if [condition] at the end. But if you're happy in vscode then I don't blame you to be honest!


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
13,918
Location
Somewhere off the coast of the EU
Okay, currently having trouble with enemypod.glb; I've updated as documented and redid all of the lfs stuff because I wasn't sure I'd done it on this machine yet. It seems to stop saying that enemypod.glb isn't a glb file. But looking at the file, it begins:
Code:
glTF^B^@^@^@^Le^A^@h    ^@^@JSON{"asset":{"generator":"Khronos glTF Blender I/O v1.1.46","version":"2.0"},"scene":0,"scenes":[{"name":"Scene","nodes":[0,1,2,3]}],"nodes":[{"mesh":0,"name":"EnemyPod"},{"name":"Light","rotation":[0.16907575726509094,0.7558803558349609,-0.27217137813568115,0.570947527885437],"translation":[4.076245307922363,5.903861999511719,-1.0054539442062378]},{"name":"Camera","rotation":[0.483536034822464,0.33687159419059753,-0.20870360732078552,0.7804827094078064],"translation":[7.358891487121582,4.958309173583984,6.925790786743164]},{"mesh":1,"name":"Collider","scale":[0.7885456085205078,0.6418082118034363,0.8866353034973145]}],"materials":[{"doubleSided":true,"emissiveFactor":[0,0,0],"name":"Material",...

That looks like valid data to me, and not the references I had before I did all of the git-lfs stuff, so I'm not sure what that error means.

Code:
Failed to compile vertex shader :
0:1(1): error: syntax error, unexpected $end
..snip..
[OpenGL error] (1281)
glEnableVertexAttribArray( bombsPositionID_ )
/home/williain/devt/projects/gles2.0/pyragles/src/hud.cpp
33
[OpenGL error] (1281)
glEnableVertexAttribArray( bombsTexCoordID_ )
/home/williain/devt/projects/gles2.0/pyragles/src/hud.cpp
34
failed to load png
[OpenGL error] (1281)
glTexImage2D( GL_TEXTURE_2D, 0, GL_RGBA, width, height, 0, GL_RGBA, GL_UNSIGNED_BYTE, localBuffer )
/home/williain/devt/projects/gles2.0/pyragles/src/texture.cpp
57
Failed to compile vertex shader :
0:1(1): error: syntax error, unexpected $end

..snip..
[OpenGL error] (1281)
glEnableVertexAttribArray( healthPositionID_ )
/home/williain/devt/projects/gles2.0/pyragles/src/hud.cpp
48
[OpenGL error] (1281)
glEnableVertexAttribArray( healthColourID_ )
/home/williain/devt/projects/gles2.0/pyragles/src/hud.cpp
49

These errors lead directly to the error about enemypod.glb, and maybe they're more important than the final error it ends up with. I've snipped out repeated errors about vertex shader errors.


kaprikawn

Very Active Member
Joined
Sep 28, 2008
Messages
409
Location
UK
Website
kaprikawn.wordpress.com
Hmm, I'll take a look, but it looks almost certainly like a problem with the shader. At a guess, I'd say the file is missing. There should be a bunch of shader*.glsl files in the assets directory, three or four of them I think. Looking at it, I'd say you were missing shaderBasic.glsl.

Try running projectBuild.sh in the root directory, that should set up the assets directory within the build directory (i.e. copying them from the src/assets directory to build/assets)..

I'll see about adding a check to see whether the shader file exists before it tries to compile it, and give the appropriate error if not.


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
13,918
Location
Somewhere off the coast of the EU
Okay, running projectBuild.sh seems to have helped. It still doesn't work for me here, but I remember giving up on this machine before now, although I think at the time it was just that the game was running so slow on this old machine. I thought I'd give it another go after your refactoring, but I get another seg fault:
Code:
Changing game state to PLAY
./run: line 89:  4041 Segmentation fault      (core dumped) GALLIUM_HUD=".dfps;cpu0+cpu1+cpu2+cpu3+cpu4+cpu5+cpu6+cpu7;GPU-load;VRAM-usage" ./pyragles --invertY

Unless you've got a bright idea, I'll check on my newer machine later. I wouldn't worry too much about getting it running here.


kaprikawn

Very Active Member
Joined
Sep 28, 2008
Messages
409
Location
UK
Website
kaprikawn.wordpress.com
After a rather long hiatus, I've done a new blog post. I've deleted most of my code and am now taking a different approach with my code structure. OOP is out, and the coding style of Handmade Hero is in. So I've taken it back to basics with a new release that strips out almost all the other code I had written. The latest release now builds on the Pyra (along with desktop Linux and Windows). Details :

https://kaprikawn.wordpress.com/2021/02/07/learning-to-learn-opengl-es-2-0-part-31-scorched-earth/

The Pyra build tries to run fullscreen, but doesn't. To the best of my knowledge this is a known issue with SDL2 on the Pyra currently. I've confirmed that the previous release doesn't run on the Pyra. With a few small modifications it builds, but segfaults immediately after running. I can't be bothered to figure out why right now. I may do it once I hook my Pyra up to a monitor, keyboard and mouse, but probably not. I'd just rather plow ahead with my current approach.

Edit : I imagine the segfault is the same as the one @levi was seeing above.


elvissteinjr

Very Active Member
Joined
Jun 19, 2010
Messages
754
Age
24
Location
Germany
To the best of my knowledge this is a known issue with SDL2 on the Pyra currently.
Is it? My own code has zero issues going fullscreen with SDL2. I don't have time to compile and debug your code on my Pyra right now, but I've taken a quick glance over it at least.
There were a few things that stood out to me. Can't say for sure if they're inviting trouble and I admit I've only casually followed this thread over time, but here it goes:

Using SDL_CreateWindow() with 0 width and height is probably not the best idea. Documentation says invalid values can still fail here even if they're not used. Doesn't really matter though since you should just be using SDL_GetDesktopDisplayMode() without creating a window beforehand to get the resolution for fullscreen instead.
SDL_GL_SetAttribute() is supposed to be called before initializing the OpenGL context.
You're passing SDL_RENDERER_ACCELERATED and SDL_RENDERER_PRESENTVSYNC to SDL_CreateWindow(). Those are not flags for this function. Their value just so happen to be the same as the SDL_WINDOW_OPENGL and SDL_WINDOW_SHOWN flags you're passing so they don't do anything bad, but just so you know.

On a second thought this stuff probably doesn't mess anything up so bad that only fullscreen doesn't work. Mhm. Is this running with OpenGLES on the Pyra to begin with? Haven't had much success with anything using GLES directly on the Pyra except GL4es of course (my game currently uses the big OpenGL code path through GL4es for what it's worth).


kaprikawn

Very Active Member
Joined
Sep 28, 2008
Messages
409
Location
UK
Website
kaprikawn.wordpress.com
Is it? My own code has zero issues going fullscreen with SDL2. I don't have time to compile and debug your code on my Pyra right now, but I've taken a quick glance over it at least.
There were a few things that stood out to me. Can't say for sure if they're inviting trouble and I admit I've only casually followed this thread over time, but here it goes:

Using SDL_CreateWindow() with 0 width and height is probably not the best idea. Documentation says invalid values can still fail here even if they're not used. Doesn't really matter though since you should just be using SDL_GetDesktopDisplayMode() without creating a window beforehand to get the resolution for fullscreen instead.
SDL_GL_SetAttribute() is supposed to be called before initializing the OpenGL context.
You're passing SDL_RENDERER_ACCELERATED and SDL_RENDERER_PRESENTVSYNC to SDL_CreateWindow(). Those are not flags for this function. Their value just so happen to be the same as the SDL_WINDOW_OPENGL and SDL_WINDOW_SHOWN flags you're passing so they don't do anything bad, but just so you know.

On a second thought this stuff probably doesn't mess anything up so bad that only fullscreen doesn't work. Mhm. Is this running with OpenGLES on the Pyra to begin with? Haven't had much success with anything using GLES directly on the Pyra except GL4es of course (my game currently uses the big OpenGL code path through GL4es for what it's worth).
I seem to recall seeing a post from ED saying there was an SDL2 fullscreen issue, but I can't remember where that is, so I could be wrong.

The method I use to get the screen dimensions works on other platforms, but I'll look at SDL_GetDesktopDisplayMode, thanks for the pointer.

I don't think the SDL_GL_SetAttribute calls are necessary, I might take it out. I used it before in the hope that it would make sure I was only using ES 2.0, but that didn't work because I was calling a function not available in ES 2.0 which I only found out when I tried to compile my code on the Pyra. Before I got it I was including GLES2/gl.h, but I don't think that was necessarily the best way to get an OpenGL context, I've now switched it over to using SDL2/SDL_opengles2.h which I think is sufficient.

It's a while since I've looked at the SDL flags, I just copied and pasted from the old code, thanks for the heads up, I'll check they're ok. I probably copied them across from when I was doing 2D stuff.

Yes, this is supposed to be pure OpenGL ES 2.0, no wrappers, specifically written for the Pyra.


EvilDragon

Administrator
Staff member
Joined
Mar 4, 2003
Messages
29,701
Age
43
Location
Ingolstadt
Correct. SDL2 uses OpenGL / GLES which works fine.
SDL1.2 uses simple 2D drawing. And we don't have hardware accelerated scaling yet as we did for the Pandora (so scaling is horribly slow due to the CPU having to do that) and somehow SDL1.2 doesn't read out the screen mode properly yet due to TILER (it thinks it draws on a 720x1280 screen) - so whenever you switch to fullscreen, it draws a box which is partly outside the screen.


matzesu

Forum Addict!
Staff member
Joined
Oct 24, 2008
Messages
10,966
Age
36
Location
Germany,, Saarland, at home
Ok this might also be the reason why Muppen 64 runs Fullscreen (and i had some issues on my Pyra to let it run because i missd some packages, ), its also OpenGL ^^ , but the Playstation Emulator only in Maximised Window Mode (Which is also at least most of the Screen)..
