Thermal images

[Crono]

:lol:

Oh wow, the most useless thing I have seen in a long while


But well, if it does what it should...

I know, I know... Just couldn't resist to do it (look, I did even a place for the pen!)



[ensoniq2k]

^ explain?

It's the thermal view of the Predator from the equally named movie.


Nice pics, thanks for your work!



[quartercast]

Very sexy thermals there RIUM+1.



[notaz]

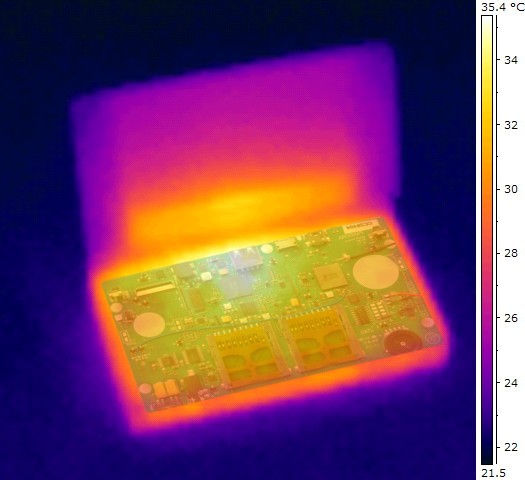

You can clearly see where the OMAP is located in that thermal pictures

Indeed, seems to be successfully using USB host connector as a heatsink.



[riumplus]

What was the room temperature when you did this?

As was stated in my original post, 24'C with 50% relative humidity. The images have been calibrated to the Pandora's black plastic body's emissivity, not to the screen's or the table's emissivity.


I haven't taken any photos of it but after some more checking with the thermal camera, the metal grounding shield from the USB port is without a doubt one of the hottest exterior parts of the case. That's an ingenious way to hide a semi-external heatsink! I wonder if that was intentional or accidental.
