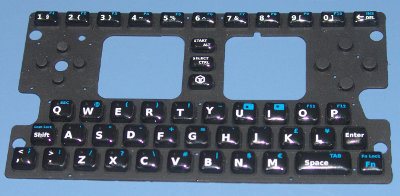

Picture Of The Final Keymat?


Not compared to this one. ;)


The bits that poke thorugh the case - the actual keys (which would presumably be the bits one would want to light) look pretty black to me. Maybe we need to consult a Pantone chart?

Right, we were never talking about the buttons glowing (or atleast I never was), I was talking about the area around the buttons glowing. From previous topics, I thought every one was. The buttons are black, but the rest looks at least semi translucent.

Edit: Something like:

Gruso said:
You can't argue with the fact that transparent rubber lets more light through than black rubber.

Actually, wait. This forum can.


Maybe its me but I dont see transparent rubber. It looks just as black to me as the previous one. Albeit the previous one was lying on a blue background this on a black one.

Last edited by a moderator:
BackAssward said:
The buttons are black, but the rest looks at least semi translucent.

That's an interesting point, I never thought about how the new rubber looked till BackAssward mentioned it. I thought it was just a similar gray tone with the surface it was sitting on. But even still, I don't think a backlight would be of much use unless the lettering was translucent. Even if the outline's lit up, all the keys are going to look equally like black dots, making a backlight mod only cosmetic.

worzyl said:
-Tj- said:
I can almost type with my thumbs without looking, mainly because they're not flat.

LIIIIEEEES!!! T J HAS FLAT THUMBS!!!!!
That made me lol, thanks! :lol:

Last edited by a moderator:
BackAssward said:
Right, we were never talking about the buttons glowing (or atleast I never was), I was talking about the area around the buttons glowing. From previous topics, I thought every one was. The buttons are black, but the rest looks at least semi translucent.

Edit: Something like:
If that's the way you planned it to look wouldn't it be easier to just stick the LEDs next to the keys instead of under the mat? I would imagine more light would seep through the case that way too

Last edited by a moderator:
There's nothing translucent, not even semi. Maybe the shade of black
is a little lighter than that of the previous mats.
Those considering the quality of typing, I recall reading it would
be similar to the feeling a good calculator would give since the tech
is about the same. (Citation needed)

A minor question regarding aesthetics : Why not centrally justify start / alt, select / control? Whilst you're tweaking the positions of the letters that is.

One other thing, how do you select the start and select keys? Are they the defaults? If so the perhaps they should be on the bottom of the keys.

Wonder what cosurgi thinks of this layout? ;)

Gruso said:
You can't argue with the fact that transparent rubber lets more light through than black rubber.

Actually, wait. This forum can.


Just for a second I thought you were going to underestimate us...

Last edited by a moderator:
Gruso said:
You can't argue with the fact that transparent rubber lets more light through than black rubber.

Actually, wait. This forum can.

While I agree that this prototype seems to have semi-translucent rubber, the issue still preventing (or hampering) backlight mods is the fact that there is printing fully covering the tops of the keys (as far as I can tell). The letters/symbols/text would have to be printed in semi-translucent ink for the backlight to really be effective. The way it is now, the keys might glow very slightly, but it won't look the way one would expect a backlight mod to look.

Last edited by a moderator:

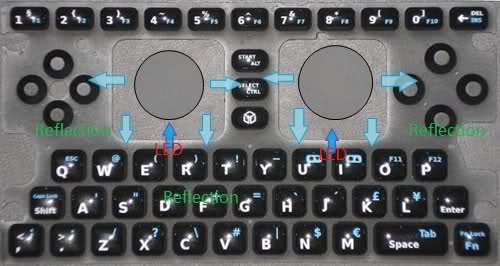

hmm, how is the keymat rubber rating in reflections?

if it had some good specular reflection, the option of leds above the mat would be nice, specially on the resin blobs.

a mod could be worked so at least the Nubs underneath get lighted and from the form factor this glow makes the key color-ish on the blob.


something like this



hmm as for my choice would end up using clear blu leds.

hmm, I thought I read somewhere that it would have glow in the dark keys, but I can't find it. However I did find where craig said that it was easy to type in the dark with just the lcd light.

http://www.gp32x.de...post__p__725015

Last edited by a moderator:
MonkeyChops said:
hmm, I thought I read somewhere that it would have glow in the dark keys, but I can't find it. However I did find where craig said that it was easy to type in the dark with just the lcd light.

http://www.gp32x.de...post__p__725015

As I understand it, the idea for glow in the dark keys was cut almost as soon as it was proposed. The community reaction to the idea was pretty negative, as I recall.

Last edited by a moderator:
Vorporeal said:
Gruso said:
You can't argue with the fact that transparent rubber lets more light through than black rubber.

Actually, wait. This forum can.

While I agree that this prototype seems to have semi-translucent rubber, the issue still preventing (or hampering) backlight mods is the fact that there is printing fully covering the tops of the keys (as far as I can tell). The letters/symbols/text would have to be printed in semi-translucent ink for the backlight to really be effective. The way it is now, the keys might glow very slightly, but it won't look the way one would expect a backlight mod to look.


Apparently some people think that a light will be able to shine BETWEEN the keys. Presumably through the black plastic that the case is going to be made of.


mindlord said:
MonkeyChops said:
hmm, I thought I read somewhere that it would have glow in the dark keys, but I can't find it. However I did find where craig said that it was easy to type in the dark with just the lcd light.

http://www.gp32x.de...post__p__725015

As I understand it, the idea for glow in the dark keys was cut almost as soon as it was proposed. The community reaction to the idea was pretty negative, as I recall.


Yup, IIRC it got dropped within a matter of days. I hope not JUST because of the forum reaction - I hope there was a cost or technical reason as well, becuase to lose a feature just because people gripe might be a shame.

IIRC the main concern was that it would not be very effective. The screen would not cast enough light to effectively "charge" the buttons in the dark, and much of the time the case would be closed and so sunlight couldn't charge up the luminous paint. Of course it COULD be charged up while being used in daylight, but then they would start losing their luminosity immediately rather than wait for an opportune moment to shine. As it were.

As I say, I HOPE that when OP looked into it they found it just wasn't cost effective for the amount of benefit it MIGHT offer, or that the benefit was just too unlikely to ever be seen. I'd hate to lose a feature that would only help 1/10th of users because it wouldn't help 90/10 of the rest of us.

Last edited by a moderator:
Surely the reflection of any glowing keys/nubs on the screen will annoy once the novelty wears off?

Personally I'd rather have a longer battery life than to be able to see the keys in the dark, even if they probably would look cool.
