Whew, I can't understand so much time has passed again already since I did any newspost - time sure flies when you got a lot of work to do!

So, anyways, here's today's update... I hope I don't forget anything, as there's plenty to tell you.

1. The Nubs

Well, as mentioned last time:

We'll order a bit more than 10,000 of the current Nubs so we got enough for the first 5000 Pyras.

After that, we can either use the smaller ones, have high enough order quantities that the current nubs are being produced again or find someone else to produce them (as mentioned, it's basically just a magnet that moves around - no electronics inside).

If the first 5000 Pyras sell fast, we can easily order high enough quantities of the nubs to continue their production.

If they sell slower, we've got plenty of time to find a replacement

So either way, we'll find a solution after that.

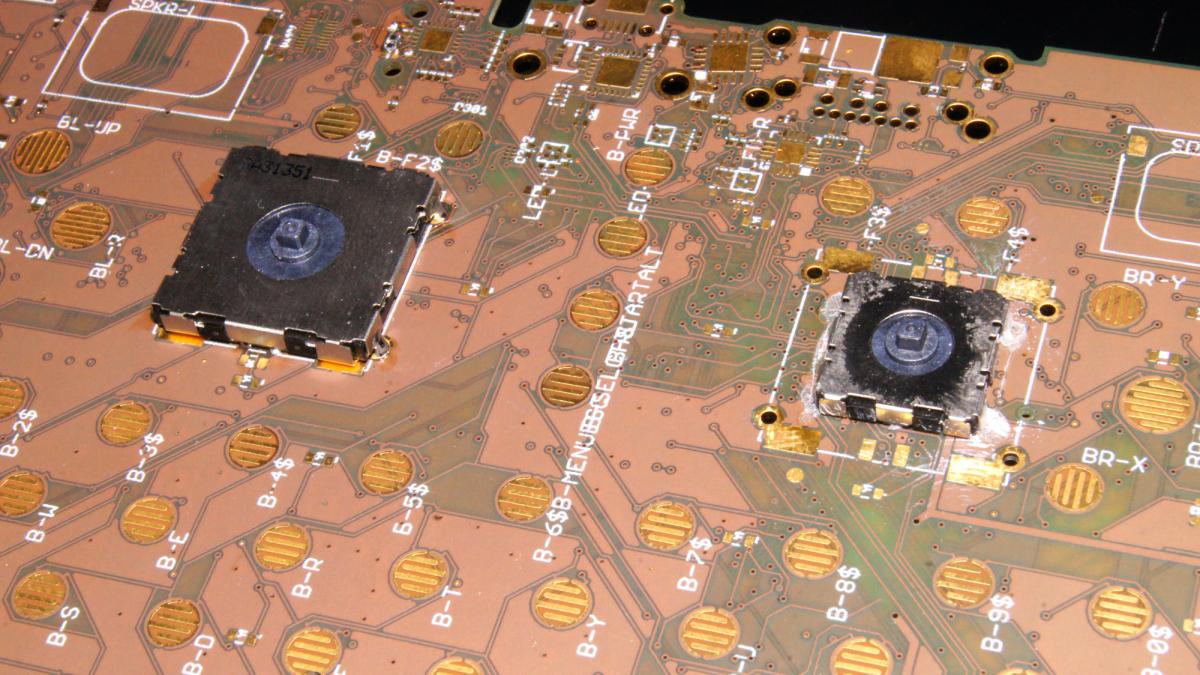

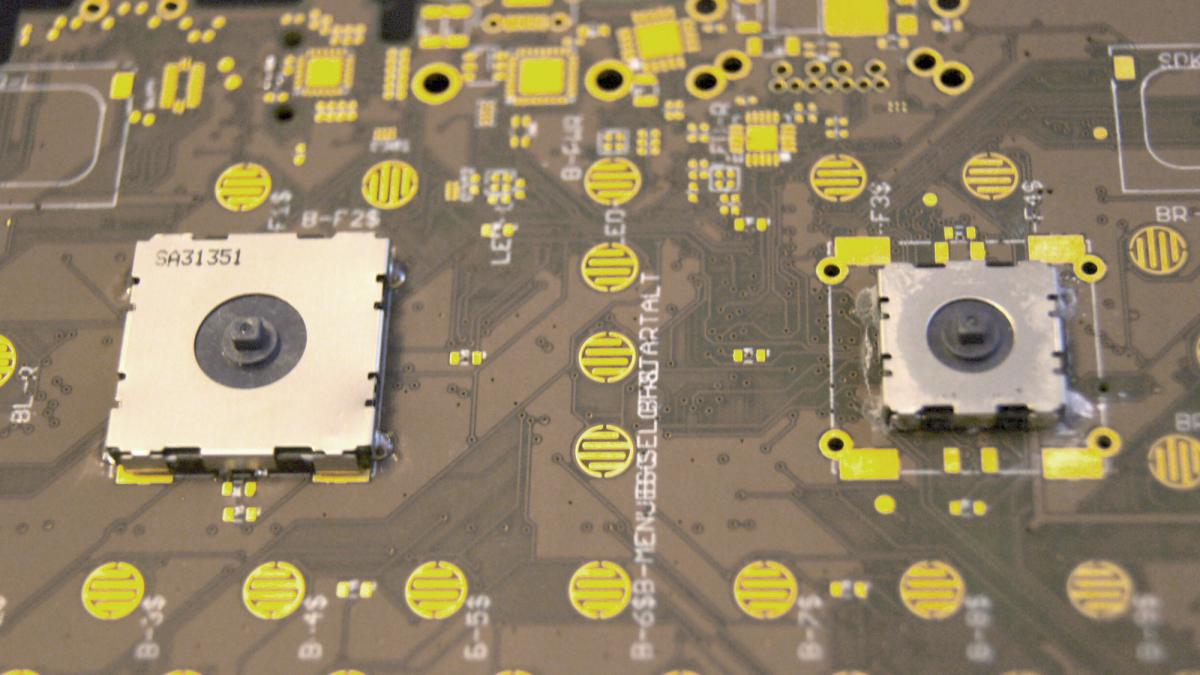

One good thing: The smaller nub would fit out of the box - the height form of the pin is EXACTLY the same - so the case wouldn't need to be modified if we'd use that.

(You can see that in the following pictures):


I'll test the small one myself on Tuesday, but I don't think we'd want that - the travel distance really is too small.

2. A puzzling experience

The PCB layout was actually more work than Nikolaus expected.

A LOT more work. Keeping the PCB down to four layers and fitting everything into the small space of the PCB is a complex puzzle.

Nevertheless, each day, less issues are left. And he's still positive that we can get finished, unpopulated PCB just before christmas.

This means though that we won't get a populated one before christmas (unless GC wants to work on December 24th, but I doubt that), but shortly after christmas.

Still a huge step - and still the most complicated thing in the whole Pyra-Creation process.

After that, it's time to layout the CPU PCB - but that's easy compared to the mainboard, as there's more space (and layers), so that should work out a lot faster.

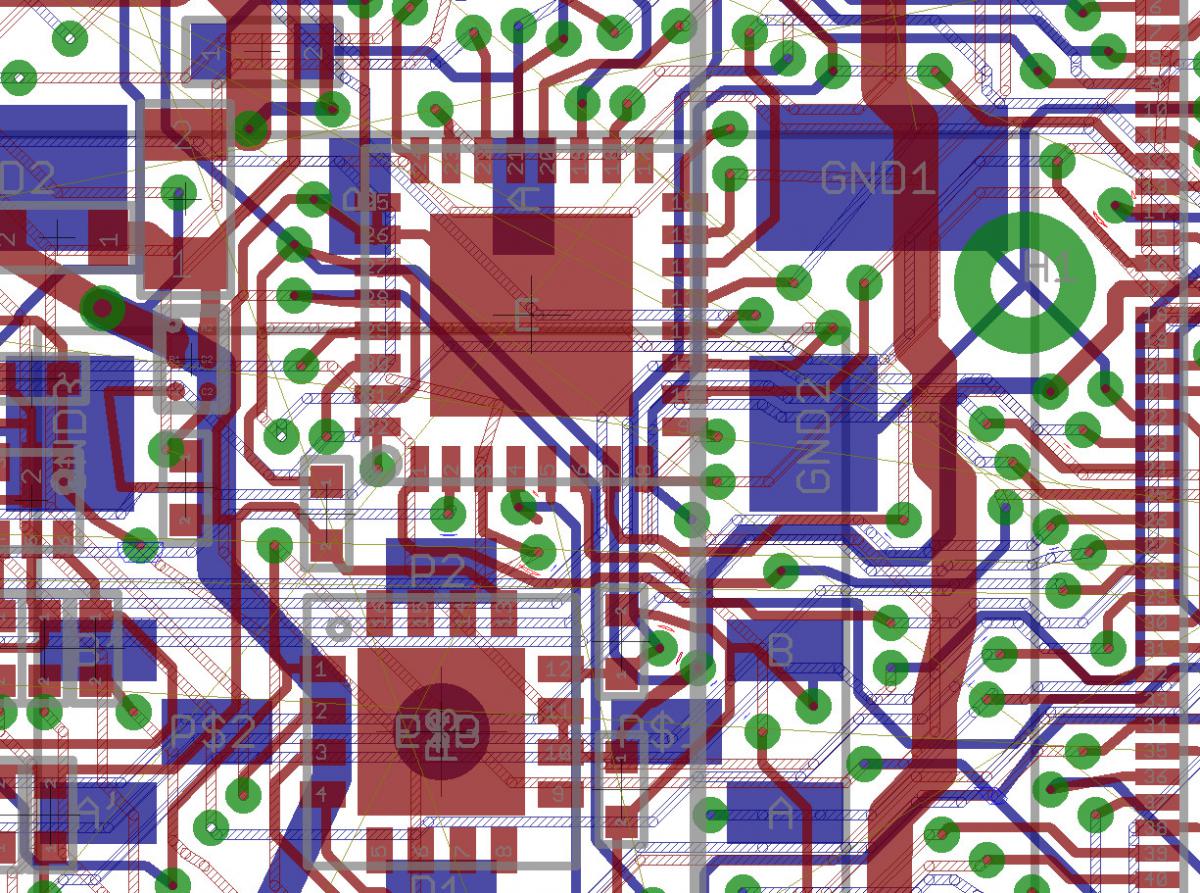

Want an example of the puzzles Nikolaus has to work on each day?

Here you go:


Inside of that picture are at least 3 major and 8 small rule infringements. If we keep it like that, the PCB could not be produced reliably, would get shortcircuits or similar issues.

Moving traces around could lead to other rule infringements - so this is quite a puzzle (high-level Sokoban, eh?)

Each issue needs about 5 - 30 minutes to solve, so it's possible, just takes a loooot of time.

And the more you solve, the more complicated it gets for the remaining ones... fun.

Someone should create a puzzle game on the Pandora based on that :D

3. The case

According to the case designer, I should receive the case design files with all requested changes tomorrow.

I won't believe it until I get it (as it usually ALWAYS takes longer than expected), but it shouldn't take much longer.

The battery we'll use will probably be a bit wider than the Pandora one, so the case needs a bit of a change here.

The Stylus will probably get a tiny bit thinner and all four screws will be hidden inside the battery compartment (which is nice).

With a small adapter you can also use a Pandora battery, which is great as well.

I should get two different versions of the case with different shoulder button designs.

I'll let you know and show you renderings once I get the design files, that's for sure :)

4. AC Adaptor and LCD Cables

Fatih is looking for various AC Adaptors. Basically, it's a normal USB plug (with 2A) with replaceable plug, similar to the Pandora (so it works with EU, UK, US and AU plugs).

There are various manufacturers for that and we'll get different samples for testing.

The LCD Cable design has been finished as well and Fatih is getting a quotation for it.

Each trace is wider than on Pandora's cable, the traces are redundant and there's a bit more space to the edge. Also, all edges are rounded - which prevents tears directly at the edges (which was an issue with a lot of broken Pandora cables as well).

The cable also doesn't have any electronics on, so it will be a LOT cheaper (Pandora's cable was 10 EUR production cost each).

These enhancements should reduce the risk of breaking LCD cables to a minimum (of course, you can never reduce that to 0 - everything can break in the world).

5. Software

We now added key signing to our repository, tweaked the scripts a bit more and are now able to create working rootfs to our likings.

If anyone got an OMAP5 devboard: I'll post a link and instructions on how to install it soon, so anyone with a devboard can try it out and help us improving the default setup and tools.

I THINK that's all for now - but as mentioned, so much happened, so I might've forgotten something - but feel free to ask me if you have any other questions.

Last edited by a moderator:

slimeycat

Member
Joined
May 7, 2014
Messages
73
Wonderful update.  Hopefully we'll get the first production runs by Easter!!


TrashyMG

Sarcasm Dispenser
Staff member
Joined
Jan 18, 2010
Messages
10,999
If anyone got an OMAP5 devboard: I'll post a link and instructions on how to install it soon, so anyone with a devboard can try it out and help us improving the default setup and tools.
Hey I'm an anyone that has an OMAP5 devboard!


ssokolow

Member
Joined
May 24, 2012
Messages
245
Location
Ontario, Canada
Fatih is looking for various AC Adaptors. Basically, it's a normal USB plug (with 2A) with replaceable plug, similar to the Pandora (so it works with EU, UK, US and AU plugs).
There are various manufacturers for that and we'll get different samples for testing.
Have you considered a PSP-style "transformer in the middle of the cable with the replaceable AC side attached using an IEC 60320 connector" design instead of the Pandora's wall wart design? (To quote the AVGN, "Have these, not these!")


I've been having trouble finding a suitably cheap source for the little half-foot-long "fit multiple wall warts into a power bar" breakout cables which ships to Canada. (The "right-angle adapter for a wall outlet behind furniture" version would also work, but they're at least equally hard to find at a good price)

Last edited by a moderator:

fusion_power

Advanced Member
Joined
Dec 25, 2005
Messages
13,137
Location
germany
Website
Visit site
2. A puzzling experience

The PCB layout was actually more work than Nikolaus expected.

A LOT more work. Keeping the PCB down to four layers and fitting everything into the small space of the PCB is a complex puzzle.

Nevertheless, each day, less issues are left. And he's still positive that we can get finished, unpopulated PCB just before christmas.

This means though that we won't get a populated one before christmas (unless GC wants to work on December 24th, but I doubt that), but shortly after christmas.

Still a huge step - and still the most complicated thing in the whole Pyra-Creation process.

After that, it's time to layout the CPU PCB - but that's easy compared to the mainboard, as there's more space (and layers), so that should work out a lot faster.
I thought the big (and more simple) Main PCB was already finished. Well, if the "Simple" one needs so much time, the CPU-PCB could be the real issue, of ocurse I hope not. ^^"

I'm a little bit confused because you say that the smaller (but more dense and coplex) CPU PCB is actualy simpler, even with more layers than the larger Mainboard?

3. The case

According to the case designer, I should receive the case design files with all requested changes tomorrow.

I won't believe it until I get it (as it usually ALWAYS takes longer than expected), but it shouldn't take much longer.
Hm, took longer than expected, indeed. Especialy if you remember that they use an existing case as template, they not even started from 0. Let's hope they know what they are doing.

4. AC Adaptor and LCD Cables

The LCD Cable design has been finished as well and Fatih is getting a quotation for it.

Each trace is wider than on Pandora's cable, the traces are redundant and there's a bit more space to the edge. Also, all edges are rounded - which prevents tears directly at the edges (which was an issue with a lot of broken Pandora cables as well).

The cable also doesn't have any electronics on, so it will be a LOT cheaper (Pandora's cable was 10 EUR production cost each).

These enhancements should reduce the risk of breaking LCD cables to a minimum (of course, you can never reduce that to 0 - everything can break in the world).
I was sure you wanted to use a simple round cable in combination with an separate decoder chip in the lid, so no flat ribbon would be needed at all.

Last edited by a moderator:

comradekingu

Glowing ember
Joined
Apr 15, 2011
Messages
5,072
Website
portfolio.anotheragency.no
Eight bridges of Königsberg !

                                Pandora nub            GCW-zero nub              3DS nub           Old hall effect                 New hall effect/replacement

Travel                              ±1.3mm                      ±2.0mm              ±2.5mm                 ±2.0mm                       ±1.0mm

Comparably the smaller (new) hall effect is closer to the original pandora nub, which when it works, is the best.

I dont consider more travel to be a bonus, but it remains to be tested thoroughly if too little can be an issue. I dont think so since the IBM nubs worked fine.

My favourite is the smaller nub for its structural rigidity, my thoughts on it here

a potential downside is that it doesnt have legs underneath it to go through-hole on.  But it has the same 4 solder-down smd points.

Last edited by a moderator:

Mr_Loon

Can't Remember
Joined
Aug 30, 2010
Messages
2,330
Fatih is looking for various AC Adaptors. Basically, it's a normal USB plug (with 2A) with replaceable plug, similar to the Pandora (so it works with EU, UK, US and AU plugs). There are various manufacturers for that and we'll get different samples for testing.
It might be worth considering selling the official charger as an extra, I've already got 3 USB plugs that could be used to charge the Pyra, so don't really need another one, bet I'm not the only one in this boat.


matzesu

Forum Addict!
Staff member
Joined
Oct 24, 2008
Messages
11,053
Age
36
Location
Germany,, Saarland, at home
Galaxy Note user heare (thats way i ditnt have a Problem whit the Pyra Sice as Phone..)


I can remember its USB Charger have lot more Curent as a normal USB Charger..


I hope the Pyra to use a Cable simular to curent used in our smartphones so i can use the long cable i use for my note 2..


And i also ditnt understand the Part whit the CPU Layoat...


Global Components will Cut and Print the CPU Board bevore Chrismass, and when the Chrissmass Vacations are over, they would put the Elektronics on the Board..


Then whe have a Main Board and the CPU Board, which is simular to the Defboard..


Thats all i understand, but whats whit the rest: layoating the board which is easer than on the Big Board??


Or was this Part the thing where they put the Chips on the Board..


Natsu

Advanced Member
Joined
Dec 22, 2013
Messages
1,250
How does those new super fast chargers work? Maybe the Pyra can get that.


Glyph Reader

Member
Joined
Apr 27, 2014
Messages
332
2. A puzzling experience


The PCB layout was actually more work than Nikolaus expected.


A LOT more work. Keeping the PCB down to four layers and fitting everything into the small space of the PCB is a complex puzzle.


Nevertheless, each day, less issues are left. And he's still positive that we can get finished, unpopulated PCB just before christmas.


This means though that we won't get a populated one before christmas (unless GC wants to work on December 24th, but I doubt that), but shortly after christmas.


Still a huge step - and still the most complicated thing in the whole Pyra-Creation process.


After that, it's time to layout the CPU PCB - but that's easy compared to the mainboard, as there's more space (and layers), so that should work out a lot faster.
I thought the big (and more simple) Main PCB was already finished. Well, if the "Simple" one needs so much time, the CPU-PCB could be the real issue, of ocurse I hope not. ^^"


I'm a little bit confused because you say that the smaller (but more dense and coplex) CPU PCB is actualy simpler, even with more layers than the larger Mainboard?
The main board is two layers, while the CPU PCB is several layers (can't remember off the top of my head).  Less layers is cheaper and faster to print, but does not has as much room to work with, hence the "puzzles" that ED mentions.

The CPU PCB has less on it, as well as more layers to work with.  As a result, it will take little time when compared to the main PCB.

-Glyph Reader


EvilDragon

Administrator
Staff member
Joined
Mar 4, 2003
Messages
29,716
Age
43
Location
Ingolstadt
I thought the big (and more simple) Main PCB was already finished. Well, if the "Simple" one needs so much time, the CPU-PCB could be the real issue, of ocurse I hope not. ^^"

I'm a little bit confused because you say that the smaller (but more dense and coplex) CPU PCB is actualy simpler, even with more layers than the larger Mainboard?
Some things that should not be confused:

1. The main PCB is simpler in production (almost no SMD parts, less layers, etc.) but that doesn't mean it's simpler to be designed :)

2. The SCHEMATICS were finished in my last post, the layout was ALMOST. But the last few % always need the most work.

Hm, took longer than expected, indeed. Especialy if you remember that they use an existing case as template, they not even started from 0. Let's hope they know what they are doing.

Well, they were waiting for physical dummys to continue working on the case as well as the last measurements for LCD PCB, Battery Sample, etc.

They didn't want to work for a few hours and then have to wait until we send the next details, the wanted to finish everything in one go once we got everything (which is totally understandable).

It also doesn't make sense changing the case and then changing it again after we decided to use different components, etc.

That's why it was in pause mode until we had all our specs set.

I was sure you wanted to use a simple round cable in combination with an separate decoder chip in the lid, so no flat ribbon would be needed at all.
 Yes, if possible. But it isn't at that resolution, only at lower ones - or with a delay for encoding / decoding as well as higher power usage.

We only have half of the traces we need for the Pandora already with an improved cable.

That should easily work.


Silent-Hunter

Hardcore Member
Joined
May 29, 2010
Messages
3,459
Any news on the pricing and the price difference between the WiFi only and 4G versions?


dflatline

Member
Joined
Nov 5, 2014
Messages
206
Age
35
Location
UK
Galaxy Note user heare (thats way i ditnt have a Problem whit the Pyra Sice as Phone..)


I can remember its USB Charger have lot more Curent as a normal USB Charger..


I hope the Pyra to use a Cable simular to curent used in our smartphones so i can use the long cable i use for my note 2..


And i also ditnt understand the Part whit the CPU Layoat...


Global Components will Cut and Print the CPU Board bevore Chrismass, and when the Chrissmass Vacations are over, they would put the Elektronics on the Board..


Then whe have a Main Board and the CPU Board, which is simular to the Defboard..


Thats all i understand, but whats whit the rest: layoating the board which is easer than on the Big Board??


Or was this Part the thing where they put the Chips on the Board..
He is saying that the planning/decisions of where the chips will be on the CPU board will be easier and quicker than it was for the mainboard.
