azmodean
Still Fresh
one thing no one seems to have mentioned (as far as differences)
looks like RS-232 moved from right side of board to left and became surface-mount instead of through-hole.
think I'll see about throwing together a highlighted image...

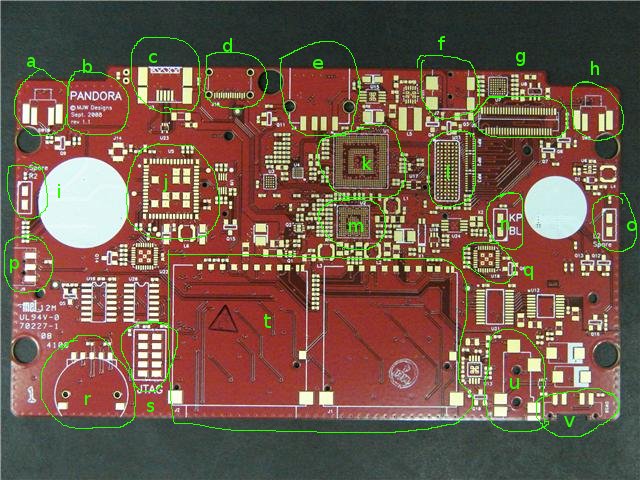

EDIT: image!
So, we have (features that looked interesting to me only, if you want the individual components labeled I think I heard something about design files coming with the pandoras, don't quote me on that though...):
a right shoulder button
b Pandora label and revision number
c USB OTG port
d NEW! ext port
e USB host port
f power jack
g LCD ribbon cable terminator
h left shoulder button
i second right shoulder button pads
j wireless/bluetooth chip
k OMAP
l some kind of converter between OMAP and LCD?
m Super Secret power and performance management chip for OMAP
n "backlight" pads, or "aux LED" might have been a better name
o second left shoulder pad buttons
p NEW! mysterious new pads! could be either new location for RS-232 or battery terminals
q mystery chip, not new
r volume knob
s JTAG breakout
t SD card ports
u headphone jack
v NEW! changed location for power switch
if you have any other thoughts I'll try to keep up and update this post, or feel free to make a better image (shouldn't be hard
)
looks like RS-232 moved from right side of board to left and became surface-mount instead of through-hole.
think I'll see about throwing together a highlighted image...
EDIT: image!
So, we have (features that looked interesting to me only, if you want the individual components labeled I think I heard something about design files coming with the pandoras, don't quote me on that though...):
a right shoulder button
b Pandora label and revision number
c USB OTG port
d NEW! ext port
e USB host port
f power jack
g LCD ribbon cable terminator
h left shoulder button
i second right shoulder button pads
j wireless/bluetooth chip
k OMAP
l some kind of converter between OMAP and LCD?
m Super Secret power and performance management chip for OMAP
n "backlight" pads, or "aux LED" might have been a better name
o second left shoulder pad buttons
p NEW! mysterious new pads! could be either new location for RS-232 or battery terminals
q mystery chip, not new
r volume knob
s JTAG breakout
t SD card ports
u headphone jack
v NEW! changed location for power switch
if you have any other thoughts I'll try to keep up and update this post, or feel free to make a better image (shouldn't be hard
)
Chip
[Insert Custom Title Here]
You can take the question marks off of D and F. Those two are correct. V is definitely the power switch and P is most likely the battery terminals. It looks as though there will be an actual connector attached to the board for the battery wires, instead of just pins.
RS232 is now available through the EXT connector, but those four small pads just above the large round cutout in the lower right may also be internal RS232 contacts
RS232 is now available through the EXT connector, but those four small pads just above the large round cutout in the lower right may also be internal RS232 contacts
notaz
Certified Guru
m is a place for super secret NDA protected OMAP3 companion chip.
TaG
Fau-fau-faulty software.
notaz said:
Last edited by a moderator:
Hollenderster
Still Fresh
Hi, I have been lurking long enough on this board, now it's time to add something of my own. Just to complete Grusos pic:
Slightly bigger version
I have also noticed that another small IC (previously U5) is seemingly missing on the new PCB. It has been on the left side of the OMAP, together with two other ICs that are still there.
Slightly bigger version
I have also noticed that another small IC (previously U5) is seemingly missing on the new PCB. It has been on the left side of the OMAP, together with two other ICs that are still there.
Squidge
Certified Guru
Anybody know what this does or is used for? I know what a transceiver is, I'm just not sure what this achieves.TaG said:
It's the interface between the USB PHY and EHCI ? The only problem is that there's only one EHCI, and thats connected to the USB HOST, so that one will be connected to a OHCI (12Mbps)
Last edited by a moderator:
Qwertyuiop
Member
- Joined
- Jul 10, 2008
- Messages
- 316
Am I the only one who found the "secret" pic of the new boards? It seems there are actually 3 pics of the board, not just the 2 shown. The "secret" one is located at
http://openpandora.org/final_board_2.jpg , while the ones shown in the blog are at
http://openpandora.org/final_board_1.jpg , and
http://openpandora.org/final_board_3.jpg .
The only difference between the secret one, and /final_board_1.jpg that I can tell is that the background is different, and the board is slightly zoomed out.
http://openpandora.org/final_board_2.jpg , while the ones shown in the blog are at
http://openpandora.org/final_board_1.jpg , and
http://openpandora.org/final_board_3.jpg .
The only difference between the secret one, and /final_board_1.jpg that I can tell is that the background is different, and the board is slightly zoomed out.
Azure
Trust the recursion...
Defo said:
Last edited by a moderator:
paeryn
Reclusive maniac
Squidge said:
Last edited by a moderator:
Qwertyuiop
Member
- Joined
- Jul 10, 2008
- Messages
- 316
Azure said:
Last edited by a moderator:
Soulkiller
Member
- Joined
- Mar 9, 2008
- Messages
- 109
hmmm that companion chip seems to have a little feature that jumped out at me
QUOTE
...
Hot Die Detection/Thermal Shutdown protection
...
Why would this OMAP companion chip have this feature if it is said that the OMAP will produce little to no heat even overclocked?
Is this IC also built for PwrMan in other systems that have the potential of overheating and will therefore just be an unused feature? Or will Pandora actually need to make use of this?
QUOTE
...
Hot Die Detection/Thermal Shutdown protection
...
Why would this OMAP companion chip have this feature if it is said that the OMAP will produce little to no heat even overclocked?
Is this IC also built for PwrMan in other systems that have the potential of overheating and will therefore just be an unused feature? Or will Pandora actually need to make use of this?
Why would this OMAP companion chip have this feature if it is said that the OMAP will produce little to no heat even overclocked?Soulkiller said:
Is this IC also built for PwrMan in other systems that have the potential of overheating and will therefore just be an unused feature? Or will Pandora actually need to make use of this?
Well, even if the Pandora doesn't *produce* a lot of heat it could still find itself in a position where ambient heat combined with heat from CPU/GPU pushes it above the danger threshold. Say you start compiling gentoo from stage1, then leave it on the dashboard of your car. in the summer. in Arizona. And remember, black case = lots of heat absorption. Anyways it's one of those features you get for free. Theoretically it might not be hooked up to anything in the Pandora, but I bet it will be. Better safe than sorry and all that.
-John
Last edited by a moderator:
mali
-
Why would this OMAP companion chip have this feature if it is said that the OMAP will produce little to no heat even overclocked?Soulkiller said:
Is this IC also built for PwrMan in other systems that have the potential of overheating and will therefore just be an unused feature? Or will Pandora actually need to make use of this?
Heat is also produced when charging, so that might be the main purpose. Prevent overheating when charging.
Last edited by a moderator:
jakshep2
Active Member
how come it's red instead of blue?
jakshep2
Active Member
oh, well I'M SORRY.
Chip
[Insert Custom Title Here]
Merged.
prairiefire
Ultimate Frisbee Nut
Good thing they added that feature!johnx said:
