Lets Talk Usb Accessories!

please vote the following

  • Accelerometer!!! tilting he device for steering rulez!

    Votes: 3 13.0%
  • A camera ofcource, i wanna use my pandora for everything!

    Votes: 4 17.4%
  • A simtray for bothering people with prankcalls :D

    Votes: 0 0.0%
  • GPS device, why not use it for on the road?

    Votes: 8 34.8%
  • TV tuner.(maby a little big)

    Votes: 1 4.3%
  • FM-Radio, becouse you dont have internet everywhere!

    Votes: 3 13.0%
  • Fingerprint scanner, the ultimate way to boot up the pandora!

    Votes: 0 0.0%
  • A extra battery of about 1000~2000 spare mah.

    Votes: 4 17.4%

  • Total voters
    23

urjaman posted on May 29 2009 at 08:50 AM) For that usb wrapper at it would need logic to detect the rom mapper used by the cartridge -- or you could just read out the full 24-bit address space (16 MiB - wikipedia says that the biggest games ever were 6MiB (48 Mbit) said:
and work from there...
On this page, they do not only explain how to detect whether a cart is LoRom or HiRom, but also that the ROM has a reserved range where information about memory size and chip configuration is stored. So it should be possible to read out just as many data as needed.

- but as reading 256k without sending it out takes 15s -- 16MiB = 16 minutes.
As I said, Atmel offers the AT90USB series (including the dev kit AT90USBKey which comes with plenty of free i/o lines), which should allow for considerably higher data rates than your standard serial port.

I used to have a documentation file about the SMC or SWC rom file format on the screen, but now I can't find it anymore.

Last edited by a moderator:
I'm absolutely thinking about getting a GPS for use with some sort of open source mapping software.

I still think you could mod a built-in one. Some GPS modules are REALLY small. I don't know if I'll be brave enough to mod my Pandora, though.

VRAndy posted on May 29 2009 at 05:11 PM said:
I'm absolutely thinking about getting a GPS for use with some sort of open source mapping software.
even better, use it with something like net stumbler and a wardriving software...

Last edited by a moderator:
Elwing posted on May 29 2009 at 11:23 AM said:
VRAndy posted on May 29 2009 at 05:11 PM said:
I'm absolutely thinking about getting a GPS for use with some sort of open source mapping software.
even better, use it with something like net stumbler and a wardriving software...
I may also do that. But GPS first. I don't want to get lost while war driving.

Last edited by a moderator:
VRAndy posted on May 29 2009 at 06:11 PM said:
I'm absolutely thinking about getting a GPS for use with some sort of open source mapping software.
I still think you could mod a built-in one. Some GPS modules are REALLY small. I don't know if I'll be brave enough to mod my Pandora, though.

Almost all new mobile phones have GPS and bluetooth, so I'm not going to buy anything separate to plug into usb-port. The idea of modding a GPS module into Pandora is quite nice though. I believe there is some empty space near the speakers.

Last edited by a moderator:
Matthias_H posted on May 29 2009 at 10:59 AM) As I said at Atmel offers the AT90USB series (including the dev kit AT90USBKey which comes with plenty of free i/o lines said:
, which should allow for considerably higher data rates than your standard serial port.
Well, here's a first success: I got the dev kit this morning, and after a few hours of fiddling with soft- and hardware, I have now a USB device that appears to the operating system as read-only Mass Storage, hallucinating a FAT16 file system with the skeleton of a SNES ROM file. Now, all that remains to do is to hook up a real cartridge and to pipe the ROM data through the USB.... Does anyone happen to have a cartridge of your least favorite game which you would donate for this noble cause? :)

Last edited by a moderator:
VRAndy posted on May 29 2009 at 04:11 PM said:
I'm absolutely thinking about getting a GPS for use with some sort of open source mapping software.
I still think you could mod a built-in one. Some GPS modules are REALLY small. I don't know if I'll be brave enough to mod my Pandora, though.

Long wait for the 2nd batch if you get it wrong. :)

I voted GPS. I'd want it more for walking. I wonder what the Pandora total solution would be. Hardware and software.
Found this which is a list of thing that someone may be able to understand.

Last edited by a moderator:
i actually voted "A simtray for bothering people with prankcalls :D" as ackward as it might seem, my buddy uses his clamshell verizon phone as like a netbook and talks to people on his BT headset, how this would actually all work out??? no clue, but would be neat plus the possibility of wwan.... dude... no brainer oh and +1 for gps also

Regardless of the general public's indifference with respect to this issue, I hereby announce (to the best of my knowledge) the first-ever USB reader for Super Nintendo/Famicom cartridges! Instead of downloading pirated r0mz from Russian w4rez/pr0n sites, you can now show the world how cool you are by plugging real game cartridges into your laptop/smartphone/Pandora :) Both hardware and software need a lot more work, but the most important game of all (SMW) is already playable straight from the cartridge...

Parts: about US$ 20 from Digi-Key. (actually, I got a development kit which was a bit more expensive but also has a lot of useless crap on it)

Allow me to be the first to offer my congratulations - that is *really* cool, and I am duly impressed. :)

is already playable straight from the cartridge...
Parts: about US$ 20 from Digi-Key. (actually, I got a development kit which was a bit more expensive but also has a lot of useless crap on it)
Awesome! This deserves a thread of its own, maybe in Off Topic. Or make use of the new GP32X blog feature. :)

Last edited by a moderator:
Freaking awesome.


Can we expect other devices for N64 and Game Boy games?

Freaking awesome.


Can we expect other devices for N64 and Game Boy games?
In theory, this should require no more than soldering additional connectors to the little processor who's doing the USB and data handling, and writing a few more lines of code. So, in principle it is possible and to some extent even likely that I (or someone) will extend this towards other systems or even come up with an all-in-one solution covering everything from Atari 2600 to DS :)

Just to put it more clearly: this is not an emulator! You still need extra software to execute whatever the USB thingie reads out of your cartridge...


Anyway, I shall now call it a day and see if I can make a few photos over the weekend...

Stay tuned!
(and don't forget to donate crappy game carts for further development and testing :))

M

Last edited by a moderator:
is already playable straight from the cartridge...
Parts: about US$ 20 from Digi-Key. (actually, I got a development kit which was a bit more expensive but also has a lot of useless crap on it)


You should think about building them and selling them, like DaveC did with his Dpad mod for the GP2X back in the day. You could even put them in those little project cases you can get from Radioshack, so that they don't have a lot of exposed wires and circuits. If you made N64 and Sega Genesis ones, I would definitely buy.

+1.

-God Ginrai

Last edited by a moderator:

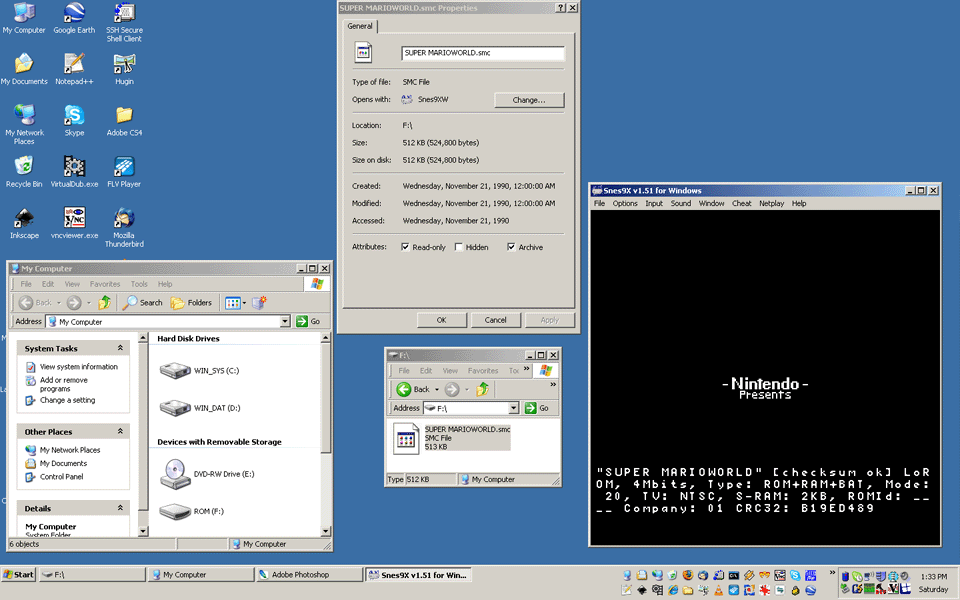

This might as well be an ordinary thumb drive, but it's not :)

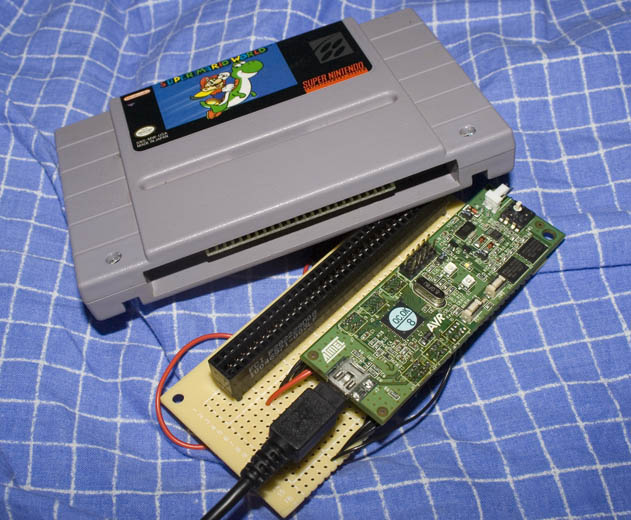

The hardware is simply an AT90USBKey evaluation board by Atmel....

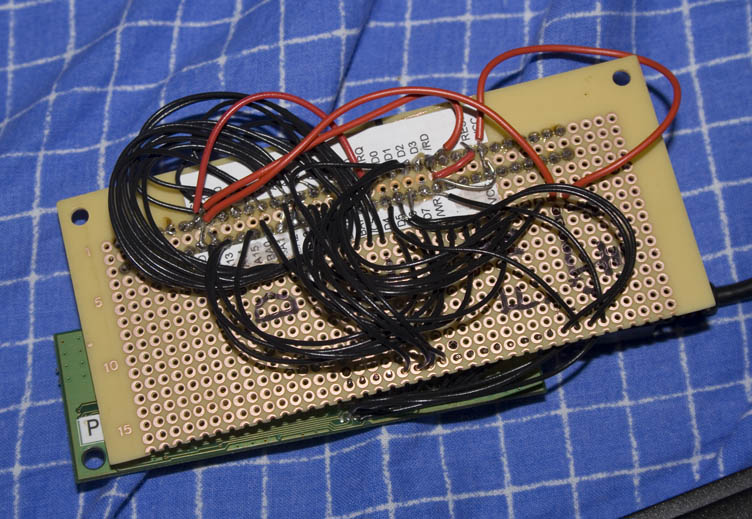

.... hooked to a card edge connector with a whole bunch of wires.




The firmware is built upon the USB Mass Storage example application provided by Atmel, adding the ROM I/O as well as a "virtual" FAT16 (and don't forget the LONG filename taken straight from the cart's name field :))
