PSP Big Battery Mod

Discussion in 'Everything else' started by Chip, Jul 17, 2016.

  1. Chip

    Chip [Insert Custom Title Here]

    Joined:
    Jun 25, 2003
    Messages:
    3,408
    Location:
    NJ, USA
    I dug up my PSP a couple days ago and was disappointed that the battery was pretty much shot. Not wanting to dish out for a proper Sony battery, and having had awful luck with chinese knockoffs, I decided to modify the case to accept a much bigger LiPo cell. Unfortunately, I didn't think to take pics along the way, so this isn't going to be a step-by-step tutorial or anything.

    [​IMG]
    This is what it looks like all put back together. Other than a small chunk I had to cut out of the UMD door, it looks pretty normal.


    [​IMG]
    Here's the big 3000mAH battery in place - original (knockoff) battery for scale. It's important to note that the capacity rating on this cell is likely accurate. The 2400mAH rating on the knockoff is an absurd exaggeration. LiPo energy density by volume is a constant. There's no way any stock-sized PSP battery could hold more than about 900mAH, regardless of what they print on the sticker. The big cell is just about the same height and thickness, but a full 3x as wide as the stock cell. This is the cell I bought, in case you want to try something similar.


    [​IMG]
    Moving the battery out of the way you can see that this "mod" really isn't all that complicated. Simply remove the UMD drive following any of the tutorials online, cut out the plastic partition between the UMD compartment and battery compartment using some dikes, and you've got a downright cavernous space to fill with lithium polymer goodness. Note that there is a lip on the UMD door that you'll have to shave off as well. That chunk missing from the door in the above pic is where a brace was located connected to that lip.


    [​IMG]
    The only moderately tricky bit is the battery PCB. You need this board to interface with the battery - I'm not sure if it's simply for charging/protection, or if there is some sort of DRM on board, but either way, it's necessary. This pic isn't mine, because I didn't think to take a pic before covering it with tape. In my battery, the red and black wires above were actually metal tape. I carefully cut open the PSP battery case with a razor blade, cut the metal tape between the cell and the board, and removed the board.


    [​IMG]
    Then I unfolded the friction connectors, trimmed them down to simple metal strips, and soldered them to the battery terminals. With the board outputs safely connected, I carefully soldered the wires from the battery to the B+ and B- terminals. Everything was covered in electrical tape for safety, and assembled.

    There are two down sides to this mod. The obvious one is that you no longer have a UMD drive. This is no great loss, since PSP .CSOs can be played directly off the SD card. The other is that the battery life remaining estimate will be wildly inaccurate. The little icon will still be OK, but if your battery is 50% full, the PSP thinks it's 50% of a 900mAH cell, not 50% of a 3000mAH cell. In reality, a full charge from a cell this size should provide 10+ hours of hard gaming.

    I should probably point out that working with LiPo batteries - specifically soldering them - can be very dangerous. If you accidentally short it out, you can damage the battery, possibly to the point of bursting and starting a fire. Please do not attempt a mod like this unless you're good with a soldering iron.

    Tags:
  2. iprice

    iprice Certified Guru

    Joined:
    Jan 31, 2008
    Messages:
    3,281
    Location:
    MK. UK. OK.
    Excellent job there :)

    I just wonder why anyone would want to use a PSP nowadays ;) :p J/K!

    :D

  3. Citizen_Lurker

    Citizen_Lurker Member

    Joined:
    Mar 1, 2016
    Messages:
    109
    Well, I would because PSP emulation is still pretty bad.
    Would love to get my hands on a used PSP Go...

  4. Chip

    Chip [Insert Custom Title Here]

    Joined:
    Jun 25, 2003
    Messages:
    3,408
    Location:
    NJ, USA
    Well, you can get a used PSP 1000 on ebay for less than $50, and it's actually a pretty decent emulation system. It struggles with SNES until you crank up the frameskip, but it's better than anything else in that price range. Plus, native PSX and PSP games.

    Citizen_Lurker likes this.
  5. iprice

    iprice Certified Guru

    Joined:
    Jan 31, 2008
    Messages:
    3,281
    Location:
    MK. UK. OK.
    I have a PSP and a Vita and use them regularly, so I was only joking. :)

    Citizen_Lurker likes this.
  6. tigerroast

    tigerroast YOUNG VORHEES

    Joined:
    Apr 22, 2016
    Messages:
    258
    Location:
    Big Bertha, LA.
    Best use of the UMD disk tray I've ever seen.

    In that there isn't one anymore.

    iprice likes this.
  7. SNESFAN

    SNESFAN Retro game fanatic

    Joined:
    Oct 3, 2008
    Messages:
    3,385
    Location:
    Fort Knox, KY. USA

    http://www.ebay.com/sch/i.html?_odk...0.Xxperia+play.TRS0&_nkw=xperia+play&_sacat=0

    better with snes games, equally as good with psx, PSP is obviously worse than native.

    Cool mod though

  8. Citizen_Lurker

    Citizen_Lurker Member

    Joined:
    Mar 1, 2016
    Messages:
    109
    ...and has a terrible input lag.
    Xperia Play is a very cool device, I still use it. The problem is, the input lag makes it useless for twitch games like platformers. Don't know what's the situation on PSP though.

  9. SNESFAN

    SNESFAN Retro game fanatic

    Joined:
    Oct 3, 2008
    Messages:
    3,385
    Location:
    Fort Knox, KY. USA
    I'm sorry, you're voicing your input when comparing two devices having not used one of the devices being compared?

    So you're sensitive to input lag, then you're going to lose your mind with the amount of frame skip just to play the same games on PSP. It was from an era where we just switched over from technically possible to sort of useful.

    The Xperia play is in the category of not quite perfect, and people nitpick things like input and audio lag. It's there I agree, but when apples to apples, I think most would chose the Xperia.

    You ever used a wiz or caanoo? I would arguably chose the Xperia over either of those and would place both above the PSP. The PSP was cool in its day, but between the overall performance, frame skips and whatnot, and the PITA of rooting or CFW to play emulators.... Ehh.

    Edit: it's fair to say the Xperia and Pandora are on competitive grounds, and where the Pandora wins is areas like lack of input and audio lag because the performance is similar. But I think you would be high if you said the PSP and Pandora are comparable.

    Last edited: Jul 20, 2016
  10. Citizen_Lurker

    Citizen_Lurker Member

    Joined:
    Mar 1, 2016
    Messages:
    109
    The only thing I did was to point out that Xperia Play, like any other Android device out there, has input lag. That's it. Not pretending that I'm a PSP guru or smth, just my 2 cents. Moreover, I thought my comment was vaguely useful because you didn't mention that.

  11. SNESFAN

    SNESFAN Retro game fanatic

    Joined:
    Oct 3, 2008
    Messages:
    3,385
    Location:
    Fort Knox, KY. USA
    Ok, fair enough. There is a special brand of hater out there (they know who they are) that's been floating around for years. They like to rabble rabble whenever anyone suggests an android device has any merit over any other option. I incorrectly assumed you were one of them. I apologize.

  12. Citizen_Lurker

    Citizen_Lurker Member

    Joined:
    Mar 1, 2016
    Messages:
    109
    Hah, on the contrary, I think that Android devices have so much merit to them that they are still probably the best option for the average price-conscious, fiddle-hating retro gamers. I love my Xperia Play and Nv Shield, both devices hindered only by the input latency limitations of Android OS. And still probably good enough for most.
    No need to apologise my friend, I know people are jumpy these days.

  13. skeezix

    skeezix Internal Development

    Joined:
    Mar 11, 2003
    Messages:
    8,058
    Hey, awesome to see you Chip! :)

    The PSP battery does some Funny Business, and a lot of the good mods/firmware-hacks do trickery through the battery board firmware to do it. I forget details now, been too long :)

    The PSP is actualyl really great kit; to me, its a great machine t otake on trips or to places like the beach -- the PSP is 'disposable' (easily and cheaply replaced), easily CFW'd, has many great games, and a huge pile of emus and such. It makes a pretty good video player, and even a respectable PDF/ebook reader. Your $600 phone or tablet might be too rich to risk at a beach or in some trip, but a PSP.. think nothing of it :)

  14. TicoMurcielago

    TicoMurcielago Newbie

    Joined:
    Aug 26, 2016
    Messages:
    3
    wooow beautiful mod with the battery , I own a psp and also like to do this mod , you could pass me the link from where you purchased the battery? Or the specific size of that battery T * W * L
    Thanks :)xD

  15. Chip

    Chip [Insert Custom Title Here]

    Joined:
    Jun 25, 2003
    Messages:
    3,408
    Location:
    NJ, USA
  16. TicoMurcielago

    TicoMurcielago Newbie

    Joined:
    Aug 26, 2016
    Messages:
    3
  17. benoitb

    benoitb Very Active Member

    Joined:
    Jan 13, 2011
    Messages:
    616
    Location:
    Finland
    So do you have actual battery life numbers now ? Or you couldn't find the time to play long enough to empty it :D ?

  18. Chip

    Chip [Insert Custom Title Here]

    Joined:
    Jun 25, 2003
    Messages:
    3,408
    Location:
    NJ, USA
    I've never managed to get it below ~30%, even with more than a week between charges. Granted I don't sit and play for hours upon hours at a time, but I would definitely say that 10hrs is a safe minimum estimate.

  19. TicoMurcielago

    TicoMurcielago Newbie

    Joined:
    Aug 26, 2016
    Messages:
    3

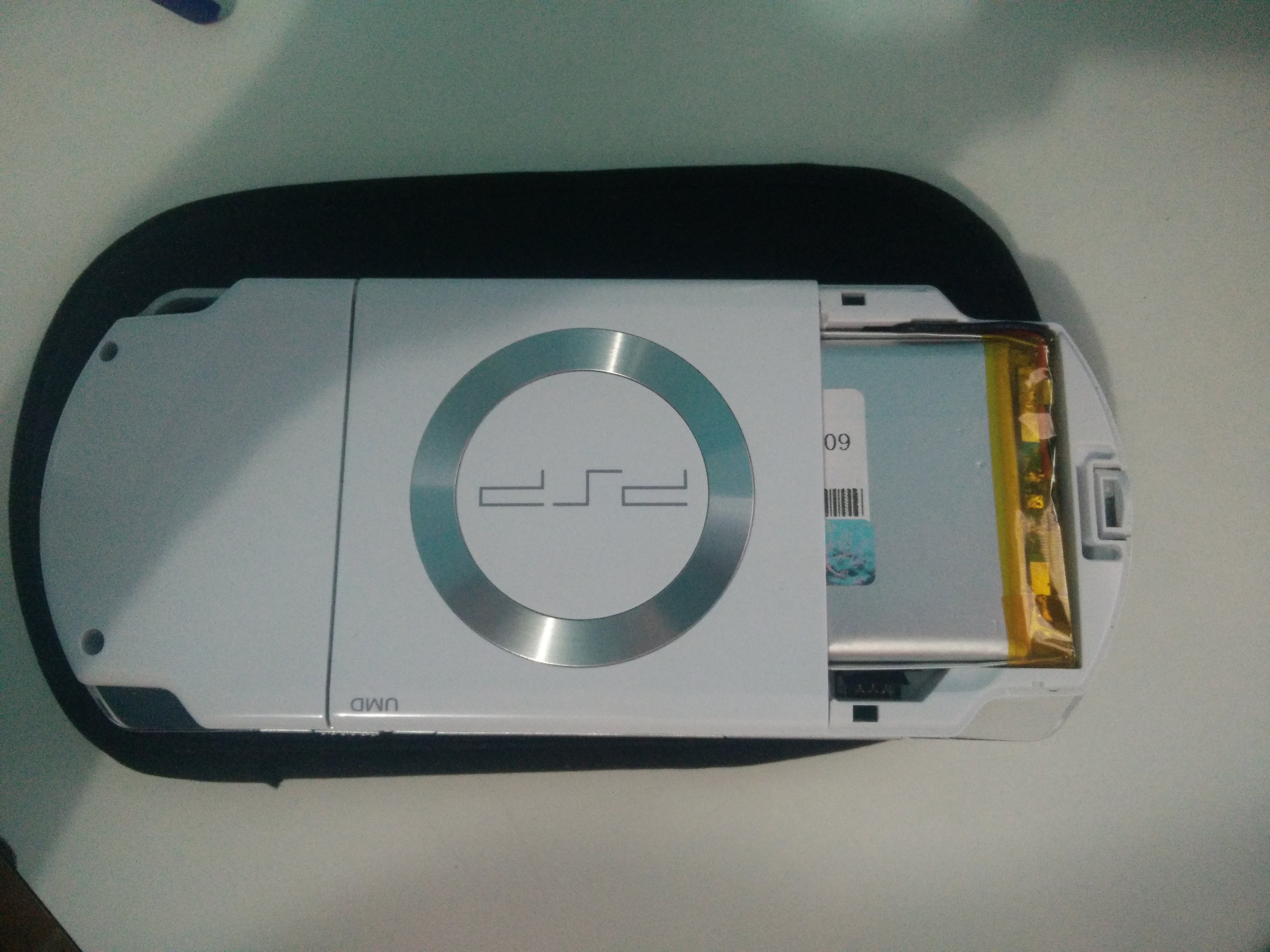

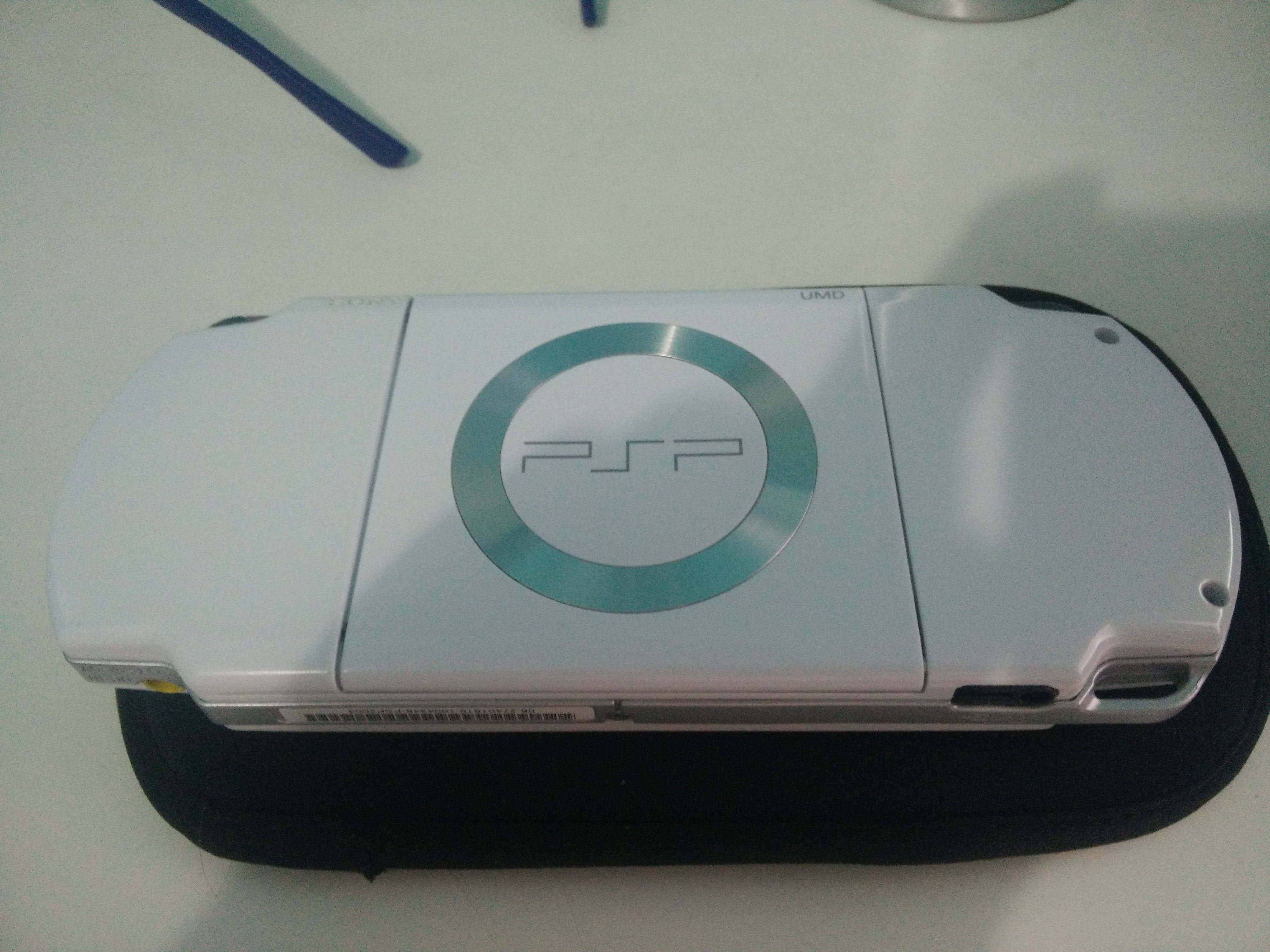

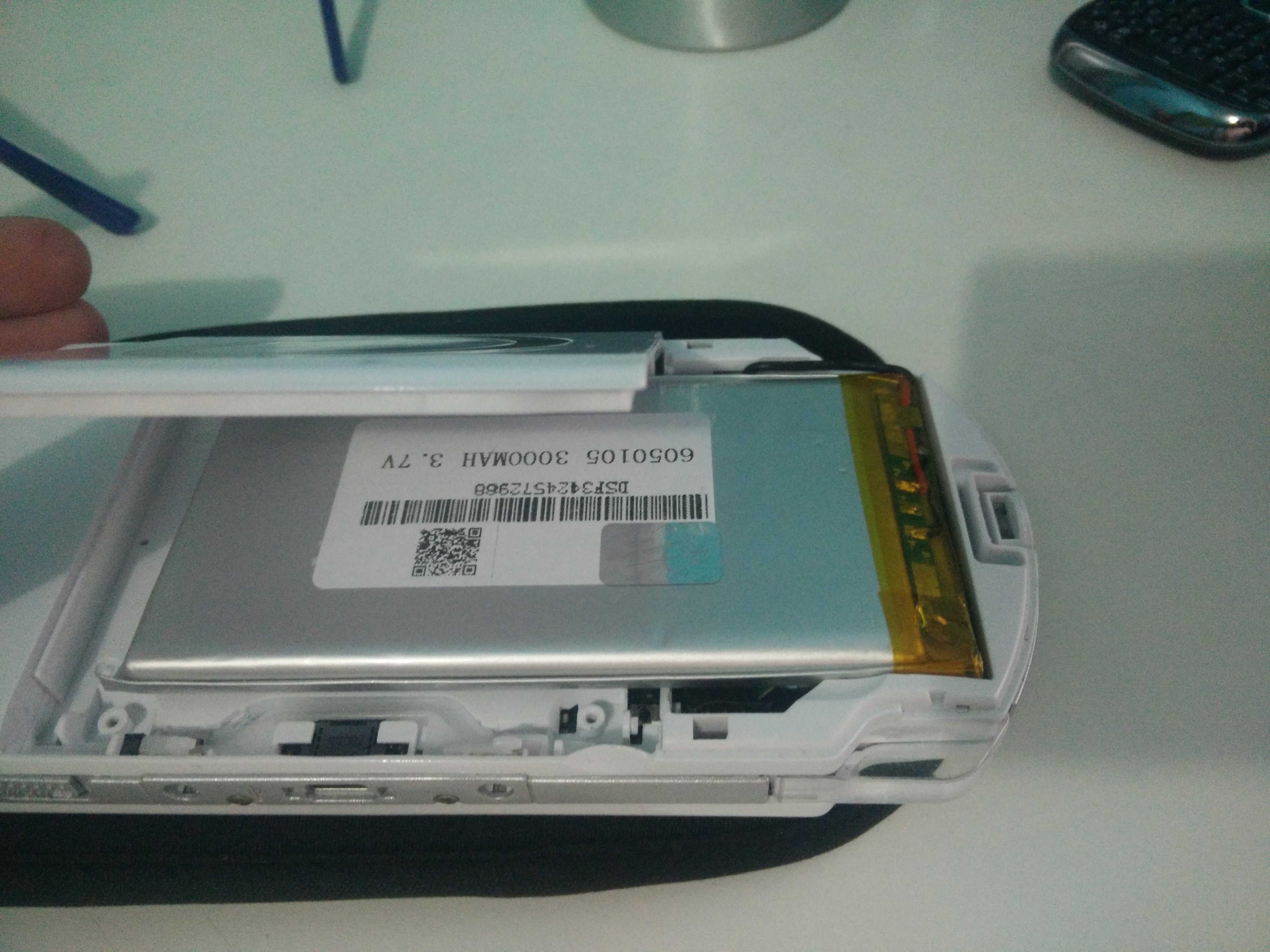

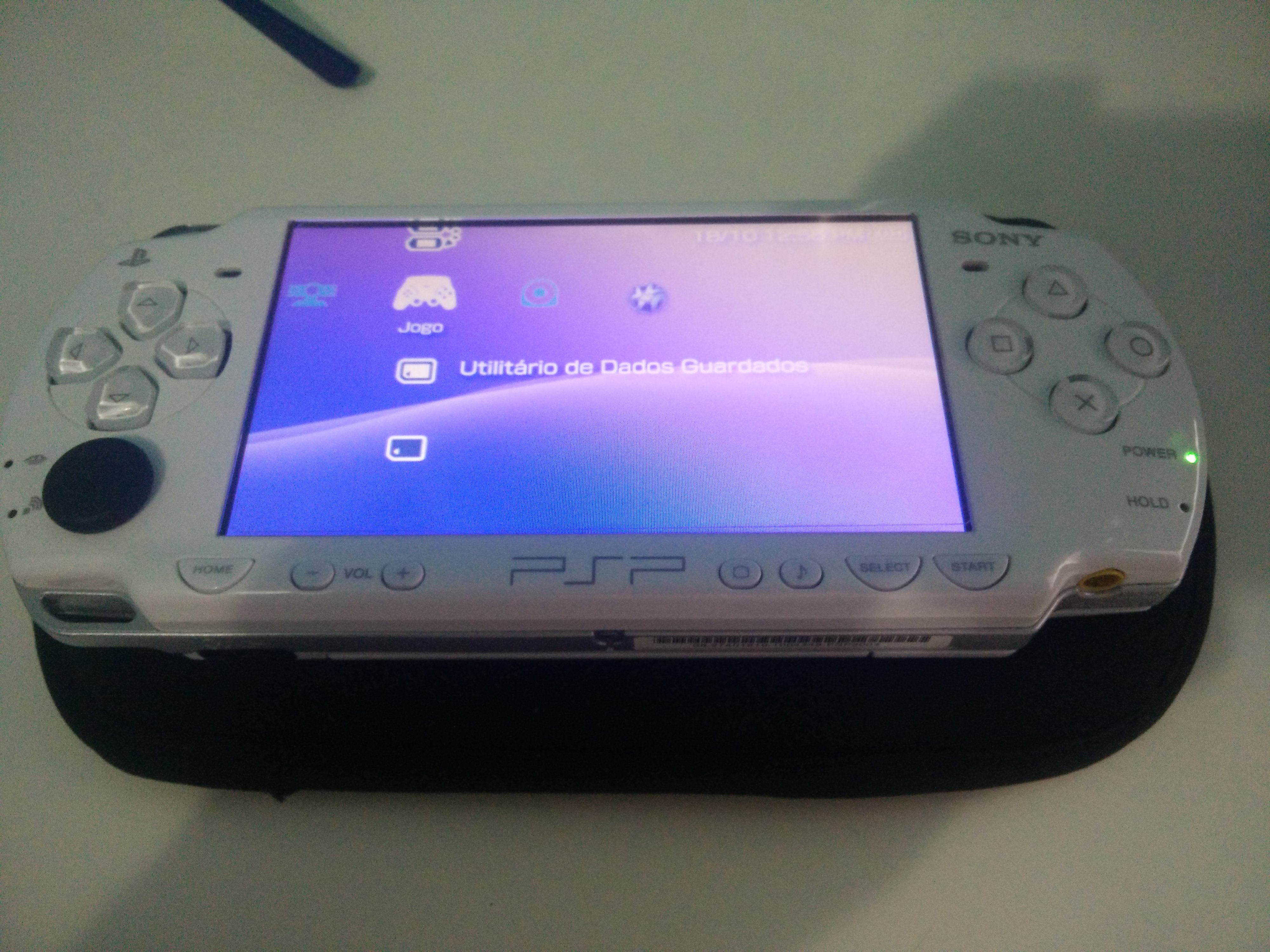

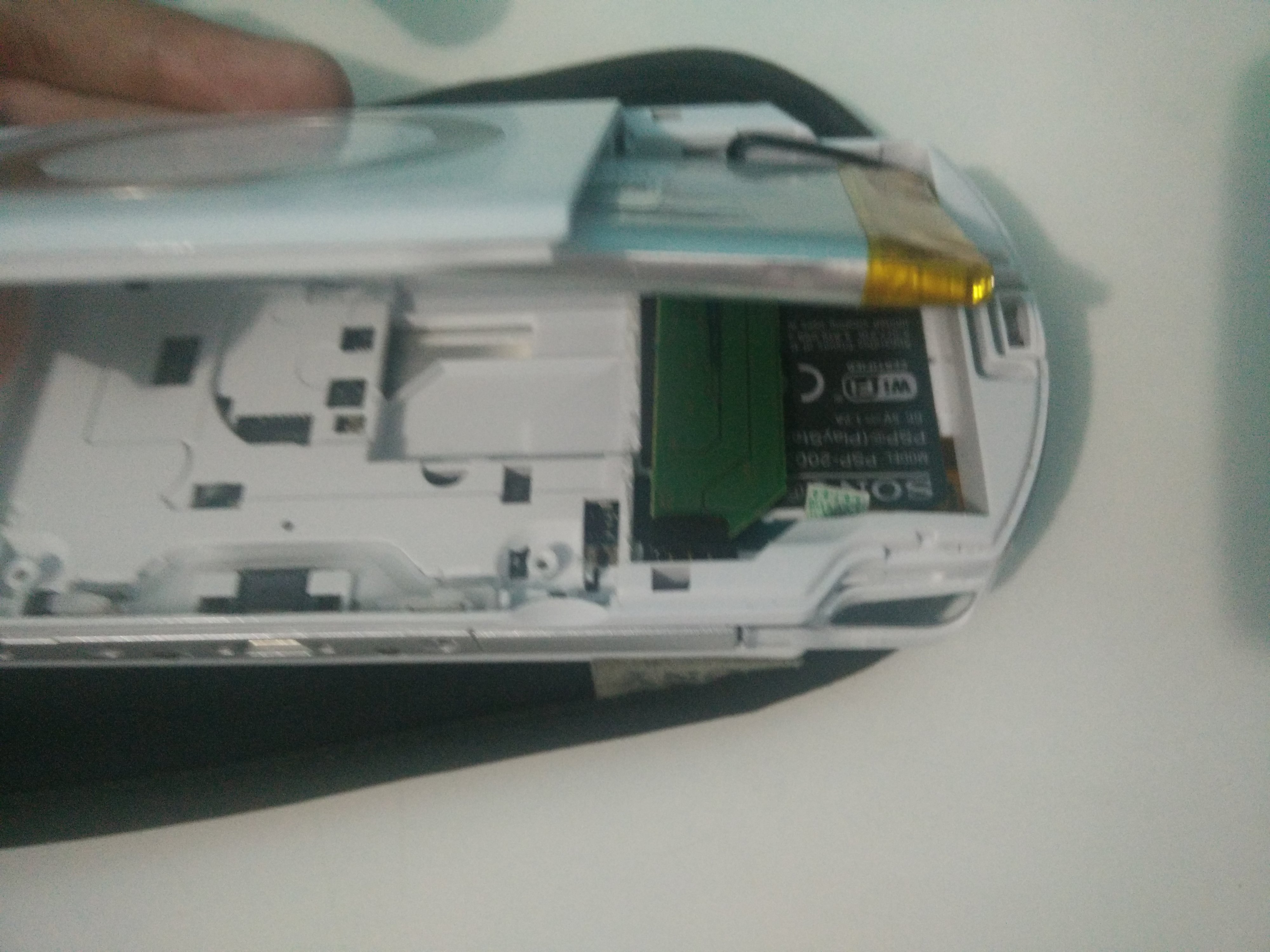

    Hello Friends, I have been spending my impressions after the MOD on my PSP
