today i got my pandora (yeh!) and i immediately started to continue working on audiorace...

while doing so, i noticed, that the longer the track goes, the uglier the track gets texture mapped. i've done some testings, and i came to the conclusion, that this somehow must be a bug in the current gles driver (i've got hotfix 5 installed iirc).

to be more detailed, i'm increasing the v-coordinate with increasing time/length of the track to get my track continuously textured. my v-coordinate on one track with about ~5 minutes goes up to 1030. this approach works on my windows machine and even on the wiz, and there's nothing i can think about what i could change to fix this on my side.

here are 2 screens directly created on the pandora with glReadPixels:

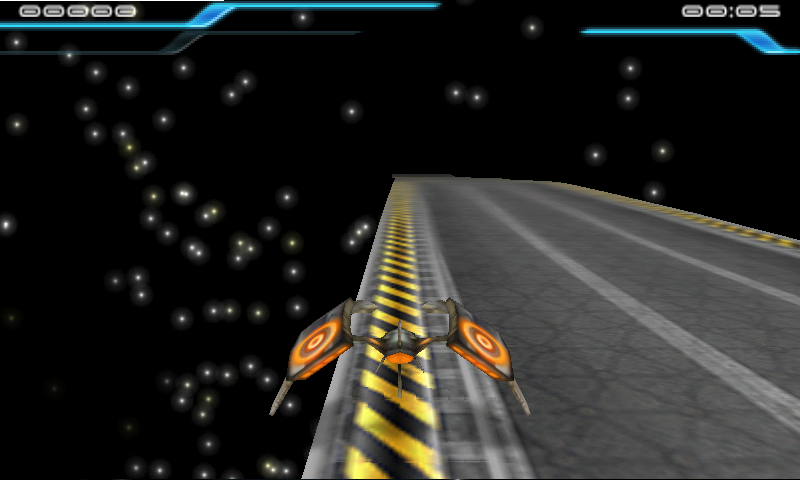

this one is just at the beginning, v-coordinate is very low

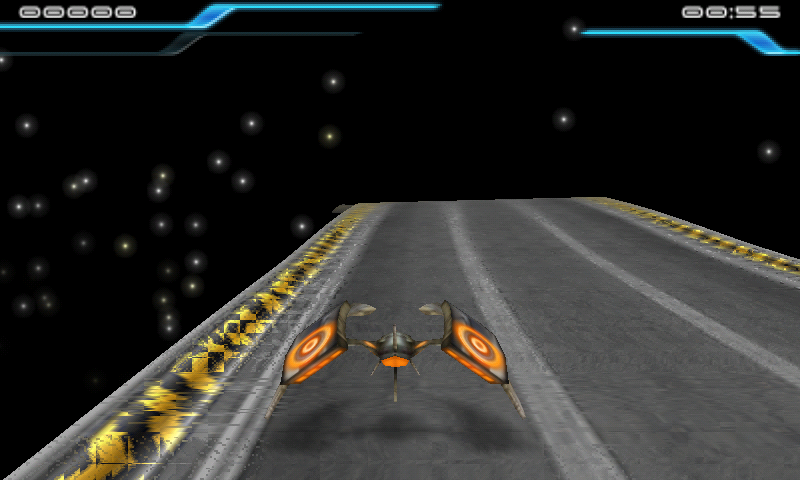

this one is just at the beginning, v-coordinate is higher (just guessing - something around 200)



how do i check if i've got the newest driver installed? should i file a bugreport? will the be an update if this is regarded as a bug?


Stuckie

Member
Joined
Apr 7, 2004
Messages
492
Age
34
Location
Tired, and sleeping in the basement...
Website
www.stuckieworld.net
Interestingly, I've seen that also happen on Android when doing exactly the same kind of thing - the textures start to become utterly warped and pixelated.
I had thought it was just another GLES quirk, but if you're saying it works fine on the Wiz, then perhaps not.
Not the answer you were looking for, but it's not confined to Pandora at any rate!


paeryn

Reclusive maniac
Joined
Nov 28, 2005
Messages
432
Age
47
Location
Sheffield, England
Website
paeryn.myby.co.uk
I noticed that happening too on Briquolo where the water texture just scrolls down indefinately. It starts of fairly mild and gets progressively worse.
Have you tried wrapping the v coord yourself if you can? That was the only thing I could think to do (but never traced where in the code it gets altered).


Pickle

Mega GP Mania
Joined
May 30, 2006
Messages
5,480
Location
Detroit, Michigan
Website
Visit site
skeezix said:
Try an older firmware (we had other gles drivers) and see there?

Jeffphone
I wouldnt this issue has been around awhile, I thought it improved with the latest though. prboom was the worst i think that had it

Last edited by a moderator:

mcobit

Advanced Member
Joined
Jul 28, 2008
Messages
6,910
I tried you initial build on my pandora and with HF4 it was the same. I thought it was because of the higher resolution, but didn't think it was a bug...


crow_riot

Well-Known Member
Joined
Sep 21, 2009
Messages
1,763
Location
.at
thanks for your replies. at least it's not an issue only i encounter. will there ever be a fix on this? at the moment i doubt it :(

paeryn, i can't wrap the texture by myself. there will always be the case, where texcoords go from a higher to a lower value (0.9 to 0.1) where almost the whole texture will get drawn on one poly and inverted, too. there's only one way i can fix this now, restarting v coordinate after some 'magic value'. this will at least only give one ugly texture mapped poly from time to time and not the whole track garbled.

geca, i started porting without having a pandora, so i couldn't test a thing. that's where most of the problems arouse from. with the actual hardware, it's pretty easy, especially with the built-in capabilities of the pandora - wifi, dropbear are JUST there!

it's "good" to know, that it's also on earlier firmware versions, saves me some time with reflashing.


crow_riot

Well-Known Member
Joined
Sep 21, 2009
Messages
1,763
Location
.at
i've just found that someone posted a related problem in one of the TI forums: http://e2e.ti.com/support/dsp/omap_applications_processors/f/447/t/34897.aspx
bummer :(


mcobit

Advanced Member
Joined
Jul 28, 2008
Messages
6,910
Did you try to use higher res textures to minimize the scaling the sgx has to do?


mcobit

Advanced Member
Joined
Jul 28, 2008
Messages
6,910
Great news! Maybe it will get in the new release or as an additional updateoption.


crow_riot

Well-Known Member
Joined
Sep 21, 2009
Messages
1,763
Location
.at
thanks notaz. i'm looking forward to try it out. PM me or so if you have something to test.


notaz

Certified Guru
Joined
Aug 23, 2005
Messages
4,913
Location
Lithuania
Website
notaz.gp2x.de
notaz said:
There is a newer driver than the one in HF5 released by TI about a month ago, I'll try building that.
No luck here, the driver builds but every GLES app hangs somewhere in driver code. They were probably too busy adding support for things like ti81xx and omap4 and broke omap3 :(

Last edited by a moderator:

fusion_power

Advanced Member
Joined
Dec 25, 2005
Messages
13,091
Location
germany
Website
Visit site
crow_riot said:
i've just found that someone posted a related problem in one of the TI forums: http://e2e.ti.com/support/dsp/omap_applications_processors/f/447/t/34897.aspx
bummer :(
I hope the TI Driver Developers also read this, can't be that they release Drivers with htat bad errors in it. I can't imagine NVidia would do this with their Drivers onto the PC without breaking loose an apocalyptic storm of raged Users. :ph34r:
I really hope, TI didn't gave up Driver-Development for OMAP3 because at the Moment it seems they never finished this jop propperly. :(

Is someone here around that can make a better Driver? ^^""

Last edited by a moderator:

darkblu

Member
Joined
Oct 6, 2008
Messages
640
crow_riot said:
thanks for your replies. at least it's not an issue only i encounter. will there ever be a fix on this? at the moment i doubt it :(

paeryn, i can't wrap the texture by myself. there will always be the case, where texcoords go from a higher to a lower value (0.9 to 0.1) where almost the whole texture will get drawn on one poly and inverted, too. there's only one way i can fix this now, restarting v coordinate after some 'magic value'. this will at least only give one ugly texture mapped poly from time to time and not the whole track garbled.
What precision types do you use for your texcoords (in case you are under ES2)?

A standard practice in cases like the one you're experiencing issues with is, once you've figured out the 'magic value' past which the mapping degrades, to introduce discontinuities in your tack - pick an edge to a slab where you want the 'resetting' of the texcoord to occur and split the mesh there into overlapping, but topologically disjoint vertices; make one set of those use the old value 'before reset', and the other set - the new one 'after reset'.

Last edited by a moderator:

silver

Member
Joined
Oct 12, 2008
Messages
174
Not sure if you've seen, the TI forum post was replied to, pointing to limitations of the scaling hardware. The Original poster updated:

I've been looking to see what makes the errors significant, and the source seems to be precision in the texture coordinates. Smaller coordinates in the same texture (closer to 0) and smaller textures (128x128) seem to help in the test application. Usually you want large textures rather than many small textures, but smaller textures may be the only option


crow_riot

Well-Known Member
Joined
Sep 21, 2009
Messages
1,763
Location
.at
darkblu said:
What precision types do you use for your texcoords (in case you are under ES2)?

A standard practice in cases like the one you're experiencing issues with is, once you've figured out the 'magic value' past which the mapping degrades, to introduce discontinuities in your tack - pick an edge to a slab where you want the 'resetting' of the texcoord to occur and split the mesh there into overlapping, but topologically disjoint vertices; make one set of those use the old value 'before reset', and the other set - the new one 'after reset'.
i'm under ES1, so the precision types do not apply, right?

i've already fixed the track meshs uv's the way u suggest. i was just bugged by my own code to make it work immediately, but then it turned out to work. i didnt search for a magic value but just picked to reset texcoords after a v value of 10 and now it looks fine.
