Release DuckStation

Magic Sam · Jan 25, 2022

Hi all,

@levi : Yes I'm pretty sure of that 20/40 in the FPS counter

According to DuckStation settings, I have "Show Game Frame Rate" (internal frame rate) and "Show Display FPS" (number of frames or v-syncs displayed per second) enabled.

Out of curiosity, I'm also turning on "Show Speed" (current emulation speed in %).

EDIT: I confirm the 20/40 readings

20 (internal frame rate)
40 (number of frames per second)
Emulation speed: 60-70% (instead of target set at 100%)

Cheers, Magic Sam

ptitSeb · Jan 29, 2022

Magic Sam said:
Hi all,

@levi : Yes I'm pretty sure of that 20/40 in the FPS counter

According to DuckStation settings, I have "Show Game Frame Rate" (internal frame rate) and "Show Display FPS" (number of frames or v-syncs displayed per second) enabled.

Out of curiosity, I'm also turning on "Show Speed" (current emulation speed in %).

EDIT: I confirm the 20/40 readings

20 (internal frame rate)
40 (number of frames per second)
Emulation speed: 60-70% (instead of target set at 100%)

Cheers, Magic Sam

I tested it, and yes, it's too slow for now. I did a quick profiling and it seems the Software renderer is were most of cpu time is spent (not unsurprisingly). I'll check if there are some quickwins somewhere, but I'm afraid the real asnwer here is the hardware renderer (which needs large update from gl4es).

Magic Sam · Jan 29, 2022

Hi all,

@ptitSeb : I just found a quick workaround. Turning off linear upscaling in the display settings helps a lot. Emulation speed almost always at 100% now, and no more sound crackling

Cheers, Magic Sam

ptitSeb · Jan 29, 2022

Magic Sam said:
Hi all,

@ptitSeb : I just found a quick workaround. Turning off linear upscaling in the display settings helps a lot. Emulation speed almost always at 100% now, and no more sound crackling

Cheers, Magic Sam

Oh, that's odd! I was thinking the upscaling to be done by the GPU (and so basicaly preformance-free). I'll check that. Nice find!

matzesu · Jan 29, 2022

Hey, but I thought upscale via GPU wouldn’t work as the Duckstation still don’t use OpenGL ^^
If I remember correctly the whole thing was driven by the CPU ^^
But thanks for the work around ^^

Magic Sam · Jan 29, 2022

Hi again,

Turning off linear upscaling seemed to help on some races, but some others are still too slow to be fun (Rally of Sweden is a good example, with emulation speed as low as 60%).

Cheers, Magic Sam

matzesu · Jan 29, 2022

Made some quick test, yep Sweden is still slow , to much snow …
But I recently put in some driver names for all countries and Cars, finally I can use my first car for Rally’s ^^ (although my Peugeot 205 only had 60 hp , unlike the Turbo 16 ^^ )
Still better than whit Upscale..

Edit: since when do whe have a Build in Cheat Option in Duckstation? This makes it much better ^^

matzesu · Mar 13, 2023

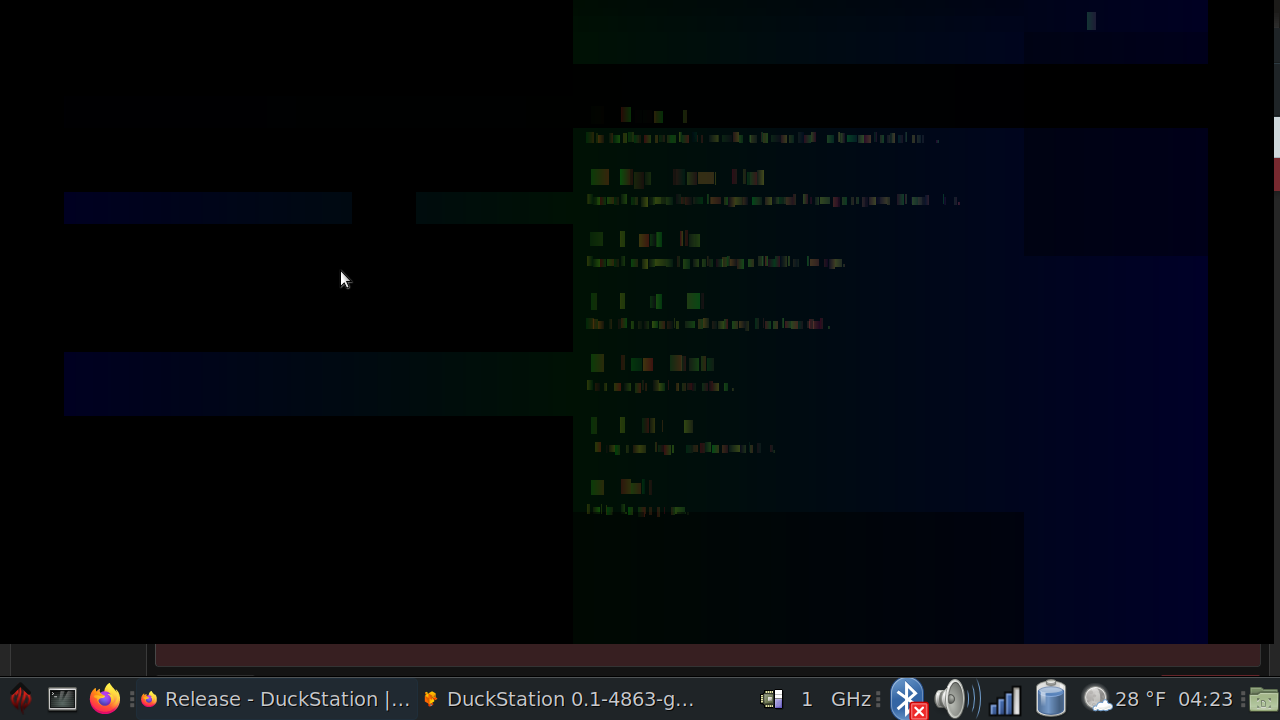

I have an Issue whit Duckstation, showed in this video:
The Emulator starts, but the Menue is not readable, its looks like the colors are washed out..

johnicboom · Mar 13, 2023

I'm having the same issue Matzesu has, where the menu looks like this:

Here's what I see when I open from CLI, in case it is useful:


john@johnicpyra:~$ dbp-run-path /media/john/PyraSD/dragonbox/packages/duckstation-0.0.1.02.dbp
--------------------------------------------------------------
Setting PATH to /mnt/dbp/union/duckstation:/usr/local/bin:/usr/bin:/bin:/usr/local/games:/usr/games
--------------------------------------------------------------
Setting HOME to /mnt/dbp/union/duckstation
[    0.0408] I/SDLControllerInterface: Loading game controller mappings from '/mnt/dbp/union/duckstation/database/gamecontrollerdb.txt'
[    1.6682] I/GL::Context: Created a OpenGL context
[    1.6924] I/GL::Context: GL_VENDOR: ptitSeb
[    1.6928] I/GL::Context: GL_RENDERER: GL4ES wrapper
[    1.6929] I/GL::Context: GL_VERSION: 2.1 gl4es wrapper 1.1.5
[    1.6930] I/GL::Context: GL_SHADING_LANGUAGE_VERSION: 1.20 via gl4es
[    1.7030] E(CompileShader): Shader compiled with warnings:
Success.

[    1.7047] E(CompileShader): Shader compiled with warnings:
Success.

[    1.7068] E(CompileShader): Shader compiled with warnings:
Success.

[    1.7090] E(CompileShader): Shader compiled with warnings:
Success.

/build/dri3wsegl-pyra-0.5/dri3_ws.c:843: WSEGL_SwapControlInterval: WSEGL_SwapControlInterval 1

Success.

Success.

[    1.7211] E(LoadTexture): Failed to open texture resource 'resources/logo.png'
[    2.3877] E(LoadTexture): Failed to open texture resource 'resources/logo.png'
Success.

Success.

[    2.4128] E(LoadTexture): Failed to open texture resource 'resources/logo.png'
[    3.0318] E(LoadTexture): Failed to open texture resource 'resources/logo.png'
[    3.0504] I/NoGUIHostInterface: Host display initialized at 1274x644 resolution
[    3.0509] I/SDLControllerInterface: Controller 0 inserted
[    3.0516] W(OpenGameController): Controller 0 (joystick 0) returned player ID -1, which is invalid or in use. Using ID 0 instead.
[    3.0518] I/SDLControllerInterface: Opened controller 0 (instance id 0, player id 0): pyraInput Gamepad
[    3.0553] I/SDLControllerInterface: Rumble is supported on 'pyraInput Gamepad' via gamecontroller
[    3.0554] I/ControllerInterface: Host controller 0 connected, updating input map
[    3.0557] I/SDLControllerInterface: Controller 0 deadzone size set to 0.250000
[    3.0562] I/SDLControllerInterface: Controller 0 deadzone size set to 0.250000
Program directory "/mnt/dbp/union/duckstation"
User directory: "/mnt/dbp/union/duckstation/.local/share/duckstation"
LIBGL: Initialising gl4es
LIBGL: v1.1.5 built on Oct  1 2022 16:48:39
LIBGL: Using GLES 2.0 backend
LIBGL: loaded: libGLESv2.so
LIBGL: loaded: libEGL.so
LIBGL: Using GLES 2.0 backend
LIBGL: Hardware Full NPOT detected and used
LIBGL: Extension GL_EXT_blend_minmax  detected and used
LIBGL: Extension GL_EXT_draw_buffers  detected and used
LIBGL: FBO are in core, and so used
LIBGL: PointSprite are in core, and so used
LIBGL: CubeMap are in core, and so used
LIBGL: BlendColor is in core, and so used
LIBGL: Blend Subtract is in core, and so used
LIBGL: Blend Function and Equation Separation is in core, and so used
LIBGL: Texture Mirrored Repeat is in core, and so used
LIBGL: Extension GL_OES_mapbuffer  detected
LIBGL: Extension GL_OES_element_index_uint  detected and used
LIBGL: Extension GL_OES_packed_depth_stencil  detected and used
LIBGL: Extension GL_OES_depth24  detected and used
LIBGL: Extension GL_OES_rgb8_rgba8  detected and used
LIBGL: Extension GL_EXT_multi_draw_arrays  detected
LIBGL: Extension GL_EXT_texture_format_BGRA8888  detected and used
LIBGL: Extension GL_OES_depth_texture  detected and used
LIBGL: Extension GL_EXT_texture_rg  detected and used
LIBGL: Extension GL_OES_texture_float  detected and used
LIBGL: Extension GL_OES_texture_half_float  detected and used
LIBGL: Extension GL_OES_fragment_precision_high  detected and used
LIBGL: Extension GL_EXT_shader_texture_lod detected and used
LIBGL: Max vertex attrib: 16
LIBGL: Extension GL_OES_standard_derivatives  detected and used
LIBGL: Max texture size: 4096
LIBGL: Max Varying Vector: 8
LIBGL: Texture Units: 8/8 (hardware: 8), Max lights: 8, Max planes: 6
LIBGL: Max Color Attachments: 4 / Draw buffers: 4
LIBGL: Hardware vendor is Imagination Technologies
LIBGL: EGLImage to Texture2D supported
LIBGL: EGLImage to RenderBuffer supported
LIBGL: Targeting OpenGL 2.1
LIBGL: Not trying to batch small subsequent glDrawXXXX
LIBGL: try to use VBO
LIBGL: FBO workaround for using binded texture enabled
LIBGL: Force texture for Attachment color0 on FBO
LIBGL: Hack to trigger a SwapBuffers when a Full Framebuffer Blit on default FBO is done
LIBGL: glX Will try to recycle EGL Surface
LIBGL: Current folder is:/mnt/dbp/union/duckstation/.local/share/duckstation
DRI3 1.0
present 1.2
DRM FD 8
LIBGL: Shuting down

(Edited to remove the double-post - sorry!)

ptitSeb · Mar 13, 2023

Ok, looks like I broke something on gl4es lately, that impacted Duckstation. I'll debug that.

matzesu · Mar 13, 2023

Thanks alot, i wonder how good Duckstation would run whit 1ghz when its runs ^^

traylorpark · Mar 15, 2023

Thanks for taking a look! Just noticed this today as well during first time emulator setup.

ptitSeb · Mar 16, 2023

Can you update your Pyra ("sudo apt update && sudo apt upgrade" orequivalent) and try again. The new gl4es should be there and the problem fixed.

matzesu · Mar 17, 2023

Some games are not made to work whit analog, the Dual Shock 1 was brought later in the PlayStation Live .. this is why you also have a button on the PS2 Dual Shock to disable Analog Mode

traylorpark · Mar 17, 2023

ptitSeb said:
Can you update your Pyra ("sudo apt update && sudo apt upgrade" orequivalent) and try again. The new gl4es should be there and the problem fixed.

It works! Thank you!

matzesu · Jun 8, 2023

Works also fine on Bullseye, no additional depencies needed ^^
