Texture Coordinate Wrapping (Split from Port Requests)

lunixbochs

Moderator
Staff member
Joined
Sep 18, 2011
Messages
742
Ok, Found it. In fact it was a precision issue with the texture!
That's the same conclusion I came to with IMG support (precision problems with large coordinates).

Does wrapping the coords between 0 - 1 after dividing by 128.0 instead of before the cpu division have the same effect?

Last edited by a moderator:

ptitSeb

Serial Porter
Joined
Aug 15, 2012
Messages
8,482
Age
47
Location
France, near Lyon
Ok, Found it. In fact it was a precision issue with the texture!
That's the same conclusion I came to with IMG support (precision problems with large coordinates).

Does wrapping the coords between 0 - 1 after dividing by 128.0 instead of before the cpu division have the same effect?
I'll test that (you suspect a "float" limitation and not a driver limitation?)


ptitSeb

Serial Porter
Joined
Aug 15, 2012
Messages
8,482
Age
47
Location
France, near Lyon
So yes, it works also.

I used this (quick and unoptimized) code (for the road part)


float p, p3=pos/128.0f;
double p2;
p=modf(p3, &p2);
glTexCoord2f(0, -p);
glVertex3f(r_x1, r_y1, r_z);

glTexCoord2f(0.75, -p);
glVertex3f(r_x2, r_y2, r_z);

glTexCoord2f(0.75, -(p + inc/128.0f));
glVertex3f(r_x2[i + 1], r_y2[i + 1], r_z[i + 1]);

glTexCoord2f(0, -(p + inc/128.0f));
glVertex3f(r_x1[i + 1], r_y1[i + 1], r_z[i + 1]);
//glEnd();

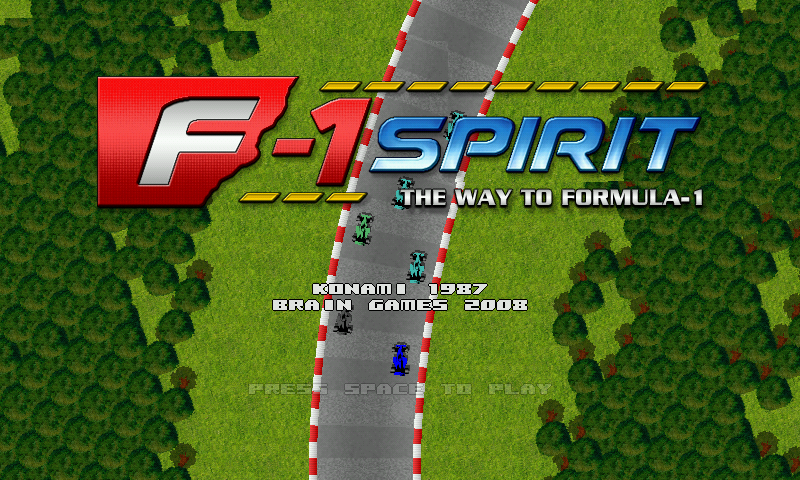

And I get the correct picture (the upler midle glitch is just the picture being refresh of course).



So I guess you can clamp texture coordinates inside glshim :)



lunixbochs

Moderator
Staff member
Joined
Sep 18, 2011
Messages
742
Won't this break on subsequent coords ending in zero?

(2.0, 2.0), (3.0, 3.0) would become (0.0, 0.0), (0.0, 0.0)

when in reality it should be (0.0, 0.0), (1.0, 1.0)?

So I can detect greater intpart and assign 0x0, 1x1 to the larger. What if this happens 2+ times in a row?

Like 1.0 -> 2.0 -> 3.0 -> 4.0 -> 5.0

This fix also needs work if the tex coordinates span multiple lengths of the texture (for a repeating texture): (0, 0), (2, 2) would shrink if we put it in the 0, 1 space...

How big is p2?

Last edited by a moderator:

ptitSeb

Serial Porter
Joined
Aug 15, 2012
Messages
8,482
Age
47
Location
France, near Lyon
p2 goes up to a bit more than 5000 in the demo level. *EDIT* No, 5000 is just pos. but p2=pos/128 is 391...

In that case, you keep the fractionnal part as-is and limit the interger part to -1,0, +1  and rebuild the texture coord with that?

Last edited by a moderator:

lunixbochs

Moderator
Staff member
Joined
Sep 18, 2011
Messages
742
K, do you also know how big the glDrawArrays vertex counts tend to be?

Last edited by a moderator:

ptitSeb

Serial Porter
Joined
Aug 15, 2012
Messages
8,482
Age
47
Location
France, near Lyon
Herer are some printf from previous code

pos=-50094.320312, p3=-391.361877, p=-0.361877, p2=0
pos=-50078.375000, p3=-391.237305, p=-0.237305, p2=0
pos=-50062.429688, p3=-391.112732, p=-0.112732, p2=0
pos=-50046.484375, p3=-390.988159, p=-0.988159, p2=0
pos=-50030.539062, p3=-390.863586, p=-0.863586, p2=0
pos=-50014.593750, p3=-390.739014, p=-0.739014, p2=0
pos=-49998.648438, p3=-390.614441, p=-0.614441, p2=0
pos=-49982.703125, p3=-390.489868, p=-0.489868, p2=0
pos=-49966.757812, p3=-390.365295, p=-0.365295, p2=0
pos=-49950.812500, p3=-390.240723, p=-0.240723, p2=0
pos=-49934.867188, p3=-390.116150, p=-0.116150, p2=0
pos=-49918.921875, p3=-389.991577, p=-0.991577, p2=0
pos=-49902.976562, p3=-389.867004, p=-0.867004, p2=0
pos=-49887.031250, p3=-389.742432, p=-0.742432, p2=0
pos=-49871.085938, p3=-389.617859, p=-0.617859, p2=0
pos=-49855.140625, p3=-389.493286, p=-0.493286, p2=0
pos=-49839.195312, p3=-389.368713, p=-0.368713, p2=0
pos=-49823.250000, p3=-389.244141, p=-0.244141, p2=0
pos=-49807.304688, p3=-389.119568, p=-0.119568, p2=0
pos=-49791.359375, p3=-388.994995, p=-0.994995, p2=0
pos=-49775.414062, p3=-388.870422, p=-0.870422, p2=0
(I messed up the printout of the integer part)

From the screen output, I count 504 vertex.
