[SOLVED] What is 223F?

[vinipsmaker]

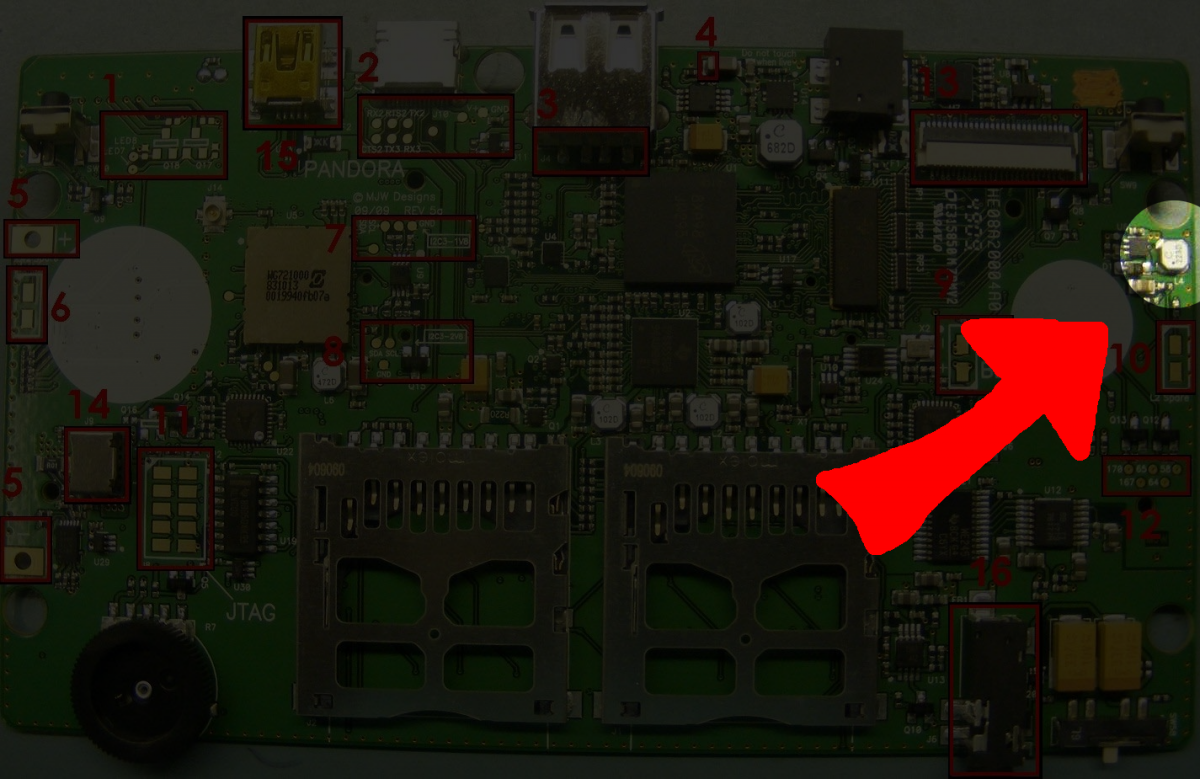

Mine unglued from the Pandora while I was fixing the right shoulder button.



I downloaded the schematics, but I cannot figure it out what does it do. And I didn't put the battery back, because I need to know how important 223F is (making me unable to play T_T).

And most of the components are hard to work with with an iron solder. I'm tempted to acquire a hot gun like this.



[EvilDragon]

That's a coil needed for the backlight of the display. Until it's resoldered, you'll have a dark screen.



[mcobit]

If you need to get lead free solder flowing that is connected to the ground plane, you need a sondering iron with a high thermal capacity, a flat tip and also you can feed some leaded solder or flux into it to get it flowing.



[levi]

I've heard that alloying your own half-leaded solders is a bad idea, as you don't know what mechanical properties you'll end up with, but I don't know how much of a danger that is. But personally I'd just get an iron that can go hot enough to melt the lead free stuff properly (which does have a significantly higher melting point, so old irons designed simply for leaded solder simply won't work well with them).



[mcobit]

Well, maybe I worded that wrong.


I only wanted to suggest to add lead-free solder to remove the components or the solder itself. Not to to solder new parts with a mixture.



[comradekingu]

You will always get a tin-tin connection, and the only thing that is required is enough heat for not too long.

Anything made after 2006 will not have lead in it, unless there is a particular and special reason why.

https://en.wikipedia.org/wiki/Restriction_of_Hazardous_Substances_Directive



[levi]

Anything made after 2006 for sale in the EU will not have lead in it, unless there is a particular and special reason why.

Tightened that for you.



[rygD]

How easy is it to knock the coil off?

Is there a way to prevent it from coming off the board?

Why do they keep falling off?



[EvilDragon]

It's pretty sturdy normally, but it seems there was a batch of bad coils that easily break.
