Homebrew Pandora Mock-up

[cosam]

I knocked up a quick mock-up of the Pandora to visualise a couple of mods I'm thinking of making when the real thing arrives. On the off-chance that others would find it useful, I thought I'd post the results. I've made a colour version I intend to print on card, but here's a photo of my ink-saving (and rather flimsy) paper prototype.

It's made from two nets which look like this:

Those so inclined can download the PDF version [43KB] or replace the .pdf extension with .vsd for the original (Visio) drawings [188KB].

Although the size of the device itself and the screen should be correct, I can't vouch for any other dimensions as they're eyeballed from the available renders.

Have fun,

Steve



[schnitzelboy]

that is really cool!! i remember some youtube vids of something like this, i will definitely try and make one!!

thanks!



[Iorgy77]

pepakura pandora! ^__^



[Tensuke]

I think some others have done this, but you seem to have actually accounted for the size of the screen and all that, so great job!



[Username]

But can it run Croc?



[Tensuke]

Just printed it on some glossy photo paper, looks great! I accidentally put a blank piece of paper on top of one of the pages when it was finished, which was not a good idea since it hadn't dried yet! So there's some small smudges on it, but it's okay because they're only on the bottom where the battery is.



[geo12]

Thanks for posting those pdf's! I want to see if it's really DS size for myself!



[fusion_power]

Cool Mockup, interesting papercraft sheet.

I also have a full 1:1 Mockup, made out of Paper, not very beautiful but with the correct measurements and more important with the right thickness. (10mm the lid and 17mm the case)
My mockup is filled with thick Corrugated fiberboard and very stiff and rigid, you can push it hard without Problems.
It shouldn't be a problem to build your mockup around a solid "cardboard core" to.



[Tensuke]

Eh, the hinges were kind of hard, but I kinda did it! Looks great, too.



[cherrycyanide]

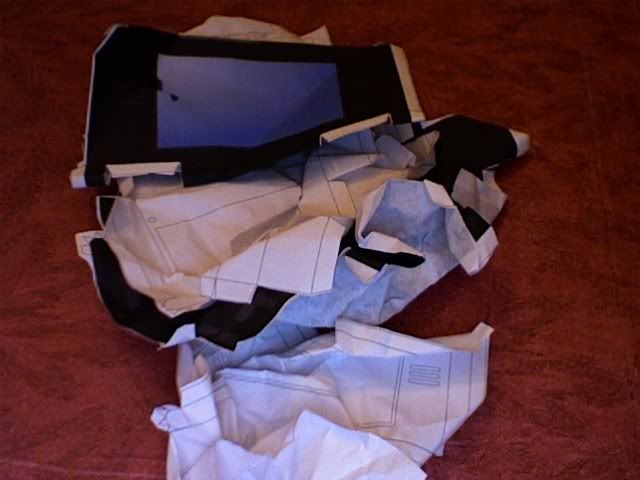

I just finished mine. It looks like it got ran over by a truck... at least I have an idea of the size now.



[paralaX]

DONE! Mine looks like a crap, but I love it! Thank you for template.



[mazza558]

Just built this mockup (just the white one to save ink), and it's very nice. I went a bit wrong around the hinges (there's none), but it's good to see its size, and the gaming controls really do fit perfectly. The keyboard is a lot more usable that I thought based on its size.



[adamorjames]

I got it finished but it doesn't look great. Knowing the size is cool though. A little guide would maybe be nice. Thanks.



[Qwertyuiop]

Wow, that's a nice looking pandora... WHY DOESN'T MINE LOOK LIKE THAT?

[/Simpsons Reference]



[waffles]






Wow, that's a nice looking pandora... WHY DOESN'T MINE LOOK LIKE THAT?

[/Simpsons Reference]

Yours is...ART!



[Kyo]

Oh hey, that's from when the show was still good

Anyway, this is really awesome, you sure do have a lot of time on your hands



[cosam]

Finally got the colour version made:

I took fusion_power's advice and built it around a cardboard core which not only stiffens the whole thing up but also gives you something solid to glue onto.

As for the hinge, the paper tabs just don't cut it. I instead rolled up a paper tube that's an interference fit with the curved bits and fed that through both parts to join them together. Works pretty well.
