Godot Support

[PokeParadox]

Hi folks,

Just wondering if anyone has had any luck running Godot on a Pyra at this stage?
I've been playing about with it and have one practice game complete and another ongoing and it would be nice to eventually see it running on a Pyra!



[sebt3]

Even current releases have GLES 2.0 support, a port should be doable



[KidPaddle]

The editor runs, but is slow.

Compiling is relatively easy. After installing some libraries from the repository, see Godot page, only the file "/usr/bin/scons" at the beginning has to be changed from "/usr/bin/python2" to "/usr/bin/python3" and then it compiles.

• runtime: scons platform=x11 target=release tools=no CCFLAGS="-mcpu=cortex-a7 -mfpu=neon-vfpv4 -mfloat-abi=hard -mlittle-endian -munaligned-access" -j 2
• editor: scons platform=x11 target=release tools=yes CCFLAGS="-mcpu=cortex-a7 -mfpu=neon-vfpv4 -mfloat-abi=hard -mlittle-endian -munaligned-access" -j 2

The whole thing takes about 1-2 hours per call.

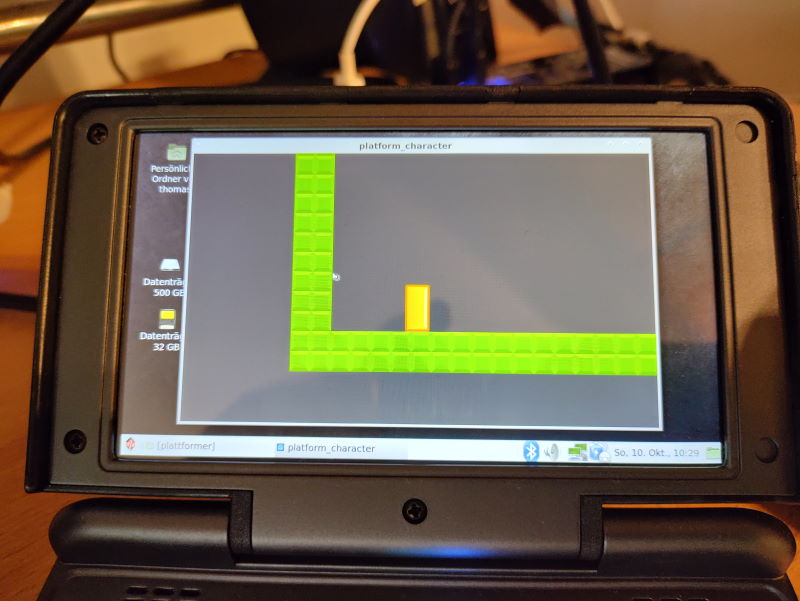

I have attached the runtime with a very simple example, (32MB!), extract the archive where you want, and start the file "run.sh" in the directory. It takes a while, then the game is displayed.

The Editor (58 MB!) is the second file.

Thomas



[KidPaddle]

Ok, godot can't load gles driver, so all is done with software rendering.



[KidPaddle]

Replace the "run.sh" inside with

#!/bin/sh
# Resources: https://github.com/ptitSeb/gl4es/blob/master/USAGE.md
set LC_ALL=”C”
export LIBGL_ES=2
export LIBGL_GL=21
export LIBGL_FB=0
export LD_LIBRARY_PATH="/usr/lib/arm-linux-gnueabihf/gl4es"
# texture too big, enable this
#LIBGL_SHRINK=10
./godot.x11.opt.32 ./

and your fps goes from 17 to 146, but unfortunately only every second or third time. Godot starts but stops after a few seconds.
The console always displays the following errors:

Godot Engine v3.2.3.stable.custom_build.31d0f8ad8 - https://godotengine.org
DRI3 1.0
present 1.2
DRM FD 6
/build/dri3wsegl-pyra-0.5/dri3_ws.c:843: WSEGL_SwapControlInterval: WSEGL_SwapControlInterval 1

OpenGL ES 2.0 Renderer: GL4ES wrapper
OpenGL ES 2.0 Batching: ON

PVR:(Error): ComputeFrameBufferCompleteness: Switching psTex 0x17d8bb8 to XBGR [0, ]
PVR:(Error): ComputeFrameBufferCompleteness: Switching psLevel 0x17b7d00 to XBGR [0, ]
.....

It is strange that a program that uses native ES 2.0 needs the wrapper of ptitSep.

Maybe ptitSeb can help?

Thomas



[ptitSeb]

I guess the program or one of it's dependency is linked to libGL, and that shadows libGLESv2 that it's supposed to use.



[KidPaddle]

Ok, thats makes sense.



[Cebion]

There is also github.com/efornara/frt
I tested this on a sbc with rk3326 and it works wonders.

The creator is also working on a sdl2 version called FRT2.

You would call the Godot 3 stuff for example via ./frt_100_332_arm64.bin --main-pack meteor.pck --resolution xxx
or for a folder via ./frt_100_332_arm64.bin --path godot-port-develop/ --resolution 640x480



[PokeParadox]

So this is a drop in engine that understand Godot 3 projects? pretty cool.
I had toyed with the idea of creating an SDL based engine that could run simple Godot 2D projects, but never got around to it and don't think I'm likely to.
This sounds like it has the same goal in any case.



[KidPaddle]

Thanks, i will have a look at it, maybe it will eliminate the behaviour that the programs only starts after the 3rd or 4th call.

Thomas



[KidPaddle]

Compiling FRT works, but gles context coudn't create:

./godot.frt.opt.armhf
or
./godot.frt.opt.armhf --video-driver GLES2

Godot Engine v3.2.3.stable.custom_build.31d0f8ad8 - https://godotengine.org
DRI3 1.0
present 1.2
DRM FD 6
frt: eglCreateContext failed.

Thomas



[Cebion]

Compiling FRT works, but gles context coudn't create:

./godot.frt.opt.armhf
or
./godot.frt.opt.armhf --video-driver GLES2

Godot Engine v3.2.3.stable.custom_build.31d0f8ad8 - https://godotengine.org
DRI3 1.0
present 1.2
DRM FD 6
frt: eglCreateContext failed.

Thomas

You didn't have to compile it.
Can you try one of the precompiled ones?

FRT - Browse /1.0.0 at SourceForge.net

sourceforge.net



[KidPaddle]

Yes, same error on both pi version.

Thomas

It seems that GLES is not loaded, the output is missing:

LIBGL: Initialising gl4es
LIBGL: v1.1.5 built on Aug  1 2021 19:39:11
LIBGL: Using GLES 2.0 backend
LIBGL: loaded: libGLESv2.so
LIBGL: loaded: libEGL.so
LIBGL: Using GLES 2.0 backend



[traylorpark]

Nothing of value to add other than ... watching this and making encouraging gestures!
I dream of Godot 3D on the Pyra



[Cebion]

I'll investigate once I... if I eventually get my Pyra



[KidPaddle]

I have an Odroid HC1 (Exynos5422 Cortex-A15 2Ghz and Cortex-A7 Octa-core CPUs, 2GB with SATA SSD drive, released late 2017) configured with armbian and godot 3.3 compiled on it. It took the same time to compile, about two hours, pyra is not as slow as I thought.

The compiled version can be run on the pyra but has the same FPS without gl4es or with gl4es. With gl4es it has same behaviour that the application usually stops without an error message.

So, no progress here.

Thomas



[KidPaddle]

Compiled and running FRT on Odroid without problems, but is 25% slower than native compiled godot?
But got same error on Pyra, "frt: eglCreateContext failed."

Thomas



[KidPaddle]

@ptitSeb
Is it possible to track the function calls of gl4es on the pyra like in PVRTrace?

Thomas



[ptitSeb]

Yes, PVRTrace works on the Pyra, a trace can be made there.



[KidPaddle]

Thanks, but where can I get the files? It's not in the repository, I didn't find any files on Pyra, I googled for it but didn't find anything helpful where I can get the files from.

I saw that code::blocks has some trace tools, but I didn't find anything for Pyra.

Sorry for my dumb questions.

Thomas
