sebt3
homebrew player (P. & C.)
Probably more a #define
glshim
- Thread starter lunixbochs
- Start date
ptitSeb
Serial Porter
My nexuiz build is mostly vanilla.
But you probably need my fork to make it run without changes in the code.
But you probably need my fork to make it run without changes in the code.
Last edited by a moderator:
dimag0g
Very Active Member
That's what I'm using right now (git clone https://github.com/ptitSeb/glshim;cmake .; make).
ptitSeb
Serial Porter
Hmmmm, I pushed some changes, so maybe "git pull" and "make" again, so you'll have the same version as me.
For darkplaces, I use official SVN repo.
Here is my current diff:darkplaces.tar.gz

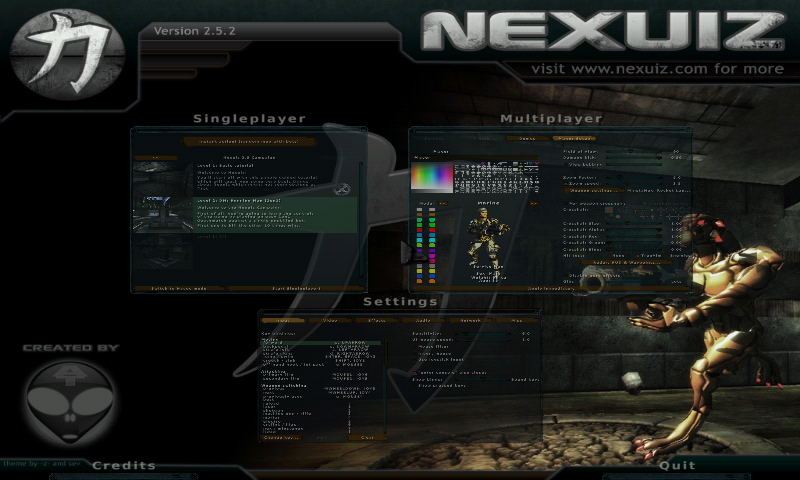

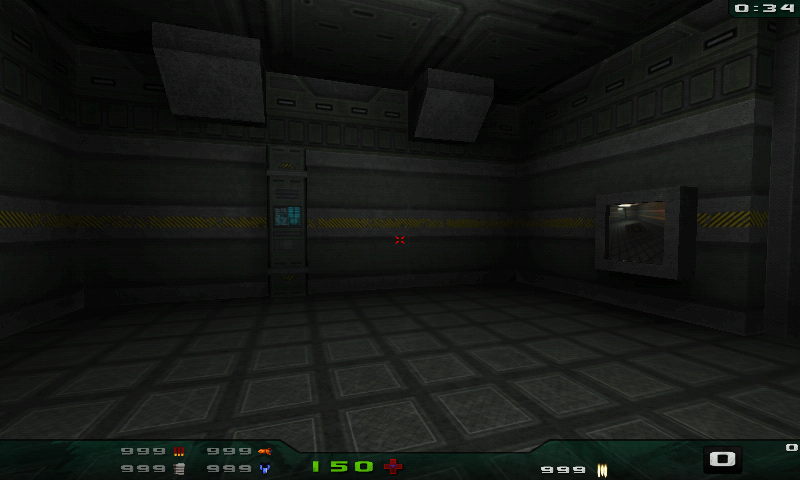

After a "make sdl-nexuiz" you have a runing nexuiz... The tuto in the 2.5 single player level run fine in low detail, but first combat after that is not smooth enough... But I have everything runing fine visualy..
Last edited by a moderator:
- Joined
- Sep 18, 2011
- Messages
- 742
Both of our versions have glTexSubImage1D, so something else is going on.
I've caught up on most of your stuff, and upstream has several things you don't.ptitSeb said:
You'd be surprised how much I cover: https://docs.google.com/spreadsheets/d/1-kNLvmh08Vg_k6sbjMhw20YOY7gBHndSgLVE0KTjU2k/edit#gid=0mcobit said:
That's already been done. The problem is somewhere else.
Last edited by a moderator:
dimag0g
Very Active Member
Thanks for the info. I will check this out next time I have nothing to do, but given ptitSeb's warning about poor performance the priority of this investigation for me is rather low.
I will include a script which checks out and builds the latest glshim libs in the next release of my cdevtools package.
I will include a script which checks out and builds the latest glshim libs in the next release of my cdevtools package.
ptitSeb
Serial Porter
That's true, but I still hadn't work on the "big merge"
. The simple list alone is much nicer!I think you still miss glCompressedTex* FBO and VBO. Not completly sure but I think some of thoses are needed (but I have not checked, at least VBO are optional in the GUI).
Last edited by a moderator:
- Joined
- Sep 18, 2011
- Messages
- 742
simplelist is super old, at this point we should pick individual features I don't have and add them to mainline you're like 250 commits behind now.
you're like 250 commits behind now.
Last edited by a moderator:
dimag0g
Very Active Member
I'm trying to put together the libraries required to run Shattered Pixel Dungeon.
Right now I'm stuck at a point where I miss glXCreatePixmap function. Am I right to suppose that pandora's X server doesn't support GLX anyway?
Right now I'm stuck at a point where I miss glXCreatePixmap function. Am I right to suppose that pandora's X server doesn't support GLX anyway?
ptitSeb
Serial Porter
This one is quite difficult to emulate. You should try to fake it, or remove the call in the sources.
Most of the time, the function is checked but not used. And when it's used, it's a "fallback" strategy when FBO are not available...
And to answer your question, Pandora doesn't support GLX. But some GLX call are emulated as part of glshim.
And when you try the Java Version of ShatteredDungeons with Ptisebs Minecraft PND?
Ptitseb did many Things with GL and ShatteredDungeons have a "Multiplatform" Java Version to download
Maybe i will try it this Evening
Ptitseb did many Things with GL and ShatteredDungeons have a "Multiplatform" Java Version to download
Maybe i will try it this Evening
dimag0g
Very Active Member
I have downloaded both minecraft and codeblocks for spare libs (codeblocks was a bit painful to get with PNDManager), so yes, I've tried some of Ptitseb's libs. Good luck if you want to try for yourself!
I will try to add stubs to glshim then.
ptitSeb
Serial Porter
Is that a contest? The first to succeed wins ?
Is it based on lwjgl (I will push a beta of Revenge of the Titans soon, that is based on it, like Minecraft) or something else?
dimag0g
Very Active Member
It's based on libgdx, with lwjgl as backend.
ptitSeb
Serial Porter
Ah, I have not started working on libgdx, but I have planned to do so, as there are a few interesting game using that engine.
dimag0g
Very Active Member
libgdx builds from sources without apparent issues, however, latests versions require OpenGL 2.0 to run.
I'm currently playing with version 0.9.
I'm currently playing with version 0.9.
Hi,
I'm new to the boards. I don't develop for the Pandora, but came here just because of your glshim library. Thanks a lot, lunixbochs for developing and MIT-licensing this. I was looking for some way of emulating OpenGL 1.x on top of OpenGL ES (for doing some ports of very old ogl 1.x apps to iOS and Android devices). I first found Regal, and became very excited about it, but I found it too complex to understand, and even to guess what's implemented and what's not.
Then I found glshim, and I believe it's closer to what I'm looking for (I also believe glshim's OpenGL 1.x support is more complete than Regal's, please correct me if I'm wrong).
I've some (hopefully) quick questions:
1- There're several branches. I downloaded the "master" branch. Is it the best one for my purposes, or should I look at any other?
2- What's the status of the basic functionality of glReadPixels/glDrawPixels/glCopyPixels for simple GL_RGB or GL_RGBA images? (I know GLES has limitations accessing the depth buffer, but do these functions run fine for RGB/RGBA?
3- Is there some support for offscreen rendering (such as the old pbuffers or the newer FBOs) ? (btw, a full implementation of OpenGL FBOs would be an overwhelming task of several man-years of coding, but a working subset of it would be very handy for me... just the minimum for rendering into a texture or into some offscreen buffer).
4- Do you've any plans for writing an OpenGL ES 2.x backend? (just asking because I guess there will be a day when Android and iOS drop GLES 1.x ...well, GLES 2.x would open doors to more "advanced" features like cube mapping and shadow mapping, but I'm not on a hurry for that)
This is a very exciting and useful project. I hope you continue enhancing it. If I find any bugs or I write any enhancements, I'll report back.
Thanks a lot!!
I'm new to the boards. I don't develop for the Pandora, but came here just because of your glshim library. Thanks a lot, lunixbochs for developing and MIT-licensing this. I was looking for some way of emulating OpenGL 1.x on top of OpenGL ES (for doing some ports of very old ogl 1.x apps to iOS and Android devices). I first found Regal, and became very excited about it, but I found it too complex to understand, and even to guess what's implemented and what's not.
Then I found glshim, and I believe it's closer to what I'm looking for (I also believe glshim's OpenGL 1.x support is more complete than Regal's, please correct me if I'm wrong).
I've some (hopefully) quick questions:
1- There're several branches. I downloaded the "master" branch. Is it the best one for my purposes, or should I look at any other?
2- What's the status of the basic functionality of glReadPixels/glDrawPixels/glCopyPixels for simple GL_RGB or GL_RGBA images? (I know GLES has limitations accessing the depth buffer, but do these functions run fine for RGB/RGBA?
3- Is there some support for offscreen rendering (such as the old pbuffers or the newer FBOs) ? (btw, a full implementation of OpenGL FBOs would be an overwhelming task of several man-years of coding, but a working subset of it would be very handy for me... just the minimum for rendering into a texture or into some offscreen buffer).
4- Do you've any plans for writing an OpenGL ES 2.x backend? (just asking because I guess there will be a day when Android and iOS drop GLES 1.x ...well, GLES 2.x would open doors to more "advanced" features like cube mapping and shadow mapping, but I'm not on a hurry for that)
This is a very exciting and useful project. I hope you continue enhancing it. If I find any bugs or I write any enhancements, I'll report back.
Thanks a lot!!
Last edited by a moderator:
ptitSeb
Serial Porter
Hi @ces
Here are some answers, but @lunixbochs may add some complements.
1. I let @lunixbochs answer here
2. The conversion between format GL_RGBA, GL_BGR, GL_UNSIGNED_BYTE, GL_FLOAT, whatever is handled perfectly. All the conversions, when needed, are handled by swizzle_texture function. The basic glReadPixels, glDrawPixels are handled. glCopyPixels, I don't think it's handled. But it's not a very usefull function without FBO.
3. I don't think there is FBO support in the master branch. I have implemented FBO in my fork, but using the GLES_CM FBO extension.
4. There is basic support of GLES2.x (to be activated at compile time), but no Fixed pipeline emulation, and no GLSL conversion/filtering, so only usable in some very specific use case..
Here are some answers, but @lunixbochs may add some complements.
1. I let @lunixbochs answer here
2. The conversion between format GL_RGBA, GL_BGR, GL_UNSIGNED_BYTE, GL_FLOAT, whatever is handled perfectly. All the conversions, when needed, are handled by swizzle_texture function. The basic glReadPixels, glDrawPixels are handled. glCopyPixels, I don't think it's handled. But it's not a very usefull function without FBO.
3. I don't think there is FBO support in the master branch. I have implemented FBO in my fork, but using the GLES_CM FBO extension.
4. There is basic support of GLES2.x (to be activated at compile time), but no Fixed pipeline emulation, and no GLSL conversion/filtering, so only usable in some very specific use case..
