EvilDragon [Englischer Beitrag] said:
While it's moving a bit slower than before (which is normal - the final few % always take longer than the rest), there's still things that have happened and that should be posted.

The displays

As you probably remember, the 1080p display caused issues since the rotation of the screen from portrait to landscape slows thing heavily down, therefore we needed to change to 720p screens and a special chip that can rotate the picture in realtime.

We found two for us easily accessible 720p displays (well, three, to be exact, but there's no need to test the third one unless none of the two others is good enough for us).
Last week, we finally got all the needed displays (five of each) for testing, as well as non-BGA versions of the rotator chip (we only has BGA samples before).
All other needed parts (like connectors, etc.) have also arrived.
We were lucky with one connector, as it wasn't available within Europe from stock and the only source within the US had a contract so they were not allowed to export it... well, we got it anyways, thank god :)

Nikolaus already finished the PCB needed to test the displays and as you can see, we already have them here.

[Bilder im Spoiler weiter unten]

Global Components will populate them next week and then it's time to write the software and try out the displays together with the rotator chip.

Well, and maybe find some issues on the display PCB, as these always can happen - but they can be fixed with manual soldering, so that's no big deal.

I'll keep you informed and post videos of our display tests, as soon as we did them :).



The main PCB

Nikolaus was mostly working on the display PCBs, so the progress on the main PCB was slower, as you can imagine.
It's still nearly finished - but that 'nearly' are the last percent that always need a lot longer than the rest.


The case

While I'm still trying to find a better hinge (all the laptop-likes are way too big for our small device), the case designers are working on the best way to implement the four shoulder buttons.
This is not as easy as most of you might think, actually. Manually adding shoulder buttons is easy - but finding a possibility to do that in mass production is totally different.


The keyboard

We're still looking for a company that can produce the silicon keymat for us.
While Fatih is in contact with some asian companies, I'm trying my luck with German companies - but it's hard to find one here.

Want to help out? Browse the net, look for companies that can do silicon/rubber keymats and post here, so I can get in contact with them.
Preferably in Europe, but anywhere in the world is fine as well.


The battery

We got a 6000mAh battery sample from the same manufacturer as the original Pandora battery and the case designer thinks we can fit it. Unfortunately, we got it without the PCB, even though we should've gotten it with one.

So before we can fully test it, we need to wait for a new sample.


The SoC

We're still using the OMAP5, since we don't have much more info on the A80 yet.
AllWinner will not offer Linux drivers, but I plan to get in touch with the Cubieboard designers to ask how they will solve their driver issue - but still, switching to the A80 would delay everything for at least 6 months... not an option for us right now, but maybe sometime in the future.

That's it for today, I'll keep you posted.


Übersetzung said:
Auch wenn es jetzt langsamer voran geht wie zuvor (was noramal ist, da die letzten paar % länger als der Rest benötigen), gibt es dennoch Ereignisse, die passieren und über die gepostet werden sollte.


1.) Die Displays

Wie ihr euch vielleicht daran erinnert, das 1080p Display hatte Geschwindigkeitsprobleme mit der Rotation von Protrait nach Landscape, darum mussten wir zu einem 720p Bildschirm, mit einem extra Chip für Rotation in Echtzeit wechseln.

Wir haben zwei leicht erreichbare 720p Displays gefunden (um genau zu sein, drei, aber so lange einer der anderen beiden funktioniert, müssen wir den Dritten nicht testen).
Letzte Woche haben wir alle Displays bekommen (fünf von jedem) zum testen, als auch non-BGA Versionen des Rotationschips (wir hatten nur BGA Versionen).
All die anderen benötigten Teile sind ebenfalls angekommen.
Mit den Steckern hatten wir Glück, da er in Europa momentan nicht erhältlich war, war unsere einzige Quelle in den US, die laut Vertrag nicht exportieren durften... egal, wir haben einen bekommen :).

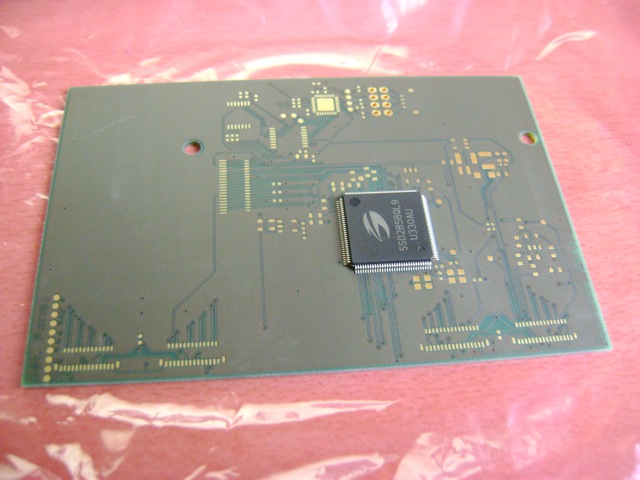

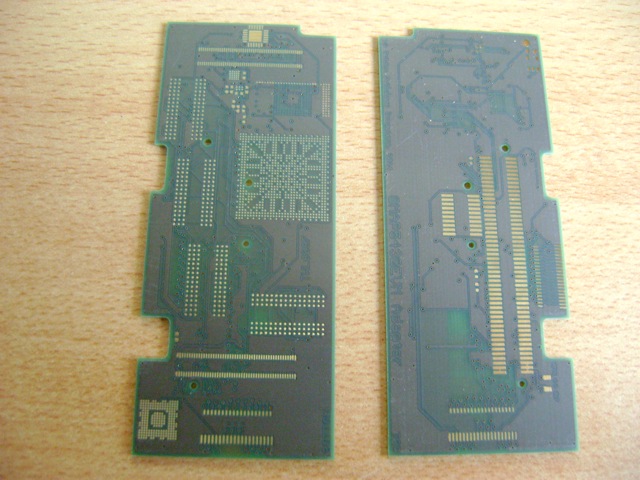

Nikolaus hat bereits die PCBs, für die Displays zum testen, fertig und wie ihr sehen könnt habe ich die bereits hier.

[Bilder gibt es weiter unten im Spoiler]

Global Components wird diese nächste Woche bestücken, dannach ist es an der Zeit Software zu schreiben und die Displays mit dem Chip zu testen.

Vielleicht finden wir Fehler auf den PCB, das kann immer passieren - aber diese können einfach per Hand ausgebessert werden.

Ich werde euch auf dem Laufendem halten, mit Bilder und Videos von unserem Displaytest :).


2.) Das Main-PCB

Nikolaus hat hauptsächlich am Display PCB gearbeitet, darum hat sich am Main-PCB nicht viel getan.
Es ist immer noch fast fertig, aber die letzten paar Prozent benötigen immer die meiste Zeit.


3.) Das Gehäuse

Während ich immer noch ein besseres Scharnier suche (Laptop ähnliches ist zu groß für so ein kleines Gerät), arbeitet der Gehäuse-Designer an den vier Schulter-Knöpfen.
Es ist einfach diese manuell hinzu zufügen, aber für die Massenproduktion ist es viel schwerer.


4.) Die Tastatur

Wir suchen immer noch eine Firma, die die Tastaturmatten herstellen kann.
Während Fatih in Kontakt mit asiatischen Firmen ist, versuche ich mein Glück, eine deutsche Firma zu finden, aber es ist nicht einfach.

Wollt ihr helfen? Sucht im Internet, eine Firma, die Silikon/Gummi Tastaturmatten machen kann und postet sie hier.
Bevorzugt in Europa, kann aber auch außerhalb sein.


5.) Die Batterie

Wir haben eine 6000mAh Batterie, vom selben Hersteller, wie die Pandora Batterie, bekommen und der Gehäuse-Designer denkt, sie könnte passen.
Leider habe wir sie ohne PCB bekommen, obwohl wir hätten alles bekommen müssen.

Bevor wir also testen können, müssen wir auf ein neues Sample warten.


6.) Der SoC

Wir verwenden immer noch den OMAP5, da wir nicht viele Informationen vom A80 haben.
AllWinner wir keine Linux Treiber zur verfügung stellen, aber ich plane die Cubieboard-Designer zu fragen, wie sie ihre Treiberprobleme lösen wollen.
Zum A80 zu wechseln würde alle mindestens 6 Monate verzögern... keine Option für uns, vielleicht in Zukunft aber.


Das war es für heute, ich werde auf dem Laufendem halten.

Bilder:


Blog
Quelle
