Touchscreen Test Forcaanoo

[hardyx]

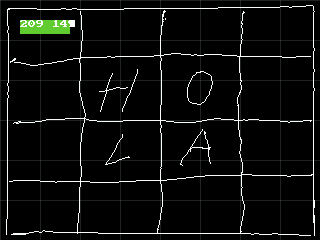

I have ported to Caanoo this simple application, wich was made to test the Wiz touch screen. The program allows to draw in screen with the stylus, on a reference grid. When any button is pressed exits and saves the screen in a image.

The Caanoo screen seems more accurate. The archive includes the executable and the source code.

​



[u9i]

Hey Cool My program got ported. Thanks. I feel so important now I'm gonna see if my Caanoo touchscreen is better quality then the Wiz.



[Rikku2000]

with sdl is simple how about linux touchscreen? with libTS.



[crow_riot]

with sdl is simple how about linux touchscreen? with libTS.

it's also simple (error checking code omitted)

#define TOUCHSCREENDEVICE "/dev/input/event0"

struct tsdev* touchScreenDevice;

// open the device
touchScreenDevice = ts_open(TOUCHSCREENDEVICE, 1);

// configure it
ts_config(touchScreenDevice);

// read a sample
ts_sample tss;
ts_read(touchScreenDevice , &tss, 1);

// close it when no longer needed
ts_close(touchScreenDevice);



[Rikku2000]

thanks crow_riot i will use it for gph quake so i can remove the sdl stuff haha



[badmonkeyfinger]

what is the difference between using SDL or libTS for touchscreen functionality?



[Rikku2000]

not big the one is use SDL and the other is Touch Lib but in my Quake i dont want use any kind of SDL
