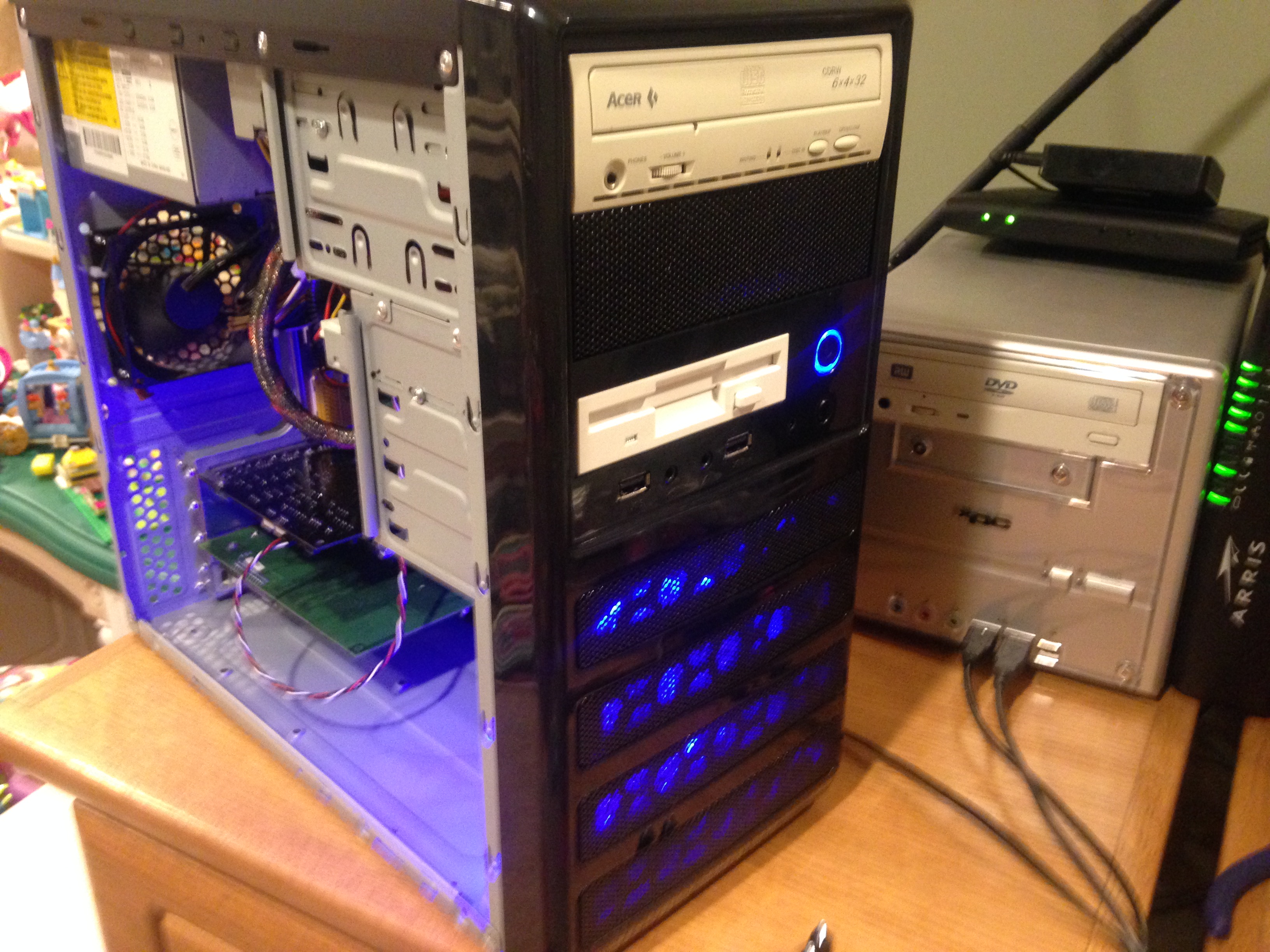

Just wanted to show off a PC I put together:



I was trying to get a machine that fit between late dos and win9X era.
I first tried installing win98se on that shuttle in the back, but it wouldnt take. That ended up with windows XP. Theres another pc on the floor also with win98, but a little fast (athlon tbird 1.2) and i wanted to keep the ati 9600 gp in it.
There was a third option an compaq presario 5000 with a celeron 533. As most of these cheap oem boards are the PCI just didnt work out right in dos. (mainly with sound cards)
So i was reviewing some of the other spare parts I had and if I had a socket 7 board I could put together a nicer slower pc.

So i found a asus P5-VM99 board. It has the ATX standard which helped. So I took the compaq psu, 64 ram stick, 3.5 floppy. The cdrom (6x4x32) wasnt standard with the compaq but i had put it in there at some point.
For the cpu I had a pentium 200 mmx lying around. I also add 2 more ram sticks with 32 mb and 8 mb respectively.
Im also using my original stick athlon heatsink on it. It was a but noisy so i switched it with the fan in the case. Looks ok for now the cpu has not gone above 40 C. I would like to try some noctura cables to Y split the mb connector and try one of speed control cables.
The board also has 1 isa slot which i liked, so if i want to get a isa sound card that could be an option. (thinking about an ESS audiodrive 1868F)

To finish the build off I put in my original owned 3dfx voodoo 3 2000 and phillips acoustic edge. I had a recent bought sb live 5.1 in it, but the dos drivers were not acting that great. The phillps card also has not been that great in dos, but in this machine it is acting not so bad.
So for now ill keep it in, and i moved the sb live to the shuttle pc. The athlon has a audigy 2 zs, which i working out great.
Theres also a 10/100 ethernet card in there too.
The case was a new from newegg and the cheapest one they had a the moment ~$20. It was ok but for one the standoffs ended up stripping, but it should be ok.

The voodoo is really the main purpose for this machine. Ive been able to get just about every glide only game that ive tried so far to work:
Archimedean Dynasty, Redguard, Land of Lore 2, Screamer 2, Carnivores 2

Well im curious about any comments anyone might have and maybe post more pictures of your own retro machine.


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
14,747
Location
Somewhere off the coast of the EU

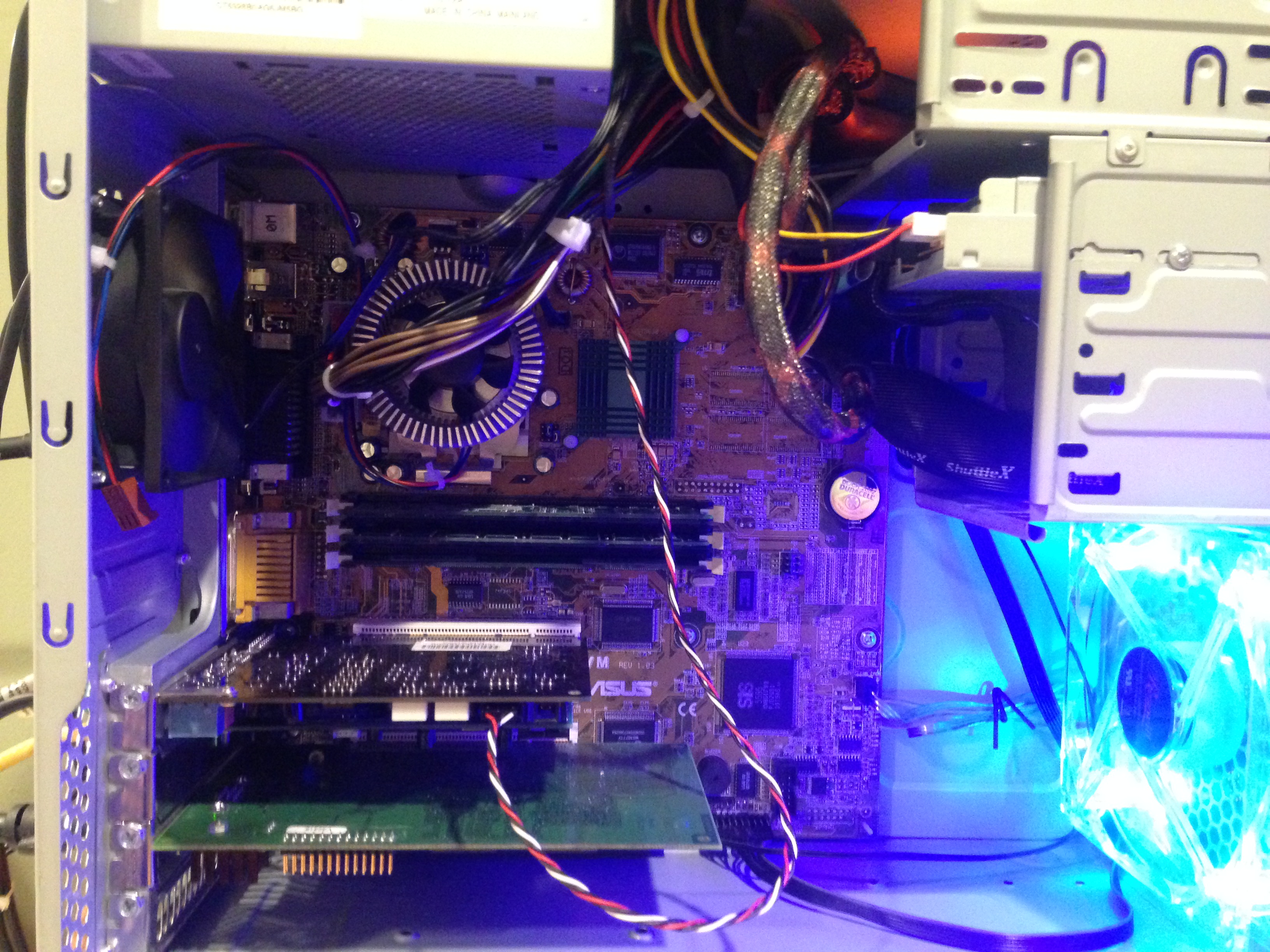

Nice. What are those apparently braided cables going up to the CDRW drive? Are they SATA cables or perhaps rolled up PATA ribbon cables a little like that shuttle-X ribbon cable I see going to the hard disc.

For my own retro machines, I have a Risc PC still set up. I guess I could take a picture of that. The first x86 machine I had was a Pentium 3 machine that had a really weird compaq case (I think) where the top drives could hinge up but not really enough to provide good access to where the hard disc was installed below. I never really worked out what the point of it was. I ran Archlinux on it, so it was never really a retro machine, just underpowered but running the newest software I could get. I get my retro goodness from emulation mostly these days.

  • Like
Reactions: rSl

Pickle

Mega GP Mania
Joined
May 30, 2006
Messages
5,512
Location
Detroit, Michigan
Website
Visit site
the twisted cable is just a analog audio connection from the cdrw to the sound card. The program would tell the cdrom to play an audio track (redbook) and it would output on the cable and the sound card would mix it in with the sound. There is also a digital variant (spdif) but havnt really tried to use it.

I have a number of rounded ide cables that I had in the athlon, but didnt really all of them so I used one here.
Thanks for pointing that out cause i forgot to mention im using a sdcard to ide adapter with 32 gb card. Those things work great, i put one in the athon also. The shuttle is still using a sata hdd.


levi

Still fresh, damnit!
Joined
Oct 6, 2008
Messages
14,747
Location
Somewhere off the coast of the EU
Ah, of course PATA/IDE drives were all chained together on the same bus. That's why there's that cable running up from the SD card adaptor to the CDRW drive; it's a continuation of the cable going into the SD card adaptor from the left. I'd have expected the audio cables to run to the sound card but they seem to connect to the motherboard in the corner. There's a twisted triplet of red, white and black running from the top cable bundle (might well be the CDRW drive) to the sound card, but I'd assume that only carries system beep, and may actually be i2c with it being three wires. Are those braids actually over the molex power cables?


TrashyMG

Sarcasm Dispenser
Staff member
Joined
Jan 18, 2010
Messages
11,088
Think the picture doesn't show it properly, but the cable as Pickle stated is going to the CD-ROM. It was common to just have 3 wires on those connectors, it was used to carry CD audio to the Sound card. It's a single ground, Left and Right. Cost savings? Don't recall I2C being used in any fashion of PCs of the era.
Post automatically merged:

The one and only running Windows machine at my home is an AMD K6-III, 256MB of RAM and running a 3DFX 3000TV for graphics, running Windows 98SE. It's essentially there to play my 3DFX games and also to program the Doctor 64Jr Cartridge.

Last edited:

Pickle

Mega GP Mania
Joined
May 30, 2006
Messages
5,512
Location
Detroit, Michigan
Website
Visit site
in the bottom right is the case io section (power switch, led, pc speaker) Theres also a grey/white cable which is the epower to the front fan with the blue led.
theres no i2c in this PC, its as TrashyMG stated.
Its kind of a mess in that upper section, theres the molex power connections, the floppy cable, the ide cable (the rounded grey). But im actually happy it ended up that way. Ribbon cables are the worst.

edit:
just ran MDK 1 in 3dfx mode and it looks to be running pretty well.

Last edited:

Linux-SWAT

Hardcore Member
Joined
Feb 13, 2010
Messages
8,963
The undead PC :^)
FYI, I bought a Kingspec IDE ssd a while ago for an old laptop, it's working great.

  • Like
Reactions: rSl

Pickle

Mega GP Mania
Joined
May 30, 2006
Messages
5,512
Location
Detroit, Michigan
Website
Visit site
so ive bought the first isa sound card to try.which is an opti 82c931. Looks and sounds like pretty standard sound blaster clone. Its got the wave blaster header for something like a dreamblaster card.
I was thinking about the ess audiodrive 1868F, but i saw this one at really good price. I think it will work just as well, at least sound examples on youtube sound good enough.
it also works with the unisound driver, which i think is a plus.

But what id really like to setup is a roland um-one midi device. I can hook that to the midi connector on the 15 pin and the usb side to either an XP or maybe even linux machine.
This would do the synthesis with any sound font and output it back into a line in to get any kind of midi playback.
phils computer lab shows how to do this with the falcon midi player.
The

Im thinking of making a video of the process of getting the card setup and play some things with it and just go over the pc build in general.


pmprog

DNF (Did Not Finish)
Joined
Apr 25, 2011
Messages
4,150
Wow, that shuttle in the back, I had one of those... That was my first PC to be used as a "media box" :) I still use the carry case for my Hades Canyon NUC


Pickle

Mega GP Mania
Joined
May 30, 2006
Messages
