Lichee Pi 4 RISC-V SBC

[spud42]

i thought there was a thread on RISC-V but could not find it .



[TeDaDeS]

I like the idea of Risk-V. Although I didn't develop for it myself, I like to get familiar with the platform as it feels promising.

some Risk-V things I posted about:

The Communication Cube

I already live a life in service to others, but I’m not allowed to come into contact with any of the people I serve Now we know where you work. https://yewtu.be/watch?v=8XF57Ds5jxI https://yewtu.be/watch?v=EdT_KVqewNQ

pyra-handheld.com

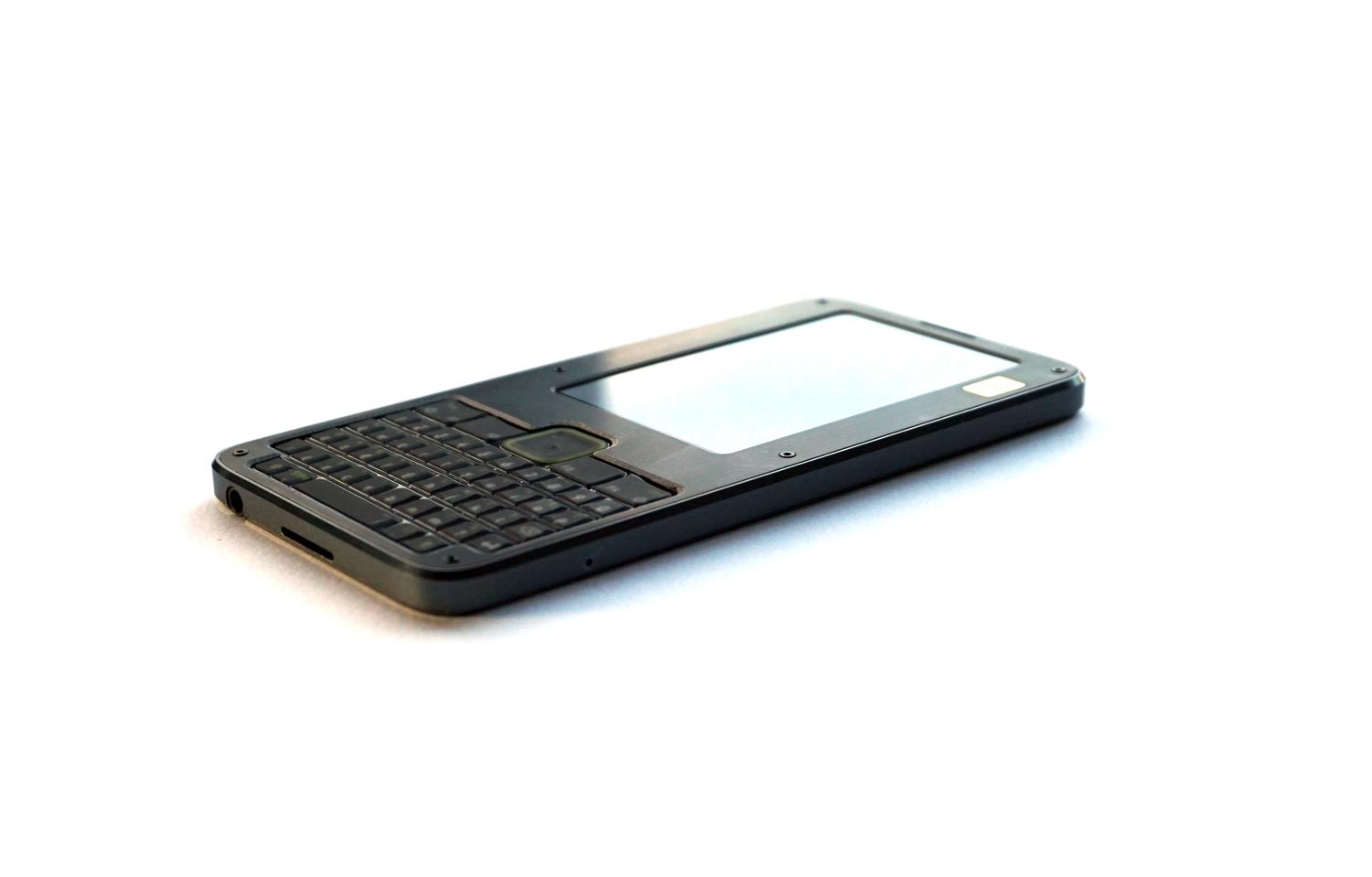

Precursor

Mobile, Open Hardware, RISC-V System-on-Chip (SoC) Development Kit

www.crowdsupply.com

I must have been more, but I can't find those. I must have a bunch of cheap aliexpress risk-v development board links somewhere.



[elw3]

For who is too lazy to open links:

The Lichee Pi 4A is powered by the TH1520 processor, a low-power, well-performing RISC-V processor.

Parameters
RAM (optional) 8GB 64bits LPDDR4, 16GB 64bits LPDDR4.
Storage - eMMC: (optional) Empty, 8G, 32G, 128G, TF card support.
Ethernet - 2 x Gigabit Ethernet interfaces, optional POE
USB - USB 3.0 x 4, USB 2.0 x 1 (for burn-in only).
Audio interface - 1 x 3.5 mm headphone jack, one speaker jack, two on-board microphones
Display interface - 1 x HDMI 2.0 / 1 x 4-lane MIPI DSI
Camera interface: 2 x 2-lane MIPI CSI / 1 x 4-lane MIPI CSI.
GPIO : UART/IIC/SPI
Main control chip TH1520, CPU processor RISC-V 64GCV C910*4@2GHz
- Supports 64KB I cache and 64KB D cache per core.
- Quad cores share 1MB L2 cache.
- TEE and REE support, TEE/REE support is configurable at startup
- Supports custom and RISC-V compatible multicore debug framework.
- Independent power domain with DVFS support.
Graphics processor - OpenCL 1.1/1.2/2.0
- OpenGL ES 3.0/3.1/3.2
- Volcano 1.1/1.2
- Android NN HAL
NPU processor support 4TOPS@INT8 general-purpose NNA computing power at 1GHz
- Support TensorFlow, ONNX, Caffe
- Support CNN, RNN, DNN, etc.
Video decoder real-time decoder.
- Support H.265/H.264/VP9/8/7/6/AVS/AVS+/AVS2.0/VC1/MPEG4
- Support H.264 BP/MP/HP@level 5.1 decoding, max 4K resolution.
- Support H.265/HEVC Main Profile@level 5.1 decoding, max. 4K resolution.
- Support VP9 Profile-2 decoding, max. 4K resolution.
- Supports AVS2.0 decoding, max. 4K resolution.
- Supports VP6/7/8/AVS/AVS+/VC1/MPEG4 decoding up to 1920x1080 resolution
- Decoding performance up to 4K@75fps
Video encoder.
- Supports H.264 BP/MP/HP@level4.2 encoding, maximum 4K resolution.
- H.265/HEVC main profile encoding support, up to 4K resolution.
- Supports I-frame and P-frame only.
- Encoding performance up to 4K@40fps

Thing costs 140 on amazon.
Really like the modular design. Wonder whats its power usage is.
Since the chip is blank without heatsink it should be extremely low.



[TeDaDeS]

This one is ~90 euro's: https://www.rasppishop.de/starfive-visionfive2-4gb

• Prozessor: StarFive JH7110 64bit SoC mit RV64GC bis zu 1,5GHz
• Arbeitsspeicher: LPDDR4 4GB
• Speicher: TF Card Slot, Flash für Uboot
• Video-Ausgang: HDMI 2.0, MIPI-DSI
• 1/ 4-polige Stereo Audio
• 1 x HDMI-Anschluss
• 2 x RJ45 Gigabit Ethernet
• 2 x USB 2.0 und 2 x USB 3.0
• 1 x M.2 M-Key



[spud42]

He did a review on this 7 months ago. its not as powerful as the new board.
