How different is GLES 1 from GL ?


clop

Member
Joined
Aug 17, 2010
Messages
176
Hi fellow developers,


Here's a question for you. I'm just starting to experiment with openGL and I've understood that GLES1 was a subset of GL1, and that a working GLES1 code would work with a "standard" openGL.


But my experiments proved me wrong. So, am I right? Is my experiment right? Please, help me :)


My experiment: Drawing a single coloured triangle.


Relevant code:



Code:
#if !defined(HAVE_GLES)

	#define GLfloat	 GLdouble

	#define GL_CLAMP_TO_EDGE	 GL_CLAMP

	#define glClearDepthf glClearDepth

	#define glOrthof	  glOrtho

#endif

GLfloat triangle[] = {

	0.125f, 0.125f, 0.0f,

	0.75f, 0.125f, 0.0f,

	0.125f, 0.75f, 0.0f

};

GLfloat colors[] = {

	0.0f, 0.0f, 1.0f, 1.0f,

	0.0f, 1.0f, 0.0f, 1.0f,

	1.0f, 0.0f, 0.0f, 1.0f

};

void initGL()

{

	glClearColor (0.0f, 0.0f, 0.0f, 0.0f);

	glMatrixMode(GL_PROJECTION);

	glLoadIdentity();

	glOrthof(0.0f, 1.0f, 0.0f, 1.0f, -1.0f, 1.0f);

	glShadeModel(GL_SMOOTH);

}

void drawTriangle(GLfloat *vertices, GLfloat *color)

{

	glEnableClientState(GL_VERTEX_ARRAY);

	glVertexPointer(3, GL_FLOAT, 0, vertices);

	glEnableClientState(GL_COLOR_ARRAY);

	glColorPointer(4, GL_FLOAT, 0, color);

	glDrawArrays(GL_TRIANGLES, 0, 3);

	glDisableClientState(GL_COLOR_ARRAY);

	glDisableClientState(GL_VERTEX_ARRAY);

}

For openGL, I use SDL with flag SDL_OPENGL flag, for openGLES I use EGL.

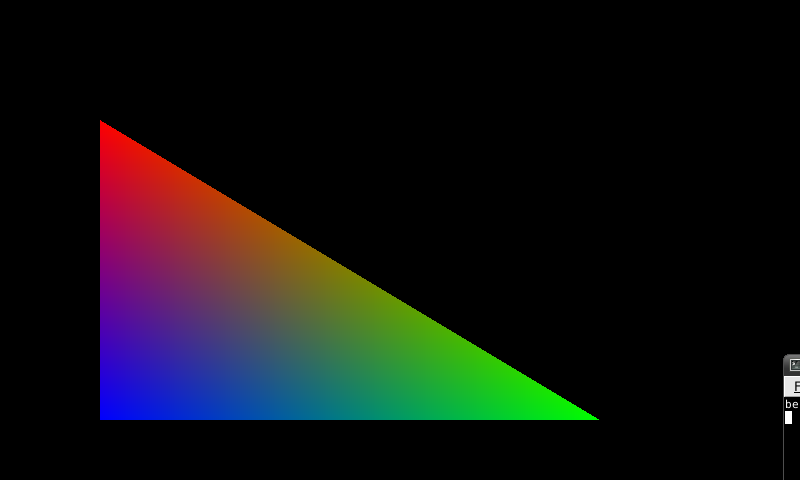

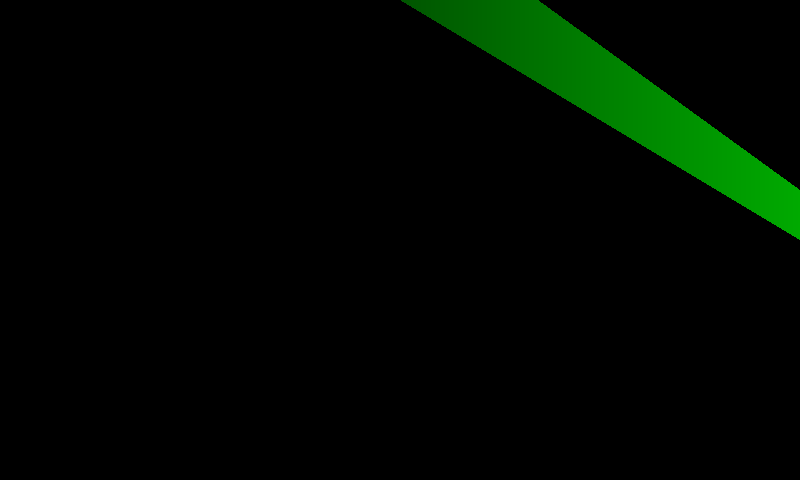

Result are attached, first one is openGL and second and correct one (I guess) is openGLES rendering.



Last edited by a moderator:

Exophase

Nothing good will ever come of Exophase.
Joined
Sep 21, 2006
Messages
10,308
Age
36
Location
Cleveland OH
The OpenGL ES one is working as expected, right?


I think your problem is that in the OpenGL version you redefine GLfloat to GLdouble, but you still pass GL_FLOAT to glVertexPointer. So it's interpreting your doubles (64-bit) as floats (32-bit). You should pair GLdouble arrays with GL_DOUBLE, although I don't see why you can't use GLfloat with the OpenGL version, nor any of the other float functions.


clop

Member
Joined
Aug 17, 2010
Messages
176
Nice eye, Exophase, that was it!


That's the problem with first steps, I just assumed that part from the GL->GLES porting tutorial. I really need to better understand what I'm doing :)


Thanks!
