Usb Experience, Webcam Driver, Multiple Gamepads

[alerino]

folks,
this is much like a proof that pandora really IS a full computer
I've successfully connected lots of usb devices, but still need a little help making some of them actually work.

youtube video

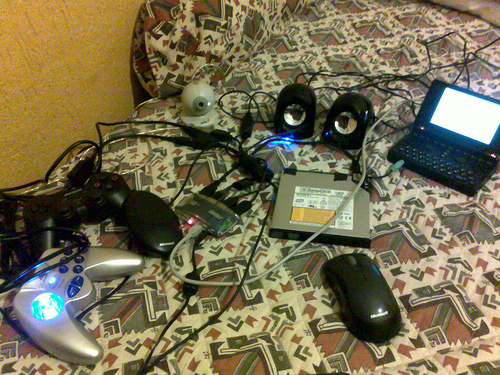

in the high speed AC powered hub connected directly to pandora usb host
- microsoft wireless optical mouse
- sony internal dvd/cdrw thru usb2ide adapter
- nokia E71 (pc suite mode)
- full speed hub (not 2.0)

in the full speed hub
- two gamepads
- webcam
- usb powered speakers

Song: Against The Wind - Bob Seger

pics

look, E71 as a modem!!!

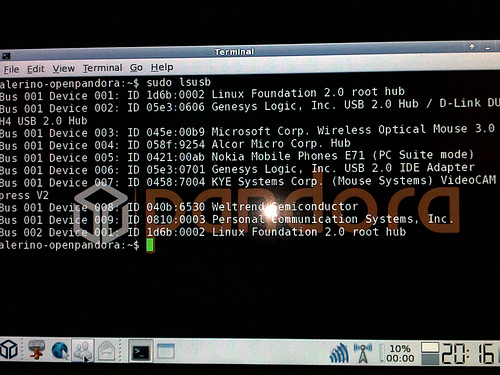

sudo lsusb and dmesg merged outputs

Spoiler

Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 001 Device 002: ID 05e3:0606 Genesys Logic, Inc. USB 2.0 Hub / D-Link DUB-H4 USB 2.0 Hub - high speed AC powered hub

[ 68.387390] usb 1-2: new high speed USB device using ehci-omap and address 2
[ 68.545959] usb 1-2: configuration #1 chosen from 1 choice
[ 68.568237] hub 1-2:1.0: USB hub found
[ 68.572570] hub 1-2:1.0: 4 ports detected
[ 68.699340] usb 1-2: New USB device found, idVendor=05e3, idProduct=0606
[ 68.706176] usb 1-2: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[ 68.713439] usb 1-2: Product: USB2.0 Hub


Bus 001 Device 003: ID 05e3:0701 Genesys Logic, Inc. USB 2.0 IDE Adapter
[ 151.052062] usb 1-2.4: new high speed USB device using ehci-omap and address 26
[ 151.187561] usb 1-2.4: configuration #1 chosen from 1 choice
[ 151.221343] scsi1 : SCSI emulation for USB Mass Storage devices
[ 151.234191] usb 1-2.4: New USB device found, idVendor=05e3, idProduct=0701
[ 151.241241] usb 1-2.4: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[ 151.248626] usb 1-2.4: Product: USB TO IDE
[ 151.253845] usb-storage: device found at 26
[ 151.253875] usb-storage: waiting for device to settle before scanning
[ 156.248535] scsi 1:0:0:0: CD-ROM SONY CDRW/DVD CRX835E KDKE PQ: 0 ANSI: 0
[ 156.327331] sr0: scsi3-mmc drive: 0x/24x writer cd/rw xa/form2 cdda tray
[ 156.334747] sr 1:0:0:0: Attached scsi CD-ROM sr0
[ 156.335144] sr 1:0:0:0: Attached scsi generic sg0 type 5
[ 156.341949] usb-storage: device scan complete

Bus 001 Device 004: ID 058f:9254 Alcor Micro Corp. Hub
[ 168.630126] usb 1-2.2: new full speed USB device using ehci-omap and address 27
[ 168.756500] usb 1-2.2: configuration #1 chosen from 1 choice
[ 168.778747] hub 1-2.2:1.0: USB hub found
[ 168.783294] hub 1-2.2:1.0: 4 ports detected
[ 169.013366] usb 1-2.2: New USB device found, idVendor=058f, idProduct=9254
[ 169.020355] usb 1-2.2: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 169.027709] usb 1-2.2: Product: Generic USB Hub
[ 169.032287] usb 1-2.2: Manufacturer: ALCOR

Bus 001 Device 005: ID 0421:00ab Nokia Mobile Phones E71 (PC Suite mode) => first, Usb Broadband HowTo
[ 185.270721] usb 1-2.1: new full speed USB device using ehci-omap and address 32
[ 185.398620] usb 1-2.1: configuration #1 chosen from 1 choice
[ 185.420501] usb 1-2.1: bad CDC descriptors
[ 185.428802] usb 1-2.1: New USB device found, idVendor=0421, idProduct=00ab
[ 185.435760] usb 1-2.1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 185.443298] usb 1-2.1: Product: Nokia E71
[ 185.447326] usb 1-2.1: Manufacturer: Nokia
[ 189.161376] cdc_acm 1-2.1:1.10: ttyACM0: USB ACM device
[ 189.567657] usbcore: registered new interface driver cdc_acm
[ 189.573364] cdc_acm: v0.26:USB Abstract Control Model driver for USB modems and ISDN adapters

Bus 001 Device 006: ID 045e:00b9 Microsoft Corp. Wireless Optical Mouse 3.0
[ 150.591003] usb 1-2.3: new low speed USB device using ehci-omap and address 25
[ 150.729278] usb 1-2.3: configuration #1 chosen from 1 choice
[ 150.769348] input: Microsoft Microsoft USB Wireless Mouse as /devices/platform/ehci-omap.0/usb1/1-2/1-2.3/1-2.3:1.0/input/input8
[ 150.858062] input: USB HID v1.11 Mouse [Microsoft Microsoft USB Wireless Mouse] on usb-ehci-omap.0-2.3
[ 150.868255] usb 1-2.3: New USB device found, idVendor=045e, idProduct=00b9
[ 150.875213] usb 1-2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 150.882598] usb 1-2.3: Product: Microsoft USB Wireless Mouse
[ 150.888305] usb 1-2.3: Manufacturer: Microsoft

Bus 001 Device 007: ID 0458:7004 KYE Systems Corp. (Mouse Systems) VideoCAM Express V2

Bus 001 Device 008: ID 0810:0003 Personal Communication Systems, Inc.
Bus 001 Device 009: ID 040b:6530 Weltrend Semiconductor
[ 169.426788] usb 1-2.2.2: new low speed USB device using ehci-omap and address 29
[ 169.598907] usb 1-2.2.2: configuration #1 chosen from 1 choice
[ 169.641143] input: USB Gamepad as /devices/platform/ehci-omap.0/usb1/1-2/1-2.2/1-2.2.2/1-2.2.2:1.0/input/input9
[ 169.721496] input: USB HID v1.10 Joystick [USB Gamepad ] on usb-ehci-omap.0-2.2.2
[ 169.729949] usb 1-2.2.2: New USB device found, idVendor=0810, idProduct=0003
[ 169.737091] usb 1-2.2.2: New USB device strings: Mfr=0, Product=2, SerialNumber=0
[ 169.744659] usb 1-2.2.2: Product: USB Gamepad
[ 169.934509] usb 1-2.2.3: new low speed USB device using ehci-omap and address 30
[ 170.077423] usb 1-2.2.3: configuration #1 chosen from 1 choice
[ 170.106719] input: MOSIC USB 2A8K GamePad as /devices/platform/ehci-omap.0/usb1/1-2/1-2.2/1-2.2.3/1-2.2.3:1.0/input/input10
[ 170.195465] input: USB HID v1.00 Gamepad [MOSIC USB 2A8K GamePad ] on usb-ehci-omap.0-2.2.3
[ 170.206054] usb 1-2.2.3: New USB device found, idVendor=040b, idProduct=6530
[ 170.213195] usb 1-2.2.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[ 170.220733] usb 1-2.2.3: Product: USB 2A8K GamePad
[ 170.226562] usb 1-2.2.3: Manufacturer: MOSIC

Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

works out-of-the-box
no software support
no firmware support

Questions:
1) how to enable multiple gamepads? And make one of them primary, for example.
2) how to recompile the kernel with specific firmware support? I have a webcam and a usb tv tuner in that situation. They are recognized but not probed automatically.



[paulguy]

Linux will create more event and js devices for multiple joysticks automatically. I don't know about making them primary. I guess it's just the order you put them in or based on udev rules, but then there's the existent gamepad that is the pandora itself, so I honestly don't know how to override that at runtime.

For your second question, if it's trying to load a firmware and it doesn't exist, you'll need to find the firmware file and put it in /lib/firmware. It might be part of the v4l or dvb (I forget what they call it now.) project, or may need to be extracted from the Windows driver, which will be specific to the driver, so you'll need to search around the internet.



[Pleng]

Linux will create more event and js devices for multiple joysticks automatically. I don't know about making them primary. I guess it's just the order you put them in or based on udev rules, but then there's the existent gamepad that is the pandora itself, so I honestly don't know how to override that at runtime.

Is the existing gamepad actually treated as a gamepad? I thought it was just treated as keyboard cursor keys plus pgup,pgdn,home,end,ctrl,alt?

If so then, ignoring the analogues for one minute, getting the first gamepad to over rule the built in one should be a case of mapping the appropriate buttons to the appropriate keys...



[paulguy]

I think it acts as both or switches modes or something. But you could be right. I'm honestly not sure, and also not sure how to tell.

Also, first result on google: http://www.linuxtv.org/wiki/index.php/Em28xx_devices#Firmware



[jiuzhege]

how to find a webcam driver for logitech?

sth. like spca5xx ? but in the repo, I am fail in installing the spcav1...



[jiuzhege]

i'm lost too, finding the drivers may not be the worst problem, installing them it is, i think

in logitech‘s answer,there seems to be a pretty good driver --UVC and its compatible webcam.

Maybe who has these kinds of webcam can try such driver...
