Super Gp2x Mod! Everything Fixed

[segasonicfan]

So I've had my GP2X for a while and I quickly found that this great little system has 3 major flaws:

1) Video interference (MK1 only from what I hear)

2) Poor controls (stick really not responsive enough)

3) weak audio output level through headphone jack (very weak...)

So being the insane modder I am I set out to fix these bugs!

First, here's the pics:
http://i18.photobucket.com/albums/b134/Seg...an/gp2xmod6.jpg
http://i18.photobucket.com/albums/b134/Seg...an/gp2xmod5.jpg
http://i18.photobucket.com/albums/b134/Seg...an/GP2xmod4.jpg
http://i18.photobucket.com/albums/b134/Seg...an/gp2xmod3.jpg
http://i18.photobucket.com/albums/b134/Seg...an/gp2xmod2.jpg
http://i18.photobucket.com/albums/b134/Seg...an/gp2xmod1.jpg

Now for what I did:

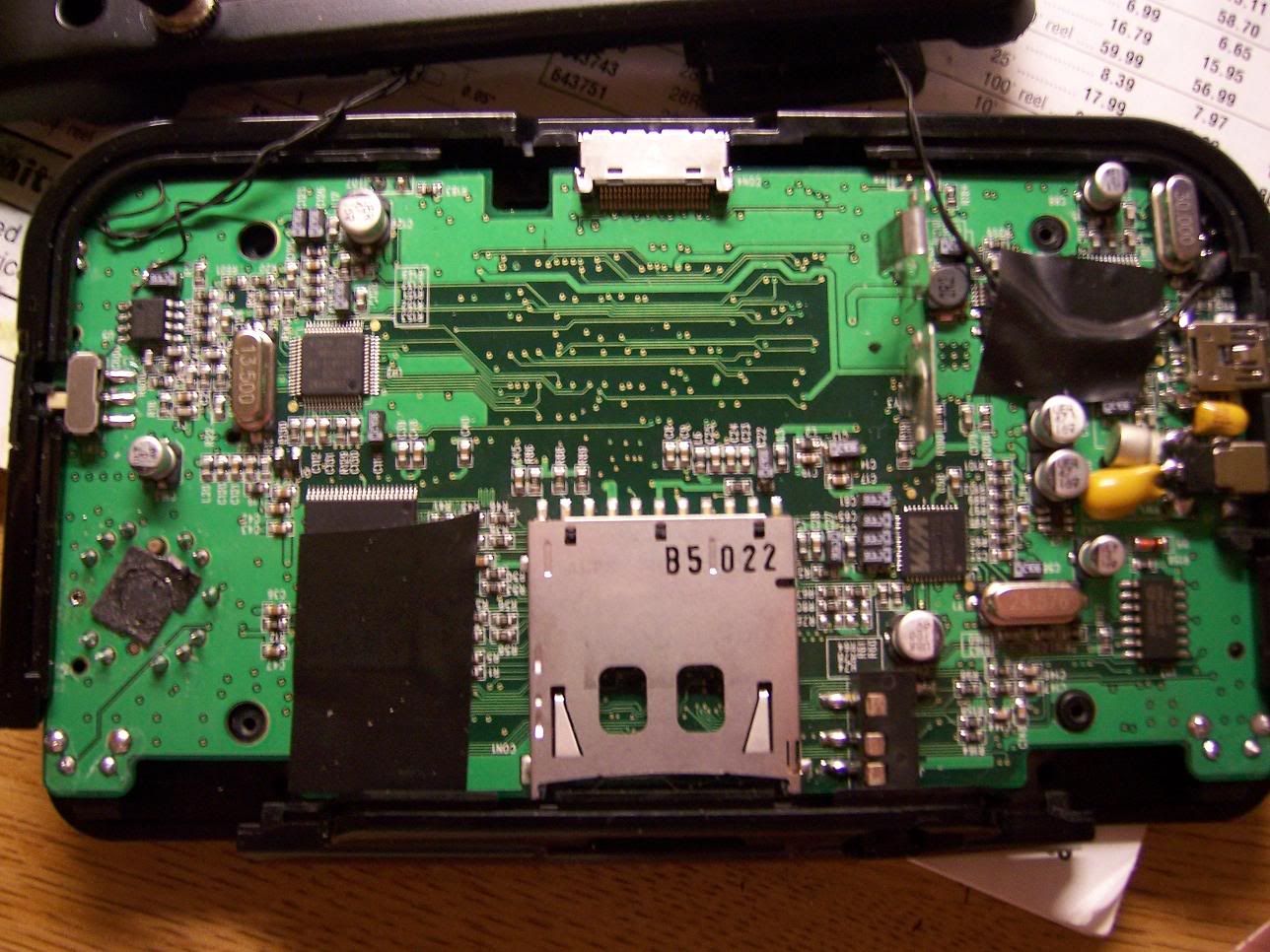

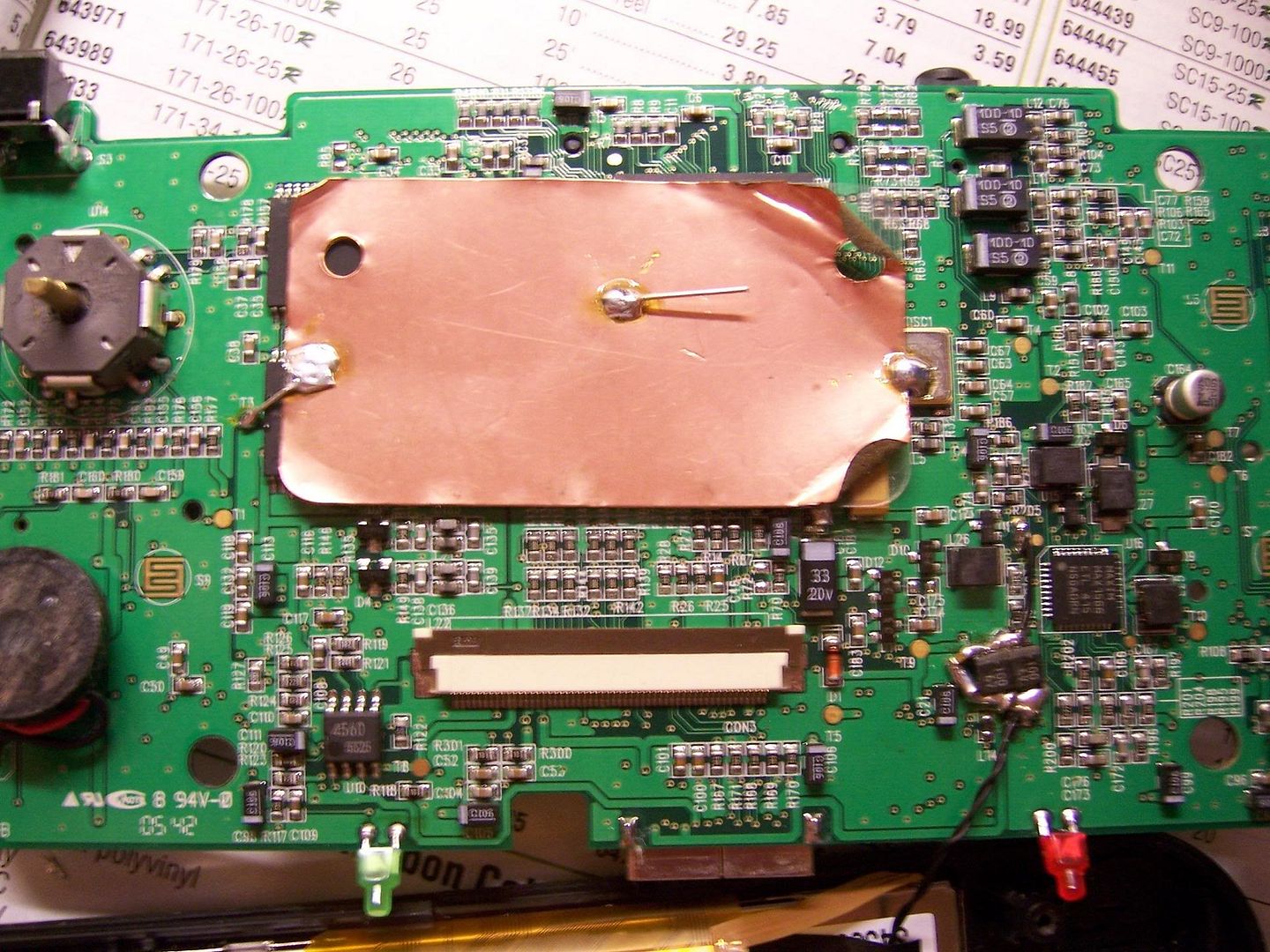

First, I tackled the interference problem as much as I could. From what I guessed, the power input was poorly bypassed. I added some nice tantalums and SMD caps to really smooth out everything. Additionally I added a grounding pad over all the main processors to limit RF interference. As you can see in the pics I grounded the screen through a set of wires (amazing that it wasn't grounded before) and I added a small lead to press down on from the copper pad to further ground it. Thinking back on it I should probably ground it even more...maybe in the future.

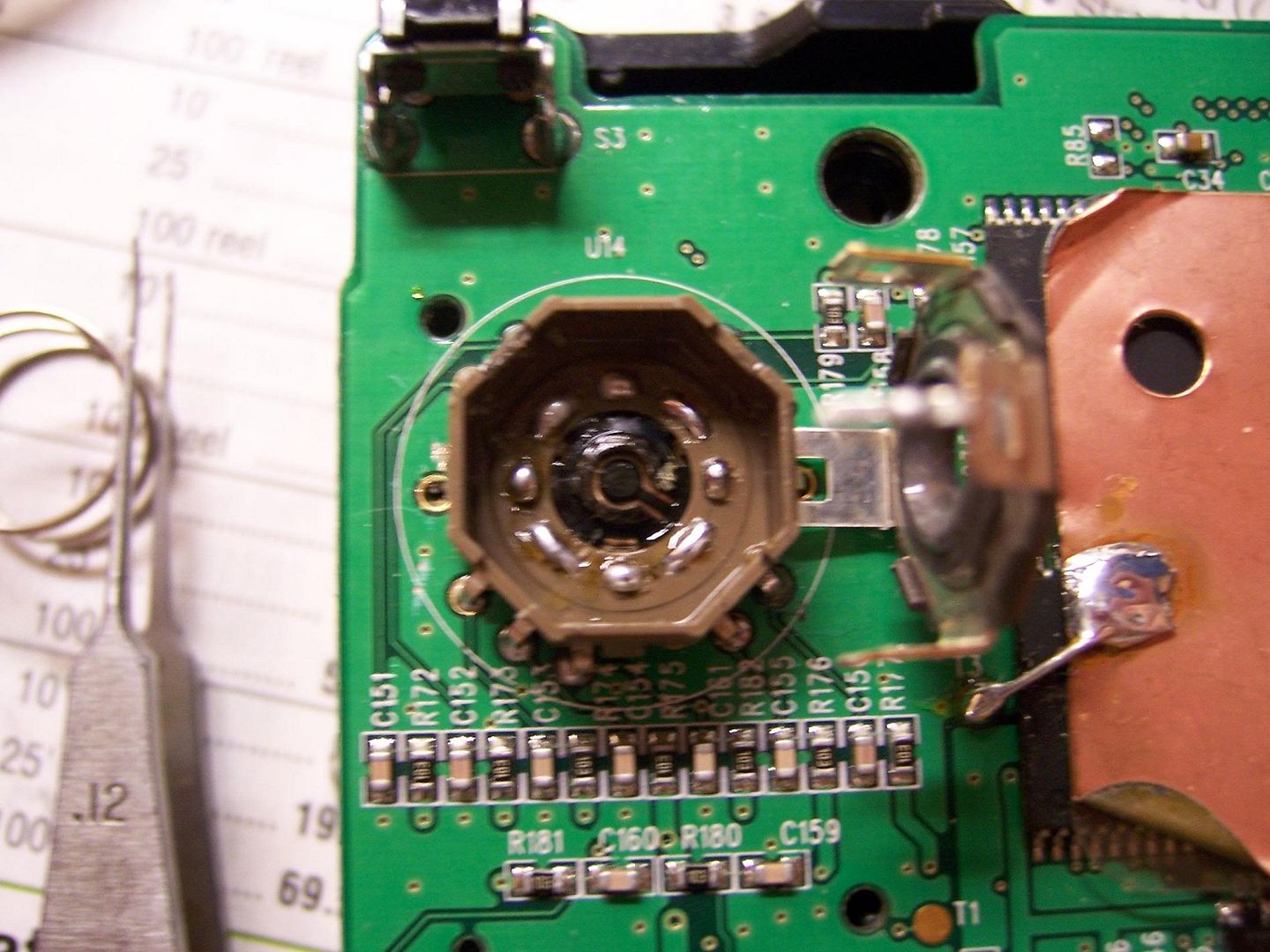

Next thing was to tackle the controller stick. I really didn't want to add in a new one especially since sourcing one small enough need salvaging from a broken portable. So I decided to fix the stick instead. I opened everything up and added solder to all the directions which raises the contact point. After a good bit of testing I found that this mod GREATLY improves the response of the stick.

Finally, to fix the audio problem. I was going to put a new amp in for the headphones but came up with a better idea: pull the speaker audio into the headphones and make a switch to swap between the two.
The speaker amp is surprisingly great quality and the switch also helps keep the speakers muted even when using the other headphone input (I found that the mute sense often came unplugged). Well the sound is amazing and really top notch quality. Now finally I can hurt my ears ^_^

-Segasonicfan
