Conky Configs

retroDude · Apr 19, 2012

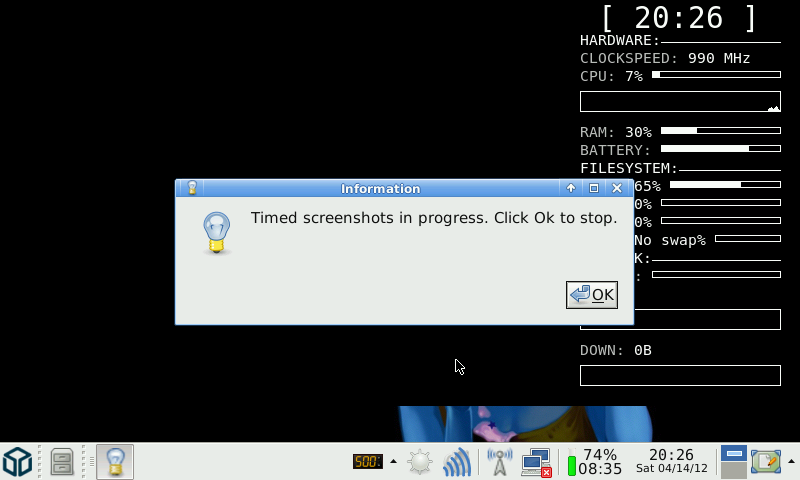

Ok, i have now finished the simple conky setup with batterybar (Big thnx to GiraffeeDreams) and a wifi strenght bar. (i only get max 70% tho)

After this i will continue on a multiple conky setup with background matching.

Anyway here is the config:

alignment top_left

background no

border_width 1

cpu_avg_samples 2

default_color white

default_outline_color white

default_shade_color white

draw_borders no

draw_graph_borders yes

draw_outline no

draw_shades no

use_xft yes

xftfont DejaVu Sans Mono:size=12

gap_x 0

gap_y 0

minimum_size 60 60

net_avg_samples 2

no_buffers yes

out_to_console no

out_to_stderr no

extra_newline no

own_window no

double_buffer yes

own_window_class Conky

own_window_type normal

stippled_borders 0

update_interval 4.0

uppercase no

use_spacer none

show_graph_scale no

show_graph_range no

TEXT

${offset 580}${font DejaVu Sans Mono:size=22} [ ${time %H:%M} ]${font DejaVu Sans Mono:size=8}

${offset 580}${font DejaVu Sans Mono:size=11}HARDWARE

hr

${offset 580}${color grey}CLOCKSPEED

color $freq MHz

${offset 580}${color grey}CPU

color $cpu% ${cpubar 6}

${offset 580}${cpugraph 20, 200}

${offset 580}${color grey}RAM

color $memperc% ${membar 6}

${offset 580}${color grey}BATTERY: $color${execbar cat /sys/class/power_supply/bq27500-0/capacity}

${offset 580}FILESYSTEM

hr

${offset 580}${color grey}ROOT

color ${fs_used_perc /}% ${fs_bar 6 /}

${offset 580}${color grey}SD-1

color ${fs_used_perc /media/mmcblk0p1}% ${execbar df -h | grep "/media/mmcblk0p1" | awk '{ printf "%s", $5 }' }

${offset 580}${color grey}SD-2

color ${fs_used_perc /media/mmcblk1p1}% ${execbar df -h | grep "/media/mmcblk1p1" | awk '{ printf "%s", $5 }' }

${offset 580}${color grey}SWAP

color ${swapperc}% ${swapbar 6}

${offset 580}NETWORK

hr

${offset 580}${color grey}SIGNAL

color ${execbar cat /sys/devices/platform/omap/omap_hsmmc.2/mmc_host/mmc2/mmc2:0001/mmc2:0001:1/net/wlan0/wireless/link}

${offset 580}${color grey}UP

color ${upspeed wlan0}

${offset 580}${upspeedgraph wlan0 20, 200}

${offset 580}${color grey}DOWN

color ${downspeed wlan0}

${offset 580}${downspeedgraph wlan0 20, 200}

GiraffeeDreams · Apr 19, 2012

Very cool

I'll post mine up once I've modified it. Glad to help

retroDude · Apr 19, 2012

GiraffeeDreams said:
Very cool I'll post mine up once I've modified it. Glad to help

Thnx. and thnx for the code

May i ask you to test the wifi bar code?, mabye its somthing in my configuration that disables me for getting full strenght, my pandoras wifi is buggy in many ways..

GiraffeeDreams · Apr 19, 2012

Yeah no problem I'll give it a go tonight and I'll let you know the results after a few hours worth of testing around the house.

GiraffeeDreams · Apr 19, 2012

My wifi path seems to be a little different, but I'm missing 'wireless/link' from the end of the folder line, any ideas?

retroDude · Apr 19, 2012

GiraffeeDreams said:
My wifi path seems to be a little different, but I'm missing 'wireless/link' from the end of the folder line, any ideas?

What i did was to navigate to the folder in "/sys/class/net/wlan0 (in my case)/wireless" there is a file called link

then i open a terminal window from there and copied the path displayed in terminal, its much longer than the one you navigated to in file manager. it displayed as folows for me:

/sys/devices/platform/omap/omap_hsmmc.2/mmc_host/mmc2/mmc2:0001/mmc2:0001:1/net/wlan0/wireless/link

add the path to the code with the link file. in my case:

${execbar cat /sys/devices/platform/omap/omap_hsmmc.2/mmc_host/mmc2/mmc2:0001/mmc2:0001:1/net/wlan0/wireless/link}

retroDude · Apr 19, 2012

The file link displayes 70 as maximum for me, so if anyone can rewrite the $execbar or the $execibar code so that the value 70 is acualy 100% i would be gratefull..

GiraffeeDreams · Apr 19, 2012

Oddly, no matter how I navigate there's no Wireless folder, I can't find a link file anywhere, I'll keep checking through though.

retroDude · Apr 19, 2012

GiraffeeDreams said:
Oddly, no matter how I navigate there's no Wireless folder, I can't find a link file anywhere, I'll keep checking through though.

did you have your wireless enabled and on? becouse that folder dissapairs when i disable my wifi

file system / sys / class / net / wlan0 or somthing

GiraffeeDreams · Apr 20, 2012

The wlan0 folder disappears when it's inactive, but otherwise the folders in wlan0 are device (shortcut), phy80211 (shortcut), subsystem (shortcut) and Statistics. I'm not having any luck finding the Link file anywhere.

What firmware you using out of interest?

retroDude · Apr 20, 2012

GiraffeeDreams said:
The wlan0 folder disappears when it's inactive, but otherwise the folders in wlan0 are device (shortcut), phy80211 (shortcut), subsystem (shortcut) and Statistics. I'm not having any luck finding the Link file anywhere.

What firmware you using out of interest?

SuperSaxxon Beta 3

GiraffeeDreams · Apr 20, 2012

I'll update my firmware tomorrow, I'm still on hf6

Link · Apr 21, 2012

@Retrodude,

Do you mind posting your rainbox gal:

???

Thanks,

retroDude · Apr 21, 2012

Link said:
@retroDude,

Do you mind posting your rainbox gal:

http://boards.openpa...ra-backgrounds/

???

Thanks,

Done.

gotwake424 · Apr 23, 2012

Never used conkey before- used some similar programs.

Retrodude i'm using your config file and it looks great; however it does not let my

pnd's/sd cards show up on the desktop whenever its running.

Any thoughts?

retroDude · Apr 23, 2012

gotwake424 said:
Never used conkey before- used some similar programs.

Retrodude i'm using your config file and it looks great; however it does not let my

pnd's/sd cards show up on the desktop whenever its running.

Any thoughts?

Yes.. the codes for the SD cards is as folows:

${offset 580}${color grey}SD-1

color ${fs_used_perc /media/mmcblk0p1}% ${execbar df -h | grep "/media/mmcblk0p1" | awk '{ printf "%s", $5 }' }

${offset 580}${color grey}SD-2

color ${fs_used_perc /media/mmcblk1p1}% ${execbar df -h | grep "/media/mmcblk1p1" | awk '{ printf "%s", $5 }' }

If you look at this part of the code: ${fs_used_perc /media/mmcblk0p1}% you need to change the name of the CD card to whatever your CD card is named, like this ${fs_used_perc /media/YOURSDCARDNAME}%

retroDude · Apr 23, 2012

GiraffeeDreams said:
I'll update my firmware tomorrow, I'm still on hf6

I got a Battery code for you if your intrested:

STATUS

color ${exec cat /sys/class/power_supply/bq27500-0/capacity}% ${exec cat /sys/class/power_supply/bq27500-0/status}

This code displays if battery is charging or not: STATUS: 34% Charging / STATUS: 34% Discharging

gotwake424 · Apr 23, 2012

I've gotten my sd card to show up in the conky menu

But my actual desktop icons like in "pandora -> desktop -> Firefox, psxrearmed

Those do not show up unless I highlight them/select them. Then they disappear when de-selected/highlighted

retroDude · Apr 23, 2012

gotwake424 said:
I've gotten my sd card to show up in the conky menu

But my actual desktop icons like in "pandora -> desktop -> Firefox, psxrearmed

Those do not show up unless I highlight them/select them. Then they disappear when de-selected/highlighted

Type this before TEXT:

own_window yes

own_window_type desktop

gotwake424 · Apr 23, 2012

Retrodude said:
gotwake424 said:

I've gotten my sd card to show up in the conky menu

But my actual desktop icons like in "pandora -> desktop -> Firefox, psxrearmed

Those do not show up unless I highlight them/select them. Then they disappear when de-selected/highlighted

Click to expand...

Type this before TEXT:

own_window yes

own_window_type desktop

i'll try it out when I get home

Thanks for the help and patience

EDIT: tried it and this is my home screen now

tried to edit it a few different ways didn't really change anything

Config:

alignment top_left

background no

border_width 1

cpu_avg_samples 2

default_color white

default_outline_color white

default_shade_color white

draw_borders no

draw_graph_borders yes

draw_outline no

draw_shades no

use_xft yes

xftfont DejaVu Sans Mono:size=12

gap_x 0

gap_y 0

minimum_size 60 60

net_avg_samples 2

no_buffers yes

out_to_console no

out_to_stderr no

extra_newline no

own_window yes

double_buffer yes

own_window_class Conky

own_window_type normal

stippled_borders 0

update_interval 4.0

uppercase no

use_spacer none

show_graph_scale no

show_graph_range no

own_window yes

own_window_type desktop

own_window_transparent yes

TEXT

${offset 580}${font DejaVu Sans Mono:size=22} [ ${time %H:%M} ]${font DejaVu Sans Mono:size=8}

${offset 580}${font DejaVu Sans Mono:size=11}HARDWARE

hr

${offset 580}${color grey}CLOCKSPEED

color $freq MHz

${offset 580}${color grey}CPU

color $cpu% ${cpubar 6}

${offset 580}${cpugraph 20, 200}

${offset 580}${color grey}RAM

color $memperc% ${membar 6}

${offset 580}${color grey}BATTERY: $color${execbar cat /sys/class/power_supply/bq27500-0/capacity}

${offset 580}FILESYSTEM

hr

${offset 580}${color grey}ROOT

color ${fs_used_perc /}% ${fs_bar 6 /}

${offset 580}${color grey}SD-1

color ${fs_used_perc /media/PANDORA}% ${execbar df -h | grep "/media/PANDORA" | awk '{ printf "%s", $5 }' }

${offset 580}${color grey}SD-2

color ${fs_used_perc /media/MEDIA}% ${execbar df -h | grep "/media/MEDIA" | awk '{ printf "%s", $5 }' }

${offset 580}${color grey}SWAP

color ${swapperc}% ${swapbar 6}

${offset 580}NETWORK

hr

${offset 580}${color grey}SIGNAL

color ${execbar cat /sys/devices/platform/omap/omap_hsmmc.2/mmc_host/mmc2/mmc2:0001/mmc2:0001:1/net/wlan0/wireless/link}

${offset 580}${color grey}UP

color ${upspeed wlan0}

${offset 580}${upspeedgraph wlan0 20, 200}

${offset 580}${color grey}DOWN

color ${downspeed wlan0}

${offset 580}${downspeedgraph wlan0 20, 200}

EDIT EDIT: added "own_window_transparent yes" no luck in getting the desktop icons to show up - does let my background show through now tho
