What Will The Keys Be Like?


PoisonedV

Yeah, I'm a GIRL gamer, what of it?
Joined
Oct 20, 2006
Messages
3,096
Age
30
Website
Visit site
Will the keys be harder or softer to press? Will it have good tactile? Easy to use without pressing more than one? How fast is it to type with?


craigix

Mega GP Mania
Joined
Feb 3, 2003
Messages
11,010
Location
England
Website
twitter.com
This is something which is being worked on right now, most likely they will be similar to the keys on a P300 samsung phone, a membrane coated in a plastic where the keys are, something like 1mm max movement but with feedback when you press them.

They have to be very thin and this seems the best way of doing it, of course this could change later in the month, if anyone has suggestions based on maybe work they have done on such devices we would like to hear from you :)


Chip

[Insert Custom Title Here]
Joined
Jun 25, 2003
Messages
3,503
Age
41
Location
NJ, USA
Website
chipandre.com
craigix said:
This is something which is being worked on right now, most likely they will be similar to the keys on a P300 samsung phone, a membrane coated in a plastic where the keys are, something like 1mm max movement but with feedback when you press them.

They have to be very thin and this seems the best way of doing it, of course this could change later in the month, if anyone has suggestions based on maybe work they have done on such devices we would like to hear from you :)

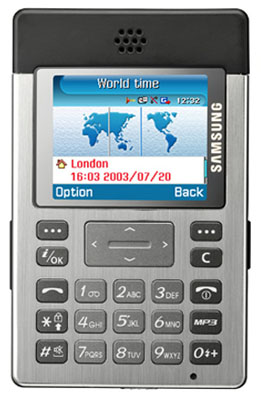

You mean this P300?



Interesting choice. So I take it all the keys are part of one solid rubber sheet, but they protrude through separate holes in the phones case, giving the illusion of individual keys. Will this work with the keys being so much closer to each other on the Pandora?

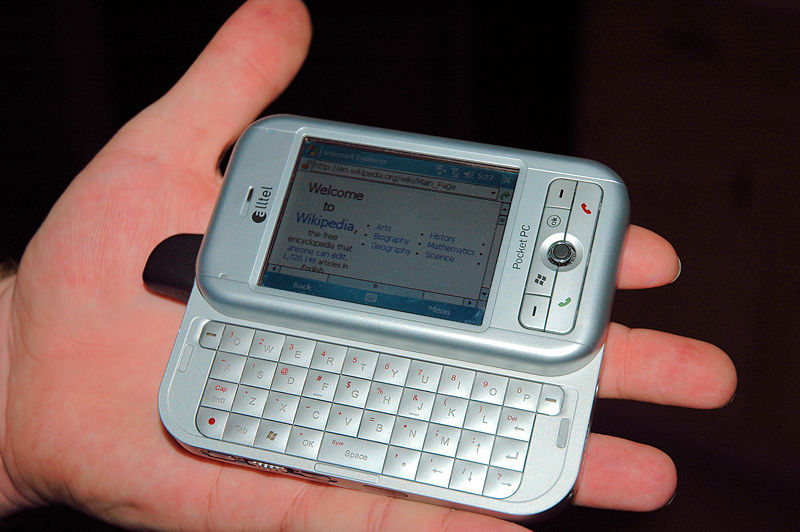

With the keys being adjacent to each other, I also worry about being able to differentiate between them by touch. A keypad like the one on the HTC Apache might be better:


The 39 key keypad is only about 3.75"x1.25" and very flat, yet is east to type on thanks to the slightly convex shape of each key. I have big fat thumbs, yet I have no problem typing on it. Each key is an individual piece of hard plastic that is (somehow) attached to the clickey membrane underneath. Keypress travel is probably sub-1mm, but has a distinct tactile feedback. It is also backlit, though I would understand if that particular feature didn't make it into the Pandora.

Last edited by a moderator:

peca

Member
Joined
Jan 10, 2008
Messages
895
Location
Jičín city; CZ
Website
Visit site
craigix said:
if anyone has suggestions based on maybe work they have done on such devices we would like to hear from you :)
Yeah. PLEASE, make keys as silent as possible and make soft backlight. So I can type at night in bed and not to awake my wife :)

Last edited by a moderator:

Magnulus

Death of Rats!
Joined
Jun 17, 2006
Messages
861
Age
38
Location
Bergen, Norway
Website
www.magnulus.com
With a design choice like that P300, will the buttons also be of the rubber kind that kind of hangs a bit to your fingers? That would be great, because it would prevent slippage, which I would suppose is the biggest problem using a keyboard this small.


Zarneth

Member
Joined
Dec 19, 2006
Messages
303
Location
Perth, Australia
Website
Visit site
Magnulus said:
With a design choice like that P300, will the buttons also be of the rubber kind that kind of hangs a bit to your fingers? That would be great, because it would prevent slippage, which I would suppose is the biggest problem using a keyboard this small.

Depends what you mean by rubber. The harder the better in my opinion. If they're squishy then they're slower to type on.

Last edited by a moderator:

DaveC

Internal Development
Joined
Mar 4, 2004
Messages
9,208
Please no clicky keys. Remember the keyboard will have to be used for gaming when some games run out of dedicated game keys. Those clicky metal dome keys are awful for any kind of game controls.

Plastic topped rubber membrane keys would be best. They don't make noise and have better game action.


javaJake

Jacob Godserv
Joined
Sep 13, 2007
Messages
1,772
Location
USA
Website
myhumblecorner.wordpress.com
DaveC hath spoken! Let it be as he commands! ;)

On a more serious note, I agree with DaveC. It should have some feedback as to if it was clicked, but "clicky" keys can take longer to pop back up, and other obnoxious things, that cause problems with any intense keyboard use.


Frogboy

Wake me when it's over.
Joined
Oct 29, 2007
Messages
347
Age
44
Location
USA
Website
Visit site
It would be awesome if the keyboard was usable enough to develop on. You probably think I'm crazy but that would be the only way I could write code for this thing. I rarely get time to sit in front of a computer for more than a couple of minutes at a time.


Megagun

Member
Joined
Jun 15, 2006
Messages
214
Myself, I love calculator-style rubber keys: the kind that stick to your fingers a bit.

Also, I'd really appreciate it if the keys weren't 'stuck' together: as in it'd be great if there was some 'plastic pandora case' inbetween keys...

Something like http://i9.ebayimg.com/05/i/000/ca/42/7c7e_1.JPG (the device on the right, but with larger keys, ofcourse) (that's a CASIO SF3300ER).

Only problem I could forsee with this is that the 'hardwareside' of the keys could wear out one day due to excessive pressage.

Advantage of a method like this is, though, that the entire keyset can be easilly made out of rubber, and thus is cheap plus in the end easy to replace (just buy a new one, open the case, and insert!)..

But really, rubber > plastic > metal.
Also, slightly nonsquare > square.

Also, rubber would allow for old-cell-phone-styled backlighting of keys, which would be very muchly so awesome.. ;)

Unless.... Unless the keys have been decided upon already?


scarath

Member
Joined
Dec 30, 2007
Messages
128
Megagun said:
Myself, I love calculator-style rubber keys: the kind that stick to your fingers a bit.

Also, I'd really appreciate it if the keys weren't 'stuck' together: as in it'd be great if there was some 'plastic pandora case' inbetween keys...
Many problems I see with this. First off, do you remember as a kid if you jabbed those rubber keys too hard and they got stuck under the plastic and either broke or where a pain to get out again? Well Im not saying anyone who buys the pandora will be a heavy handed oaf and be smashing the keypad, BUT what if someone else gets hold of the pandora? A button-bashing friend? A young relative on a visit to the family home @ Xmas? A dim-witted girl friend? Careful what you wish for, you may end up with mashed keys >.<

Of course the simple solution to this is to not let anyone else touch, see, smell or taste your Pandora and to keep it hidden away from other people filthy corrupting fingers, maybe hide it in a mountain?

Anyway just a thought .... I second (or third or fourth whatever number we are on) the NO CLICKY keys!!!!!!

Last edited by a moderator:

Chip

[Insert Custom Title Here]
Joined
Jun 25, 2003
Messages
3,503
Age
41
Location
NJ, USA
Website
chipandre.com
For those so strongly opposed to "clickey" keys, I'd like to point out that there will certainly not be a microswitch under each individual key, like old clickey keyboards. Clickey in this sense simply means having a tactile click when the key is pressed, so it is obvious that you have in fact pressed the key. This is essential when the key travel distance is almost nothing. Without some tactile feedback people would be likely to press too hard, not knowing whether the keypress has registered or not. I have tested this out on a couple cell phones, and the keypresses are almost inaudible. You certainly won't be waking anybody up by typing on them.


Tobriand

Very Active Member
Joined
Dec 27, 2002
Messages
4,071
Age
34
Location
Croydon (UK)
Website
Visit site
Seeing as those currently commenting are the no-clicky-keys crowd, I'd just like to register a vote for the other side - or if not actual click, then at least tactile feedback.

What I don't want is for the keyboard to have buttons similar to the Ericson Chatboard for the GP32 - whilst functional, I'd hardly call it fun to type on, let alone that the impression that style of button gives is very very cheap (possibly because they are). I'd much prefer something firmer.


trooper

Trooper`s watching you !!!
Joined
Apr 20, 2003
Messages
5,503
Location
The DarkSide (London)
Website
Visit site

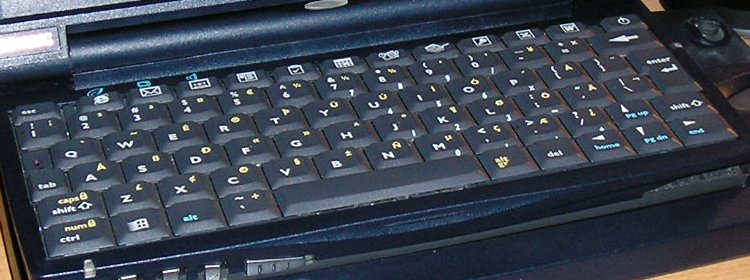

I would definitely like to see something with hard plastic keys, Such as the psion series 5 or psion revo, As they have slim sturdy keys with a smal amount of travel and good tactile feedback.





Rusty tape not included.

Trooper


#1 GameMaster

Member
Joined
Feb 10, 2008
Messages
377
Age
30
Location
Columbus,OH
Website
Visit site
If your someone who is worried about the keys lettering fading away then you could do something like what Sony did with it's button.





see how they have a clear coating over the actual lettering or whatever on the button then you wouldn't have to worry about it rubbing off the letterings on the buttons.
perfect solution. :p


Zarneth

Member
Joined
Dec 19, 2006
Messages
303
Location
Perth, Australia
Website
Visit site
#1 GameMaster said:
If your someone who is worried about the keys lettering fading away then you could do something like what Sony did with it's button.





see how they have a clear coating over the actual lettering or whatever on the button then you wouldn't have to worry about it rubbing off the letterings on the buttons.
perfect solution. :p
Um. Or you could just do what the gp2x did and make it part of the mould. I honestly thing an entire clear keyboard though would likely be kinda wierd looking and expensive to make. o_O

Last edited by a moderator:
