RGB+C-sync to YPbPr


T.T.

Master of Lightning
Joined
Oct 8, 2010
Messages
522
Location
Somewhere between the Sun and Pluto

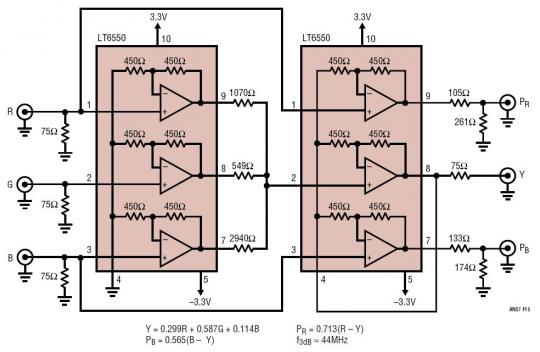

I found this schematic for RGB to YPbPr, but I have no idea how to put in the sync signal.


I do know that the sync signal is supposed to be on Y.


could anyone who knows a bit more on electronics help me out?
