Pyra Blender File

Discussion in 'General Discussions' started by EvilDragon, Oct 10, 2015.

  1. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,700
    Location:
    Ingolstadt
    Download here: http://www.openpandora.org/downloads/Pyra.blend.zip

    Do whatever you want with it. But it would be great if you could share some nice renders with us here :)
    You can also use it to show possible color choices.
    In that case: Shoulder Buttons, Nubs, DPad and Stylus will have the same color and the rest of the case will also have the same color (but both can be different).

    Enjoy and have fun :D


    Last edited by a moderator: Oct 12, 2015
    Tags:
    szr, Tenka, rSl and 4 others like this.
  2. fusion_power

    fusion_power Advanced Member

    Joined:
    Dec 11, 2006
    Messages:
    7,040
    Location:
    germany
    Nice+thx. But .blend files of such complexity are hard to edit if you want to mess around with the actual design. .sat Files anyone? ^^"

  3. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,700
    Location:
    Ingolstadt
    I only have .igs, .x_t and .step.

  4. fusion_power

    fusion_power Advanced Member

    Joined:
    Dec 11, 2006
    Messages:
    7,040
    Location:
    germany
    Hm, I doubt that 123D Design can handle this (looking... .stp and .step are possible it seems). Well, no Problem. I tested the Blender file.  The file has indeed so many polygons, it almost kills my Blender actualy, and there is no material, hm, I should try a newer Blender version, maybe mine is just to old (1.49). It must have been a very high resolution when translating the "solid renderer" files into the poly based Blender Format.  :D

    Last edited by a moderator: Oct 10, 2015
  5. matzesu

    matzesu Hardcore Member

    Joined:
    Jul 22, 2009
    Messages:
    2,965
    Location:
    Germany,, Saarland, at home
    This could be a great test for Blender ät Pyra :)

    When its abble to handle its own blender files, then the Pyra CPU is good ;)

  6. WizardStan

    WizardStan Mega GP Mania

    Joined:
    May 24, 2008
    Messages:
    16,690
    I can work with this.  I exploded the parts and exported as STL.  As with the Pandora the top keyboard part of the case is problematic for FDM printers but I think I can come up with some.
    Not now, unfortunately; I'm busy printing other stuff, but in a few weeks I'll give it a try.

    rSl likes this.
  7. comradekingu

    comradekingu Glowing ember

    Joined:
    Apr 15, 2011
    Messages:
    4,957
    Single button space, here we go ;)

  8. fusion_power

    fusion_power Advanced Member

    Joined:
    Dec 11, 2006
    Messages:
    7,040
    Location:
    germany
    It's especialy a CPU+ RAM test. ;)   The FIle is almost 180MB alone, not sure if the (classic) Pandora can even open it.

  9. ptitSeb

    ptitSeb Serial Porter

    Joined:
    Aug 15, 2012
    Messages:
    8,363
    Location:
    France, near Lyon

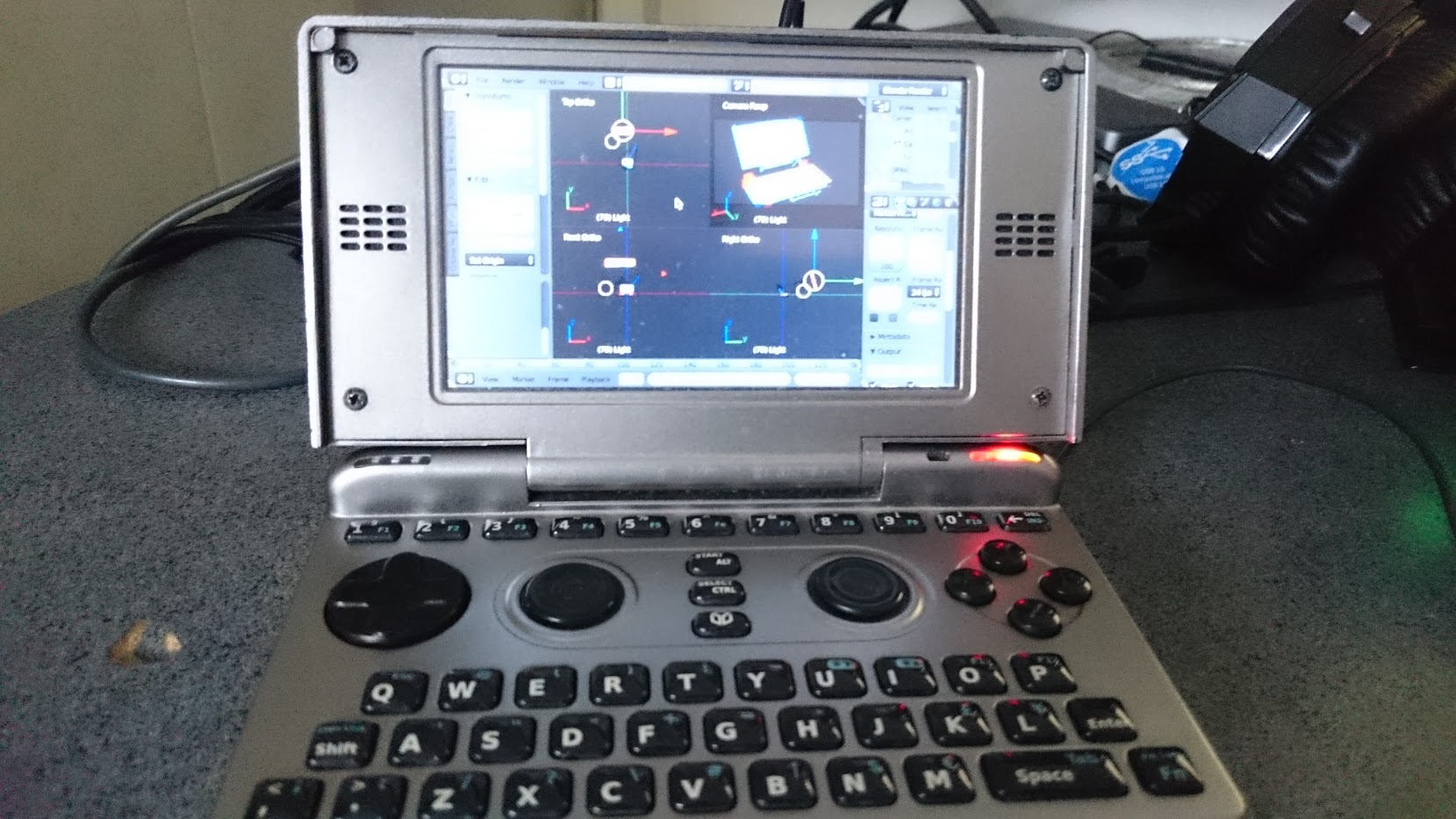

    It can... barely, but it can.

    Pyra on Pandora.JPG

    wena, rSl and TrashyMG like this.
  10. Caine

    Caine Hardcore Member

    Joined:
    Jun 5, 2008
    Messages:
    4,081
    Location:
    Netherlands
    It's been over a decade since I last tried Blender and even back then I barely used it. I just (re-)learned that I do not know how to use Blender :p

    That said, thanks for sharing ED. I can at least admire it from different angles now.

  11. DaMummy

    DaMummy Soldier Paste

    Joined:
    Nov 5, 2009
    Messages:
    4,417
    Location:
    Ohio
    OK so whos the first to make a cardboard printout 3d version of the pyra like someone did of the pandora all those ages ago?

  12. Wrath Of Khan

    Wrath Of Khan Soul soother...

    Joined:
    Dec 29, 2009
    Messages:
    5,140
    Location:
    Ireland
    Does anyone dare to do a dark red Pyra case, buttons and nubs, d-pad etc in either black or silver/grey with this file?
    Pretty please?


    levi likes this.
  13. Kiga

    Kiga Active Member

    Joined:
    Dec 5, 2013
    Messages:
    640
    My i3 pc is too slow :eek: but  I'd like
    1-black/blackbuttons,
    2-anthracite/blackbuttons,

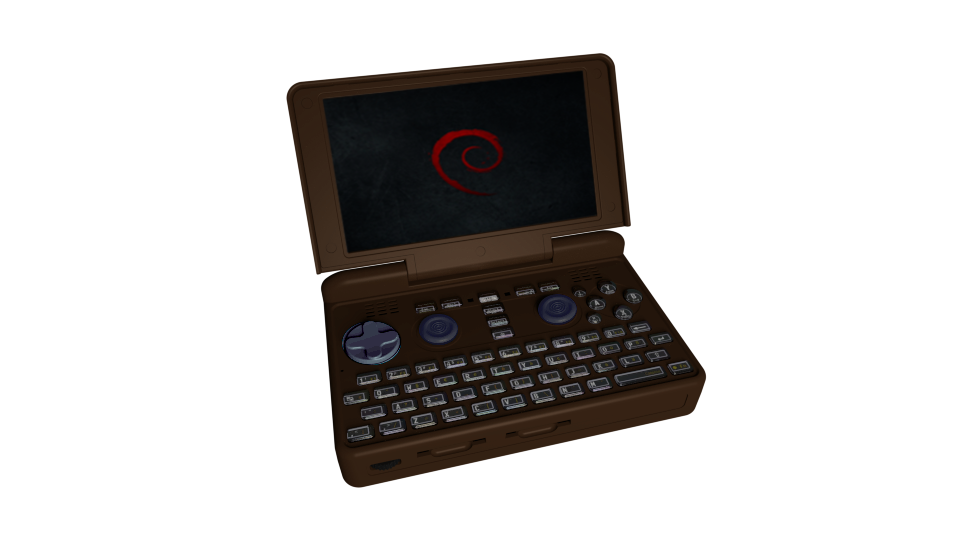

    3-brown(like the image in spoiler)/blackbuttons.

    [​IMG]

    Last edited by a moderator: Oct 11, 2015
  14. FelixNemis

    FelixNemis Member

    Joined:
    May 15, 2012
    Messages:
    279
    It's missing the image texture for the keypad labels. The screen also seems to be missing an image.

  15. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,700
    Location:
    Ingolstadt
    Ah, they're not embedded into the Blender file then?
    Okay, I can upload them later.

  16. FelixNemis

    FelixNemis Member

    Joined:
    May 15, 2012
    Messages:
    279
    Sweet

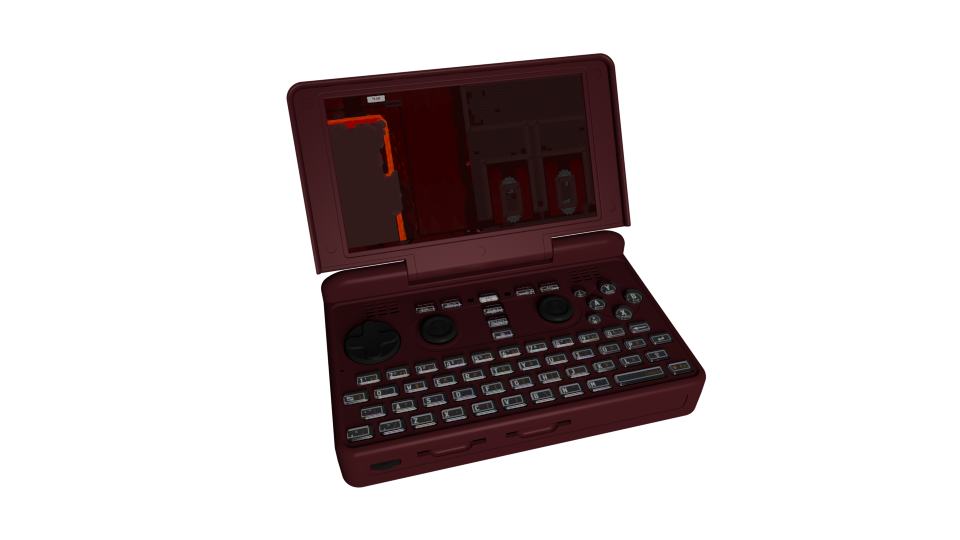

    In the mean time here's a quick render (15 minutes) with a poorly aligned keymat


    levi likes this.
  17. Faust

    Faust Very Active Member

    Joined:
    Sep 7, 2015
    Messages:
    369
    Location:
    France
    Thanks pal,

    I can open it with Gimp now, I'm not a blender guy.

    Last edited by a moderator: Oct 11, 2015
  18. Faust

    Faust Very Active Member

    Joined:
    Sep 7, 2015
    Messages:
    369
    Location:
    France
    Last edited by a moderator: Oct 12, 2015
  19. rygD

    rygD Nihilistic Mystic

    Joined:
    Feb 28, 2014
    Messages:
    7,343
    Location:
    Everywhere
    I think a few of us want the case like this.  Dark red case with black or dark grey buttons is one of my top choices.  I think the pic FelixNemis made of this combination looks pretty good.

  20. Kiga

    Kiga Active Member

    Joined:
    Dec 5, 2013
    Messages:
    640
    D-pad and nubs in a different color looks weird to me.


    Thank you, what tools did you use to change colors?

    Last edited by a moderator: Oct 11, 2015
