Openpandora has no sound

Discussion in 'Support Area' started by Glenn Doiron, Apr 19, 2019.

  1. Glenn Doiron

    Glenn Doiron Newbie

    Joined:
    Apr 19, 2019
    Messages:
    4
    Symptoms: Openpandora audio stopped working a few weeks ago. Occasionally, produces static. Just found the time to look at it. First checked the audio jack, no sound from it either.

    Checked U12.1, digital signal present.
    Checked U12.2, no signal present -> Checked U21.19, no signal present (as expected) -> Checked U21.5, digital signal present (1.8V peak-to-peak with abundant over/undershoot).

    Ordered a new SN74AVC8T245 (likely culprit) and PCM1773PW (just in case the bus buffer isn't the problem.)

    Tags:
  2. Linux-SWAT

    Linux-SWAT Hardcore Member

    Joined:
    Feb 13, 2010
    Messages:
    8,181
    Please take photos/videos when doing the surgery !

  3. Elw3

    Elw3 ƐʍlƎ

    Joined:
    Jul 21, 2013
    Messages:
    933
    Inb4: You take it appart and its a Software problem.
    Make sure its not because starting with a first post claiming to take it appart leaves me with the impression that you have no idea what you are doing.
    Flashing/SDbooting is the first step for every problem.

  4. Glenn Doiron

    Glenn Doiron Newbie

    Joined:
    Apr 19, 2019
    Messages:
    4

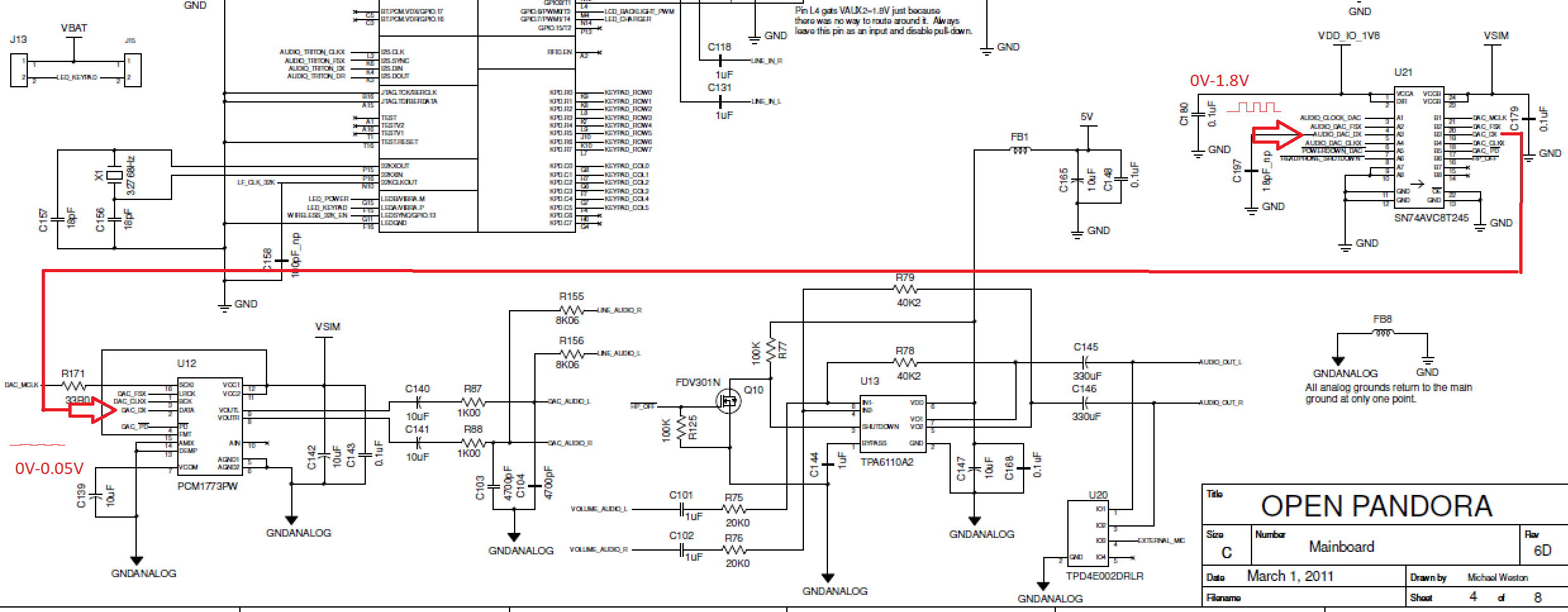

    Here's the circuit in question, along with my observances on my oscilloscope. The SN74AVC8T245 is not under software control. It is being used as a buffer, and OE* is hardwired to ground , and DIR is hardwired to VCC. Therefore, I expect all signals at port A to be output to port B. There is also the possibility that there is a short to ground inside U12, which is why I also ordered a PCM1773PW.


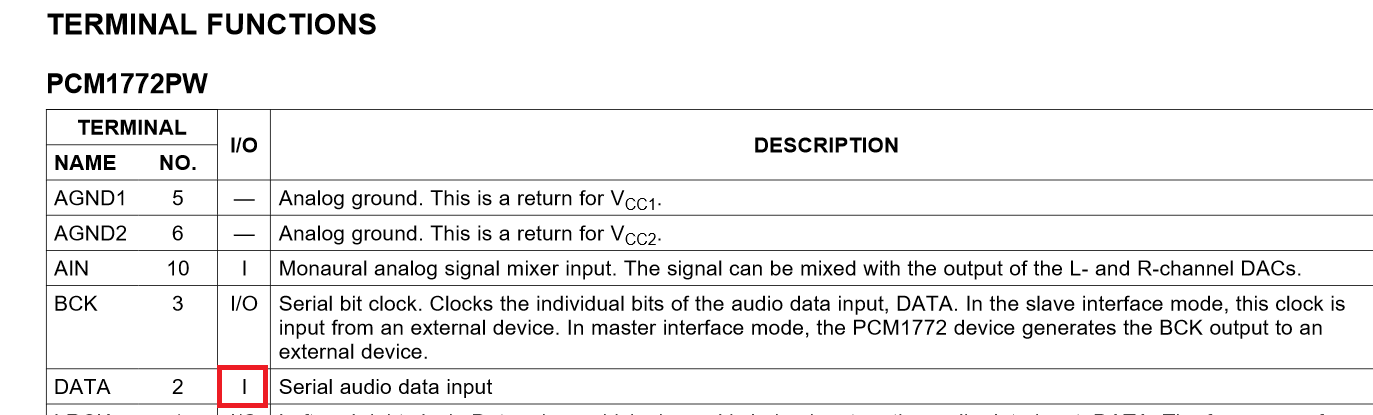

    The datasheet for the PCM1773PW indicates that this particular line is an input only, and cannot be misconfigured by software as an output. Therefore, software CANNOT be responsible for the attenuated signal. In fact, the signal could be completely flat, with what I was seeing being crosstalk from an adjacent signal line.

    Swordfish II and FBnil like this.
  5. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    10,852
    Location:
    Somewhere off the coast of the EU
    He's already taken it apart; how else does he get the oscilloscope probes in?

  6. Elw3

    Elw3 ƐʍlƎ

    Joined:
    Jul 21, 2013
    Messages:
    933
    Did you just grammar nazi an inb4 line?

  7. levi

    levi Still fresh, damnit!

    Joined:
    Oct 6, 2008
    Messages:
    10,852
    Location:
    Somewhere off the coast of the EU
    I didn't even mention the misspelling or the errant capitalisation OR the missing apostrophe; I am no grammar nazi. I do withhold the right to be pedantic though.

  8. FBnil

    FBnil Ready to Champion the Pyra to the World...

    Joined:
    Dec 14, 2012
    Messages:
    2,651
    Location:
    Yurp
    To attenuate the tension in this thread, I present you a video with dense information and high yield.

    levi likes this.
  9. Glenn Doiron

    Glenn Doiron Newbie

    Joined:
    Apr 19, 2019
    Messages:
    4
    Sound is now working. U21 was the only IC that needed to be replaced.

    FBnil, Linux-SWAT and Eight Bit like this.
  10. FBnil

    FBnil Ready to Champion the Pyra to the World...

    Joined:
    Dec 14, 2012
    Messages:
    2,651
    Location:
    Yurp
    @Glenn Doiron That's just awesome! Fixed on the 1st try! (self supported)

  11. Glenn Doiron

    Glenn Doiron Newbie

    Joined:
    Apr 19, 2019
    Messages:
    4
    Just FYI, my cheapass Chinese heat gun did not get the IC hot enough to extract it, and preheating the board was not an option (nubs are on the bottom side and would probably be melted with a board preheater). This is less the fault of the heat gun, more the problem with having copper plane layers to soak up the heat and dissipate it. I ended up carefully sawing through all the legs which did not have a trace exiting from them or connected to an obvious visible copper pour (with a hobby knife); this allowed me to remove the IC with the heat gun. Wick up the pads with braid, clean them up with alcohol, and install the new IC with no-clean flux solder.

    FBnil and Linux-SWAT like this.
