    This will just be a pretty quick blog post without much explanation or anything else (more will follow soon :) )

    Finally, we received the missing datasheet for the driver IC as well as some other needed documentation, and shortly after, Nikolaus managed to do the following:

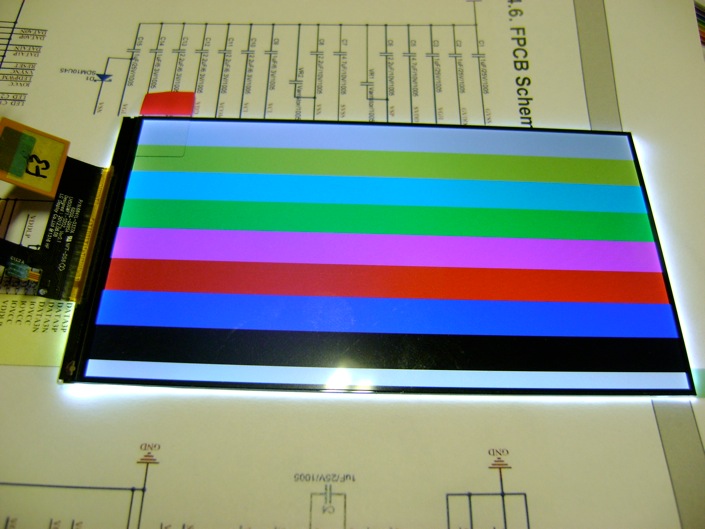

    Now, before you are getting excited:

    This is NOT a picture from the Pyra devboard.

    It is a built-in test pattern from the driver IC.

    However, it means that the LCD is now properly initialized - now we're talking ;)

    Shortly after however, Nikolaus managed to do this:

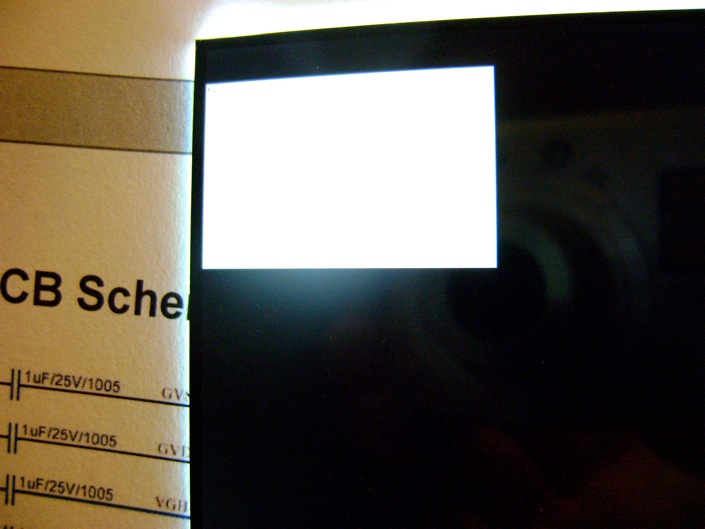

    This doesn't look spectacular, I know. It looks like a white box on a black screen.

    However, it isn't.

    It's actually an X server with a white xterm window.

    If you look careful, you can see a tiny symbol in the top-left corner of the LCD - that's the shell waiting for input.

    It's very very small (well, FullHD on 5"...) and the camera is a bit overexposed.

    But yes, that does mean: We've got the LCD running on the devboard.

    Now you can get excited.

    I don't have the hardware PCB at home right now to connect the display myself yet, so I can't do any more pictures.

    However, as soon as I get an updated version from Nikolaus, I'll do pictures and videos.

    Now it's fullspeed ahead mixing the components further together :)



    Last edited by a moderator: Mar 6, 2014
    Tags:
    Super Roach, Agrajag, FBnil and 10 others like this.
  2. ekianjo

    ekianjo Hardcore Member

    Joined:
    May 7, 2012
    Messages:
    8,261
    Location:
    神戸市、日本 (Japan)
    Nice update :)

  3. xiongxioi

    xiongxioi Member

    Joined:
    Feb 13, 2012
    Messages:
    434
    The screen looks rather good in photo, I wonder if it can stand up against more main stream ones.

    It's good to know the bugs are getting worked out, I hope Pyra will go into production soon.

  4. TrashyMG

    TrashyMG Sarcasm Dispenser Staff Member

    Joined:
    Jan 18, 2010
    Messages:
    10,429
    It's the same screen as the nexus 5.. that isn't mainstream enough?

  5. Saber

    Saber Advanced Member

    Joined:
    Jan 23, 2012
    Messages:
    1,303
    Great progress ED and Nikolaus.

  6. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    19,624
    Location:
    Ingolstadt
    Apparently, it was probably PLANNED to be the screen used to be in the Nexus 5... we recently got a Nexus 5 in our hands and it uses a different screen.

    Maybe this one wasn't finished in time...?

  7. Hồng Thất Công

    Hồng Thất Công Đả Cẩu Bổng Pháp

    Joined:
    Dec 19, 2012
    Messages:
    4,377
    Location:
    Cái Bang
    I thought we want to get away from mainstream :p .

    Nice progress ED!  Pyra wil be for sale in Two Monthstm

    Kevin Osuna likes this.
  8. Fzero

    Fzero Advanced Member

    Joined:
    Mar 9, 2010
    Messages:
    4,702
    ha! I was jokingly thinking the same thing... this is progress... 2 months more and I'll have a Pyra :)

    Good news though ED, cheers for the update and snaps

  9. budweiser

    budweiser GP32 Hardcore

    Joined:
    Nov 22, 2006
    Messages:
    580
    Location:
    Arizona
    Awesome , thanks for keeping us in the loop .... Bud

  10. comradekingu

    comradekingu Glowing ember

    Joined:
    Apr 15, 2011
    Messages:
    4,935
    Nicholaus and ED, you are truly amazing people, thank you.  Just wanted to take the opportunity to say you are very appreciated.

    Last edited by a moderator: Mar 6, 2014
    Binky and szr like this.
  11. Exophase

    Exophase Nothing good will ever come of Exophase.

    Joined:
    Sep 21, 2006
    Messages:
    10,308
    Location:
    Cleveland OH
    Congrats.

  12. rand

    rand Member

    Joined:
    Oct 6, 2012
    Messages:
    235
    WOOOOOOOOOOOOOOOOO. My wallet is ready.

    FBnil likes this.
  13. kasp

    kasp Very Active Member

    Joined:
    Oct 18, 2010
    Messages:
    494
    Now that the screen is done I don't see it taking any more than 8 weeks tops. :D

    Last edited by a moderator: Mar 6, 2014
  14. bzar

    bzar A Commando

    Joined:
    Sep 22, 2008
    Messages:
    4,441
    Location:
    Finland
    Coming soon: Hellollo-video? ^_^

    Nice progress :)

    moxie and Kevin Osuna like this.
  15. ekianjo

    ekianjo Hardcore Member

    Joined:
    May 7, 2012
    Messages:
    8,261
    Location:
    神戸市、日本 (Japan)
    It would be good to finish everything else first.

  16. _wb_

    _wb_ Microbe Staff Member

    Joined:
    Apr 5, 2012
    Messages:
    5,387
    Location:
    Brussels, Belgium
    Well done!

    I like this steady progress. What is the next problem to tackle?

  17. Linux-SWAT

    Linux-SWAT Hardcore Member

    Joined:
    Feb 13, 2010
    Messages:
    8,173
    A xterm is ok enough, give GC the go.

  18. ekianjo

    ekianjo Hardcore Member

    Joined:
    May 7, 2012
    Messages:
    8,261
    Location:
    神戸市、日本 (Japan)
    not just proble,s I think; but undefined/untested things a tthis stage:

    - keyboard mat

    - bakclight

    - case (not finished/molded)

    - logo

    - probably tons of other things (the devil is in the details)

  19. kulpae

    kulpae Still Fresh

    Joined:
    Sep 6, 2010
    Messages:
    14
    Location:
    Bremen
    awesome, that looks promising! good work!

  20. SiegfriedCroes

    SiegfriedCroes Game Developer | Pixel Artist

    Joined:
    Dec 30, 2008
    Messages:
    416
    Location:
    Belgium
    Quite a while I posted here ^^'

    Great progress! Can't wait for some photos and videos :D
