It's all white!

Discussion in 'Pyra News' started by EvilDragon, Jul 13, 2017.

  1. EvilDragon

    EvilDragon Administrator Staff Member

    Joined:
    Mar 4, 2003
    Messages:
    18,952
    Location:
    Ingolstadt
    As there were recent news about the PGS and the SmachZ, I thought it's time to finally tell you that I've scammed you all as well :D

    Naaah, just kidding.
    There are two reasons it took so long from the last one to this newspost:
    1. Like you, we were mostly playing the waiting game: Waiting for parts I ordered (to test cooling solutions) or waiting for new samples (like the keymat).
    2. I've been busy with a lot small tasks and setups that I didn't find the time to summarize everything up and post it.

    Well, now's the time to do it :)

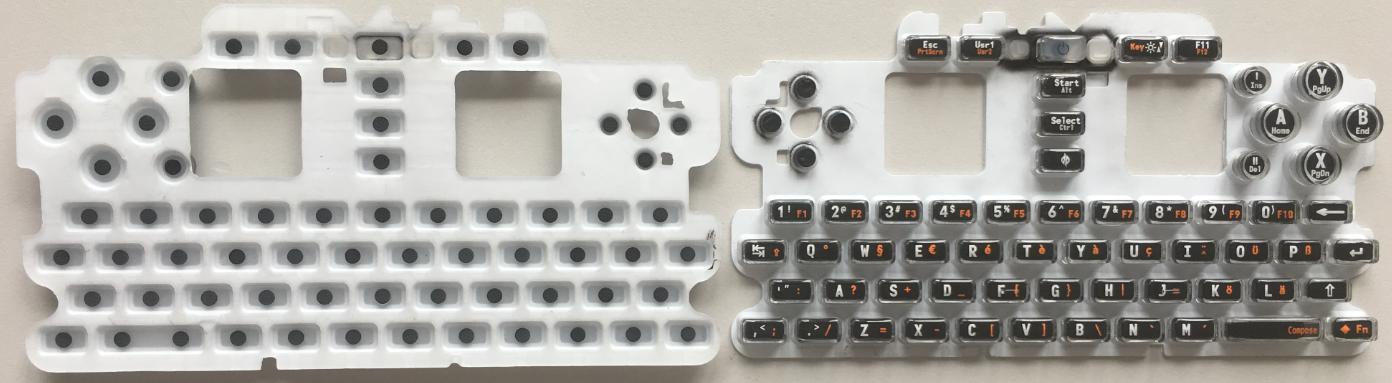

    Regarding the keymat:

    The new samples have arrived in Austria two days ago and are already on the way to me, together with the new DPads.
    This will probably the final one!


    And yes, it's all white!

    Why? Here's the answer:
    You probably remember that we need multiple colors for the keymat: White, orange and black.
    The lowest layer was the white one (to diffuse the backlight), then we had black on top and the orange only on the keys.

    These two paint layers made the keymat thick and very stiff.
    So it was modified to only have one full layer of paint (the black one) and the white and orange one just on the keys.

    That made the keymat work perfect (it's the one that's currently making the rounds in the community) - but with the white layer missing, the backlight wasn't as nice as before (some keys received more light than others).

    The simple solution was to put the white paint onto the full keymat and black and orange only on the keys where needed.

    Easy change, huge improvement.
    I'll let you know about the DPad as soon as I receive the keymat for testing :)


    All the small things I did...

    I'll try to remember all the small things I did...

    First some good news:
    I didn't plan to include an AC Adaptor, but I found a good one with 2,5A and world-wide plugs for a good price. So you will most probably receive an AC Adaptor with your Pyra!

    Shoulder buttons

    Then I was working on the shoulder buttons. You know, they mostly worked on the latest case revision, but still not as good as I want them (which mostly has to do with tolerance issues).
    I wanted to make sure they get it right this time, so I grabbed the 3D data files to explain exactly how needs to be taken care of.

    It's simple and logical, but it still took some time to measure all of this and write it down.

    I think nothing can go wrong with these instructions now... but take a look at it, if you like:
    View attachment Shoulder Buttons Analysis.pdf


    Sealing

    Next, I was working on the sealing. The idea with the silicon pads was good in theory - but not working that well in reality.

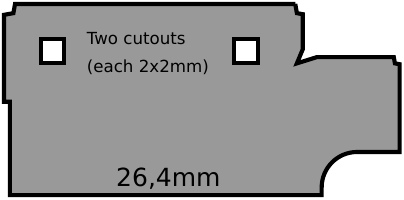

    It looks the only way to properly seal the speakers is with some pre-cut adhesive tape which seals everything except the contacts.

    Even though it looks simple, it also took a while to measure everything properly, to make sure it sits perfect. Here is the result:


    I will hand-cut this within the next few days to test it!


    Next up: Cooling solutions!

    Well, some good news first: ptitSeb has played around with his prototype a bit.
    The unit doesn't have ANY cooling solution installed.

    Doing processor-intensive stuff (like compiling) does heat up the unit quite a bit. That was to be expected, since it doesn't even throttle yet (unlike all smartphones or other devices with modern processors).
    It mostly heats up between the nubs though, the DPad and button area stays cool.

    And while doing normal stuff or playing games, the unit normally stays cool (unless the game needs 100% CPU...)

    Still, we want to throttle as little as possible, ideally never (which is unlikely though).

    So, a simple solution to cool things down a bit would be ideal, so I started sourcing existing parts.

    I've planned two things:
    1. Move the heat away from the CPU to some heatsink.
    2. Spread the heat and shield it from the battery.

    Regarding 1.:
    We've got 19x12x5mm space below the USB Port. There are existing 12x13x5mm heatsinks (for DDR RAMs) available. I also found a 12x18x5mm heatsink for power transistors, which would work as well.

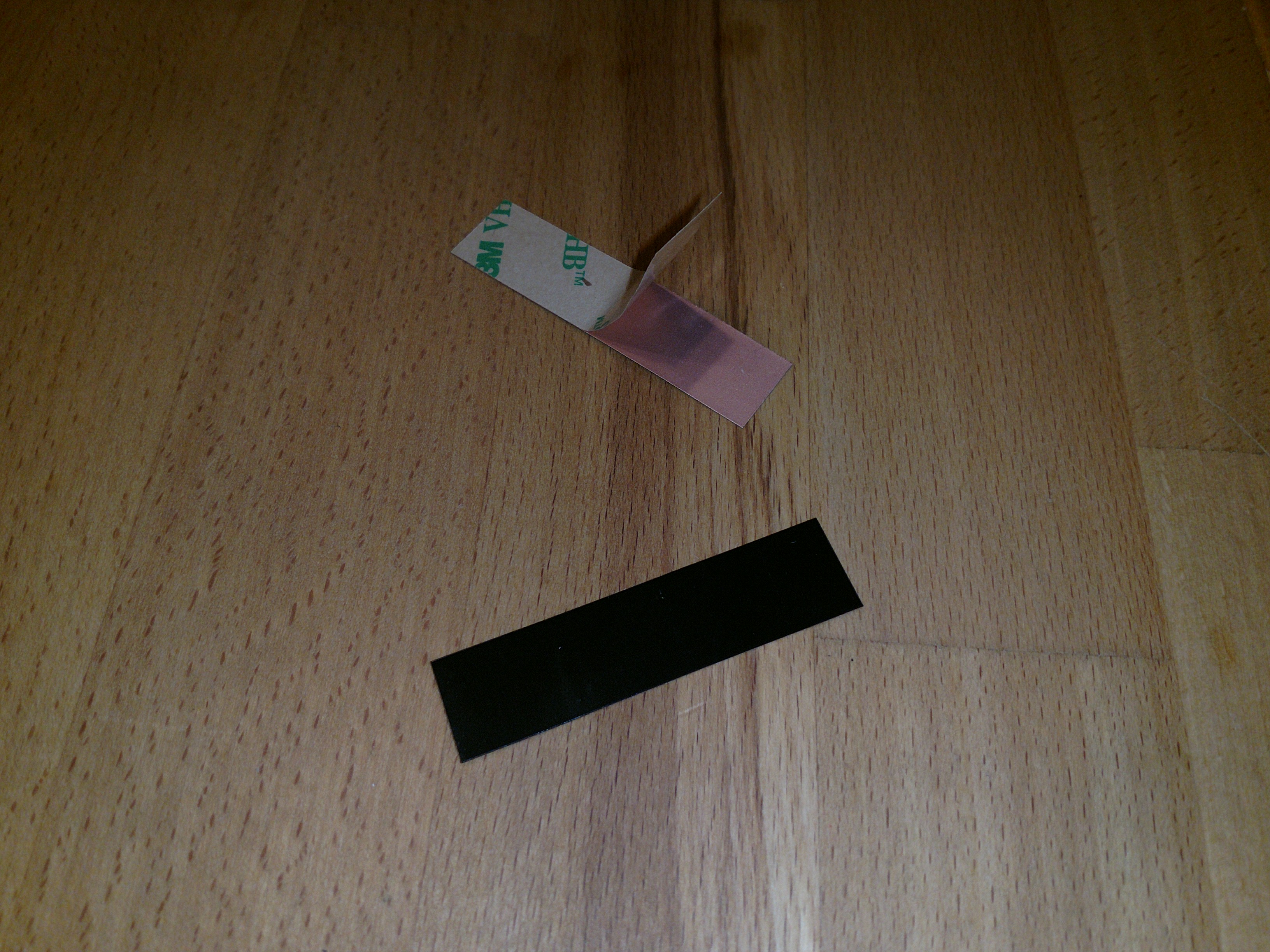

    I also found self-adhesive material stripes. These can go directly between the CPU and mainboard and move the heat away onto the heatsink (which is not far away).

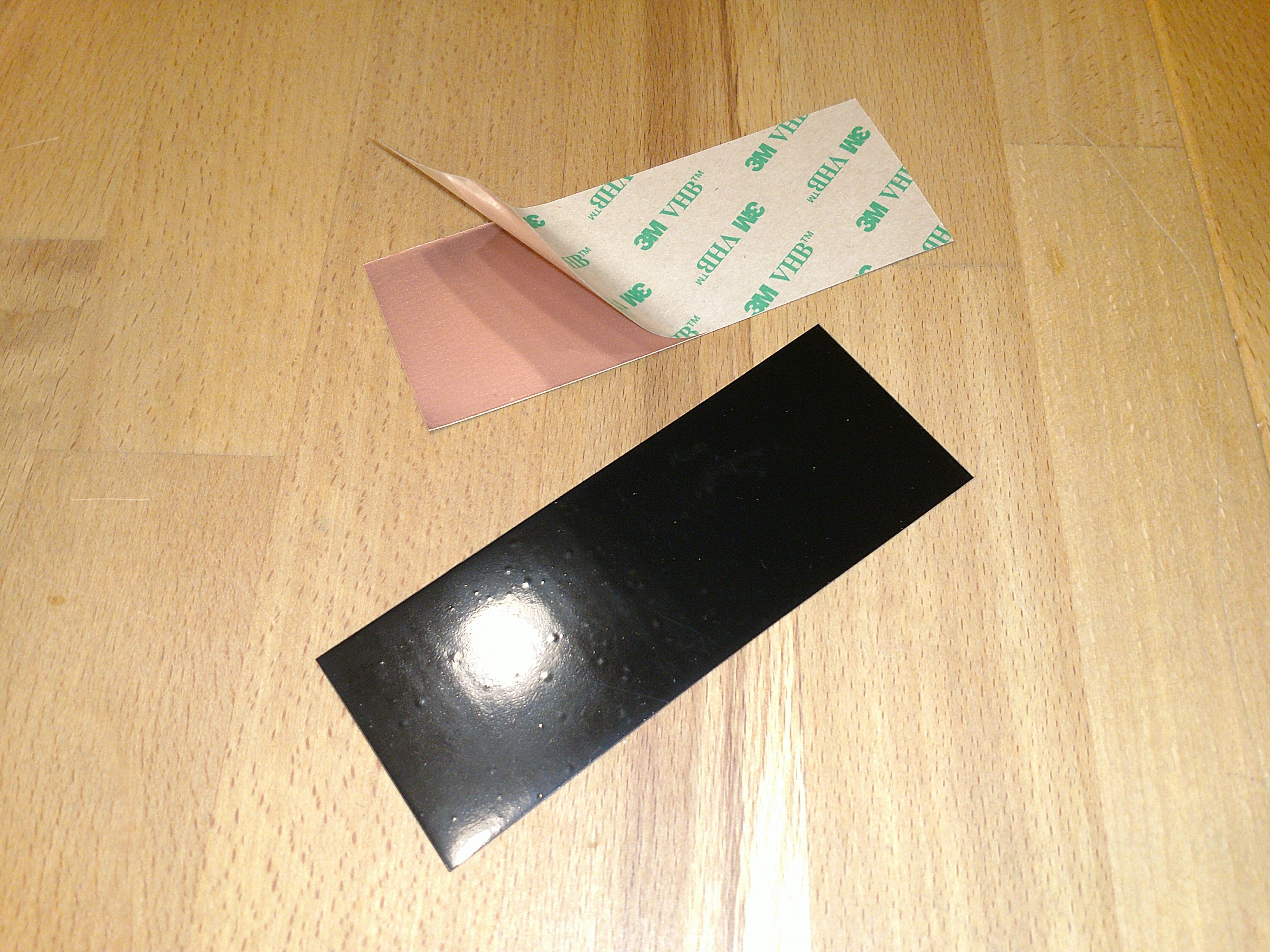

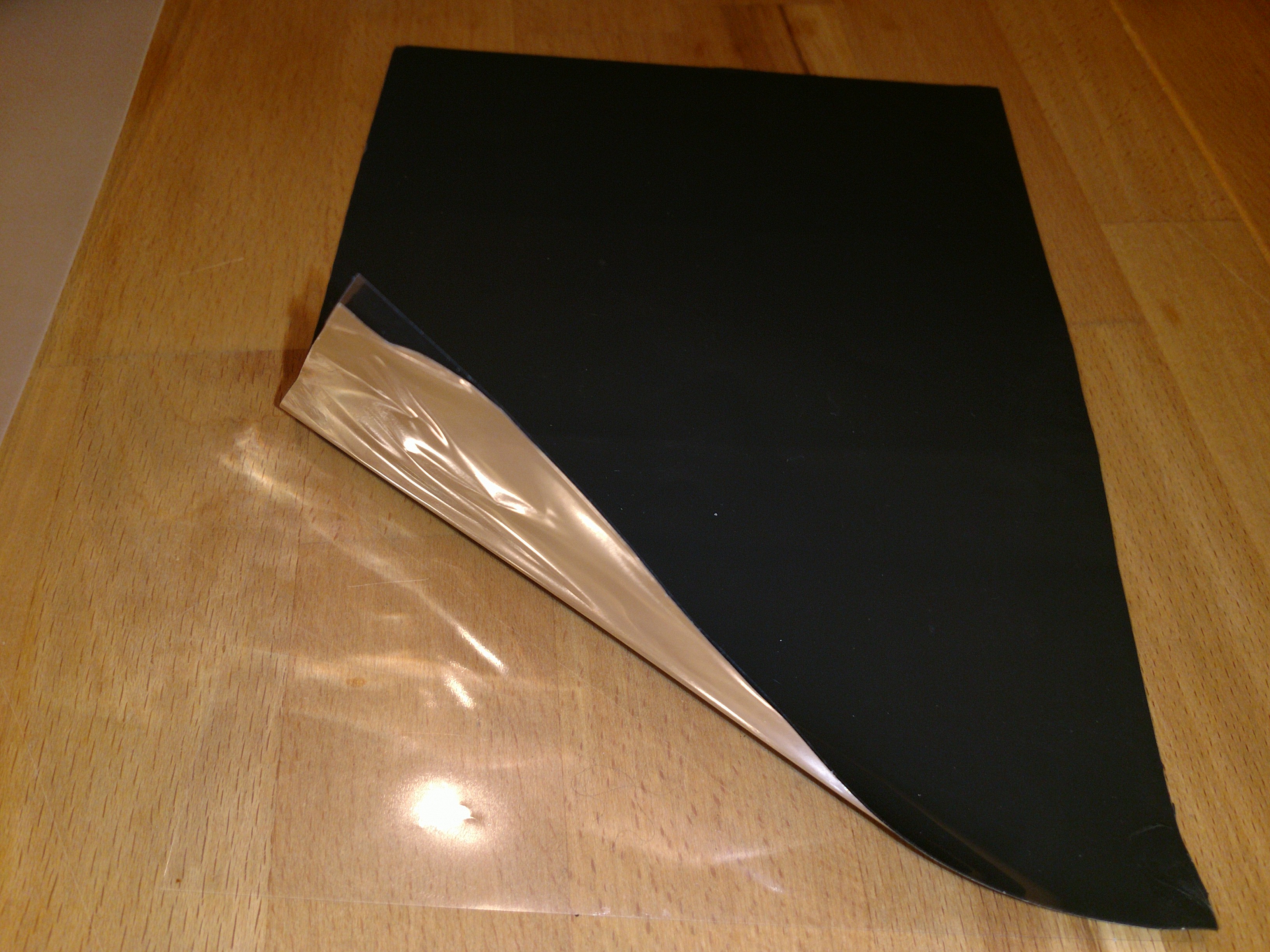

    A larger pad like these (also with copper material) can be used between the CPU board and the battery.

    IMG_20170713_020844.jpg IMG_20170713_021106.jpg

    We will also add a few venting holes below the USB port. No worries, the mold doesn't need to be changed for that - an inlay for the mold will be created for that.

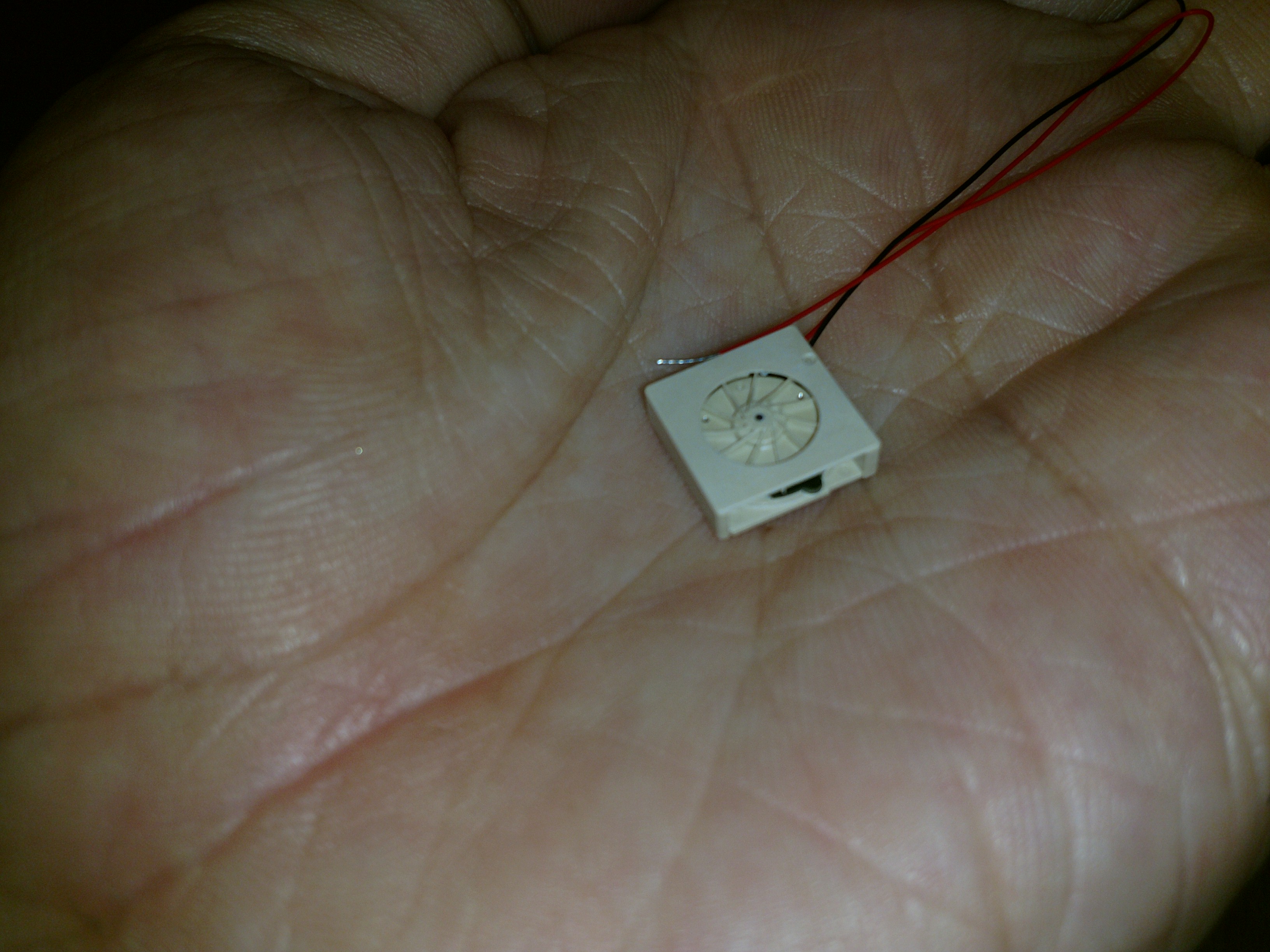

    I even found a small fan that fits there. While I'm not really planning right now adding one there, the case will be prepared for that in case future CPU boards might need one - or in case someone wants to mod a fan into his unit :)

    I got one, just for fun. Isn't it cute? :)

    For normal operation, the heatsink solution should work fine.

    I've got all parts except for the heatsink yet. As soon as that one arrives, I'll assemble one unit with all these changes and see how well it works.

    As these are ALL existing parts and nothing custom made, we can get them without any problems within a few days :)


    And finally: Software development

    Since a few devs have now units, it was time to organize the software development and set up a proper platform for that.
    Therefore, I've installed GitLab on our dev site: https://dev.pyra-handheld.com/

    You'll find the gits for all our custom debian packages there as well as the kernel, the source code to the repo and more stuff.
    It also has an issue-tracker built-in, so once the Pyra has been released, you can use it to post any issues you find or post feature requests.

    You can also join projects and provide patches as well.

    Everyone is welcome to help - check #dragonbox-dev and #dragonbox-pyra on Freenode IRC if you're a dev and want to help!
    Not all tasks require a unit.


    Kernel-Hackers welcome!

    While help with the OS is important, it's also important that drivers are being written for all the hardware.
    For example, the battery monitor chip needs to be programmed so that it knows everything about our battery, the ABE drivers would need to be ported from an older kernel the the current one and so on.

    Anyone here who has experience with that? Please do contact me if you have experience and do have time!


    So, that's for todays post.
    I probably have forgotten half of what I did - but simply ask questions in case something is unclear or you want to know something else.

    Tags:
  2. gotwake424

    gotwake424 Member

    Joined:
    Apr 2, 2011
    Messages:
    371
    Get some vacation ED!
    Thanks for the update

    waGL, Pyramancer and zedr0k like this.
  3. Arkay Firestar

    Arkay Firestar Member

    Joined:
    Apr 28, 2010
    Messages:
    166
    Thank you for the update and all your hard work.

    BEGGING you to please not make a fan a requirement. Fans are a deal breaker for me on so small a device. First thing to fail, always. Nice to see there's a heat sink solution.

    FBnil likes this.
  4. Jumpman

    Jumpman Advanced Member

    Joined:
    May 20, 2006
    Messages:
    2,936
    Location:
    Sin City
    Looking good ED, can't wait. So 2 more months then?

    Sorry, I couldn't resist. LOL

    Chris

    FBnil, rygD, Alpibrine28 and 2 others like this.
  5. vcoleiro1

    vcoleiro1 Hardcore Member

    Joined:
    Jan 23, 2011
    Messages:
    3,948
    I'm going to take a rough guess and say Q1 2018. Hopefully thats an over estimate

  6. TrashyMG

    TrashyMG Moderator Staff Member

    Joined:
    Jan 18, 2010
    Messages:
    9,981
    It likely will be optional as if I'm not mistaken, those fans unless bought in bulk cost around 20-30EUR each depending on the model. I guess the price to make something that small, the one I was looking at was 15mm and 3mm thick... super small.

    rygD likes this.
  7. JDTAY

    JDTAY Active Member

    Joined:
    Sep 15, 2015
    Messages:
    99
    Location:
    North Carolina, USA
    Good job on the whatever it is you just did, ED. I'm sure Pyra is inching ever closer.

    Why, at this rate... Oh darn, Jumpman beat me to my punchline. >_>

    FBnil and rygD like this.
  8. Silent-Hunter

    Silent-Hunter Advanced Member

    Joined:
    May 29, 2010
    Messages:
    2,408
    I'm still optimistic that it'll come out in a month or three.

    rygD, ClockworkCoder and erico like this.
  9. 0x14f

    0x14f Still Fresh

    Joined:
    Oct 19, 2016
    Messages:
    51
    Cool. Literally :).

    waGL, rygD and Pyramancer like this.
  10. elwing

    elwing Rabbit Addict

    Joined:
    Feb 23, 2009
    Messages:
    3,027
    Confirmed, pyra will be gas powered using a small turbine as seen in Ed's hand! :D

    FBnil, rygD, ssokolow and 2 others like this.
  11. Askarus

    Askarus Advanced Member

    Joined:
    Sep 28, 2011
    Messages:
    3,968
    Location:
    Germany
    Honestly, I wouldn't worry too much about that.
    Compared to how hot phones get these days including their battery heat should not be a huge deal for batteries.
    My HTC Desire Z gets hot when using it for car navigation in sunlight that I can barely touch it.
    It even has a metal battery lid and uses it as a heatsink.

    And think business: Pyra has a removable battery. People can get a new one if the old one gets damaged after some time.
    Planned obsolescence is the keyword ;)

    rygD and Kev2442 like this.
  12. slaeshjag

    slaeshjag ¯\_(ツ)_/¯

    Joined:
    Apr 8, 2010
    Messages:
    2,665
    Location:
    ~Stockholm, Sweden
    Heat kills batteries.
    The CPU fan died in my EEEpc 901, within a a year, the battery life was down from 4 hours to 5 minutes.

  13. elwing

    elwing Rabbit Addict

    Joined:
    Feb 23, 2009
    Messages:
    3,027
    Most phones are designed to last two years top too... Obviously Ed won't be able to do miracles for the heat but trying to improve the situation is a good idea..

    ClockworkCoder and Kippykip like this.
  14. Inqui

    Inqui Member

    Joined:
    Jun 4, 2014
    Messages:
    84
    Location:
    NRW
    So what happend to the plans to do the case production before the greek holidays begin ?
    Thats not that far to go anymore

    rygD, dTal and Djoga'Ro like this.
  15. TrashyMG

    TrashyMG Moderator Staff Member

    Joined:
    Jan 18, 2010
    Messages:
    9,981
    Was that actually stated?

  16. Silent-Hunter

    Silent-Hunter Advanced Member

    Joined:
    May 29, 2010
    Messages:
    2,408
    I thought it was, but I'm not sure.

    rygD and el joker like this.
  17. Grench

    Grench Forum Addict!

    Joined:
    Oct 3, 2008
    Messages:
    5,094
    Updated SoC board status?

    rygD, dTal and ClockworkCoder like this.
  18. error

    error Member

    Joined:
    Oct 22, 2012
    Messages:
    50
    Location:
    Dallas, TX, USA
    Do we need an AC adapter? Everything charges from USB these days. All the electrical outlets in my house are fitted with USB ports now.

  19. slaeshjag

    slaeshjag ¯\_(ツ)_/¯

    Joined:
    Apr 8, 2010
    Messages:
    2,665
    Location:
    ~Stockholm, Sweden
    If you don't have a 2+ Ampere power supply and a top-quality USB cable, it'll be possible to drain the battery with the charger plugged in.

    Neelix, ssokolow and ClockworkCoder like this.
  20. Letalis Sonus

    Letalis Sonus Very Active Member

    Joined:
    Mar 5, 2009
    Messages:
    872
    ...and set your house on fire. There's been enough cases of cheap chargers and cables catching fire due to not being capable of properly handling so much Amperage.

    ssokolow likes this.
